TST-C1006A foam material mechanical properties tester-foam tensile testing machine

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TST Instruments
Model Number:
TSI006A
Power:
Electronic
Usage:
Tensile Testing Machine
applied range:
metal,plastic,rubber,fabric,leather etc
usage:
mechanical properties test
max capacity:
2000N
max stroke:
1100 include clamp
drive method:
NSK ball screw drive
force sensor:
CELTRON
control method:
computer with special material test software
force resolution:
1/10000
accuracy:
indicating value±0.1%(20~100%FS).
tensile testing machine:
tensile strength test,foam tensile testing machine
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden package
Port
negotiation
Lead Time :
25 workdays

 advertise

Product Description





TST-C1006A Computer Singlecoloum Foam Material Mechanical Properties tester-  foam tensile testing machine



Application


Determination the various materials in tension, compression, bending, shearing,tearing, peeling, puncture and other state of the mechanical properties and physicalparameters.





Feather
1-The core device of this control system using the latest U.S. ultra-precision 24 AD, the sampling rate of 400 times / sec, full regardless of file indexing with the resolution of 100000. And using 3 points calibration technology to further improve the precision, accuracy of the forces gathering to national primary standard.



2-No error is plus or minus shift count. Direct input test parameters, all Chinese (or English) operator interface layers prompts, users can easily operate without manual.



3-Equipped with dedicated control software, real-time display force - displacement, force - time, displacement - time, stress - strain curves, automatic calculation of maximum force, yield strength, average power, maximum deformation, yield point, elastic modulus and other parameters, and has a flexible report editing and printing functions.


4-Automatic homing feature                                                                                                                        Overloads protected function can be set up

Various test methods are free to facilitate the series set by the program and can be permanently saved and can be called at any time


Technical Parameter



Max Capacity2000N
max stroke1100mm.(include clamps)
Drive methodNSK ball screw drive by servo motor
Control methodcomputer,special material test software
Force sensorCELTRON
Machine surfacestatic spray coating
Emergency stop,upper and lower limit protect
Force resolution1/10000
Force accuracyindicating value±0.1%(20~100%FS).
Displace resolution determine by the mechanical systems and optical encoder , generally up to 0.001mm
Test speed 0.01mm/min~500mm/min
Speed accuracy readout within ±1%
Unit shift force:kgf/N/lbf/kN/t;displacement:mm/cm/in/ft





Universal Tensile Testing Machine Series→



After service

One year guarantee period after installation and acceptance  check. We are   responsible for offering   accessories for free ( without  the personal factor and consumable factor or misoperation) and online service in one year and providing specific introduction.

If the breakdown caused by misoperation, we offer our quick-wear parts at our cost, and still offer our online service,we will supply the lifetime maintance.









Company Information

   A brand, An enterprise, A product all have a common name in TST.

TST  instrument (china) Co., Ltd. was established in March 2006, in cooperation with thr world's top test instrument PFI in Germany to jointly develop the production of physical testing instrument, R&D center is located in the Rheinland-Pfalz. All products imported from Germany to china production in two years, and brought in the Germany production technology , process, quality and teshnology to the Chinese factory successfully.

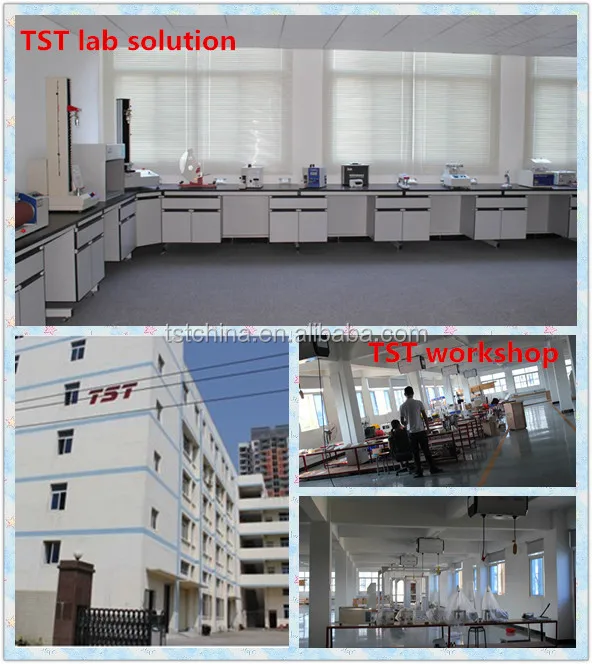

3.jpgfactory photos.jpgS8V5E(CI_66%(U`7A8_7.jpg
