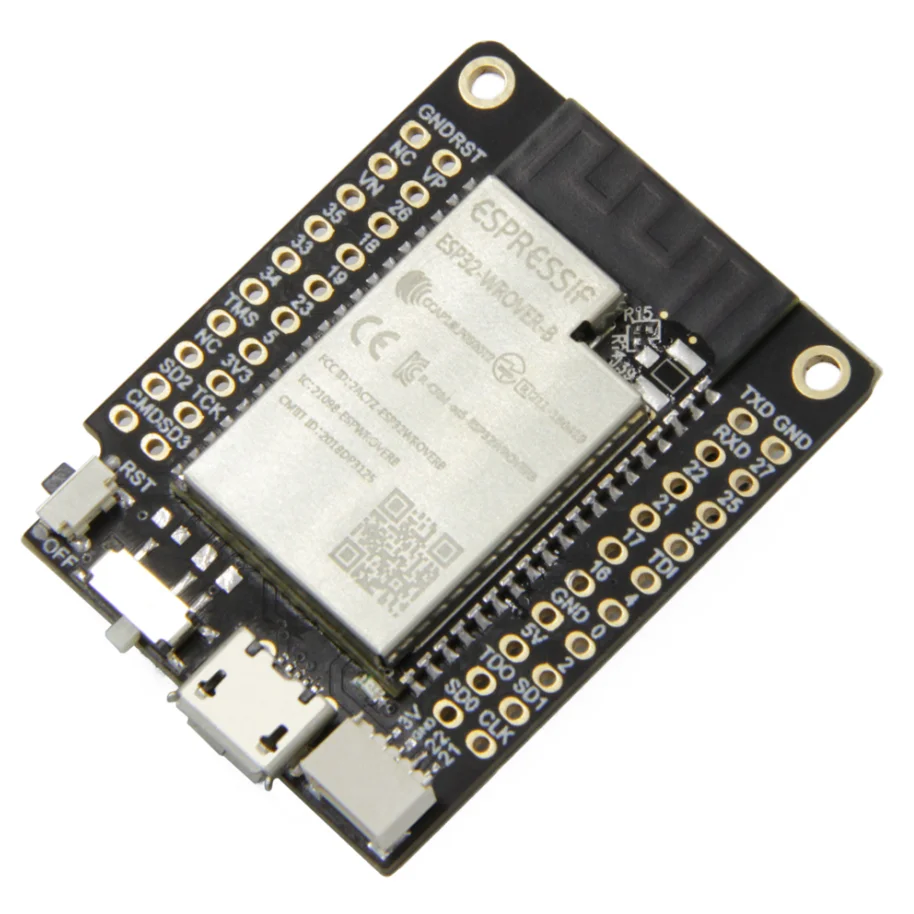

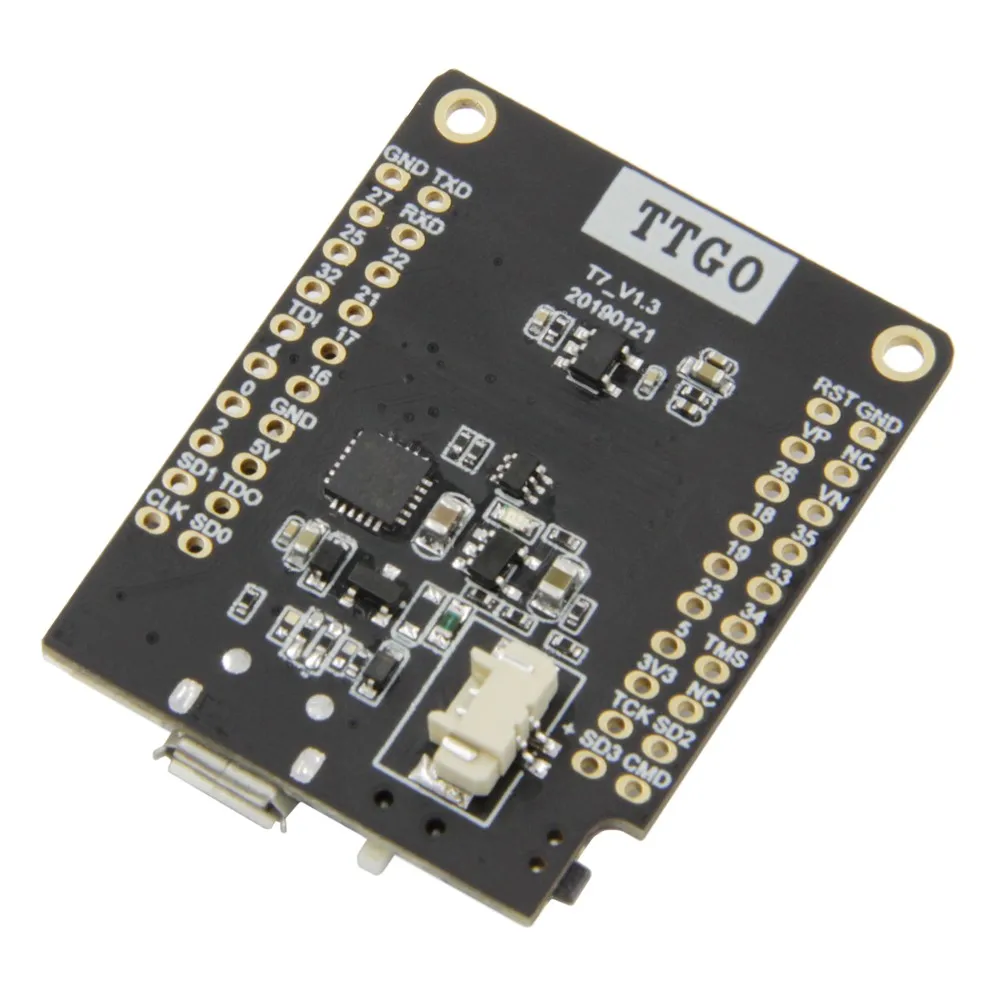

TTGO Mini32 ESP32-WROVER-B PSRAM Wi-Fi Bluetooth Module Development Board

  • 1-99 Pieces
    $7.51
  • 100-999 Pieces
    $7.00
  • >=1000 Pieces
    $6.60
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Need to be customized, please contact in advance (Min. Order: 1 Pieces)
Contact Supplier
Samples - $7.51 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
TTGO
Model Number:
H303
Product Name:
T7_V1.3
PSRAM:
8MB
Application:
ESP32-WROVER-B

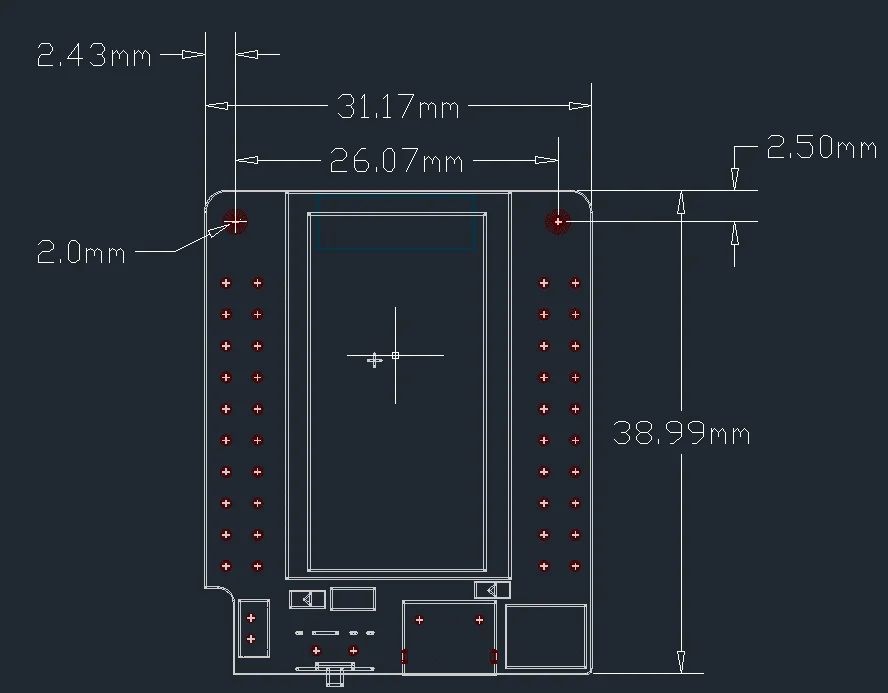

Size:
40.27*31.07*8.13mm
Weight:
6.42g
Condition:
Brand-new
Working current:
About 30mA
Sleep current:
About 10uA
USB to TTL:
CP2104

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X1 cm
Single gross weight:
0.02 kg
Package Type:
10*10*1CM(0.02KG)
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Description

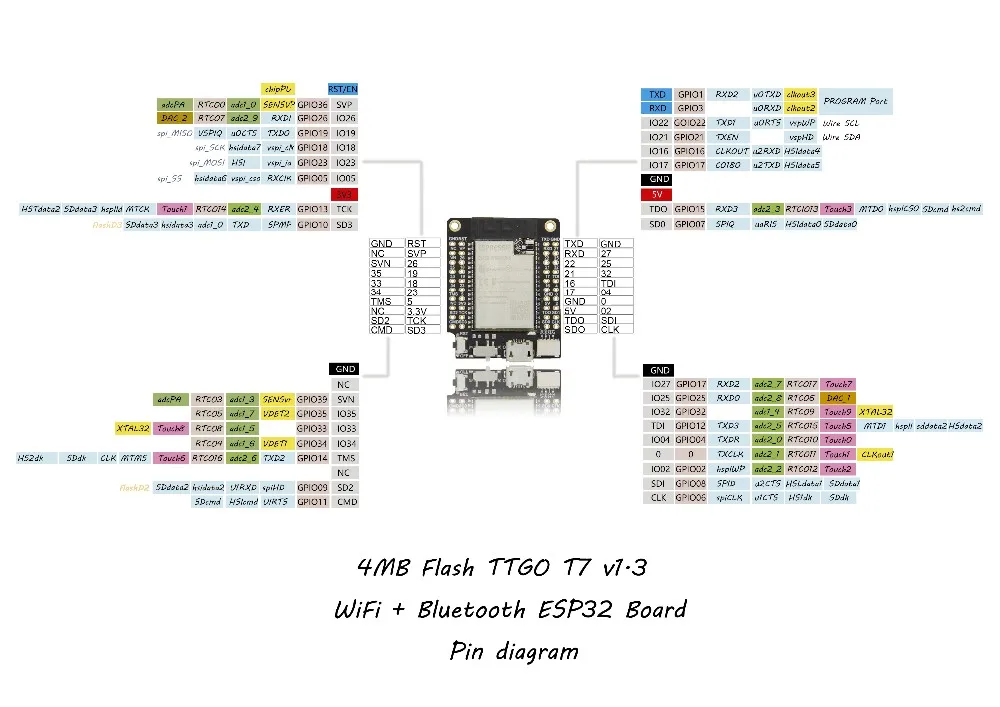

Hardware Specifications
Chipset
ESPRESSIF-WROVER-B 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH
QSPI flash 4MB / PSRAM 8MB
Modular interface
UART,SPI,SDIO,I2C,LED PWM,TV PWM,I2S,IRGPIO,capacitor touch sensor,ADC,DACLNA pre-amplifier
Working voltage
2.7V-3.6V
Working current
About 30mA
Sleep current
About10uA
Working temperature range
-40℃ ~ +85℃
Power Supply Specifications
Power Supply
USB 5V/1A
Charging current
500mA
Battery
3.7V lithium battery
JST
2Pin 1.25mm
Wi-Fi
Standard
FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol
802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Bluetooth
Protocol
meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency
with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Detail

USE SAMPLE

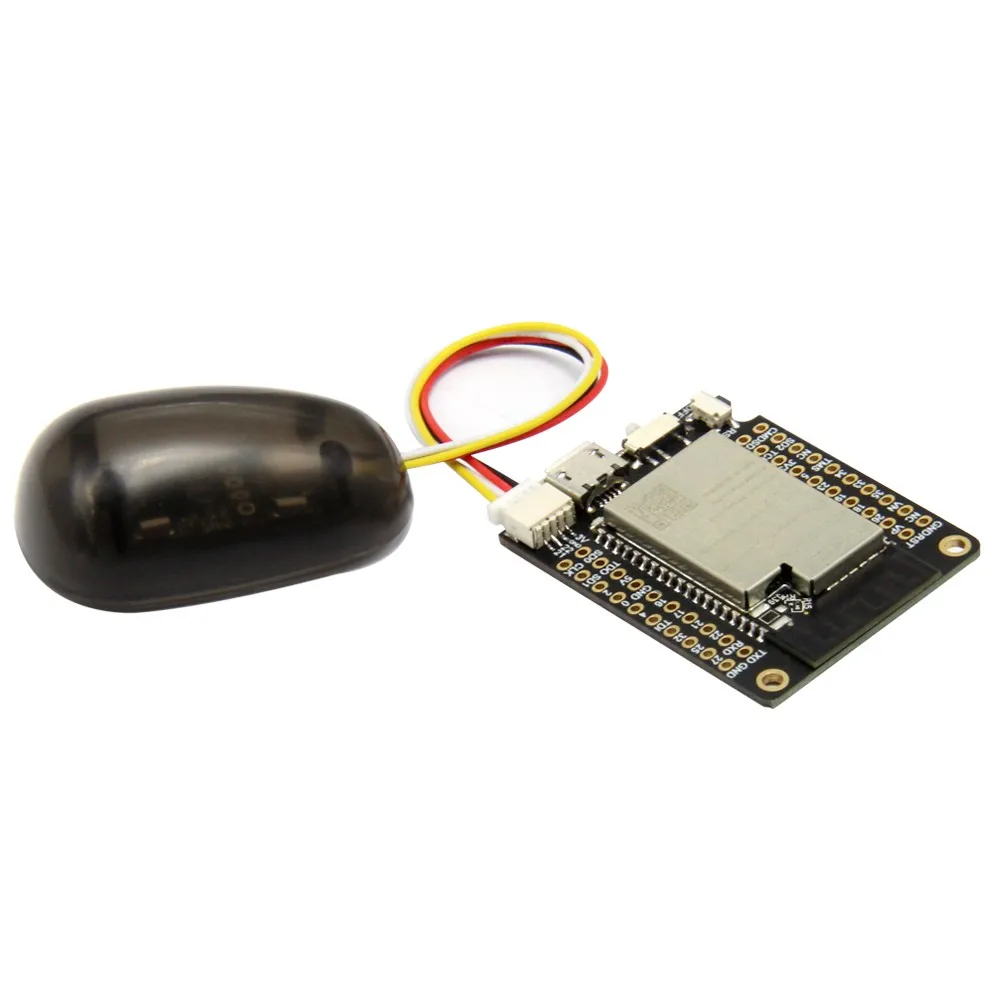

IR Controller Sensor

USE SAMPLE

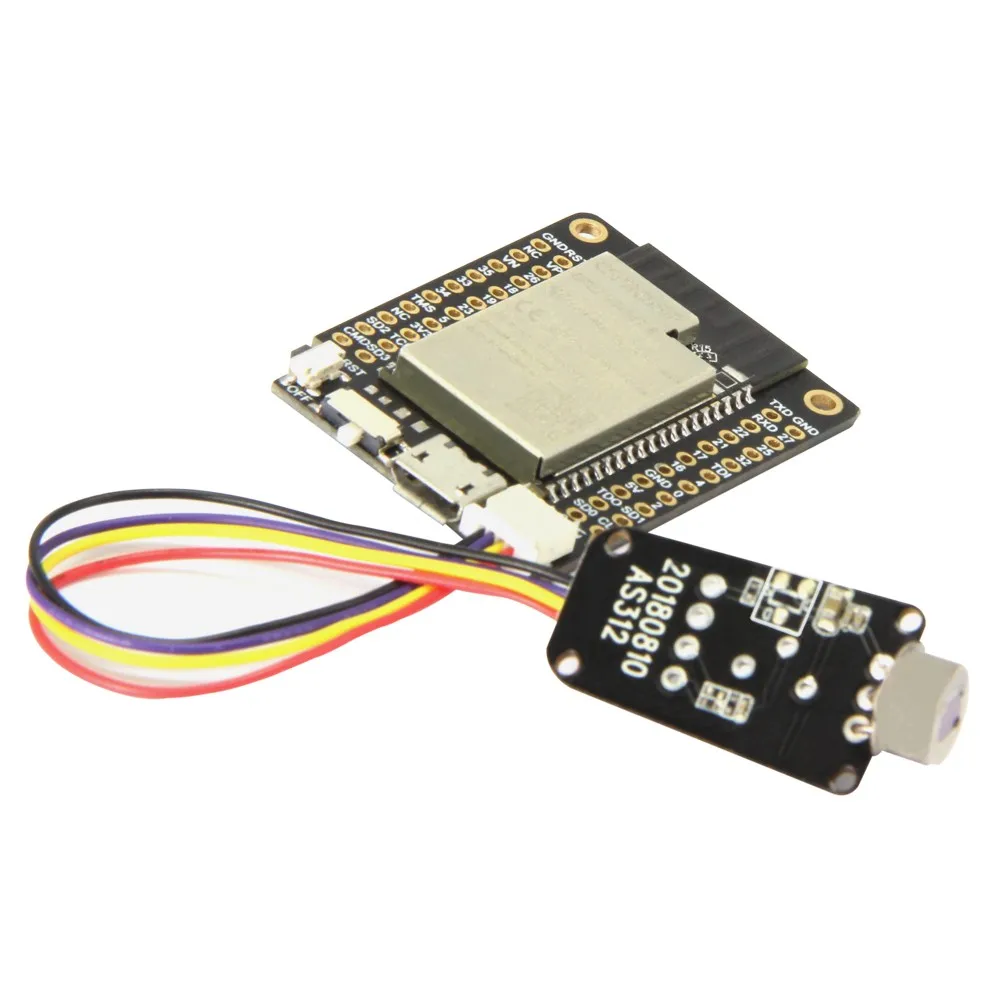

Infrared Sensor AS312

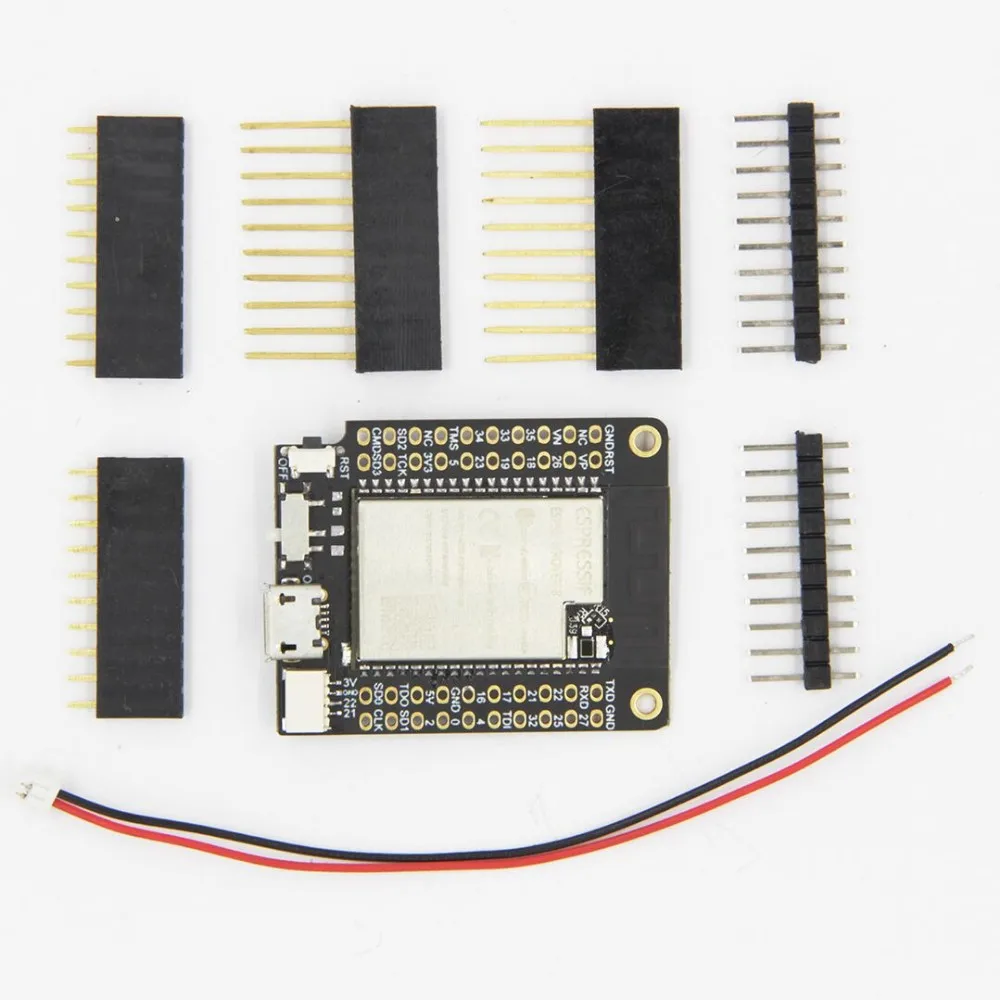

Shipping List
TTGO Mini32 ESP32-WROVER-B Module
X 1
Pin
X 6
Cable
X 1
Delivery

Please check the product after receiving the goods.
If there is any unclear about the order or product , feel free to contact us .

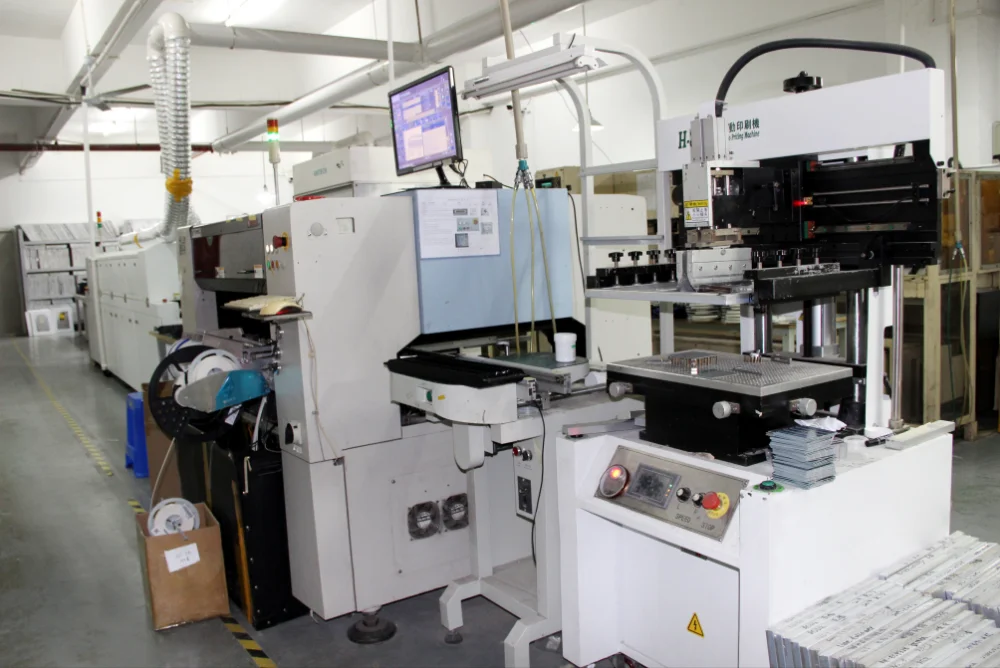

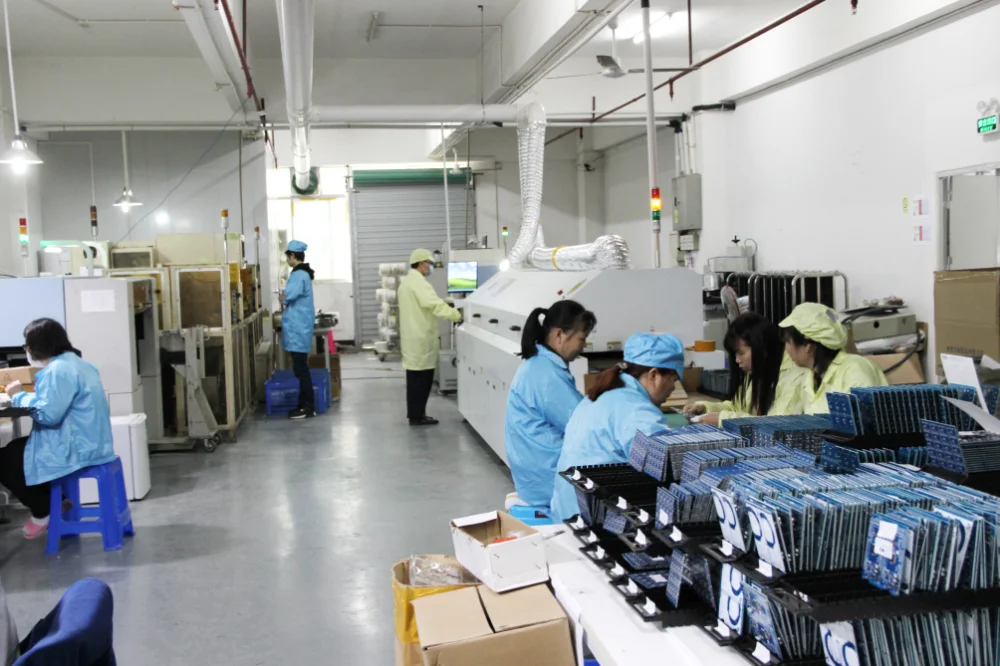

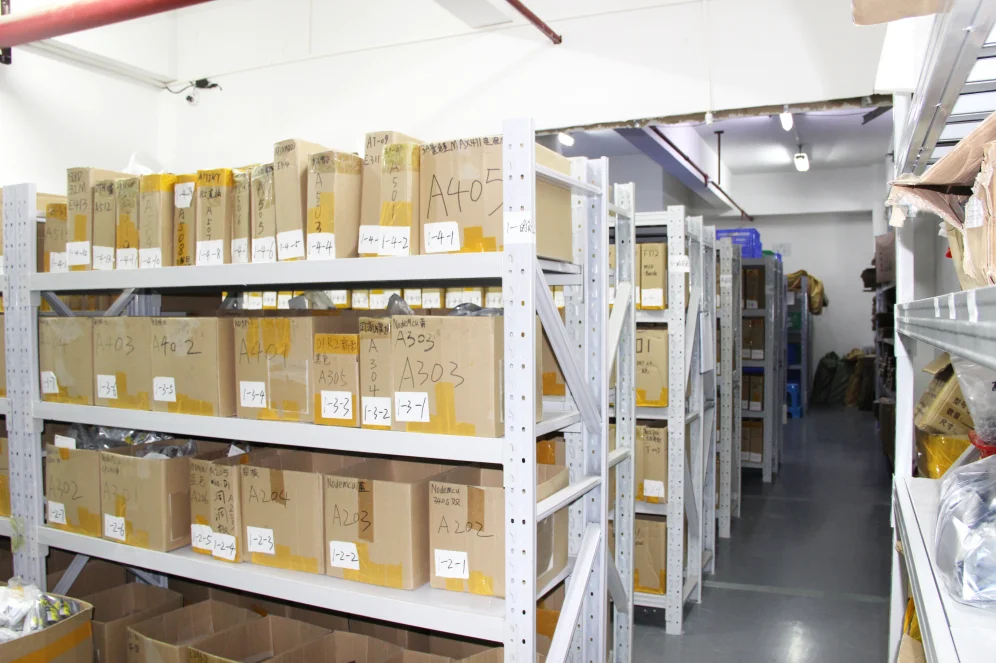

Company Profile

Shenzhen Xin Yuan Electronic is a high-tech company with 10 years of design and R&D experience,specialized in the developing and manufacturing electronic products: development board, Wi-Fi Bluetooth module, such as ESP32, TTGO series module, etc.

Our company owns a number of independent research&development products and obtain unanimously approved customers, with powerful R&D team and marketing team.

Xin Yuan always provides customers with perfect after-sales service and technical assistance. High quality is our obligation,great service is our mission.

We can customize the items as per your request, welcome to customize products from us.

Certifications
FQA

With years of export experience along with excellent quality, advanced services and competitive prices, Xin Yuan has won numerous customers' trust and support.
