TTGO T-Fox LoRa32 V1.1 433 ESP32 OLED 0.96 Inch Bluetooth WIFI wireless Module ESP-32

Feedback Ratings
  • 1-99 Pieces
    $23.50
  • 100-999 Pieces
    $22.50
  • >=1000 Pieces
    $20.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WEMS
Model Number:
H297
Product Name:
TTGO 27dB T-Fox 433
Application:
Electronic Products
MOQ:
1 piece
SHIPPING:
by air
PAYMENT TERMS:
T/T, L/C, Credict card, Paypal
Quality:
100% Tested
Condition:
Brand-new
OEM:
available

Packaging & Delivery

Selling Units:
Single item
Single package size:
21X18X8 cm
Single gross weight:
0.08 kg
Package Type:
plastic box
Lead Time :
Quantity(Piece) 1 - 10000 >10000
Est. Time(days) 2 To be negotiated
Product Description

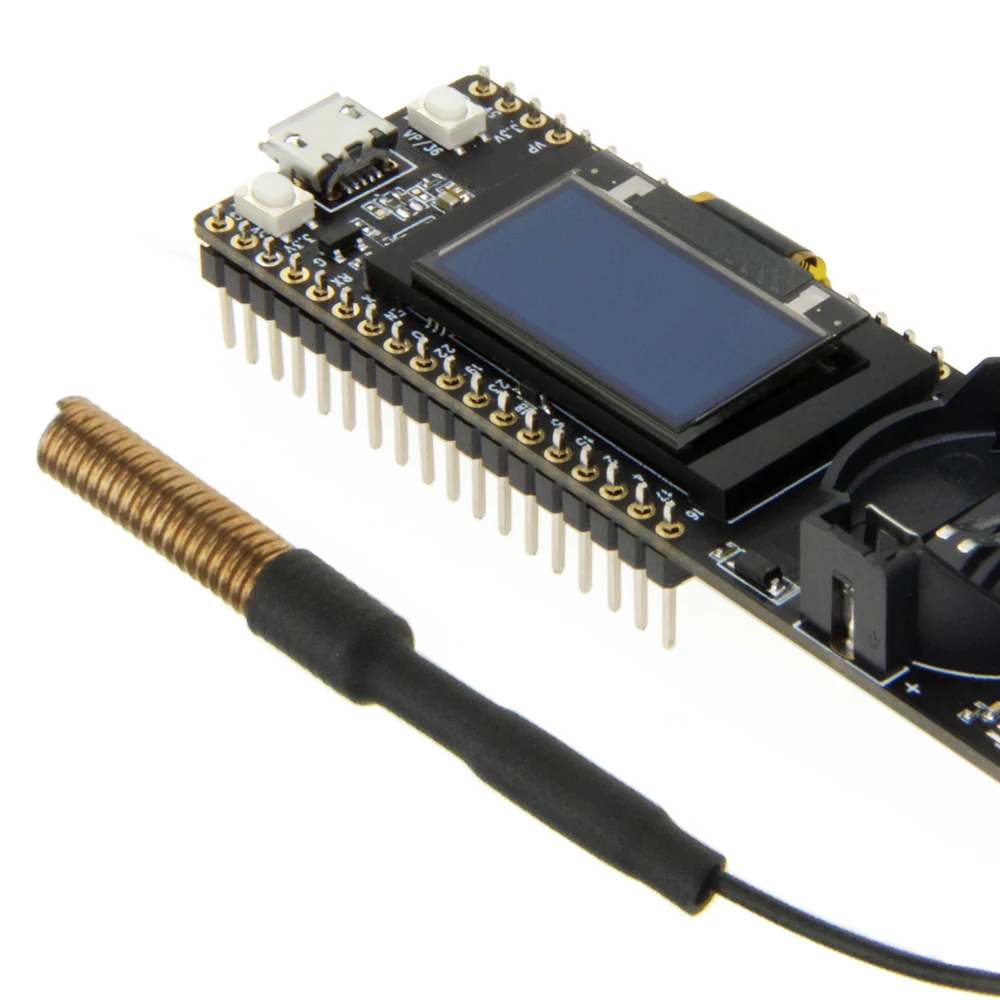

TTGO T-Fox LoRa32 V1.1 433  ESP32 OLED 0.96 Inch Bluetooth WIFI wireless Module ESP-32

Hardware Specifications


ChipsetESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASHQSPI flash/SRAM, up to 4 x 16 MB
SRAM 520 kB SRAM
KEYreset,IO36
dispaly0.96 SSD1306
Power indicator lampred
USB to TTLCP2104
modular  interfaceSD card,UART,SPI,SDIO,12C,LED PWM,TV PWM,I2S,I2C,IRGPIO,capacitor touch sensor,ADC,DACLNA  pre-amplifier
lora TTGO LORA
on-board clock40MHz crystal oscillator
working voltage2.3V-3.6V
working currentabout 60mA
sleep current900 uA
working temperature range-40℃ ~ +85℃
size80.14mm*25.15mm*11.95mm
Power Supply Specifications
Power SupplyUSB 5V/1A
charging current500mA
battery3.7V lithium battery
WIFIDescription
StandardFCC/CE/TELEC/KCC/SRRC/NCC
protocol802.11 b/g/n/e/i (802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
communication distance300m
BluetoothDescription
protocolmeet bluetooth v4.2BR/EDR and BLE standard
radio frequencywith -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
audio frequencyCVSD&SBC audio frequency
Software specificationDescription
wifi ModeStation/SoftAP/SoftAP+Station/P2P
security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
networking protocolIPv4,IPv6,SSL,TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS


Pin reference description

Link to GitHub: https://github.com/LilyGO/TTGO-LORA-V1

Product Details

Front



Back



Shipping List:

27dB 433MHz
