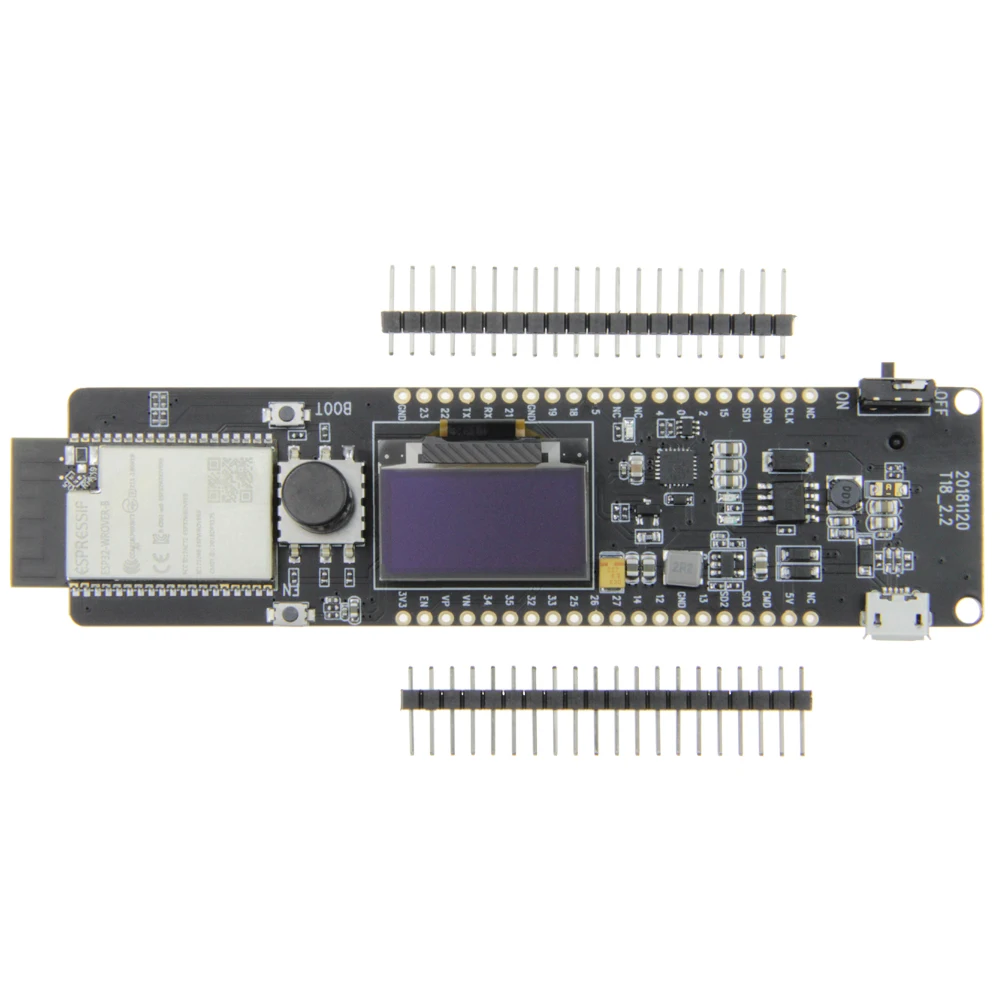

TTGO T-controller ESP32-WROVER module with 0.96OLED five-way button 18650 battery holder

Feedback Ratings
  • 1-99 Pieces
    $13.50
  • 100-999 Pieces
    $13.00
  • >=1000 Pieces
    $11.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
WEMS
Model Number:
H294
Product Name:
TTGO T-Watcher BTC Ticker
PCB Color:
Black
OEM:
available
Quality:
100% Tested
Condition:
100%new
Shipping Term:
by air, by express
Payment term:
T/T, L/C, Credit card , Paypal
Psram:
8 MB
SPI Flash:
4 MB
battery holder:
18650 battery holder

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X15X5 cm
Single gross weight:
0.08 kg
Package Type:
plastic box
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 2 To be negotiated



Product Description

TTGO T-controller ESP32-WROVER module with 0.96OLED five-way button 18650 battery holder



Hardware Specifications
ChipsetESPRESSIF-WROVER-B 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASHQSPI flash/SRAM, up to 4 x 16 MB
SRAM 520 kB SRAM
Buttonreset,boot
ButtonOK,UP,DOWN,LEFT,RIGHT
switchBAT switch
dispaly0.96 SSD1306
Power indicator lampred
USB to TTLCP2104
Modular interfaceUART,SPI,SDIO,I2C,LED PWM,TV PWM,I2S,IRGPIO,capacitor touch sensor,ADC,DACLNA  pre-amplifier
on-board clock40MHz crystal oscillator
working voltage2.3V-3.6V
working currentabout 60mA
sleep current470uA
working temperature range-40 ~ +85
size108.51mm*29.01mm
Power Supply Specifications
Power SupplyUSB 5V/1A
charging current1000mA
battery3.7V lithium battery
WIFIDescription
StandardFCC/CE/TELEC/KCC/SRRC/NCC
protocol802.11 b/g/n/e/i (802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
communication distance300m
BluetoothDescription
protocolmeet bluetooth v4.2BR/EDR and BLE standard
radio frequencywith -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
audio frequencyCVSD&SBC audio frequency
Software specificationDescription
wifi ModeStation/SoftAP/SoftAP+Station/P2P
security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
networking protocolIPv4,IPv6,SSL,TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS



Data download link: GitHub: https://github.com/LilyGO/TTGO-T18V2.2



Product pin diagram

Product Size



Shipping List

1 X TTGO T-controller

2 X Pin
