TUV 6mm2 Fig8 solar cable double insolation for Australia

FOB Reference Price:Get Latest Price
  • >=1000 Meters
    $1.10
Lead Time:
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SUNKEAN
Model Number:
2pfg 1169
Type:
Insulated
Application:
Solar system
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Color:
Red and Black
Certification:
TUV
Conductor:
Copper Core
Jacket:
PVC PE XLPE
Rated Voltage:
1000v
Insulation:
XLPE Insulation
Standard:
TUV 2 PFG 1169 / 08.07
Name:
6 sqa mm solar power cable for solar system used accessories
Supply Ability
Supply Ability:
500000 Meter/Meters per Month Manufacturer Wuxi Sun king TUV approved 4 sqa mm solar cable
Packaging & Delivery
Packaging Details
500 m/roll, 1000 m/roll
Manufacturer Wuxi Sun king TUV/EN approved 6 sqa mm solar power cable for solar system used accessories
Port
SHANG HAI
Lead Time :
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 15 To be negotiated
Product Details

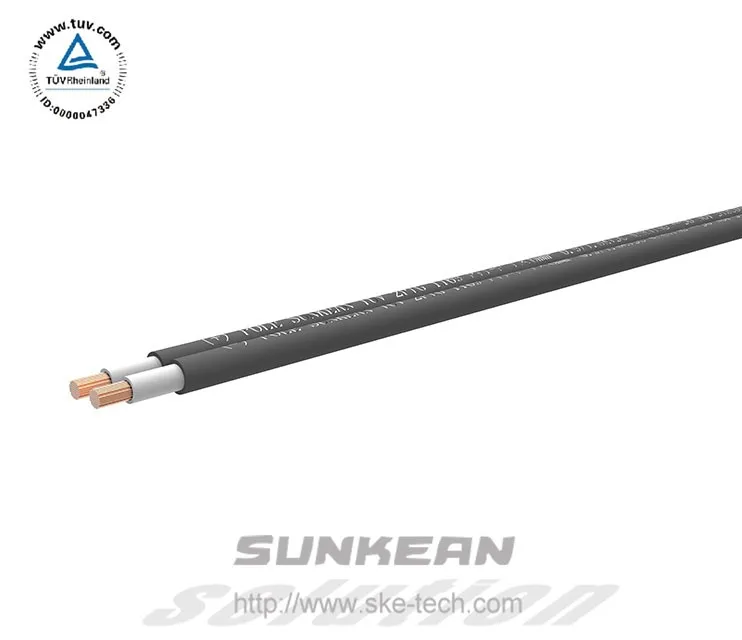

TUV Approved 6mm² Twin-Core Solar Cable

This product with meter printing obtain high fire performance  TUV and EN certification. It's very convenient in the installation of solar plant.

Product Introduction

TUV Approved 6mm² Twin-Core Solar Cable

Ambient temperature: -40℃~+90℃.
Intergrated with heat and cold resistance service life>25 years.
Good performance at mechanical strength, rub resistance and waterproof.
Qualified at acid, alkali and Ozone test.
Eco-Friendly and soft and easy to strip.
Max. Temperature at short circuit 200℃ 5 seconds.

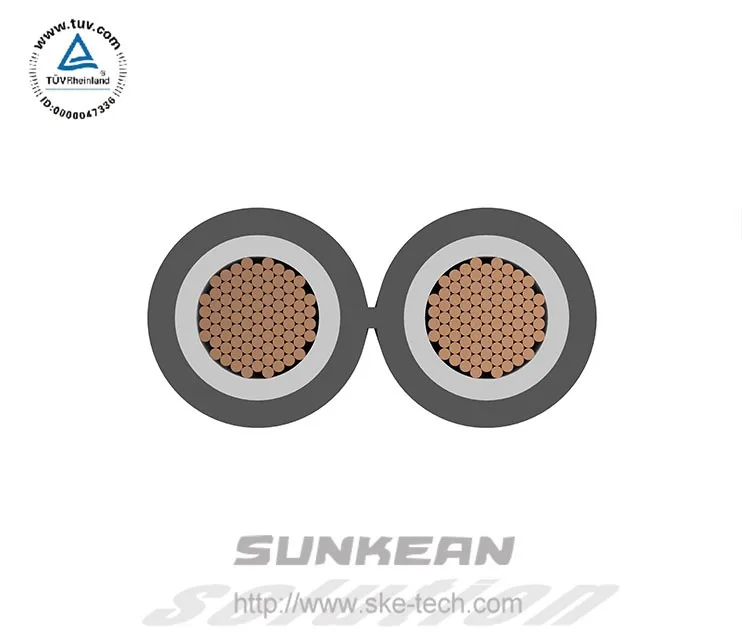

Construction(n/m)
Conductor
Stranded OD.(mm)
Cable OD.(mm) Max
Length(m)
52/0.30
2.46
4.60
≤5.09Ω/km
1-1000
Product Parameters
Brand Name
SUNKEAN
Model Number
TUV 2pfg 1169
Voltage Test
6500VAC/5 min
Insulation Material
XLPE
Bending Radius
≥4*Cable OD
Application
Solar Panel
Max. Conductor Temp
+120℃
Jacket
PVC/XLPE
Rated Voltage
DC 1000V & AC 1500V
Cross Section
6mm2
Certification
TUV/EN
Rated Temperature
-40°C~+90 °C
Product Details Show
Why Choose Us

About us

More than ten years' experience in solar field.

Equipment & Technology

Professional solar cable manufacture.

Certification

TUV and EN Certification.

Product Processing
Product Packing
