TY0718 High Pressure Advanced Commercial Mist Cooling System, Automatic Misting System

$544.30 / Set | 1 Set (Min. Order)
Color:
black
$544.30
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Sprayers, High Pressure Fog Machine
Material:
Metal, Stainless Steel
Metal Type:
Stainless Steel
Place of Origin:
Jiangsu, China
Brand Name:
HAIGINT, HAIGINT
Model Number:
HG-MNP-LP0004
Sprayer Type:
Pump
Usage:
Garden
Certification:
CE
Voltage:
220V/110V
Flow:
0.3L-15L,largest
Working Pressure:
50bar,60bar
Accessory:
Timer,Connector,Pipe,Nozzles
Application:
Cooling, Misting.humdification
Warrante:
1 year

Packaging & Delivery

Selling Units:
Single item
Single package size:
57X43X56 cm
Single gross weight:
40.0 kg
Package Type:
in sturdy carton
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 To be negotiated

High Pressure Advanced Commercial Mist Cooling System, Automatic Misting Cooling System

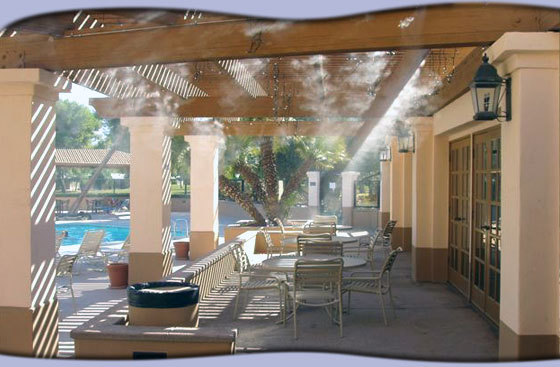

High Pressure misting systems can turn your outdoor space into a peaceful oasis from the heat...even during the hottest days of the summer. So transform your hot patio into a refreshing escape from the heat with a Misting Pros outdoor cooling system. With high-pressure mist technology, our patio misting systems expand your usable space and bring wonderful relief from the heat outdoors.

Drop the temperature 5-10 °C quickly

MainPhoto_01 (1)



specifications

Item No.LPMPowerSizeWorking PressureVoltage WeightFrequency
HG-MNP-030.3L300W40*20*27cm50 bar220V/110V11 kg50/60 Hz
HG-MNP-101L300W43*22*29cm60bar220V/110V13kg50/60 Hz
HG-MNP-202L750W47*25*32cm60bar220V/110V21kg50/60 Hz
HG-MNP-303L750W47*25*32cm60bar220V/110V21kg50/60 Hz
HG-MNP-707L1800W70*36*35cm60bar220V/110V36kg50/60 Hz
HG-MNP-11011L2200W69*35*33cm60bar220V/110V52kg50/60 Hz
HG-MNP-15415.4L3000W69*35*33CM60bar220V/110V55kg50/60 Hz

1. 0.3L~15.4L;
2. Use electricity;
3. OEM allowed and can be Customizable
4. Water pressure / Working time adjustable;



Product Description

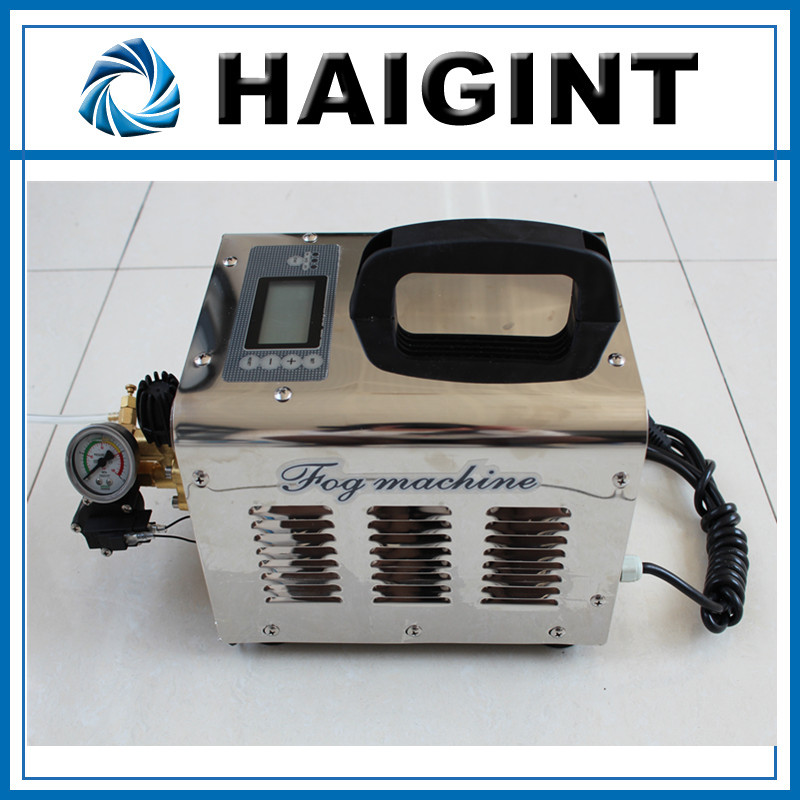

 Product shows


IMG_9242_55

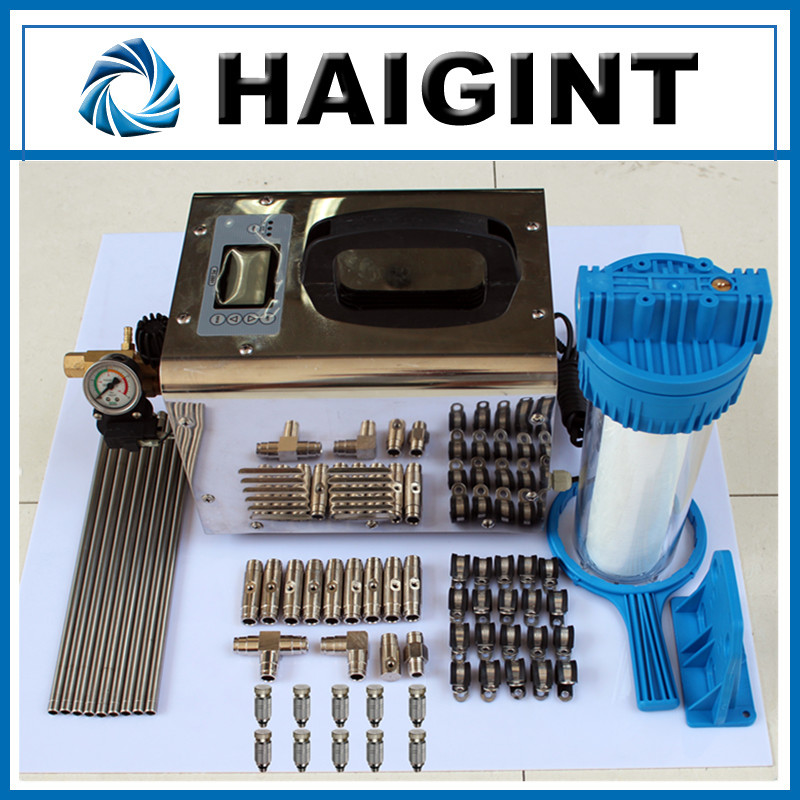

Available accessories for you reference



1.high pressure misting nozzles(UN10-24)



 PI-MNBN  PI-MNBNL
NameBrass with nickle plated body,stainless steel orificeWashable filter nozzles
work pressure465-1015 PSI465-1015 PSI
orifice0.1mm,0.15mm,0.2mm,0.3mm0.1mm,0.15mm,0.2mm,0.3mm







2.high pressure misting fittings(Material is brass, 3/8'inch)



 ( Tee connector      elbow connector     cross connector     male connector

    female connect     end plug          Tubing cutter         Tubing clamp )









3.high pressure misting pipe

  different material:  PE pipe   ( cheap)

                                      Stainless steel pipe   (high quality and artistic)

                                      Nylon pipe   (high quality and flexible)





Item NO.DescriptionMaterial
PI-MTB-PE

Working pressure: 70 Bar / 1000 PSI

Burst pressure 140 Bar / 2000 PSI

Outer Dia. : 9.52mm / 3/8"

Inner Dia. :  4.12mm

PE
PI-MTB-NY

Working pressure: 70 Bar / 1000 PSI

Burst pressure 140 Bar / 2000 PSI

Outer Dia. : 9.52mm / 3/8"

Inner Dia. :  4.12mm

Nolyn
PI-MTB-SS

Working pressure: 70 Bar / 1000 PSI

Burst pressure 200 Bar / 2900 PSI

Outer Dia. : 9.52mm / 3/8"

Inner Dia. :  4.12mm

Stainless steel

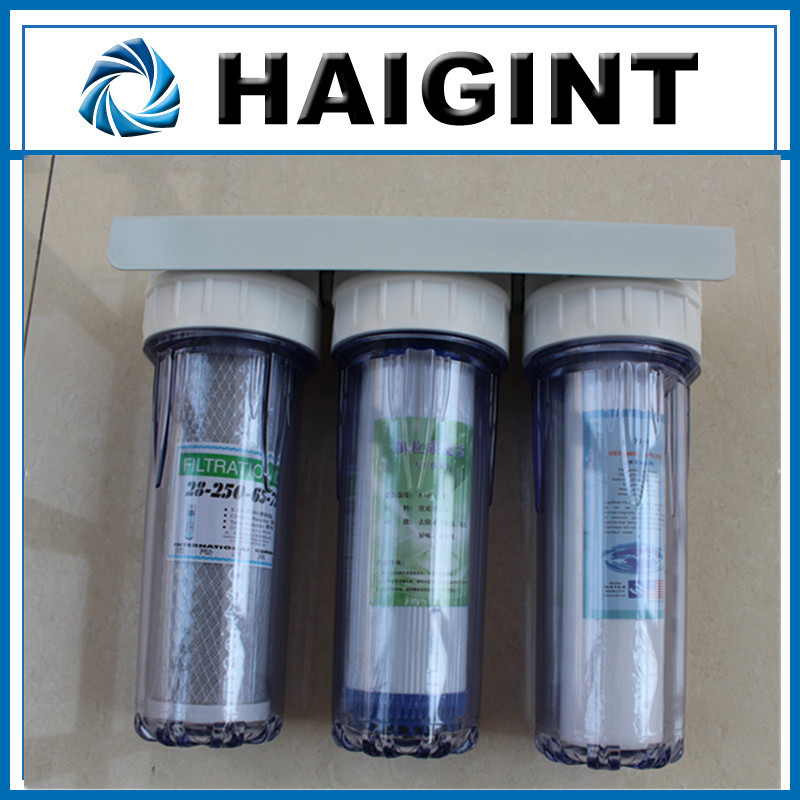

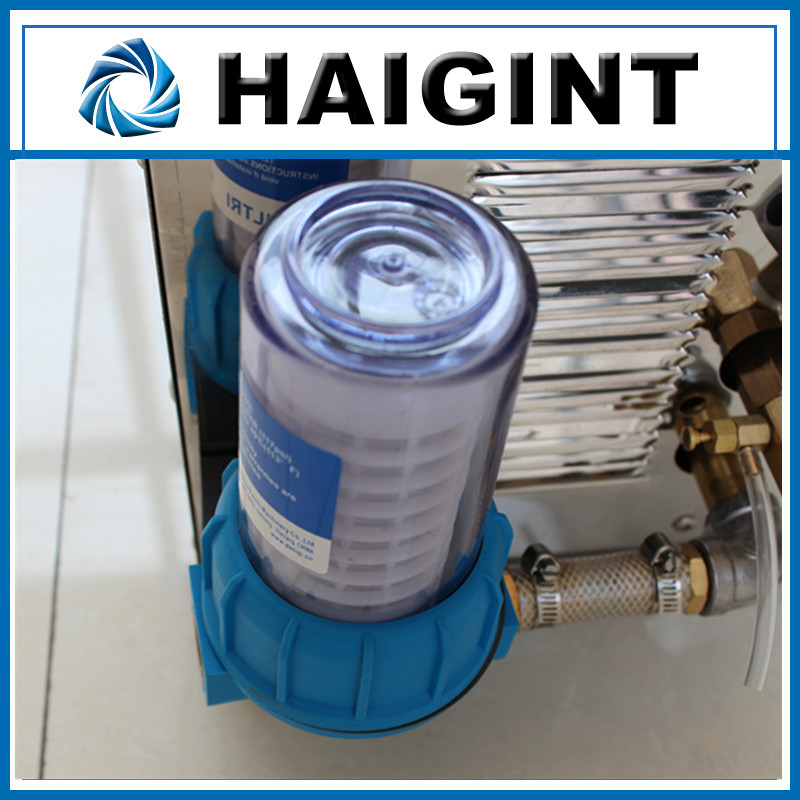

4.  5 Micro misting filter(avoid the nozzles to be blocked)



 IMG_9286_



Advantage

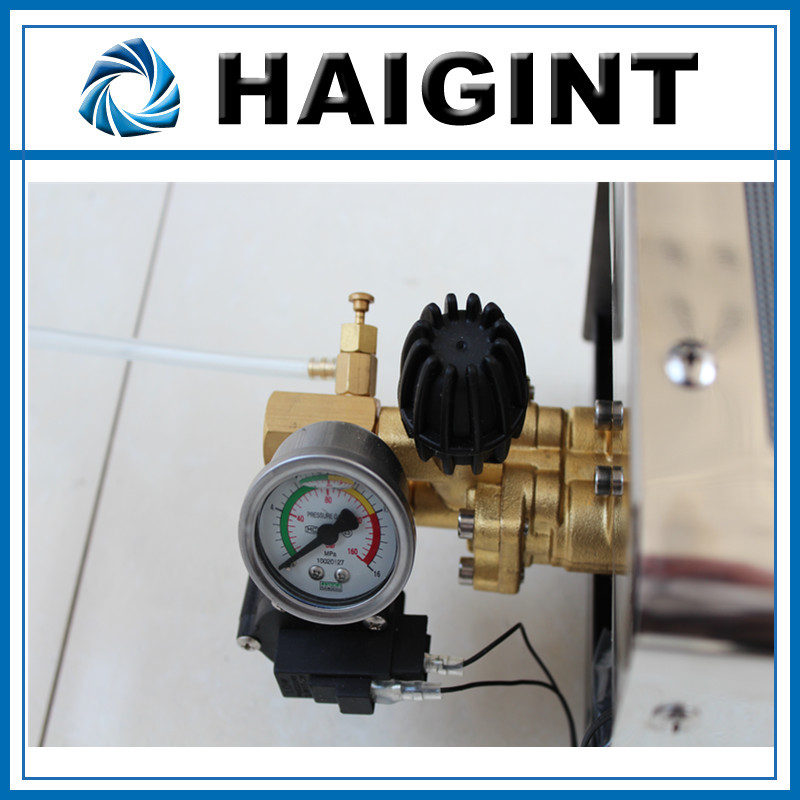

Low pressure switch included

The pump will turn off automatically when lack of water.

The pump will turn off automatically when the pressure of the inlet water is not steady.

Automatic Drain Valve included(available)

Release the pressure in the system automatically when the pump is turned off, then the nozzles won't be dripping.

Timer included

You can set the timer to make the pump work and shop automatically.

Completely outdoor use design

Cooling fan included,rainproof water tank included.

Safety locks included

To avoid damage to the equipment from unrelated persons.

High quanlity SS Shell on the surface, nice appearance

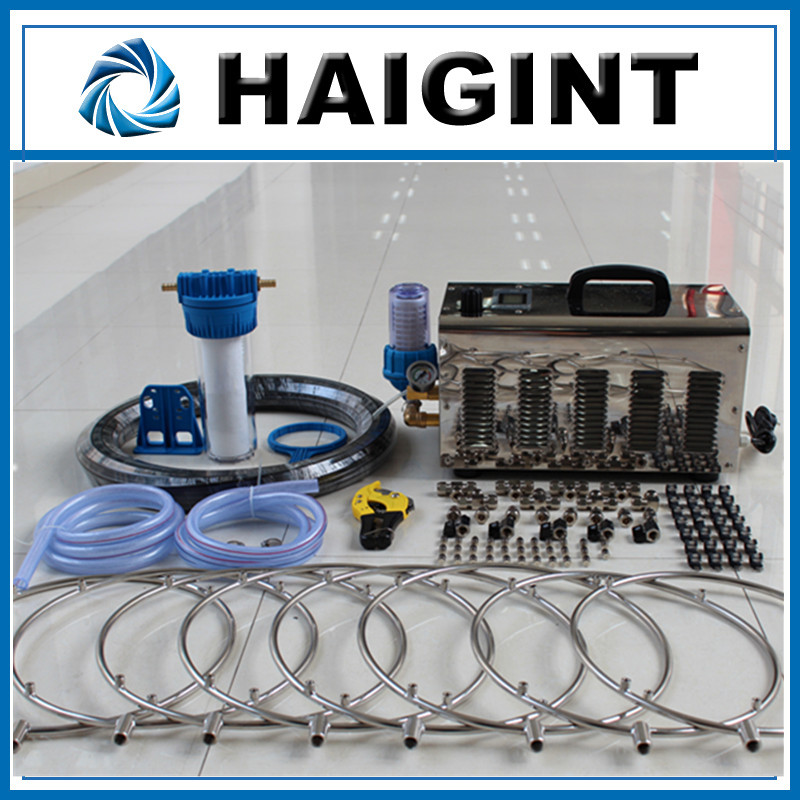

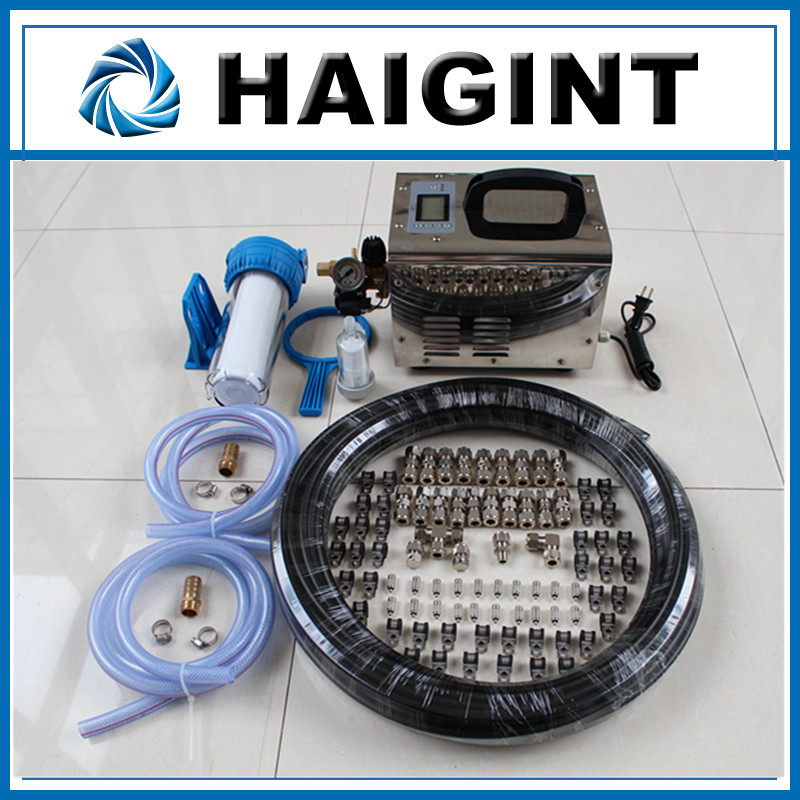

The full set Misting system

IMG_0564_IMG_0500_IMG_0415_

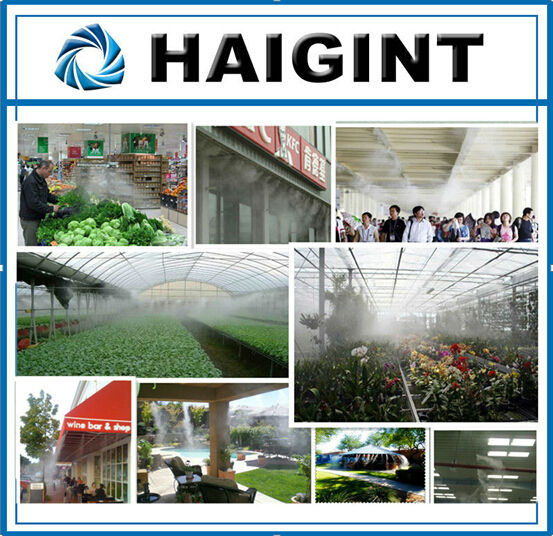

Where the misting pump is used?

A. Humidifying, cooling, noise reducing
1.Bus stations;
2.Train stationexternal;
3.Air port terminal external;
4.Entrance of shop and scenic;
5.All kinds of exhibition, expo, fair;
6.The beach, swimming pool, clubhouse...
7.Other open area;
B. Sterilizing, dedusting, mosquit & flies removing
1.Stockbreeding industry of chicken farm, Cattle Farm etc.;
2.Dump area to kill virus & bacteria and remove odor;
3.Open public place remove mosquit & flies;
4.Mining, explosion-proof remove the dust;
5.Public washroom remove odor;
6.Infectious disease & epidemic area kill virus & bacteria ;
C . Landscaping , beauty & remove haze
1.Rockery, boskage, lakes, bridge... in scenic spot;
2.Villas, townhouses & other high-end house;
3.Farm stay, shopping malls & others place for decoration;
4.Support the stage effect;
D. Watering, planting, spraying for Greenhouse, farm and garden
1.Precious flowers, plants, trees;
2.Mushrooms & seedling;
3.Vegetable greenhouse, orchards & nurseries;
4.Sunshine ecological restaurant;



{(T8T_N(9)UO6O%P}5}%Q

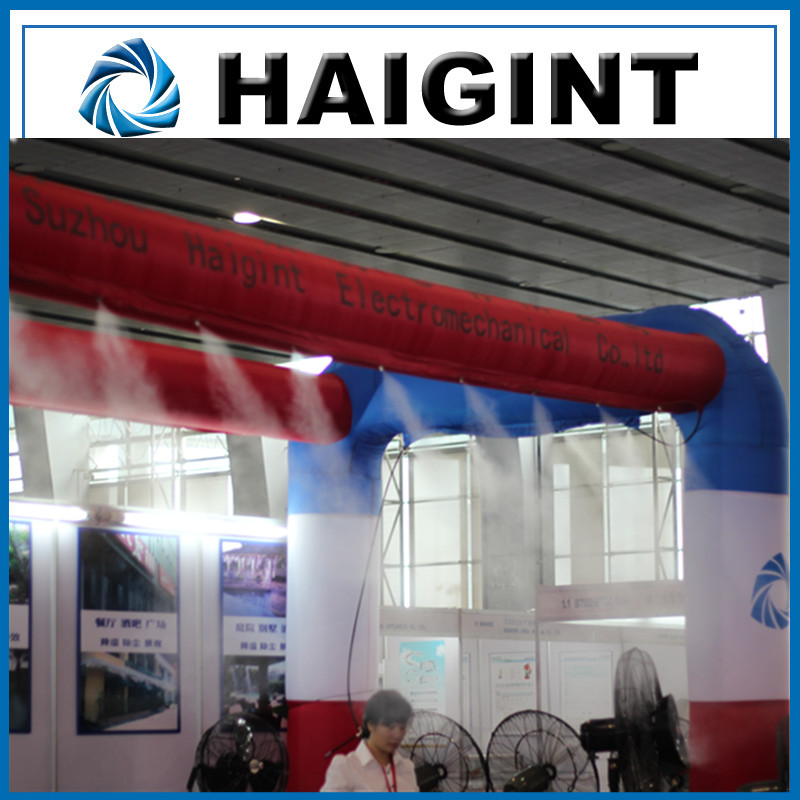

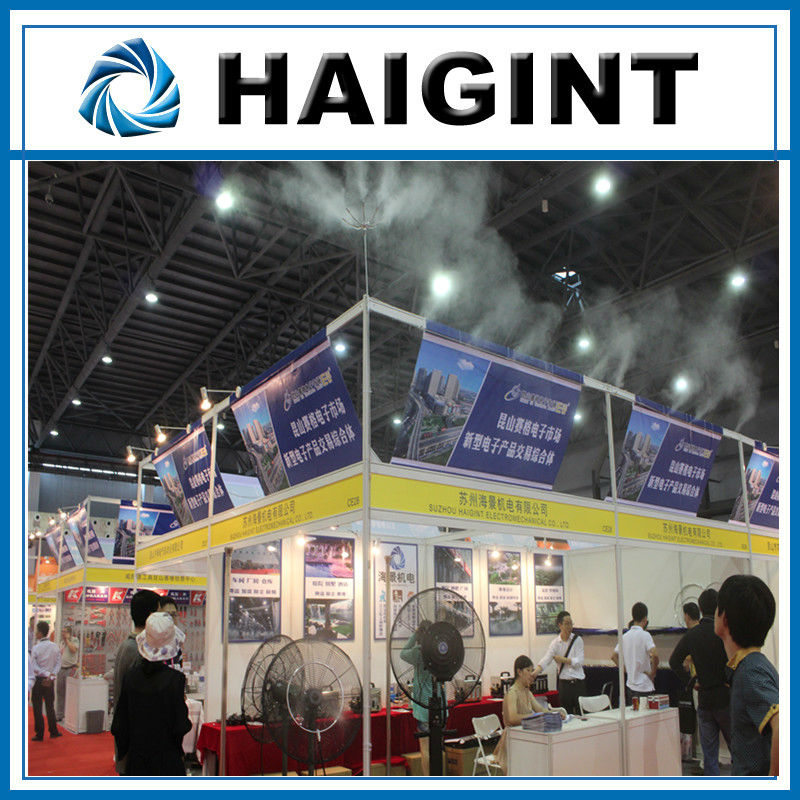

Our exhibition

bbIMG_6179_



How to order :

1  Customer sends detailed inquiry to us by email or trade manage .

2 We reply with price, specification, packing, photos, and other details.

3 Both of us agree the price and confirm the detials.

4 We write the proforma invoice and send to customer.

5 Customer makes deposit.

6 We start mass production.

7 Customer inspects the goods on site or we send photos to customer.

8 Customer makes balance payment.

9 Delivery is arranged. Feedback from customer for better work in future.

Our innovation



Quality & Service At HAIGINT, our 1st priority has always been providing our clients with great quality products and superior customer service.

 Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.

Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!

Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.

Special Offers In order to maintain our competitive edge, we are constantly running special offers on our promotion gifts, consumer goods, and design services. Contact our sales team to see how we can help you save a lot of money.



Our certification

initpintu_



If you have any question, Please don't hesitate to contact us.



We will give you a satisfied reply.











....
