This tester for Lithium and lead-acid batteries Universal ,All types are inside, you can choose it yourself, just press the button! the factory default setting for 12Vlead-acid battery power ,Or leave a message to us, we can help you set up in accordance with your requirements.
Suit for :2-15 series lithium battery & 12V 24V 36V 48V lead-acid battery
53 x 38 x 1.0 mm

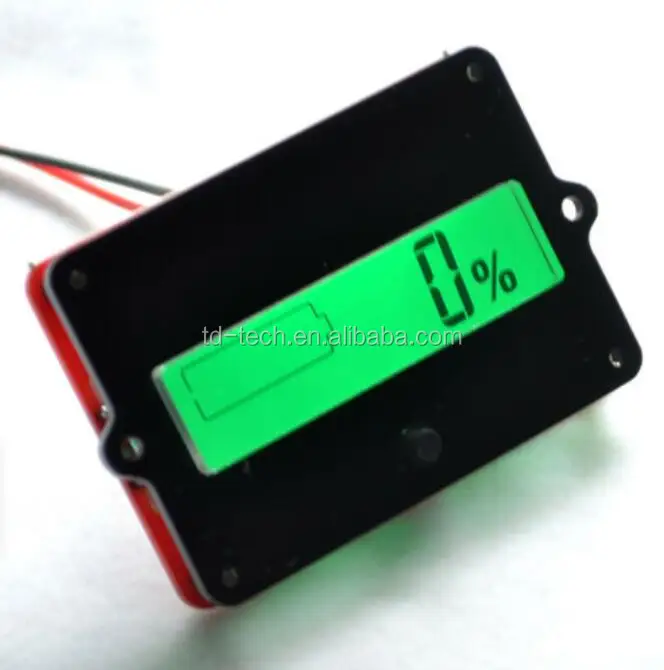

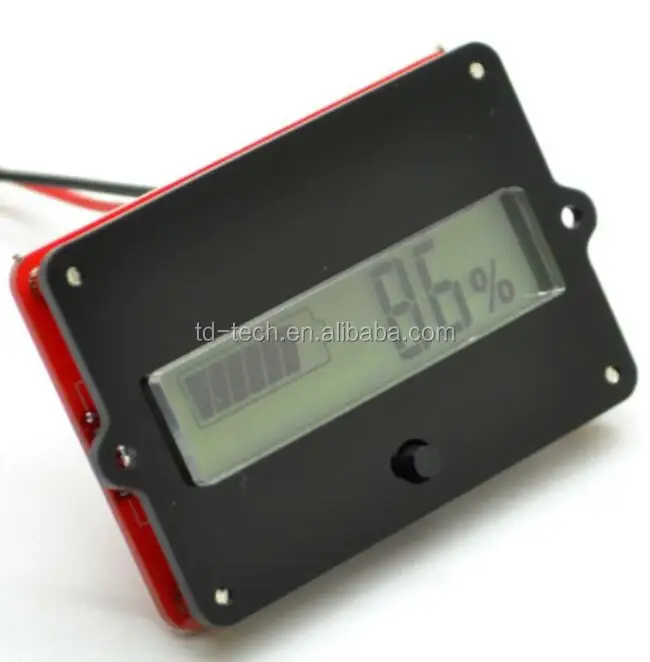

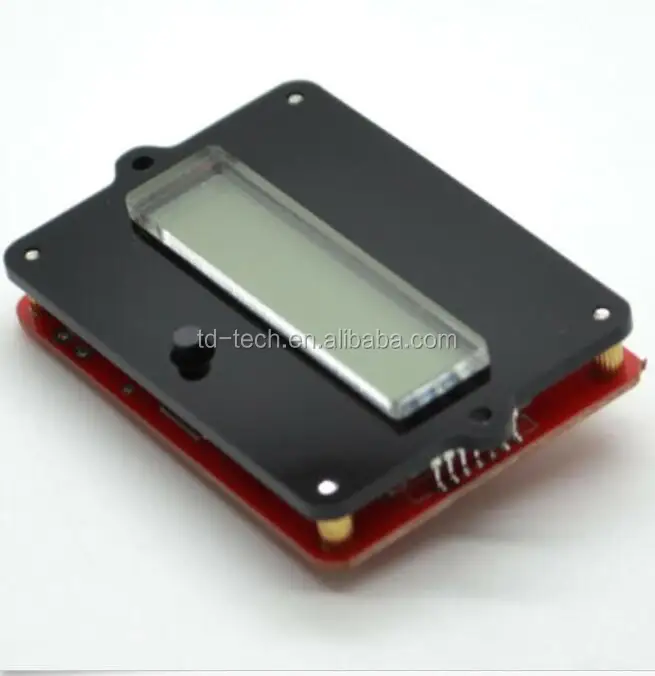

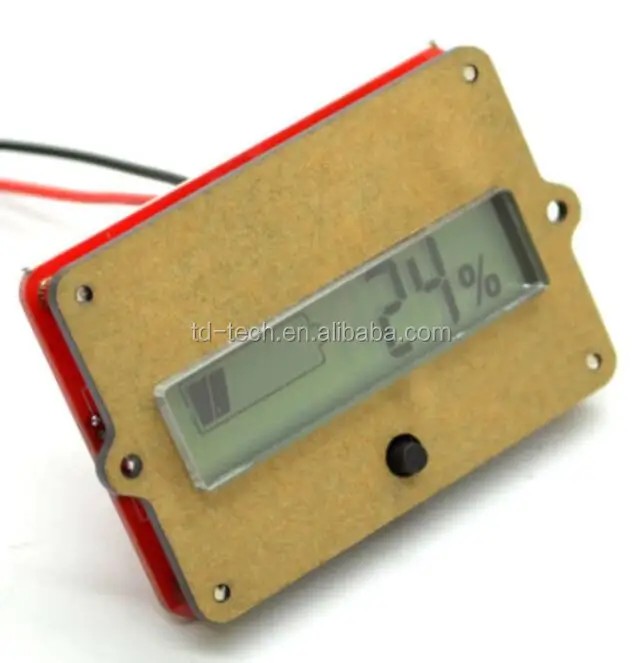

Product name:12V Lead- Acid lead batteries indicator Battery capacity digital LED
External dimension:53 x 38 x 1.0 mm
Suit for:2-15 series lithium battery & 12V 24V 36V 48V lead-acid battery,default setting for 12V lead-acid
Setting Example for F5:
No need to use a soldering iron to connect the two points of F5.

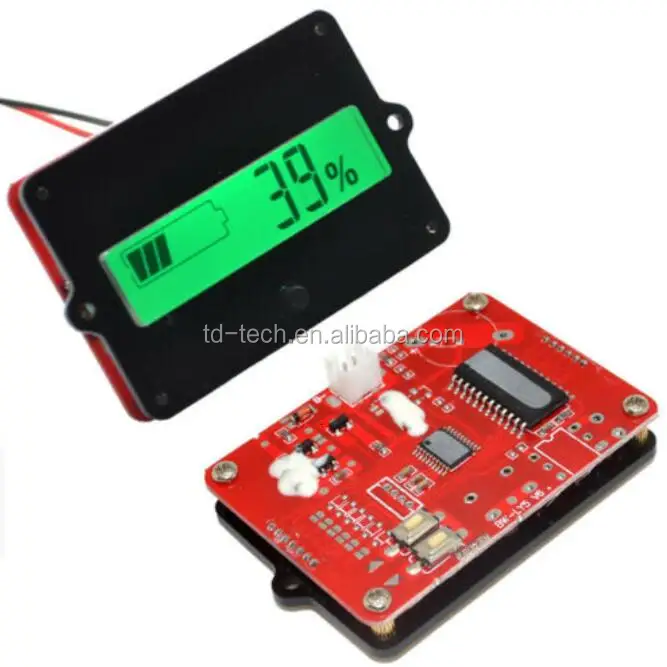

Press the down button on the back of the panel to power on the meter,
it will display the battery specification, then press the button on the front of the panel,
the meter will display in F1 mode. Then press the up button on the back of the panel to enter F5 mode.
Then press the button on the front of the panel to let the battery bar display like the F5 mode should show.
