Taidacent 4S 3.6V DIY 58mA 18650 Lithium Iron Phosphate Battery Balanced Charger Function 3 Serial 3.6V Equalization Board

  • 2-24 Pieces
    $2.69
  • >=25 Pieces
    $2.59
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
serial (Min. Order: 2 Pieces)
Samples: $2.69 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $2.69 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Taidacent
Model Number:
3 serial 3.6V Equalization board
Package:
new
D/C:
new
Type:
balanced board
battery:
4S 3.6V

Packaging & Delivery

Selling Units:
Single item
Single package size:
5X6X7 cm
Single gross weight:
0.03 kg
Package Type:
standard package
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated

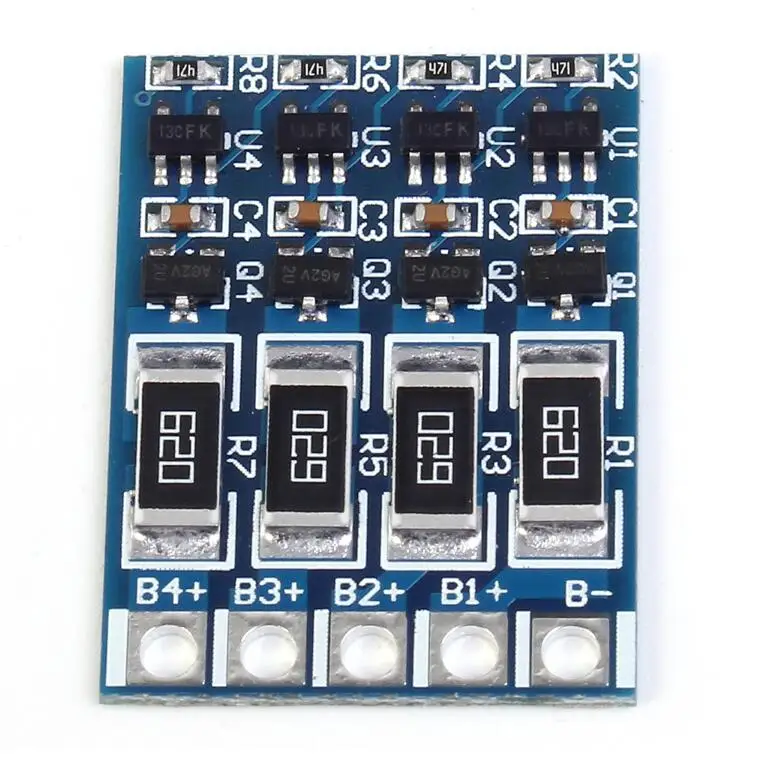

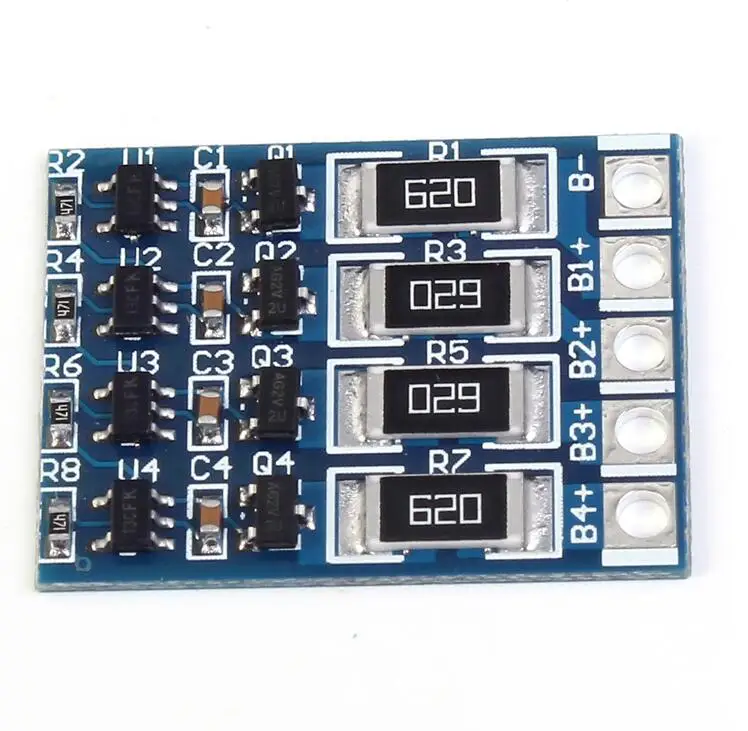

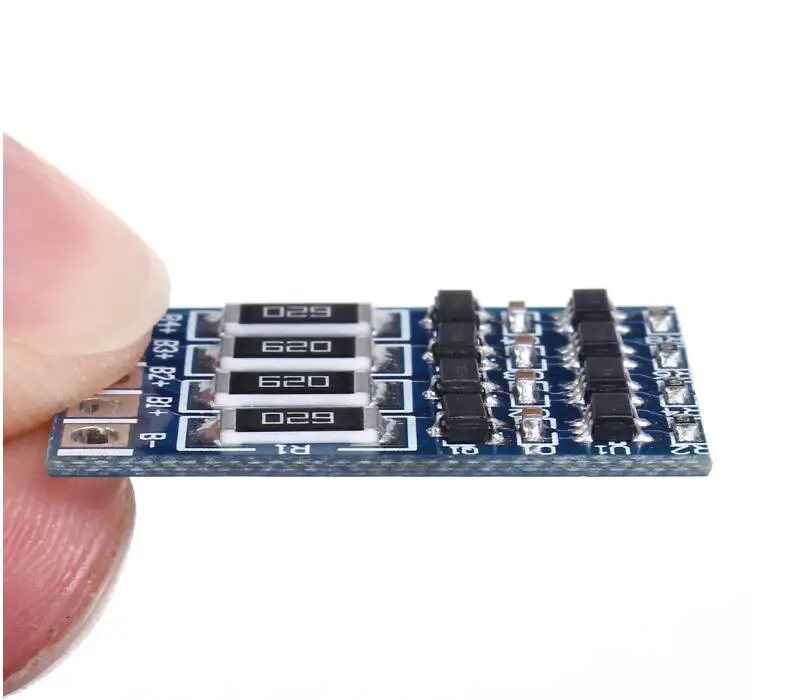

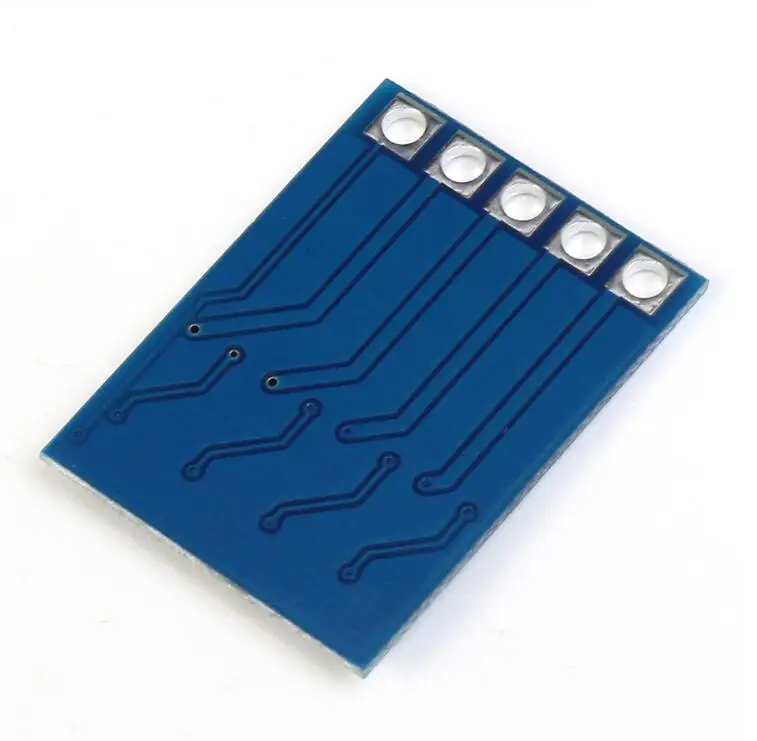

Taidacent 4S 3.6V DIY 58mA 18650 Lithium Iron Phosphate Battery Balanced Charger Function 3 Serial 3.6V Equalization Board





 Product introduction:
1. Features: 3.6 volt balanced functions.
2. Operating Current: 58mA

Voltage3.6V
Current58mA
Battery18650

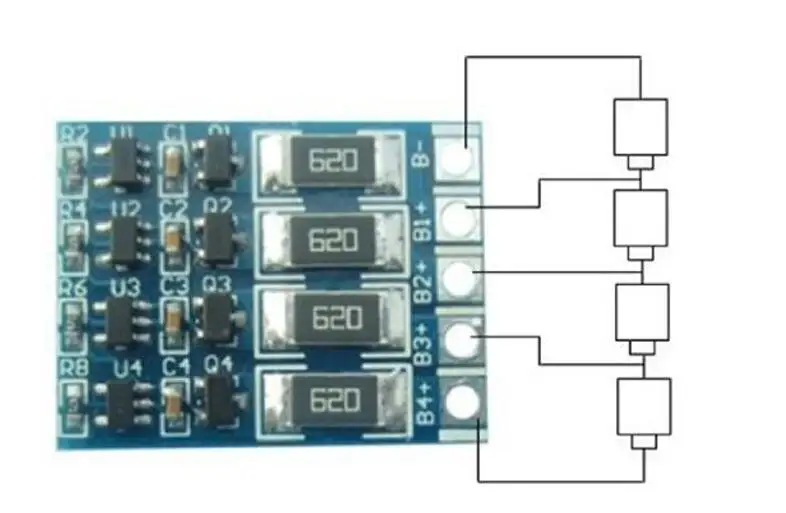

Soldering point Introduction:
1. B4 +: Connect the battery pack plus
2. B3 +: Connect to junction between battery 1 and 2
3. B2 +: Connect to junction between 2 and 3
4. B1 -: Connect to junction between 3 and 4
5. B -: Connect to the negative battery.
Notice:
1. This balanced board adaptive to lithium batteries with no charging function, can increase charging and balanced functions to ensure that the battery is full electricity.
2. This balanced board has no charging or discharging function and cannot change the protection board when the battery is in the end, fully charged, will discharge by the first resistor, fully charge the battery, ie shunt and balance function



 Equalization board4.jpgEqualization board.jpgEqualization board1.jpgEqualization board2.jpgEqualization board3.jpg
