Taidacent BWT901CL BLE Vibration Sensor 9 Axis IMU Acceleration Magnetic Field Inclination Angle Measurement Sensor

  • 2-4 Pieces
    $42.24
  • 5-24 Pieces
    $39.60
  • >=25 Pieces
    $35.64
Quantity:
- + Pieces available
Samples:
$42.24 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized packaging (Min. Order: 2 Pieces)
Other (Min. Order: 2 Pieces)
Contact Supplier
Samples - $42.24 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Taidacent
Model Number:
BWT901CL Bluetooth Vibration Sensor
Usage:
Position Sensor
Theory:
Capacitance Sensor
Output:
Digital Sensor
Brand:
BWT901CL Bluetooth Vibration Sensor
Amplifier Type:
Not Applicable
Voltage - Supply:
3.3V~5V
Output Type:
Data output
Current - Supply:
25mA
Operating Temperature:
Normal
Mounting Type:
Wire connect
Resolution (Bits):
Not Applicable
Features:
Other
Current - Supply (Max):
25mA
Package / Case:
Plastic
Packaging:
Other
Frequency:
0.1Hz~200Hz
Output Configuration:
Other
Current:
25mA
Voltage Rating:
3.3V~5V
Operating Force:
Other
Oxygen Range:
Other
Humidity Range:
Other
Size:
Other
Size / Dimension:
51x36x15mm
Measuring Range:
angle: X, Z ±180°, y-axis ±90°
Resolution:
Other
Interface:
Digital
Technology:
Not Applicable
Sensing Range:
Other
Current - Output (Max):
25mA
Bandwidth:
Other
Function:
Not Applicable
Acceleration Range:
±16g
Sensitivity (LSB/g):
Other
Sensitivity (mV/g):
Other
Sensitivity (LSB/(°/s)):
±2000
Sensitivity (mV/°/s):
Other
Sensing Distance:
Other
Current - Output:
25mA
Power - Rated:
Other
Voltage - Output Difference (Typ) @ Distance:
Other
Voltage - Output (Typ) @ Distance:
Other
Voltage - Max:
5V
Voltage - DC Reverse (Vr) (Max):
None
Power - Max:
Other
Sensing Object:
Yes
Sensing Light:
Yes
Resistance:
Other
Resistance Tolerance:
Other
Sensing Temperature - Local:
Other
Sensing Temperature - Remote:
Other
Current Rating - AC:
Other
Current Rating - DC:
25mA
Tolerance:
Other
Voltage - Rated:
3.3V~5V
Flow Sensor Type:
Other
Voltage - Input:
3.3V~5V
Application:
Industrial Automation
Output Function:
Not Applicable
D/C:
Other
Cross Reference:
Other
Applicable scene:
Industrial and agricultural intelligence

Packaging & Delivery

Selling Units:
Single item
Single package size:
3X4X5 cm
Single gross weight:
0.050 kg
Package Type:
Box package
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Taidacent BWT901CL Bluetooth Vibration Sensor 9 Axis IMU Acceleration Magnetic Field Inclination Angle Measurement Sensor
Product Description
BWT901CL's scientific name is AHRS IMU sensor.A sensor measures 3-axis angle, angular velocity, acceleration, magnetic field. Its strength lies in the algorithm which can calculate three-axis angle accurately. BWT901CL is an CE certified accelerometer. It is employed where the highest measurement accuracy is required. BWT901CL offers several advantages over competing sensor: · Heated for best data availability: patented zero-bias automatic detection calibration algorithm outperforms traditional accelerometer sensor · High precision Roll Pitch Yaw(XY Z axis) Acceleration +Angular Velocity +Angle+Magnetic Field output · Low cost of ownership: remote diagnostics and technical support · Developed tutorial: providing manual, datasheet, Demo video, free software for Windows computer, APP for Android smartphones, and sample code for MCU integration including 51 serial, STM32, Arduino, Matlab, Raspberry Pi, communication protocol for project development · Sensors have been praised by thousands of engineers as a recommended attitude measurement solution

Simple introduction

High precision and high stability
State estimation + dynamics solution + digital filtering, - Kalman filter = high precision attitude output
High precision wireless Bluetooth
Bluetooth 2.0 long distance connection
High precision and high stability Bluetooth 10 meter connection
Suitable for industrial, agricultural, intelligent equipment, human body sensing, etc.
Compatible: stm32,51, Arduino... Digital filtering: Advanced digital filtering technology, high stability and high precision Communication: Support Bluetooth 2.0, serial TTL Shape: Weighing only 14 grams, it is easy to install and carry Wide voltage: 3.3V~5V, Easy embedded development connection Sample program: STM32,51, Arduino, VC2010.

Features

· Built-in WT901 module, for detailed parameters, please refer to the instructions. · The baud rate of this device is 115200 and cannot be changed. · The interface of this product only leads to a serial port and Bluetooth EDR, · The module consists of a high precision gyroscope, accelerometer andgeomagnetic field sensor. The product can solve the current real-time motion posture of the module quickly by using the high-performance microprocessor, advanced dynamic solutions and Kalman filter algorithm. · The advanced digital filtering technology of this product can effectively reduce the measurement noise and improve the measurement accuracy. · Maximum 200Hz data output rate. Input content can be arbitrarily selected, the output speed 0.1HZ~200HZ adjustable.

Application

·AGV Truck ·Platform Stability ·Auto Safety System ·3D Virtual Reality ·Industrial Control ·Robot ·Car Navigation ·UAV ·Truck-mounted Satellite Antenna Equipment
Parameter
Specification
Voltage
3.3V-5V
Current
<40mA
Battery
250mAh,3.7V
Working hour
A. Play 4h at 1 charge(battery)
B. Power source of 5V
Size

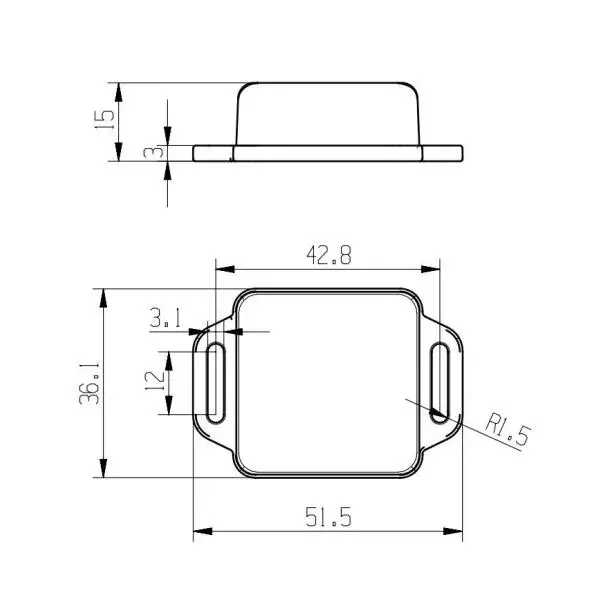

51.3mm×36mm×15mm/ 2.02"×1.41"×0.59"
Data
Angle: XYZ,3-axis
Acceleration: XY Z,3-axis
Angular Velocity: XY Z,3-axis
Magnetic Field: XY Z,3-axis
Time, Quaternion
Output frequency
0.1Hz--200Hz
Interface

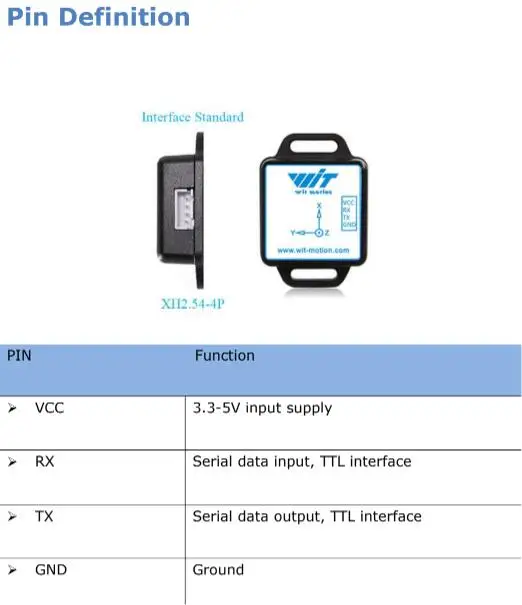

Serial TTL level, Baud rate--115200 (default, can not be changed) Interface standard: XH2.54-4P
Bluetooth
Range:s10m
Bluetooth module
HC-06
Version
EDR Bluetooth 2.0

Axial Direction

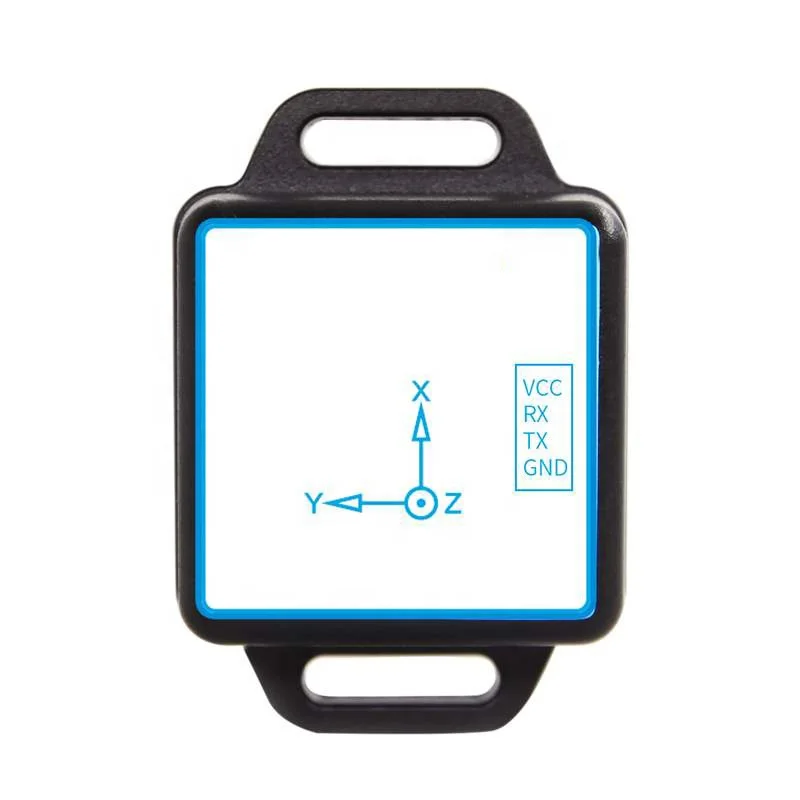

The coordinate system used for attitude angle settlement is the northeastsky coordinate system. Place the module in the positive direction, as shown in the figure below, direction forward is the X-axis, the direction left is the Y-axis, and direction upward is the Z-axis. Euler angle represents the rotation order of the coordinate system when the attitude is defined as Z-Y-X, that is, first turn around the Z-axis, then turn around the X-axis, and then turn around the X-axis. Counterclockwise rotation is positive.

Usage

1, the product is connected to the PC host computer
After the attitude sensor is installed, the attitude sensor parameters, acceleration calibration, etc. can be configured on the
computer's host computer to make the attitude measurement more precise.
2, Android phone attitude measurement
The Android phone can also be used for product configuration of the attitude sensor, attitude measurement data output, and the product can be connected by wireless Bluetooth, which is convenient and quick.
3, the product is connected with the Bluetooth adapter
4, the product is connected with Bluetooth HID
5, secondary development MCU connection
The product supports secondary development and can be connected to the user's MCU through the serial port. The product wiring must be VCC connected to VCC, TX connected to RX, RX connected to TX, GND to GND.
Details Images
