Taidacent Non Contact Capacitive Level Sensor Float Switch Water Level Controller Non Contact Pipe Water Level Detection Switch

  • 5-99 Pieces
    $5.16
  • >=100 Pieces
    $4.98
Quantity:
- + Pieces available
Samples:
$5.16 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized packaging (Min. Order: 2 Pieces)
Cable length (Min. Order: 2 Pieces)

More

Other (Min. Order: 2 Pieces) Less
Contact Supplier
Samples - $5.16 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Taidacent
Model Number:
Non Contact Capacitive Level Sensor
Usage:
Level Sensor
Theory:
Capacitance Sensor
Output:
Analog SENSOR
Brand:
Non Contact Capacitive Level Sensor
Amplifier Type:
Not Applicable
Voltage - Supply:
5~12V / 24V
Output Type:
Signal Output
Current - Supply:
0.02A
Operating Temperature:
Other
Mounting Type:
Other
Resolution (Bits):
Not Applicable
Features:
Other
Current - Supply (Max):
0.02A
Package / Case:
Plastic
Packaging:
Box
Frequency:
Other
Output Configuration:
Other
Current:
0.02A
Voltage Rating:
5~12V / 24V
Operating Force:
Other
Oxygen Range:
Other
Humidity Range:
Other
Size:
Other
Size / Dimension:
Other
Measuring Range:
Other
Resolution:
Other
Interface:
Analog
Technology:
Capacitive
Sensing Range:
Other
Current - Output (Max):
0.02A
Bandwidth:
Other
Function:
Not Applicable
Acceleration Range:
Other
Sensitivity (LSB/g):
Other
Sensitivity (mV/g):
Other
Sensitivity (LSB/(°/s)):
Other
Sensitivity (mV/°/s):
Other
Sensing Distance:
Other
Current - Output:
Other
Power - Rated:
Other
Voltage - Output Difference (Typ) @ Distance:
Other
Voltage - Output (Typ) @ Distance:
Other
Voltage - Max:
24V
Voltage - DC Reverse (Vr) (Max):
Other
Power - Max:
Other
Sensing Object:
Other
Sensing Light:
Other
Resistance:
Other
Resistance Tolerance:
Other
Sensing Temperature - Local:
Other
Sensing Temperature - Remote:
Other
Current Rating - AC:
Other
Current Rating - DC:
Other
Tolerance:
Other
Voltage - Rated:
5~12V / 24V
Flow Sensor Type:
Other
Voltage - Input:
5~12V / 24V
Application:
Industrial Automation
Output Function:
Not Applicable
D/C:
New
Cross Reference:
Other
Sensor type:
water level switch
ID:
XKC-Y26

Packaging & Delivery

Selling Units:
Single item
Single package size:
2X3X4 cm
Single gross weight:
0.150 kg
Package Type:
box package
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Video Description
Taidacent Non Contact Capacitive Level Sensor Float Switch Water Level Controller Non Contact Pipe Water Level Detection Switch
Product Description

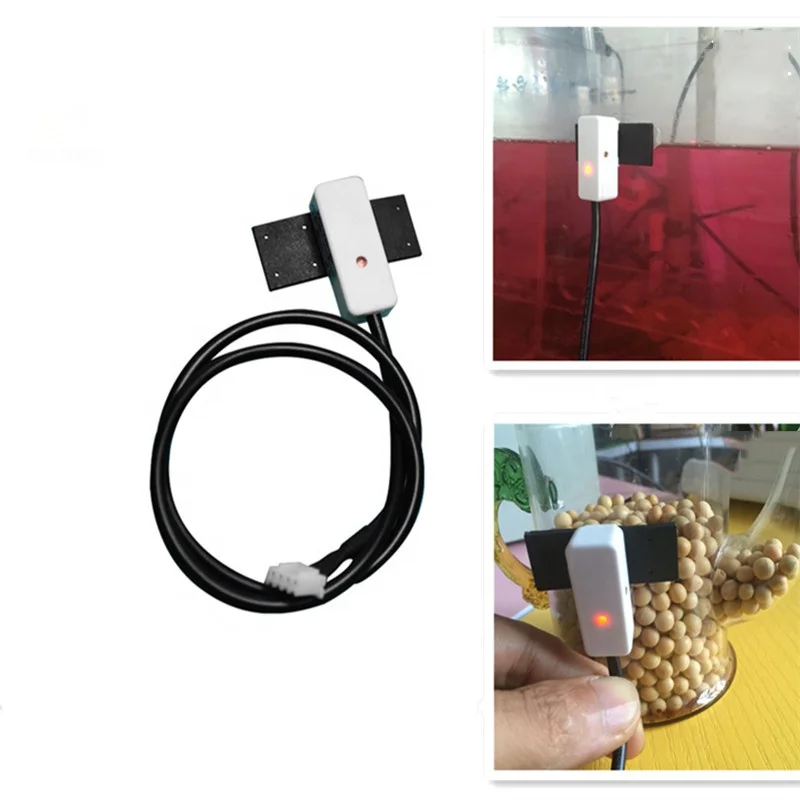

The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) uses advanced signal processing technology and high-speed signal processing chips, which breaks through the influence of the container wall thickness and realizes a true non-contact to the height of the liquid level in the closed container. Contact detection. The liquid level sensor (probe) is installed above and below the outer wall of the container to be measured (high and low levels of the liquid level). The non-metallic container does not need to be perforated, easy to install, and does not affect production. It can realize the detection of the liquid level of various toxic substances, strong acids, strong bases and various liquids in high-pressure closed containers. The liquid level sensor has no special requirements for the liquid medium and the material of the container, and can be widely used.

Type

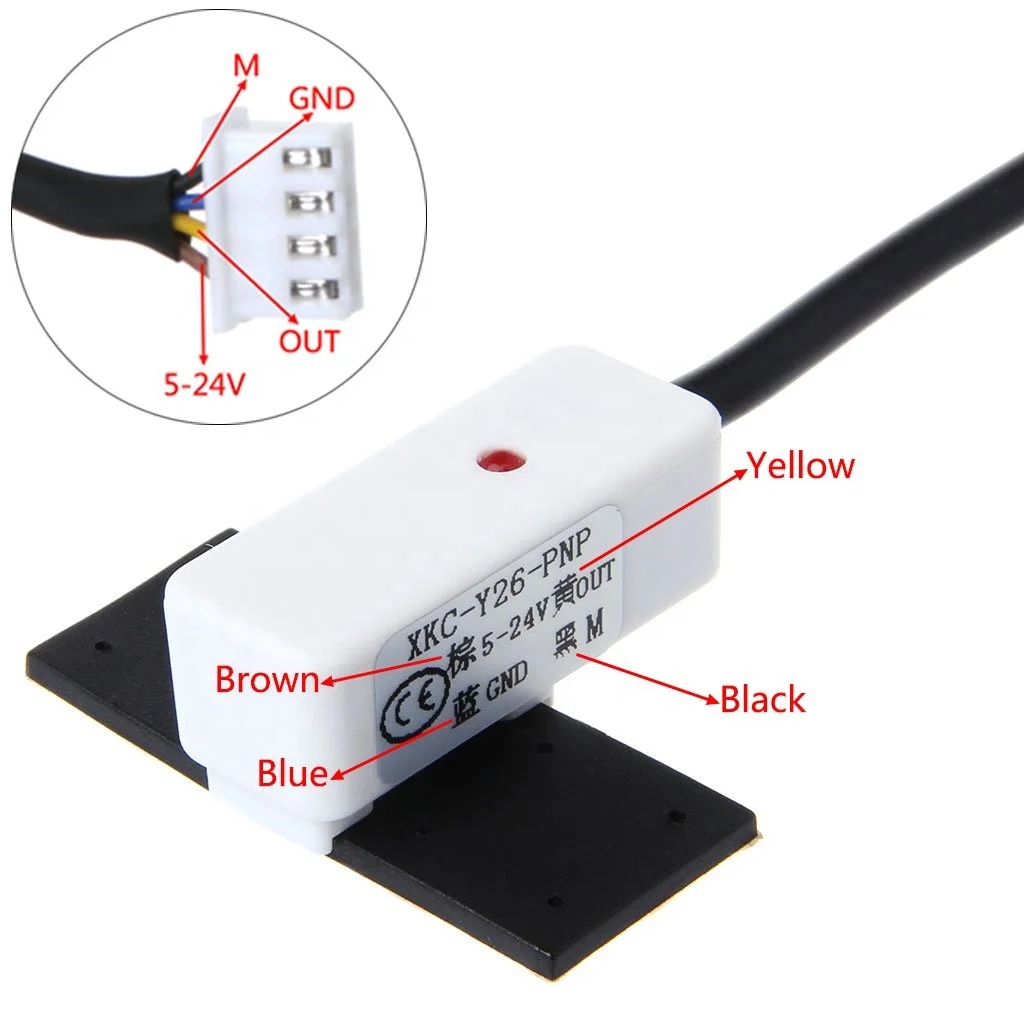

XCK-Y26-xxx series products are specially developed for non-metallic pipeline liquid level detection. This series of liquid level sensors are divided into three signal output interfaces, namely high and low level output interface, NPN output interface, PNP output interface; three models The output modes correspond to the following three models:
High and low level output interface
XKC-Y26-V(5-24V)
NPN output interface
XKC-Y26-NPN 5-12V /24V can be optional
PNP output interface
XKC-Y26-PNP 5-12V /24V can be optional
Please leave us a note which one do you want, otherwise we default sent at random.

Features

1. XCK-Y26-xxx series sensors are suitable for the outer wall of non-metallic pipes without direct contact with liquids, will not be corroded by corrosive liquids such as strong acids and alkalis, and will not be affected by scale or other debris. 2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection; can support high and low level output, NPN, PNP signal output (you can explain with the manufacturer when selecting) 3. The detection is accurate and stable, and the boiling water level can be detected. 4. Pure electronic circuit structure, non-mechanical working mode, stable performance and durable life. 5. High stability, high sensitivity, strong interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, compatible with all 5~24V power adapters on the market. 6. Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramic and other containers, the thickness of the sensing pipe wall can reach 20mm; suitable for various curved, curved, cylindrical containers or pipes Level detection. 7. Wide voltage range (5~24V), suitable for connecting various circuits and product applications.

Working principle

The intelligent non-contact liquid level sensor uses the sensing capacitance of water to detect the presence of liquid. When there is no liquid close to the sensor, the sensor has a certain static capacitance to the ground due to the distributed capacitance. When the liquid level slowly rises close to the sensor, the parasitic capacitance of the liquid will be coupled to this static capacitance, so that the final capacitance value of the sensor becomes larger. The changed capacitance signal is then input to the control IC for signal conversion, which will change The capacitance is converted into a certain amount of electrical signal change, and then a certain algorithm is used to detect and judge the degree of this change. When this change exceeds a certain threshold, it is considered that the liquid level reaches the sensing point.
