Taidacent Street Light Automatic Energy Saving Kit Electronic Training Kits Educational Electronic Circuit Kit for Students

  • 100-499 Pieces
    $1.93
  • >=500 Pieces
    $1.79
Quantity:
- + Pieces available
Samples:
$1.93 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized packaging (Min. Order: 2 Pieces)
Other (Min. Order: 2 Pieces)
Contact Supplier
Samples - $1.93 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
D/C:
New
Package:
SMD
Model Number:
Energy Saving Educational Electronic Circuit Kit
Type:
LOGIC ICS
Brand Name:
Taidacent
Place of Origin:
Guangdong, China
Brand:
Energy Saving Educational Electronic Circuit Kit
Voltage - Breakdown:
Not Applicable
Frequency - Switching:
Other
Power (Watts):
Other
Operating Temperature:
Other
Mounting Type:
SMD
Voltage - Supply (Min):
12V
Voltage - Supply (Max):
12V
Voltage - Output:
12V
Current - Output / Channel:
Other
Frequency:
Other
Applications:
Electronic circuits
FET Type:
Not Applicable
Current - Output (Max):
Other
Current - Supply:
Other
Voltage - Supply:
Other
Frequency - Max:
Other
Power - Max:
Other
Tolerance:
Other
Function:
Other
Voltage Supply - Internal:
Other
Frequency - Cutoff or Center:
Other
Current - Leakage (IS(off)) (Max):
Other
Isolated Power:
Other
Voltage - Isolation:
Other
Current - Output High, Low:
Other
Current - Peak Output:
Other
Voltage - Forward (Vf) (Typ):
Other
Current - DC Forward (If) (Max):
Other
Input Type:
DC
Output Type:
Not Applicable
Current Transfer Ratio (Min):
Other
Current Transfer Ratio (Max):
Other
Voltage - Output (Max):
Other
Voltage - Off State:
Other
Static dV/dt (Min):
Other
Current - LED Trigger (Ift) (Max):
Other
Current - On State (It (RMS)) (Max):
Other
Impedance:
Other
Impedance - Unbalanced/Balanced:
Other
LO Frequency:
Other
RF Frequency:
Other
Input Range:
Other
Output Power:
Other
Frequency Bands (Low / High):
Other
Specifications:
Not Applicable
Size / Dimension:
52mm*82mm
Modulation or Protocol:
Other
Interface:
Other
Power - Output:
Other
Memory Size:
Other
Protocol:
Other
Modulation:
Other
Serial Interfaces:
Other
GPIO:
Other
Utilized IC / Part:
Other
Standards:
Not Applicable
Style:
Other
Memory Type:
Not Applicable
Writable Memory:
Other
Resistance (Ohms):
Other
Cross Reference:
Other

Packaging & Delivery

Selling Units:
Single item
Single package size:
4X5X5 cm
Single gross weight:
0.050 kg
Package Type:
Box package
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated

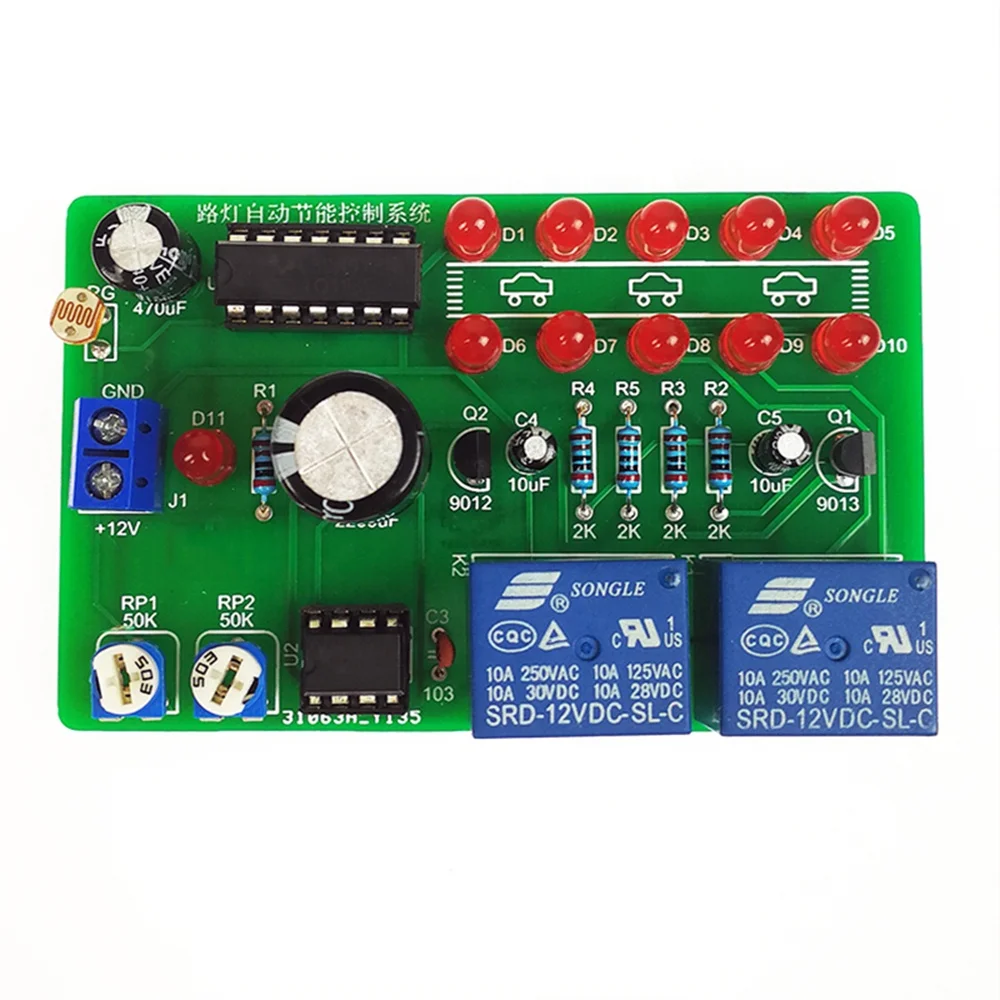

Taidacent Street Light Automatic Energy Saving Kit Electronic Training Kits Educational Electronic Circuit Kit for Students
Product Description
Supply voltage
DC12V (DC voltage)
Board size
52mm*82mm

Features

The seasons are different or the weather is different. The time in the dark is different. It is unreasonable to use the time to switch the street lights. The analog streetlight control system of this kit controls the lighting or extinguishing of the street lights by the intensity of the light. The brightness and darkness sensitivity is adjustable, and it can enter the midnight mode. When the middle of the night is rare, pedestrians will turn off half of the street lights to achieve energy-saving effect. The time for this half-way lamp to be turned off can also be adjusted. To put it simply, the sky is dark, the lights are all bright, the people are few in the middle of the night, the lights are half bright, and after dawn, the lights are completely extinguished. The circuit design adopts the time-base timer NE555 and the NAND gate CD4011 which are widely used in digital circuits, and combines the photosensitive elements to control the brightness of the street lamp. It is a good product worth learning and circuit analysis.

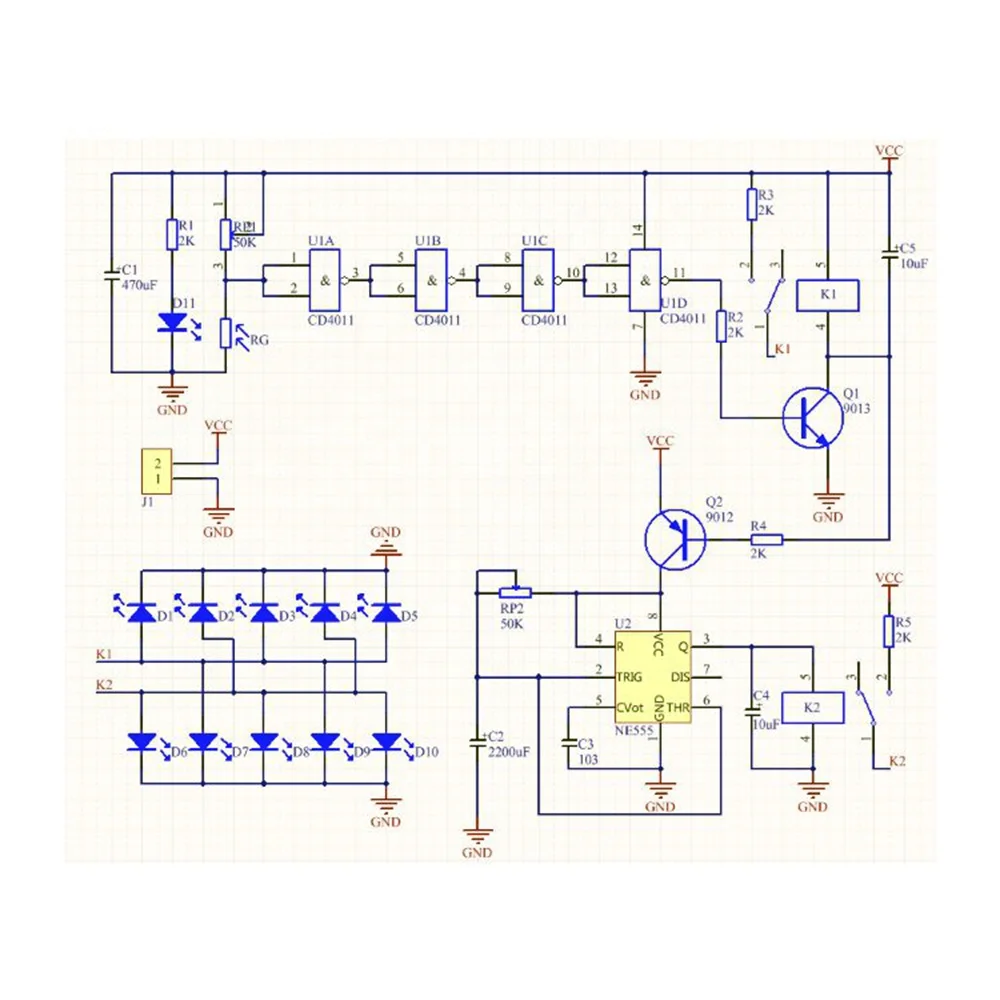

Circuit principle

This circuit uses DC 12V power supply, the main control circuit is composed of photoresistor, CD4011, 555 timer. During the day, the resistance of RG is small, the first leg of CD4011 is low level, the 11th leg is also low level, the relays K1 and K2 are not working, and the street lights are not bright. With the arrival of the evening, the resistance of RG becomes larger, CD4011 is the first leg. Change to high level, 11 feet are also high level, Q1 is turned on, K1 is powered, Q2 is turned on, Q2 is turned on, 555 timing circuit works, K2 pulls in, then the street light is on, with C2 charging, to the middle of the night, C2 When the charging voltage is greater than two-thirds of VCC, the third leg of 555 becomes low level, K2 is powered off, and only half of the street lamps are powered and illuminated, and return to the initial state during the day until the next day, all dark.

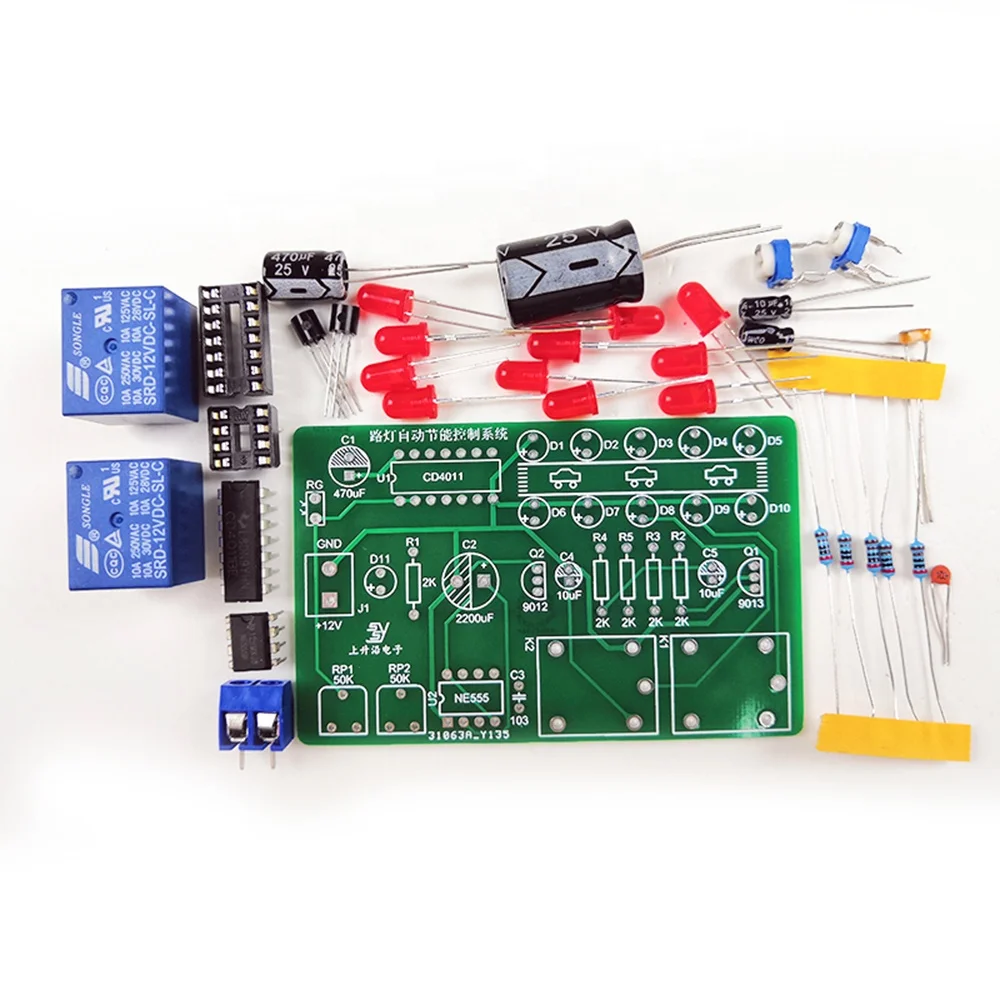

Components list
Resistance 2K*5 Blue and white potentiometer 50K*2 Transistor 9012*1 Transistor 9013*1 5MM red LED*12 Ceramic capacitor 103*1 Electrolytic capacitor 10UF*2 Electrolytic capacitor 47OUF*1 Electrolytic capacitor 2200UF*1 12V relay*2 Photosensitive resistor 5516*1 NE555 direct plug chip *1 CD4011 inline chip *1 8PIC seat*1 14PIC seat*1 301-2P terminal block*1 PCB board*1

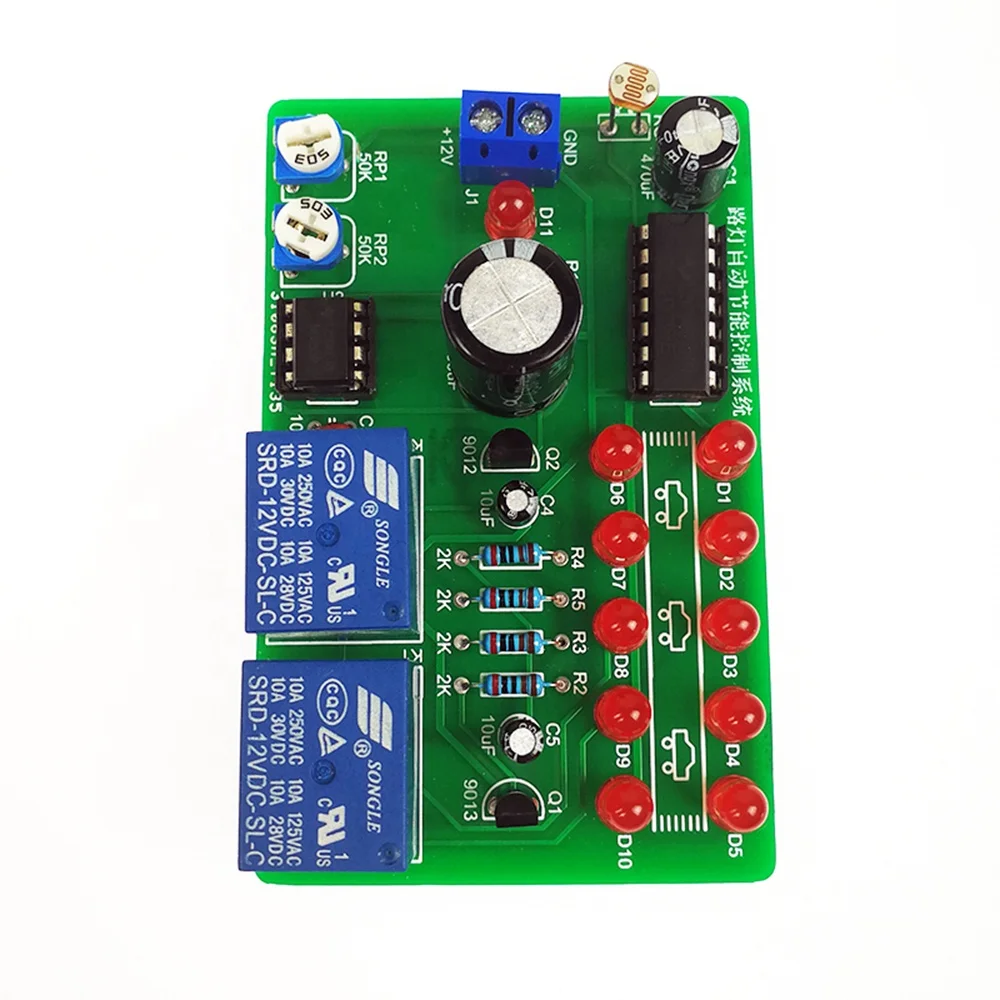

Details Images
