Taiwan Delta Inverter Carving Cnc Marble Granite Stone Milling Machine Tools

Feedback Ratings
  • 1-2 Sets
    $23,800.00
  • >=3 Sets
    $23,000.00
Model Number:
ASC-3015-ATC
- +
available
ASC-2513-ATC
- +
available
ASC-3013-ATC
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $23,800.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years, 2 years
Production Capacity:
100 sets/month
Power(W):
10KW
Type:
CNC Router
Certification:
CE ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Use:
Granite, marble,quartz
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
380V
Dimension(L*W*H):
2300*4200*2100mm
Weight:
5000KG
Application:
Stone Industrial
Function:
Stone Engraving Carving Cutting
Control system:
NC-Studio/Siemens/Syntec
Spindle power:
5.5KW Machinanical servo
Keyword:
cnc stone milling
Motor:
Leadshine Servo motor
Guide Rail:
Hiwin square rail
Ball screw:
TBI ball screw

Packaging & Delivery

Selling Units:
Single item
Single package size:
420X225X220 cm
Single gross weight:
3500.0 kg
Package Type:
Plywood case.
Lead Time :
Quantity(Set) 1 - 1 2 - 10 >10
Est. Time(days) 20 30 To be negotiated
Product Description

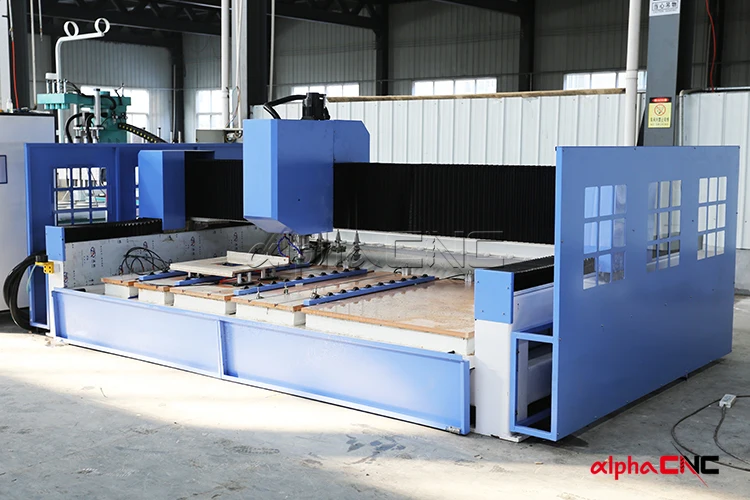

Taiwan Delta Inverter Carving Cnc Marble Granite Stone Milling Machine Toolscnc stone milling

Product Application

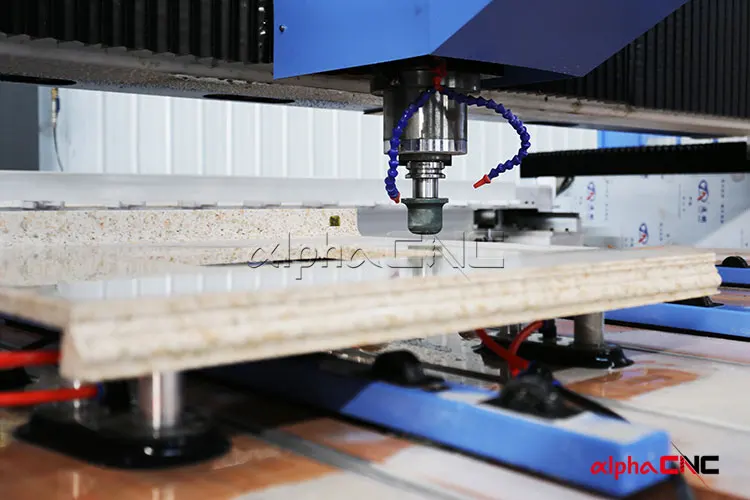

Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray carving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling, sanding, edge down, carving.

Main Features

#Working area: 3000 *1500*320mm
#Controller: Nc-studio NC-65C(Taiwan Syntec and German Siemens for option)
#Leadshine 850W Servo Motor (Japan Yaskawa servo motor for option)
#5.5kw Powerful mechanical servo spindle
#Tool shank 12pcs (BT40)
#12pcs of tool holder
#Steel machine frame
#T-slot machine table
#Vacuum cup
#Vacuum pump: 7.5kw
#Z axis high precision ball screw transmission
#XY axis Helical rack and gear
#XYZ Axis HIWIN Square Rail
#Fuling Inverter
#Automatic lubrication system
#Cutter
#Software
#Accessories box

Technical Parameters
Parameters
Standard Specifications ASC-3015-ATC
X,Y,Z Working Area for Panel
3000*1500*320mm

Spindle Power
5.5KW Powerful mechanical servo spindle
X,Y,Z Traveling Positioning Accuracy
±0.025mm
Table Surface
Steel
X,Y,Z Rail and Transmission
X/Y Helical German rack and pinion  Z  High precision TBI ball screw
Max. Rapid Travel Rate
40,000mm/mins
Max. Working Speed
15,000mm/mins
Drive Motors
Leadshine Servo Motor 850w (Japan Yaskawa servo motor for option)

Gear reducer
Japan Shimpo
Working Voltage
380V 3 phase or custom made
Command Language
G code
Operating System
Nc-Studio NC-65C (Taiwan Syntec and German Siemens for option)

Tool shank
12pcs(BT40)
Software capabilities
Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, solidworks, etc
Running Environment
Temperature: 0℃~45℃ Relative Humidity: 30%~75%
Detailed Images
5.5kw Powerful mechanical servo spindle


The ASC ATC Series machine comes standard with a 5.5kw Powerful servo mechanical spindle. The tool shank is BT 40.

Base Frame

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

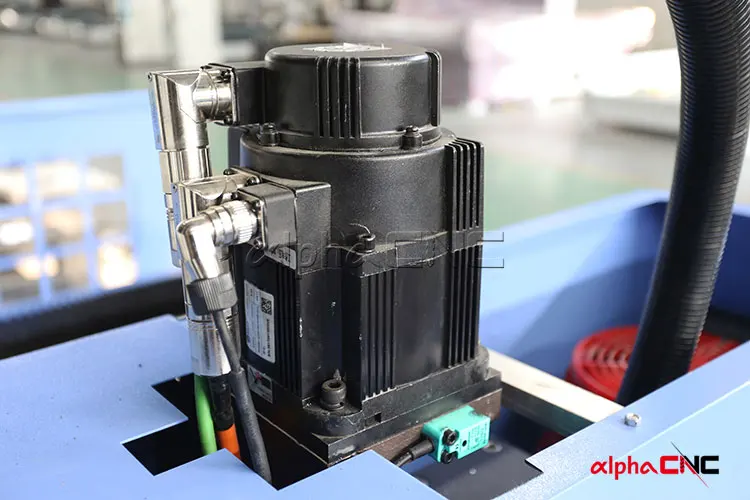

Leadshine Servo Drive Motors

Installed on each node to move in the X, Y and Z, provide a high-precision positioning of spindle (to 0.001 mm) in accordance with a predetermined program at high travel speed to 45 m/min, these motors are well proven high degree of reliability and stability even in harsh conditions.

CNC Tool Calibration


Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

Tooling


The machine includes a 12-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.






Z Axis Hiwin Square Rail

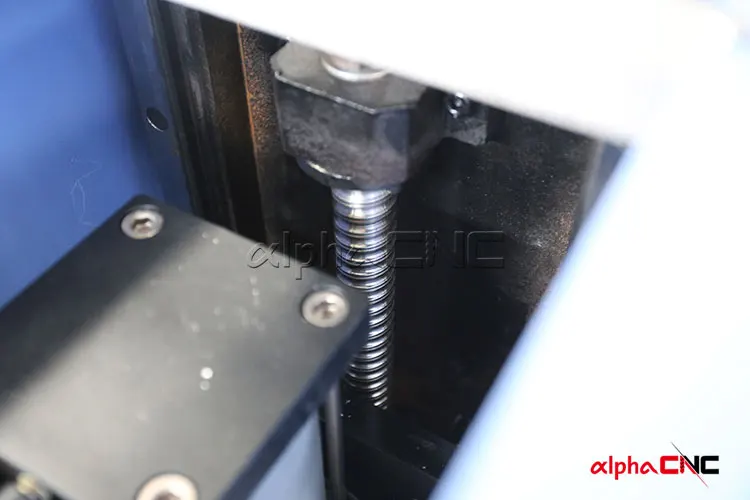

Z Axis High Precision TBI ballscrew

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality TBI ball screw, makes it high precision.

Sample
Our Certificates
Customer Feedback
Packing & Delivery
Packaging
Size
2300(L) * 4200(W) * 2200 (D)
Weight
5T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

About Alpha CNC

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

FAQ.

Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.

Q7.MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
