The Best China liquid potassium silicate price filling machine manufacturer

  • 1 - 2 Sets
    $12,000.00
  • >=3 Sets
    $11,000.00
Power:
3KW
Model Number:
KA-YL-O
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 45 80 75 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, 12 Month Life Long Maintenance
Packaging Type:
Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case, Other
Packaging Material:
Plastic, Paper, Metal, Glass, Wood, Other
Type:
Filling Machine
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, Other
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Hubei, China (Mainland)
Brand Name:
KA PACK
Dimension(L*W*H):
1900*2000*1300
Weight:
600KG
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product name:
Automatic oil filling machine
Function:
bottle oil filling machine
Usage:
Be used to fill big volume oil and liquid
Opsrate:
Easy to operate, demo video, English manual book.
Control system:
PLC & TOUCH SCREEN
Filling volume:
500-10000ml(Can be adjusted)
Filling speed:
2000-2200b/h for 500ml
Filling Precision:
1ml
Material:
Stainless Steel 304/316
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details

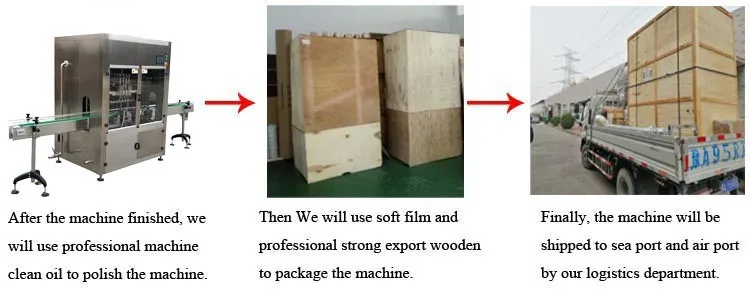

1, when the machine is finished, we will polish the machine with professional oil; 2,Then, we will use soft film and professional export wooden box to package the maschine; 3, We will ship the machine to air port and sea port.
Port
Shanghai/Ningbo port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 45 80 75 To be negotiated
Product Description

Application

KA-YL-O Piston filling machine is suitable for filling a liquid and motor oil products, especially for high viscosity materials, the effect is obvious.The machine is fully automatic in-line pressure filling machine. Mainly used for pesticide and chemical agent, liquid bottle, packaging, containers can be applied to different type of. It can be used with capping machine, labeling machine and a complete production line. It integrates light, machine, electricity and gas in one. By controlling the filling time to realize the measurement of different filling, the filling time can be precisely controlled to one percent seconds. The filling process was under the control of a PLC program on the touch screen to complete. Is a filling machine with convenient operation.

Features

1.Servo motor control Double screw rod and filling heads lifting and dive , ensure machine running stable.

2.Piston pump cylinder control filling, ensure filling accuracy

3.Anti-drop filling head. Can filling high vicosity material.

4.Machine tank and machine frame use Stain steel 316/304 material

5.Can connect with capping machine, labeling machine combine to a production line


6.This machine adopts PLC, touch screen control panel, convenient to adjust.

7.Each filling head has the weigh and feedback system. Each filling head can be regulated.

8.Photoelectric sensor, approximate switch and other electric elements are the international famous brand. No container no filling. The main host can trigger the alarm if there is any container blocked.

9.Submerged filling makes it possible to reduce form. It is suitable for various kinds of filling products.

10.The whole machine meets GMP standard. It is easy to disassemble clean and maintain, and the parts which contact with the filling products are made of high quality stainless steel. The whole machine is safe, environmental, sanitary, adapts to various kinds of working places.

Technical Parameters
Filling volume
0.5-10L(Can be customzied according to your requirments)
Filling speed
2000-2200b/h for 500ml
Filling precision
1ml
Filling head
2/4/6/8/10(Can be customized according to your requirements)
Bottles size
40-100mm(diameter); 80-300mm (height)
Air pressure
0.6-0.8Mpa
Weight
700kg
Voltage
220V/110V; 50hz/60hz
Size
2440*1480*2610mm
Detailed Images

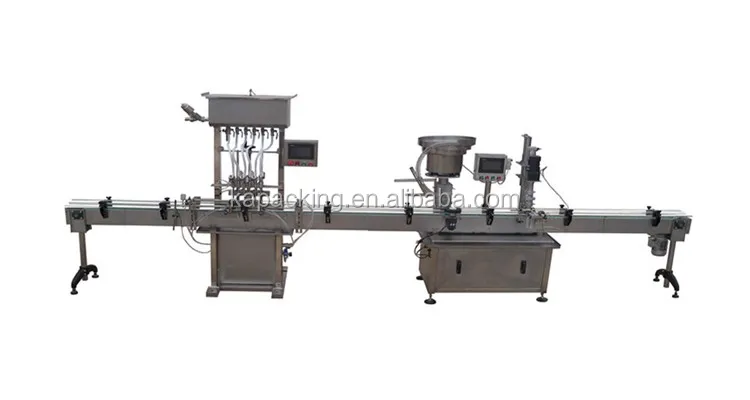

Model 1: Standard filling machine + bottles capping machine

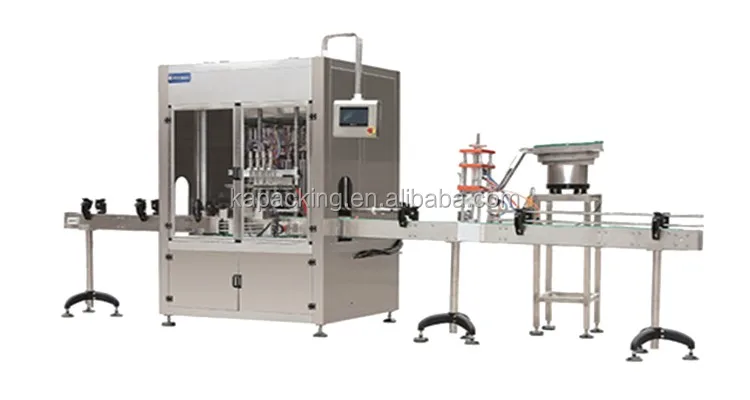

Model 2: Updated filling machine+ bottles capping machine

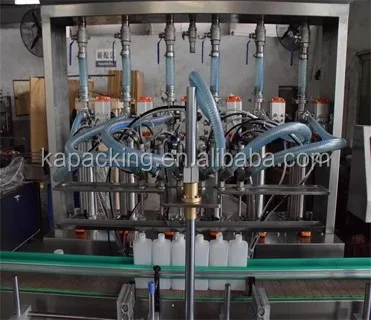

Mainly parts

Actually filling products

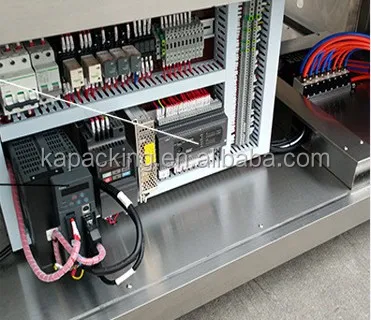

PLC and electric box

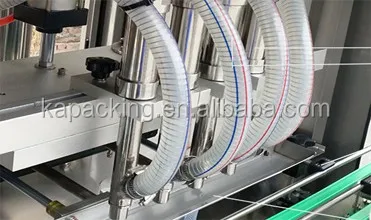

Filing nozzles


Especially design anti-leak filling head, Piston pump control filling head, ensure the filling volume accuracy. The height of filling head can be adjusted through the adjust handle, the filling head can suitable different height and volume bottles. Filling volume can adjust according to customer's reuqirments. No bottle no filling.

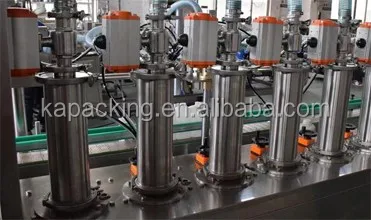

Pison cylinder


According to customer's need filling volume, customize the volume of piston cylinder. The piston moves up and down in the cylinder, which is converted into rotary motion by the piston connecting rod and crankshaft.
It suitable for high viscosity liquid.

Valve


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Usage

Packing & Delivery
Our Company

Wuhan Ka Pack Tech Co,.Ltd.

Wuhan KA PACKING TECH CO,.LTD is a professional manufacture of packing and filling equipment for food, cosmetic, chemical and pharmacy. We have professional R&G department, QC, and after-sale team. our machines have been widely used in several fields throughout the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial foods, rubber goods, sundry goods, sporting goods, etc. Our products have enjoyed a good reputation for their quality, reliability and efficiency. To help specialized customers with marketing, we also offer OEM services and customized machine designs.

FAQ

<1> What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.

<2> How could I get the spares on machines?
We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters). Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.

<3> How can I ensure that I get high-quality machine?
As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

<4> Is there any insurance to guarantee I will get the right machine I pay for?
We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
