Thermocol plates making machine

FOB Reference Price:Get Latest Price
$8,594.00 - $137,500.00 / Sets | 1 Set/Sets Thermocol plates making machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DY
Model Number:
DY-1040
Power(W):
168KW
Dimension(L*W*H):
1000x1100x80mm
Type:
Thermocol plates making machine
Max.forming area:
1000*1100 mm2
Max.forming depth:
80mm
Production efficiency:
3-5 s/mould
Forming pressure:
15t
Heating power:
108kw
Total power(approx):
168kw
Total weight(approx):
16t
Skype:
chinanina99
Tel:
0086-13954521123
Processing Type:
Foaming Machine
Weight:
16t
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Condition:
New
Product Type:
Fast Food Box
Voltage:
380V
Certification:
ce
Supply Ability
Supply Ability:
100 Set/Sets per Year Thermocol plates making machine
Packaging & Delivery
Packaging Details
Thermocol plates making machine
standard expoting
Port
Qingdao
Lead Time :
90 days



Thermocol plates making machine

The PS food container machine mainly including three main parts:

1. PS foam sheet extruder: make PS foam sheet from raw material

2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)

3. Plastic recycle machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again



We specialize in making plastic machines for 30 years with advanced technology and have accumulated vast experience. Our machines are sold well in many countries such as England, Brazil, Portugal, India, Russia, Uzbekistan, Iran, Indonesia, Cambodia and so on. Sincerely hope to have chance to cooperate with you in near future.



Thermocol plates making machine

A. PS Foam Sheet Extruder

PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene injection an eco-friendly blowing gas and additives. It has a user friendly operating system with inverter controlled driving, digital temperature control and so on.

 Main technical parameters

  Model

Unit

PSP70/90

PSP90/120

PSP100/130

PSP120/150

  Extruder



70/90

90/120

100/130

120/150

  Foam rate



10-20

10-20

10-20

10-20

  Width of product

mm

640-1040

640-1040

640-1040

640-1200

  Cutting method



Single cutter

Double cutter

  Thickness of product

mm

1.0-3.0

1.0-3.5

1.0-3.5

2.0-5.0

  Cooling method



Cooled by wind and water

  Output

kg/h

50-90

100-180

180-230

230-320

  Installed power

kw

120

150

180

260

  Dimensions(L×W×H)

m

26×4.0×2.8

30×4.1×2.8

36×4.2×3

38×4.2×3.2

  Total weight

T

10

12

15

18





Thermocol plates making machine

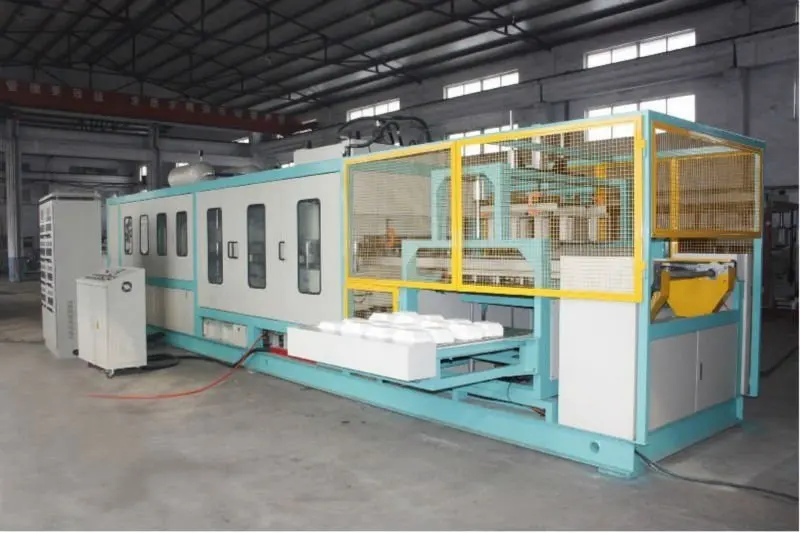

B. Fully auto forming and cutting machine



Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.

The machine is plastic sheet forming equipment in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.



  Model

Unit

DY-1040

  Max. forming area

mm2

1000×1100

  Max. forming depth

mm

80

  Production efficiency

s/die

3 - 8

  Forming pressure

T

15

  Mounted power

kw

168

  Total weight

T

16

  Installation size

m

13×2×3.2







































Thermocol plates making machine

C.Plastic recycle machine



Plastic recycle and pelletizing machine is designed to reclaim the foamed polystyrene materials almost identically to new ones with its own superior filtering performance.

Structure

-- Extrusion unit

-- T-die with screen changer

-- Cooling water bath unit

-- Pelletizing unit

-- Control panel unit

 Main technical parameters



Model

Unit

DY-180+120/100

  Screw diameter

mm

180+120/100

  Motor

kw

30

  Heater

kw

25

  Extruder capacity

kg/h

80-130

  Cooling water tank

mm

1810×410×225

  Granule cutting motor

kw

2.2







we are sincerely to cooperate with you, if you have any questions please feel free to send me mail!
