Toky 3 phase multi function ct kwh din rail energy meter

FOB Reference Price:Get Latest Price
$58.00 - $70.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 200 Units)

More

Graphic customization (Min. Order: 200 Units) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOKY
Model Number:
DTSD8080-L
Display Type:
Digital Only
Phase:
3 phase 3 wire or 3 phase 4 wire
Measuring Energy Range:
999999.9kwh
Accuracy Class:
0.5s
Output Voltage:
100-240V AC/DC
Operating Temperature:
-10℃~50℃
Dimensions:
88W*60H*126L
Product name:
3 phase multi function ct kwh din rail energy meter with RS485
Accuracy class:
0.5S class
Rated voltage:
3*220V
Current range:
1.5(6)A/10(80)A
Input type:
1.5(6)A Input by CT/10(80)A direct
Multi-rate:
Yes
Communication:
RS485 Modbus-RTU DL/T645
Pulse constant:
6400 imp/kWh
Installation:
35mm standard DIN rail mounting
Measurement feature:
Max 4 loops of 3 phase circuit
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month 3 phase multi function ct kwh din rail energy meter with RS485
Packaging & Delivery
Packaging Details
One piece per one paper box, 18 pcs in one carton (39.5 x 29 x 37cm)
Port
ZHONGSHAN
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(days) 3 To be negotiated
Video Description
Product Description

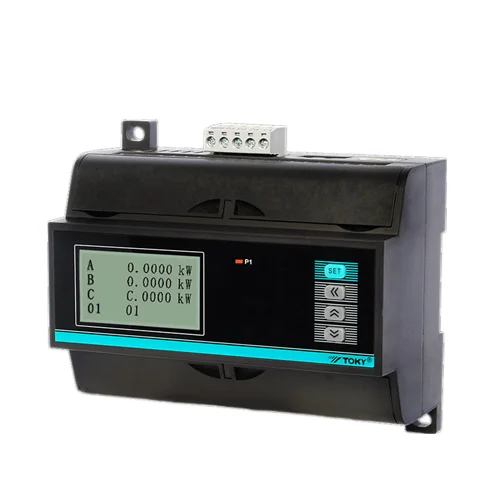

Toky 3 phase multi function ct kwh din rail energy meter

single phase energy meter

Features:

1
The display of true virtual value measurement, electric parameter/
energy information can be switched by panel key.
2
Optional multi-rate function.
3
Active power pulse output.
4
With industrial grade connection terminal to guarantee long life span and reliablity
5
RS485 port, MODBUS-RTU or DL/T 645 procotol.
6
Rated current 3*1.5(6)A,convenient to choose /5A standard current transformer.

7
Convenient installation, flexible connection. Not only suitable for distribution metering of new facilities, but also appliable for transformation of old distribution system. Applicable to large commercial facilities, apartment dormitories, industrial enterprises and residential.

Ordering Information:

Model
Accuracy class
Rated voltage
Current range
Input type
Multi-rate
Communication
Pulse constant

DTSD8080-L006

1.0 S class

3×220V

1.5(6)A

Input by CT

Yes
RS485
Modbus-RTU
DL/T645
12800 imp/kWh
DTSD8080-L080
1.0S
class
3×220V
10(80)A
Direct
Yes
RS485
Modbus-RTU
DL/T645
6400 imp/kWh
DTSD8080-L006B
0.5 S
class
3×220V
1.5(6)A
Input by CT
Yes
RS485
Modbus-RTU
DL/T645
12800 imp/kWh
DTSD8080-L080B
0.5 S
class
3×220V
1.5(6)A
Direct
Yes
RS485
Modbus-RTU
DL/T645
6400 imp/kWh

Function and features:

Item
Function
Measurement feature
3 phase circuit


Measurement
3 phase voltage/frequency of the same loop.
Each phase current/power/power factor
Maximum 21 times of voltage/current harmonic content

Metering
Each loop positive/reverse active/reactive energy, quadrant reactive energy
Multi-rate energy
Maximum demand
Interval 15 minutes, sliding window time 1 minute (interval and sliding window time are settable)
Energy settlement
With 2 months energy data history record.
Multi-rate

Communication port
Programmable 4 kinds of rate,20 period,13 sets of diurnal period table,14 time zones,and 30 public holidays.
RS485
Communication procotol
DL/T 645-1997,DL/T 645-2007 and ModbusRTU, default DL/T 645, ModBus needs to be ordered.
Data format
E-8-1
Baud rate
Optional 1200,2400,4800,9600,19200 bps
Dimension
Length × width × height 126.0mm×89.0mm×65.6mm
Installation
35mm standard DIN rail mounting
Specifications:
Energy accuracy (active/
reactive)
0.5S/2.0 or 1.0/2.0

ESD
Contact discharge 8KV,
air discharge 15KV
Connection mode
3 phase 4 wire 3P4W
Reference voltage
3×57.7/100V or 3×220V/380V
Working temperature
range
-20~60 ℃
Rated current
3*1.5(6)A
Voltage line power
≤1.5W,6VA
Current input type
External CT (direct input needs to be ordered)
Lightning surge
Power/signal ends ±4000V
Loop No. of measured circuit
3 phase × 1loops
Protection class
Secondary protection
Timing accuracy
Diurnal timing error≤0.5 s/d (23℃), temperaturedependent variation is better than 0.1s/(d•℃)

EFT
Power/signal ends,

5/100KHZ, ±4000V
Auxiliary power supply
AC100-240V(other needs to be ordered)
Pulse constant
400imp/kWh
Communication port
Standard 1 loop RS485 (maximum 2 loops of

RS485, needs to be ordered)

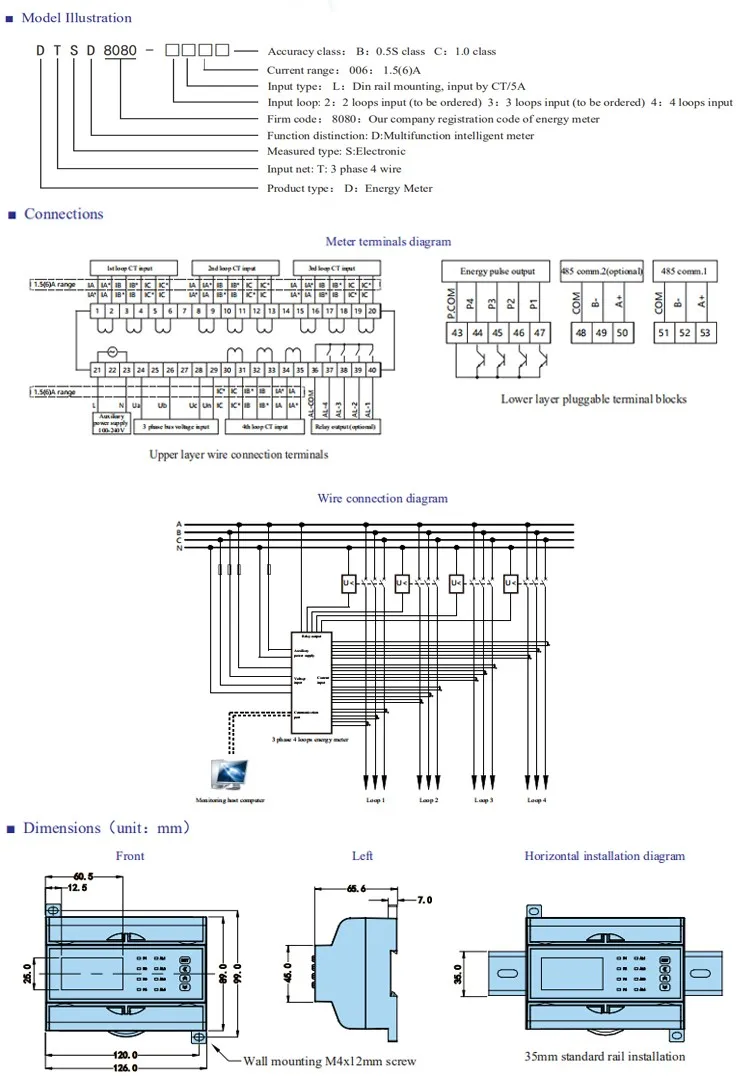

Detailed Images
