Top Quality Incremental Position Encoder Optical Encoder 100 H

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $40.00
  • 50 - 99 Pieces
    $35.00
  • >=100 Pieces
    $30.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
H&XCOD
Model Number:
HXZ-24/38/40/58/66/80/90
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
Type:
Waterproof
Material:
Aluminum Alloy
Product name:
Photocell Sensor encoder
Shaft / Aperture diameter:
6;8;10;12;15(mm)/6-45mm
Dimensions:
24/38/40/58/66/80/90(mm)
Supply voltage:
5V;5V~30V;10V~30V
Working temperature:
-25℃~70℃
Warranty:
2 Years
Supply Ability
Supply Ability:
10000 Piece/Pieces per Year incremental encoder
Packaging & Delivery
Packaging Details
Carton
Port
shanghai
Lead Time :
1 week

Top Quality Incremental Position Encoder Optical Encoder 100 H

Product Attribute



Electrical parameters:

Mechanical parameters:

Supply voltage

5V,5V~30V,10V~30V

Maximum speed

6000r/min

Output Mode

HTL,TTL,open collector,push-pull complementary , RS422 long-line driver

The maximum radial load

40N

Pulse number

10 line ~20000 line

The maximum axial load

20N

frequency

100HKz

Protection class

IP65

Working temperature

-40℃~80

Starting torque

8 (1.2) ×10^-2 N. m Max

Storage temperature

-40℃~80℃

Working temperature

-10℃~70℃

Protection class

Standard IP54, IP64, up to IP68

Impact resistance

1000m/s^2,6ms

Maximum speed

3000max

Anti-vibration

100m/s^2, 10…200Hz

Shape structure

solid shaft, blind hole shaft, through hole, square flange

Outline structure

Ø24,Ø38,Ø50,Ø58,

Ø66,Ø80,Ø90mm

Connection method

1m shielded cable, pin (cable extension or other specifications can be customized)





Product Size

Model code

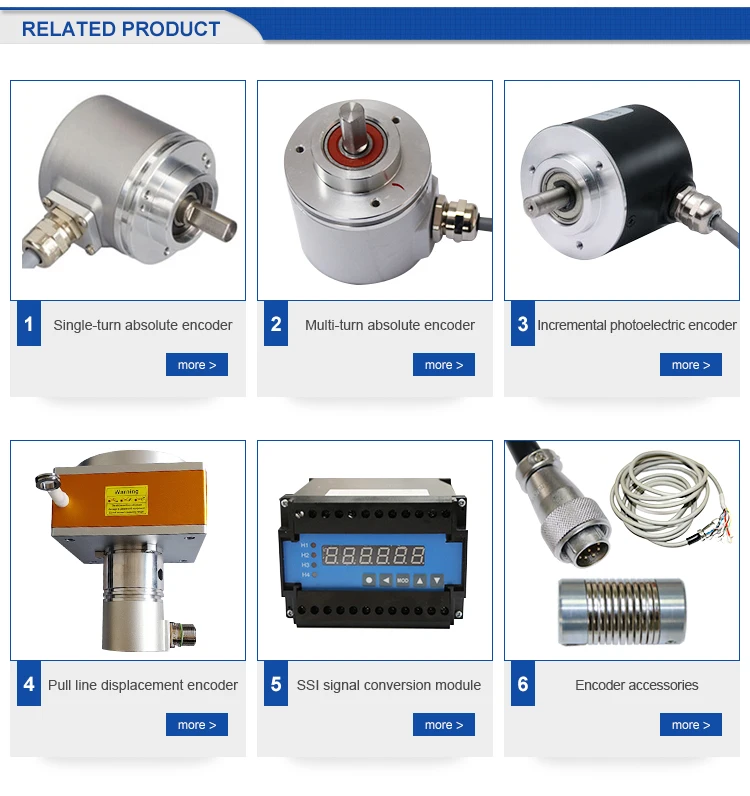

Related Product
Company Information

The company focuses on the development of absolute encoders and encoder modules (instrumentation)  and automation control systems, industrial automation product distribution and system integration.

The rotary encoder independently developed by our company currently has two national patents (Patent Nos.: ZL 2014 2 0140870.4 and 201410268414.2). The registered trademark of the company is: H&XCOD company's products have passed CE certification, EMC electromagnetic compatibility certification, and low temperature test at minus 40 degrees. Certification, salt spray test certification, low pressure test certification, accuracy testing certification. All have certificates issued by the state or relevant departments.

Provides rotary encoder OEM customization.

FAQ

Q: Are you trading company or manufacturer ?

A:We are factory.

Q: How long is your delivery time?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: Yes,I do.But it's not free.Each product has a definite sample price.

Q: What is your terms of payment ?

A: We accept T/T, Paypal, Western union or money gramm.

Q: What's your warranty ?

A: 12 months. If the items you purchased from  our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.

Q: What's your shipment method?

A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
