Top Security Stainless Steel Electrical Control Rim Lock for Single Cylinder

  • 1-99 Pieces
    $19.00
  • 100-999 Pieces
    $18.50
  • >=1000 Pieces
    $18.00
Model Number:
ACM-Y066
Material:
Zinc Alloy
$
- +
available
Samples:
$19.00 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Contact Supplier
Samples - $19.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ACM
Product name::
Stainless Steel Electrical Control Rim Lock for Single Cylinder
Current::
280KG(600LBS)
Induction Distance::
13mm
Voltage::
12/24VDC
Certification::
CE/MA
Suitable For::
Wooden Door,Glass Door,Metal Door,Glass Door
Face Plate::
130x98x41mm
Feature::
Fail Safe
Working temperature::
-10 to 55 Celsius degree
Keywords:
electric rim lock.intelligent lock

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X10X5 cm
Single gross weight:
3.000 kg
Package Type:
1 Unit per box, 10 pcs per Carton, each carton gross weight 22kgs.
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 3 5 7 To be negotiated
Video Description
Product Description

Top Security Stainless Steel Electrical Control Rim Lock for Single Cylinder


single-end Electric Control Lock.can be opened by electric devices, turning the button or key.Suitable for right open door.It is highly secured and anti-theft.It also can avoid the someone to open the lock with other tools.

Product Parameter
Parameter Description
Face Plate
130x98x41mm
Working current
Over 100mA
Signal to open the door
LED
Current
12-18V DC
Feature
Single cylinders,reading card on two side
Lifetime
More than 200,000 Times
Opening lock time
≤1s
Remote controlled distance:
within 7m
Certification:
CE /MA
Product Feature

1. Uses nice control system and automatically lock door byinduction
2. If customer's want to replace general electric lock, timesaving, convenient, because hole of installation lock isconsistent
3. There is no direction restriction, left, right, inside andoutside and all kinds of other direction also apply
No shock, automatically reset, low noise, low power consumptionand small requirements for door closer
4. Lock size: 130x98x41mm
5. With feedback signal and LED light
6. Working voltage: 12 to 18V
7. Working current: 100mA

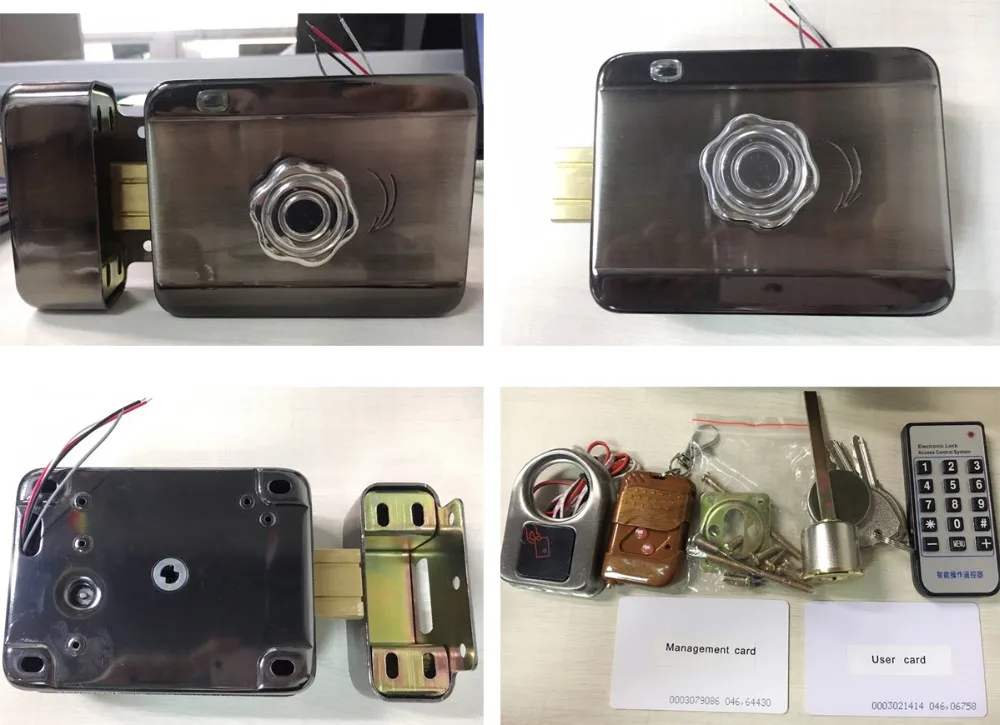

Detailed Images , OEM/ODM available  More details for front side/back side and Accessories

Our electric control lock has used most advanced production skills and best production technologies.

The lock can be opened by electric devices, turning the button or key. It is highly secured and anti-theft. It also can avoid the someone to open the lock with other tools.
This lock can be used for the gates of residential buildings, especially the public door of the residence, governmental buildings, schools, hotels, factory warehouse etc. It also compatible with electric control door.

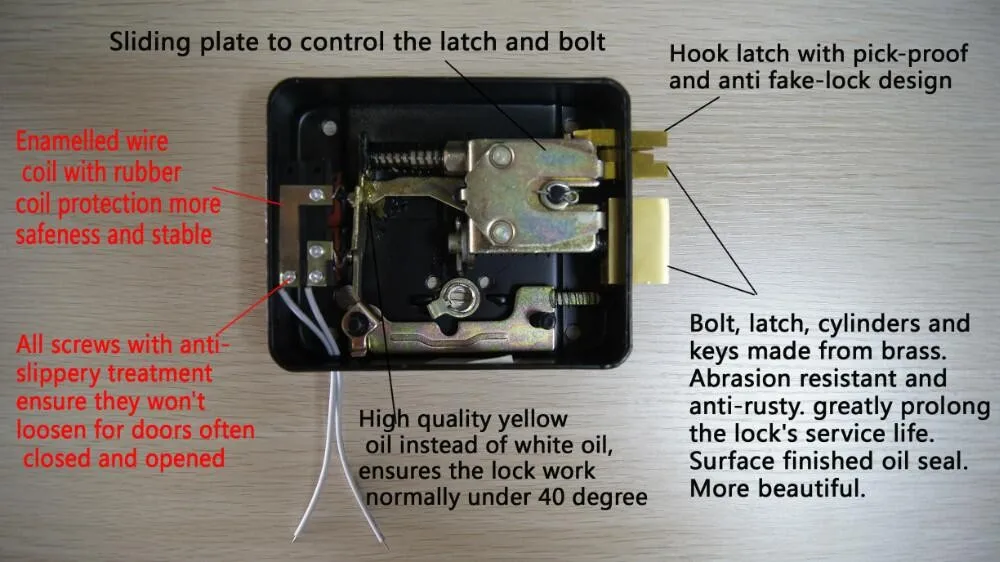

The coil inside the lock is flame proof. It will not be on fire when operating a long time.if power on but the lock can not function, please check the installation or send it to the agent to repair.

The internal structure of this lock has been improved which will prevent from opening the lock by knocking on it. this will make you safer.

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

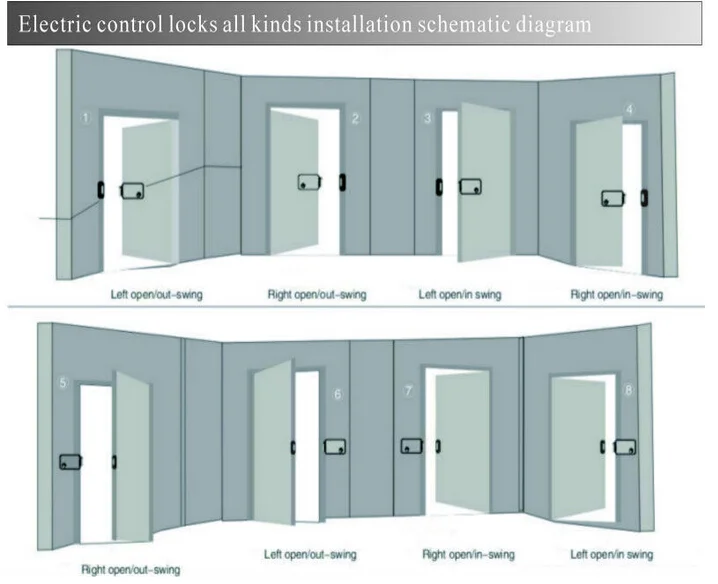

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.


Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 26*26*10cm , Gross Weight :46kg. 50 cartons per pallet
