Top effciency solar collector with vacuum tube and aluminum frame

FOB Reference Price:Get Latest Price
$125.30 - $409.60 / Units | 1 Unit/Units (Min. Order)
Type:
Manifold Collector
Application:
Water Heater
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JINYI, LINKEDSUN, OEM
Model Number:
JMC-5818-24
Pipe Material:
Glass
Item:
24mm Condenser Heat Pipe Vacuum Solar Collector System
Tube available:
24 (options:10,12,15,18,20,22,24,25,30 tubes)
Vacuum tube:
58x1800mm, three target tubeThree target tube,ALN/AIN-SS/CU coating
Heat pipe:
24mm diameter condenser, TU1 cooper
Copper header:
TP2 cooper, 0.8mm thickness, diameter: 35mm, 3/4"
Insulation layer:
Compressed rock wool, thickness: 40mm
Manifold material:
Aluminum alloy, thickness: 2.0mm
Frame:
Aluminum alloy with plastic spraying
Roof mountings:
Flat roof or sloping roof
Working pressure & Max. pressure:
0.6Mpa; 1.2 Mpa
Supply Ability
Supply Ability:
1000 Unit/Units per Week High effciency JMC model heat pipe heating solar collector
Packaging & Delivery
Packaging Details
24mm Condenser Heat Pipe Vacuum Solar Collector System:
-LCL order: Carton box with wooden box outside
-FCL order: export carton box
Port
Shanghai or Ningbo
Picture Example:
package-img
package-img

High Efficiency Vacuum Tube Heat Pipe Solar Collector Price









Operating Principle

JMC model vacuum solar collector consists of a vacuum tube, a heat pipe, a metal heat absorption wing and the connecting manifold. The metal heat absorption wing with selective absorption coating converts solar energy into heat energy and transfers it medium liquid inside. The vacuum between the two glass tubes works as insulation. The liquid in the heat pipe changes into vapor which rises to the condenser. When passing through the heat exchanger, the heat is absorbed and the temperature is lowed, and the vapor becomes liquid, returns to the base of the heat pipe. This transference of heat is a continuous circulation as long as the collector is heated by the sun.



Schematic diagram.









Product Description





Parameter table



ModelJMC-5818
Number of tubes10,12,15,18,20,24,30
Gross size(mm)1944 *1960 (w*l)
Aperture area m21.89
Flat roof installation size (For example of 45backet)1485 x 1274mm (a*c)
Weight empty (KG)58
Fluid volume( L)1.37
Heat transfer mediumPure water/ glycol
Working pressure6  bar
Max testing pressure12 bar
Max working temperature280°C
Aperture efficiency ETA00.769
Inlet/outlet connection3/4 male threader
Manifold packing1 x 2010*210*160mm
Tubes packing2 x 1940*340*170
CertificateEN12975-1,2 SOLAR KEYMARK
Material
Vacuum tubeHigh borosilicate glass 3.3
Size58*1800mm
CoatingSS-CU-AIN/ALN
Heat pipe materialTU1 copper
Heat pipe length1700mm
Heat pipe diameterCondenser dia.24mm
Heat transfer finIntegrated Aluminum alloy fin
Manifold header pipeCopper dia 35mm or 38mm
Manifold casingAnodized aluminum alloy
InsulationRock wool with polyurethane foam
BracketAlumium Alloy

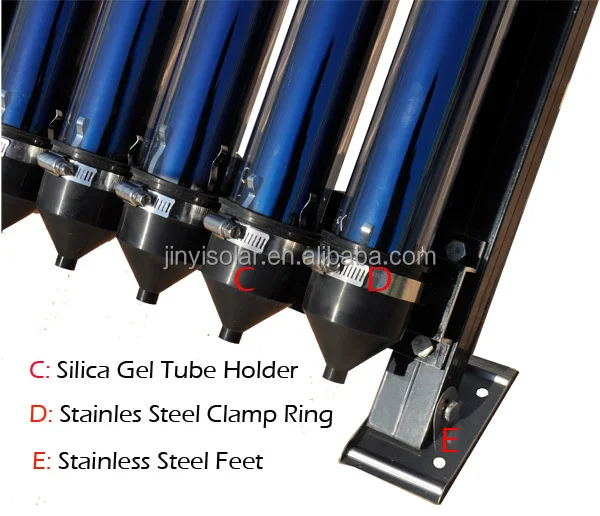

Tube holderSilicon seal and Stainless steel ring
