Top quality cheap hydraulic crawler geological drilling rig

  • 1-4 Pieces
    $12,300.00
  • >=5 Pieces
    $12,000.00
Model Number:
XY-3L
Power(W):
65KW
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support
Place of Origin:
China
Brand Name:
Hengwang
Usage:
Water Well
Voltage:
380V
Weight:
6200kg
Certification:
ISO CCC
Type:
Core Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
4500 x 2000 x 2700mm
Applicable Industries:
Construction works , drilling hole works
Product name:
geological drilling rig
Drilling depth:
600m
Drilling diameter:
75-325mm
Color:
Yellow
Key words:
geological drilling rig
Drill rod length:
4m/pc
Feature:
High Efficiency
Drill Mast:
6.5m
Engine:
Domestic diesel engine
Drilling angle:
90-75
Product Certification certification
CE Certified.
Valid from 2019-12-02 until 2024-12-02

Packaging & Delivery

Selling Units:
Single item
Single package size:
450X200X250 cm
Single gross weight:
6200.0 kg
Package Type:
Standard Export Packing, Wooden Box, One 20'GP can load two sets
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(days) 7 To be negotiated
Video Description

Top quality cheap hydraulic crawler geological drilling rig





Packaging & Delivery
Packaging Details
Standard Export Packing, Wooden Box, One 20'GP can load two sets
Delivery Time
15-20DAYS ON RECEIPET OF DEPOSIT OR LC

Features of  XY-3 core drilling rig

a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.

b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.

c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.

d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable

e. Spindle and hoist can be operated separately.

f.  Spindle has big inner diameter, able to use big hexagonal drilling rod.

Applications of  XY-3 diamond core drilling rig

XY-3 drilling rig is mainly used for geological exploration, hydropower project, road and railway construction, buliding project and big diameter water well project

Machine Parameter

Unity machine parameter
Drilling depth600m
Max open hole caliber325mm
End hole caliber75mm
Drilling Rod diameter60mm
Drilling angle90°~75°
Dimension4500 x 2000 x 2700mm
Drill weight (without power)6200kg
Spindle
spindle speedForward 30-1050r/min
Reverse 29 137r/min
Spindle stroke600mm
Spindle inner diameter96mm
Lifting capacity6000kg
Hoist
Max.Single line lifting capacity4000kg
Max.Single line lifting speed0.5-1.9m/s
Wirerope caliber12.5mm
Wirerope length50m
Reel diameter300mm
Hug folldgate belt width90mm
Mud pump
TypeBW-250
Displacement250 L/min
Work pressure80kg/cm²
Water inlet pipe diameter75 mm
Water outlet pipe diameter50 mm

Power
Diesel engineYunnei 65KW
Electric motorY180L-4 59KW

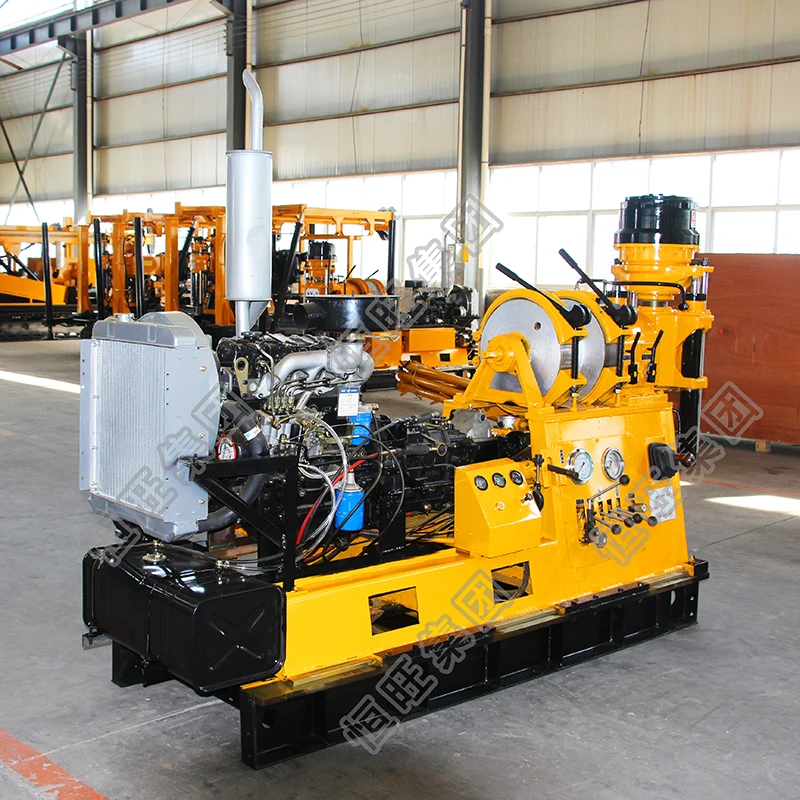

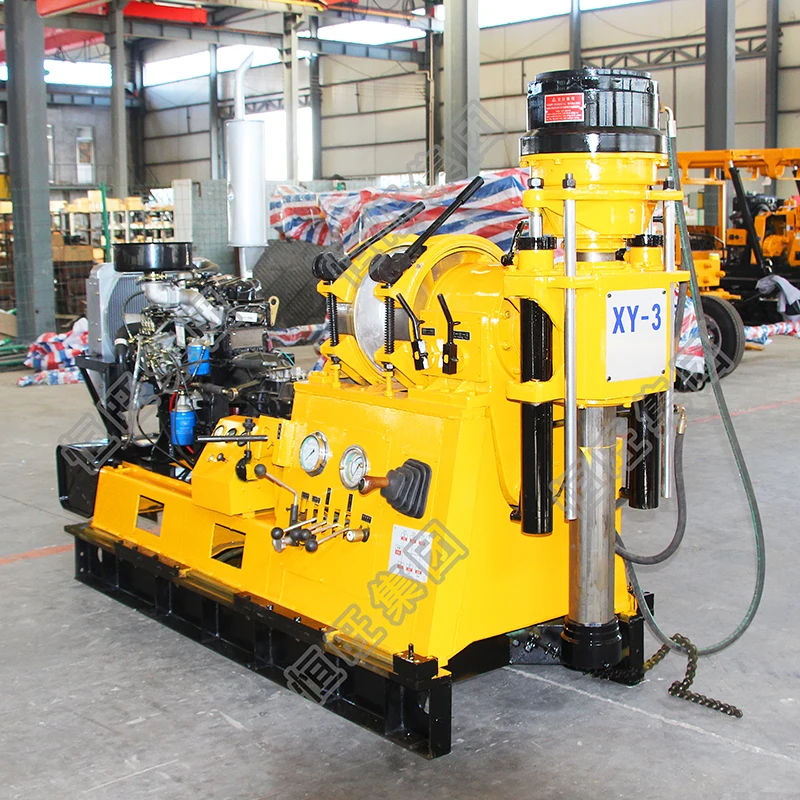

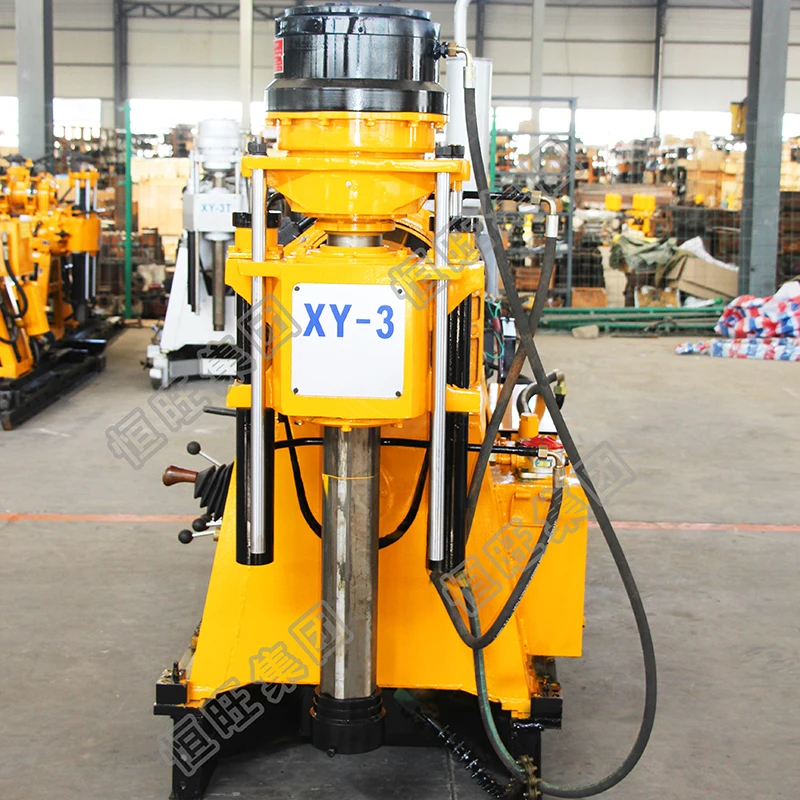

XY-3 diamond core drilling rig photos
