Top quality digital mini rotary encoder incremental rotary encoder usb rotary encoder

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    $15.00
Lead Time:
Quantity(Pieces) 1 - 100000 >100000
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
KAYAL
Model Number:
KE50S8
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Switching Transducer
Power supply:
12-24VDC
Protection grade:
IP50&IP65
Certificate:
CE RoHS
Warranty:
2 years
Supply Ability:
10000 Piece/Pieces
Supply voltage:
12-24VDC
Product name:
encoder
Name:
encoder
Quality:
GOOD
Sample:
Free
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
according to customer's requirement
Port
NINGBO/SHANGHAI
Lead Time :
Quantity(Pieces) 1 - 100000 >100000
Est. Time(days) 30 To be negotiated
Please Attention!

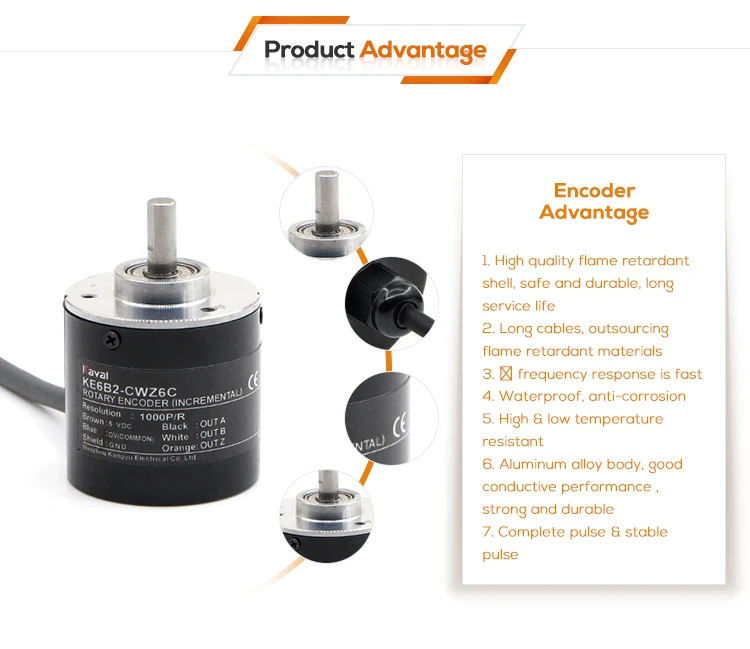

 Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control

Specification

Item

Diameter 38mm shaft 6mm type incremental rotary encoder

Resolution(P/R)

400



Output Phase

AB Phase

Output Type

NPN Open Collector

Electrical

Supply

Voltage

5-24VDC

Current

consumption

Max. 40mA

Response

frequency

Max. 20Khz

Allowable revolution

Max. 2000 rev/min

Mechanical

Starting torque

Max. 20gf.cm (0.002N.m)

Rotor interia

Max. 15g.cm2(1.5*10-6kg.m2)

Shaft loading

Radial: Max. 2kgf Thrust: Max. 1kgf

Mechanical

Speed

Max. 5000 rev/min(*1)

Environmental

Ambient temperature

-10~70 (at non-freezing status), Storage:-25~85

Ambient humidity

35~85%RH, Storage: 35~90%RH

Protection

IP50 (IEC standard)

Vibration

1.5mm amplitude at frequency of 10-55 Hz in each of X,Y, Z direction for 2 hours.

Shock

Max. 40G

Unit weight

Approx: 180g

Cable

1.5m (The cable length can be customized)

Approval

CE  ROHS

(*1)

Mechanical speed > Allowable revolution, Please take allowable speed as standard when use
