Torque Rheometer For Plastic And Rubber Testing

$30,000.00 / Set | 2 Sets (Min. Order)
Usage:
Plastic Testing Machine
$30,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
To be negotiated
Customization:
Customized logo (Min. Order: 2 Sets)
Customized packaging (Min. Order: 2 Sets)

More

Graphic customization (Min. Order: 2 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
Anytester
Model Number:
AT400
Power:
Electronic
Motor:
Panasonic Servo Motor & Driver, 3.0kw
Speed range:
0.1~200rpm
Speed accuracy:
0.05%F.S.
Torque:
0~300Nm
Torque accuracy:
0.1~100MPa
Melt pressure accuracy:
0~350℃
Temperature accuracy:
±1℃
Temperature channel:
5 (4 channels for controlling temperature)
Power supply:
3phase, AC380V, 50Hz, 30A

Packaging & Delivery

Selling Units:
Single item
Single package size:
215X73X135 cm
Single gross weight:
408.0 kg
Package Type:
Export Standard Wooden Case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

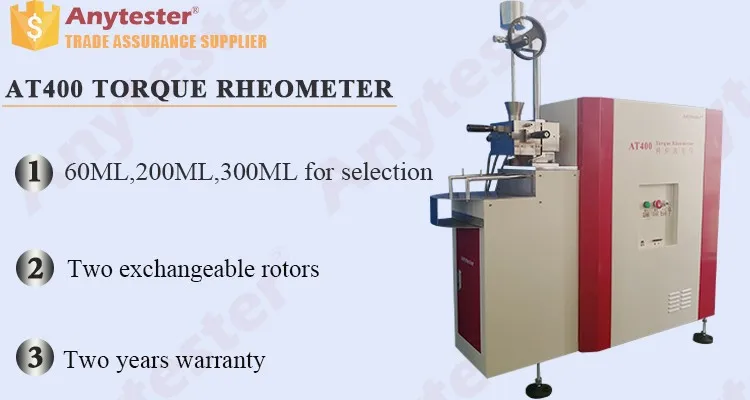

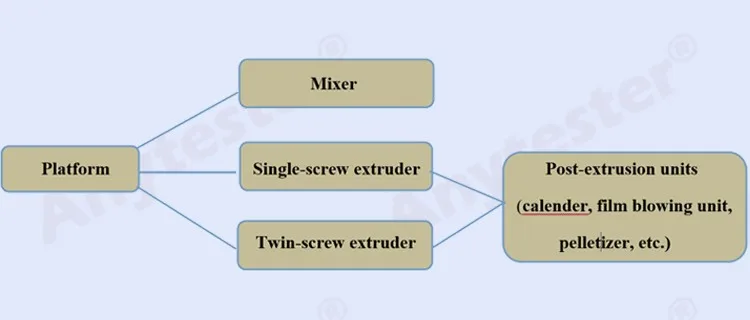

AT400 Torque Rheometer is a measuring system for studying the flow, plasticizing, heat and shear stability of polymers. This system consists of a platform and some function units, such as the mixer and single-screw or twin-screw extruder. The platform connected with a function unit can measure flow and compounding behaviors, critical processing parameters of temperature, pressure, torque and viscosity of polymers in the laboratory-requiring only small sample volume. Designed to an excellent system with high measuring precision, handling flexibility and testing reproducibility, this instrument has been widely applicable in science research, quality control and process experiment. The whole system is as follows:

Specification for platform
Motor
Panasonic Servo Motor & Driver, 3.0kw
Speed range
0.1~200rpm
Speed accuracy
0.05%F.S.
Torque
0~300Nm
Torque accuracy
0.1%F.S.
Melt pressure range
0.1~100MPa
Melt pressure accuracy
0.5%F.S.
Temperature range
0~350℃
Temperature accuracy
±1℃
Temperature channel
5 (4 channels for controlling temperature)
Power supply
3phase, AC380V, 50Hz, 30A
Details & Features


Rotors


Banbury, Cam or Delta optional

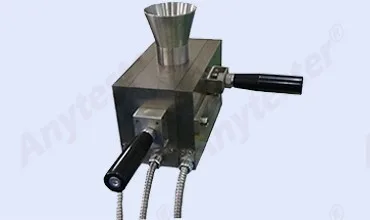

Mixer with the simplified structure



Interface of Platform Software

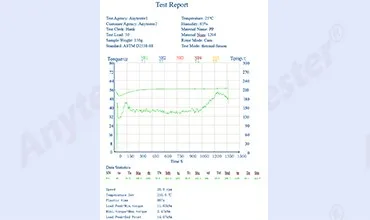

Test report


Our Company

History

Since 1982 with more than 20 years' experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications
Packing & Delivery
Packaging
Size
215 (L) * 73 (W) * 135 (D)
Weight
408Kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
