Triple insulated electrical aluminium heating wire

FOB Reference Price:Get Latest Price
$0.07 - $1.35 / Meters | 100 Meter/Meters (Min. Order)
Customization:
Customized logo (Min. Order: 800 Meters)
Customized packaging (Min. Order: 500 Meters)

More

Graphic customization (Min. Order: 800 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
Qiang ren
Model Number:
BVVB
Type:
Insulated
Application:
Heating
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Product name:
Triple insulated electrical aluminium heating wire
Color:
Requirement
Certificate:
ISO/CCC
Rated voltage:
300v/500v
Conductor:
Copper Core
Insulation:
PVC
Standard:
IEC60502
Voltage:
low voltage
Core:
1 Core
Sheath:
Flame Retardant PVC
Supply Ability
Supply Ability:
1000000 Meter/Meters per Month Triple insulated electrical aluminium heating wire
Packaging & Delivery
Packaging Details
Package in plastic/wooden drum/reel/container or according to customer's requirement.
Port
TAINJIN
Picture Example:
package-img

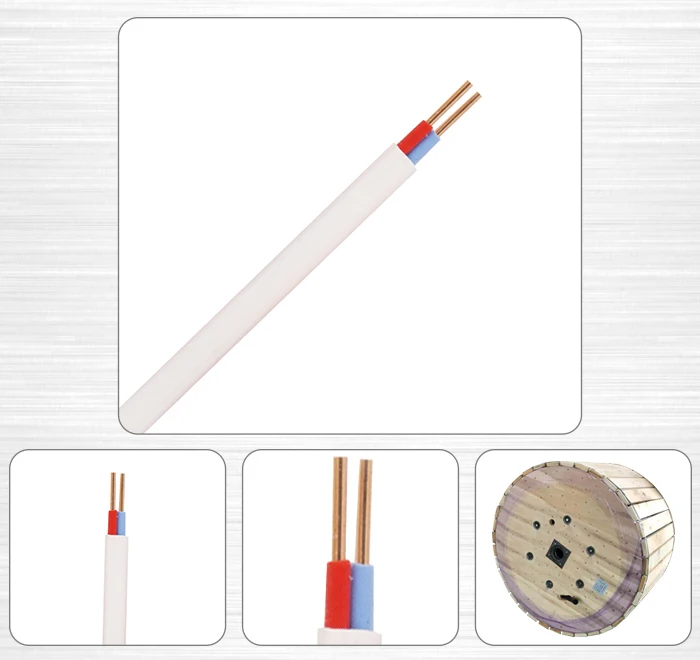

Triple insulated electrical aluminium heating wire

Product Description

Electric wire is a wire that carries electrical energy.Bare wire, electromagnetic wire and insulated wire.Bare wire has no insulation layer, including copper, aluminum flat wire, overhead stranded wire and various profiles (such as type line, bus line, copper row, aluminum row, etc.).

Product features:

1. Has good corrosion resistance, conductor contact resistance is small.

2. With good weldability, copper-clad aluminum wire has the same weldability as pure copper wire because its surface is coated with a layer of pure copper.

3. Light weight, soft thread, easy to process, easy to install and transport.

4. Copper-clad aluminum material has the advantages of relatively low cost and relatively stable price, which overcomes the disadvantages of high copper cost and volatile price.

5. Compared with pure copper conductor, except for the advantages of copper conductor, under the condition that the dc resistance of conductor is the same as that of pure copper conductor, its ac resistance is 2%-5% higher than that of copper conductor and its carrying capacity is 2%-5% higher (the larger the cross-section area, the more obvious the effect).



Installation

Installation

1. The installation temperature should not over 20°C, If the ambient temperature is lower than 0°C, the cable should be prehea ted.

2. The bending radius of cable should not less than 8 times.

3. After installation, the cable should withstand voltage test for 15min. 3. 5kv d.c.

Inair

1. As the single core cable laving in parallel, the distance between the cable to center is 2 times (for cables, which cross sectional area of conductor mm2)and 90mm (for cables. which cross sectional area of conductor 240mm2)

2. Ambient temperature: 40°C.

3. Max. temperature of conductor: 70°C.

4. Rating factors of current rating for ambient temperature:

Air temperature

20°C

25°C

35°C

40°C

45°C

Rating factors

1.12

1.06

0.94

0.87

0.79

Dirct in ground

1. When the single core cables are installed separately, the distance between the cable to center is 2 times of the cable diameter.

2. Ambient temperature: 25°C.

3. Max. temperature of conductor: 70°C.

4. Soil thermour resistivity: 10°C.m/w.

5. Depth: 0. 7m.

6. Rating factors under different ambient temperature:

Air temperature

15°C

20°C

25°C

35°C

Rating factors

1.11

1.05

0.94

0.88

Short circuit ratings

Max, temperature at short circuit:130°C;Max, short circuit rating:I=94s/t—A
