Tunnel Microwave chili/red chili powder drier and sterilizer

FOB Reference Price:Get Latest Price
$20,000.00 - $35,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
WMG-30B
Usage:
chili/chilli powder
Type:
Microwave
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Shanghai, China
Brand Name:
Hongyuan
Voltage:
380V 380V 50HZ
Weight:
1000KG
Certification:
CE
Dimension(L*W*H):
14.6*1.2*1.5M
Power(W):
30KW
Applicable Industries:
Food & Beverage Factory
magnetron:
Sumsung
Supply Ability
Supply Ability:
10 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
standard wooden case
Port
Shanghai

Tunnel Microwave chili/chilli powder drier and sterilizer



1.Heating Rapidly and Uniformity
2.Energy Saving and high efficiency
3.Easy to control and save labors



Machine Description:





1. Microwave equipment have covered the fields including sterilization,drying,defrosting,cooking,extraction,microwave pyrolysis,chemical reaction,ceramic sintering and so on.

2Our microwave equipment have many model for your choice,Able to drying and sterilizing more capacity of material.

3.The equipment is made of high quality 304#stainless steel,compact structure,no energy dissipation,save energy.Tunnel type design,cover small area,fast drying and sterilizing,continuous production.

4.Adopt highquality Panasonic magnetron,long life,best effect.And drying and sterilization,keep material character perfect ,keep original ingredient.

5.Fast drying,short drying time,low energy consumption,paperboard is uniform,smooth,no deformation.Sterilization ,drying, mould proof and insecticide are processed at the same time.Compared with order dryer,save 2/3 drying time and 1/3 electrical energy.

6.Easy to operate,save the production cost.

7.Fast and uniformly heating,the high degree of automation.

8.Very suitable for heating poor thermal conductivity products.



Technical parameters of Tunnel Microwave chili/chilli powder drier and sterilizer

Power supply

380V±10% 50HZ±1% three-phase five-wire

Microwave Output Frequency

2450±50MHz

Microwave input apparent power

≤40KVA

Microwave output power

≥30KW

Microwave power adjustment range

0-30 KW(adjustable)

Ambient temperature

-5-40°C

Relative humidity

80%, Surrounding environment:no

corrosive gas,conductive dust and

explosive gas

Overall dimension(L*W*H)

about14600*1200*1600mm

Transmission speed

0-10m/min(adjustable)

Height of the inlet and outlet

60 mm

Microwave leak

accord with a country GB10436-89

standards(<5 mw/cm^2)

Equipment safety

accord with GB-5226Electrical safetystandard

accord with a country GB16798-1997 Food

machinery



After sale service:



For the whole equipment,warranty is 12 months,within 12 months,if have equipment quality problems,we will provide accessories freely. After the expiration of the warranty period,if have spare parts problem,we only receive the cost of required replacement parts.We commit we will provide free technical support of equipment all whole life.

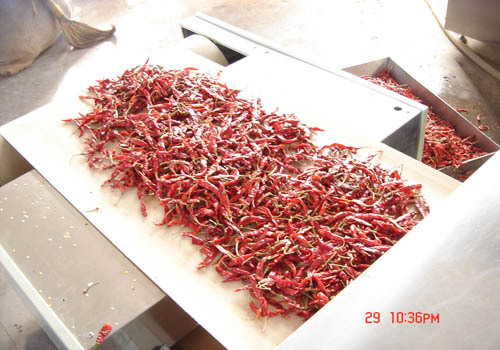

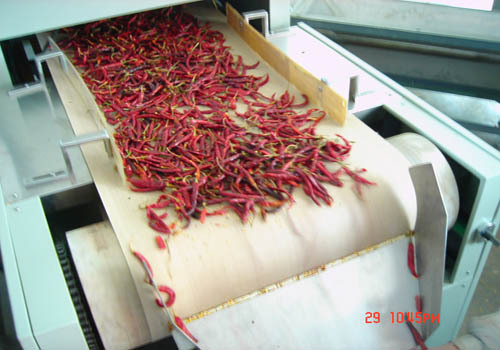

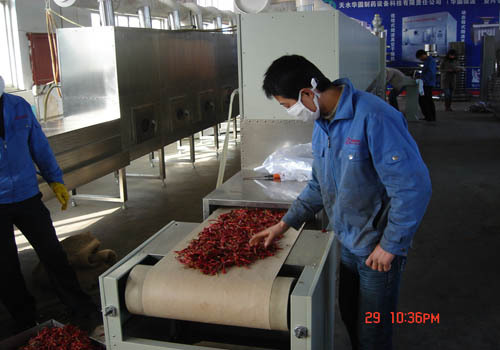

12 (1).jpg12 (2).jpg12(3).jpg
