Turnkey 30bbL 35hl micro brewery beer system for sale Australia

FOB Reference Price:Get Latest Price
$87,300.00 - $103,600.00 / Sets | 1 Set/Sets No MOQ for Turnkey 30bbL 35hl micro brewery beer system (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tiantai or OEM
Model Number:
TT-30bbl
Processing Types:
Alcohol
Voltage:
3phase/380(220,400,415,440)v/50 (60)Hz
Power(W):
15-70Kw depends on size
Dimension(L*W*H):
Properly according to the capacity request
Weight:
Various in different models
Certification:
CE ISO
Customize according to your request:
YES for 30bbL 35hl micro brewery beer system for sale Australia
Process:
mashing boiling fermenting maturation
Material:
SUS304/SUS316/red Copper
Thickness of Tanks:
3mm for interior shell/2mm for exterior shell
Heat Insulation:
Polyurethane or Rockwool with Thickness=80mm
Inner Polishing Precision:
0.4 Micrometer
Heating:
Steam heating is recommended
Controlling System:
Instrument panel controller or PLC controller
Accessories:
Available
Application:
Turnkey 30bbL 35hl micro brewery beer system for sale Australia
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
3 years for Turnkey 30bbL 35hl micro brewery beer system for sale
Supply Ability
Supply Ability:
200 Set/Sets per Year 10sets Turnkey 30bbL 35hl micro brewery beer system
Packaging & Delivery
Packaging Details
Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL
Port
Qingdao, China
Lead Time :
35-85 working days after paying the down payment
Product Description

Turnkey 30bbL micro brewery beer system includes what?

This set of 30bbL 35hl micro brewery beer system for sale is designed based on combination of customer's idea and our stardard. It is a complete brewery including grain miller, auger, brewhouse, fermenter, brite beer tank, glycol chilling unit and control unit.

Now, let's check on this equipment together.

Main Configuration

Part 1: Grain miller

For big brewery equipment, separated milling roon is recommended for storaging malt and crushing malt.
Function:
Grain crushing
Type:
Double roller
Drive Power:
3kw
Crushing Particle Size:
Adjustable

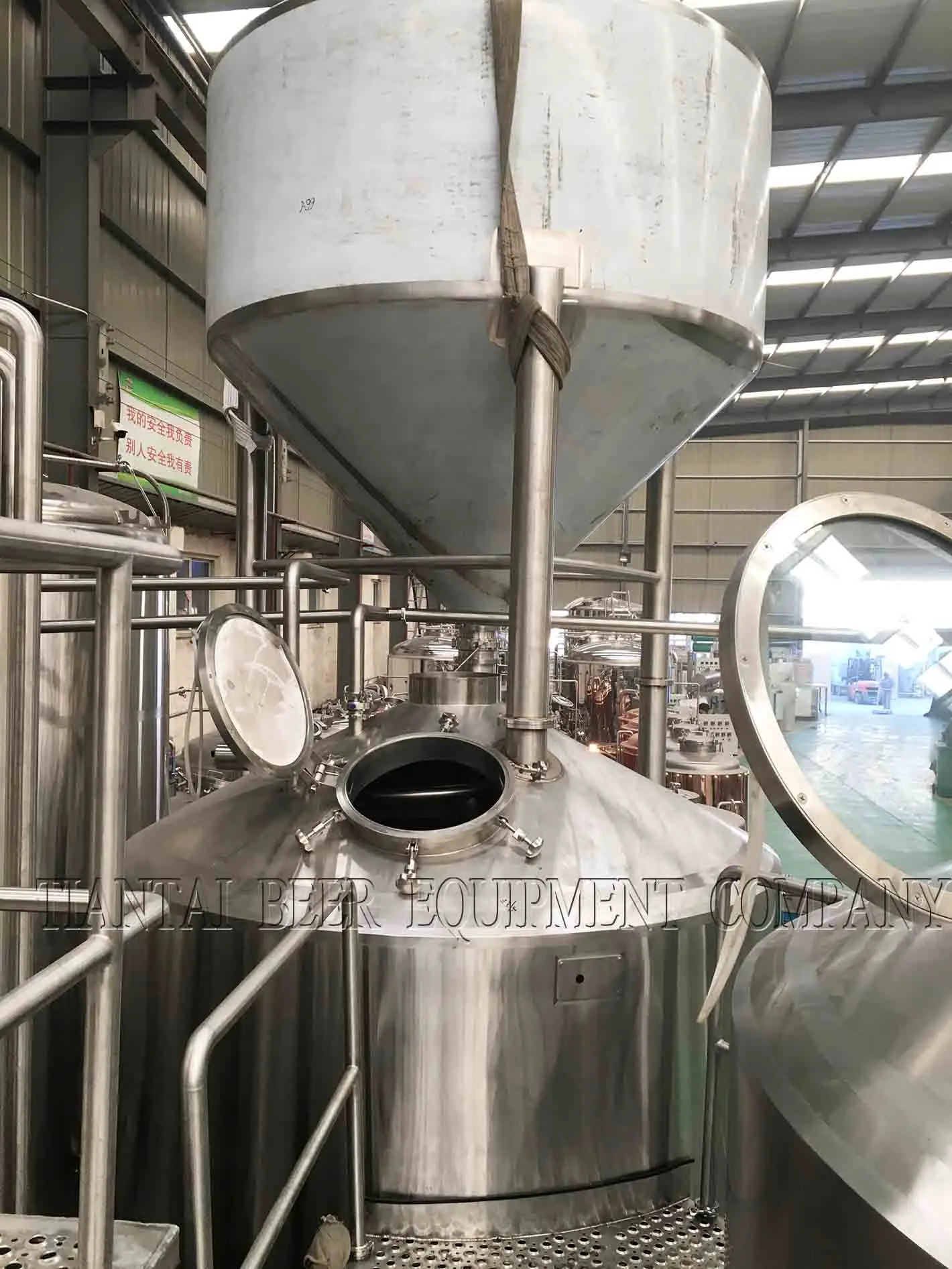

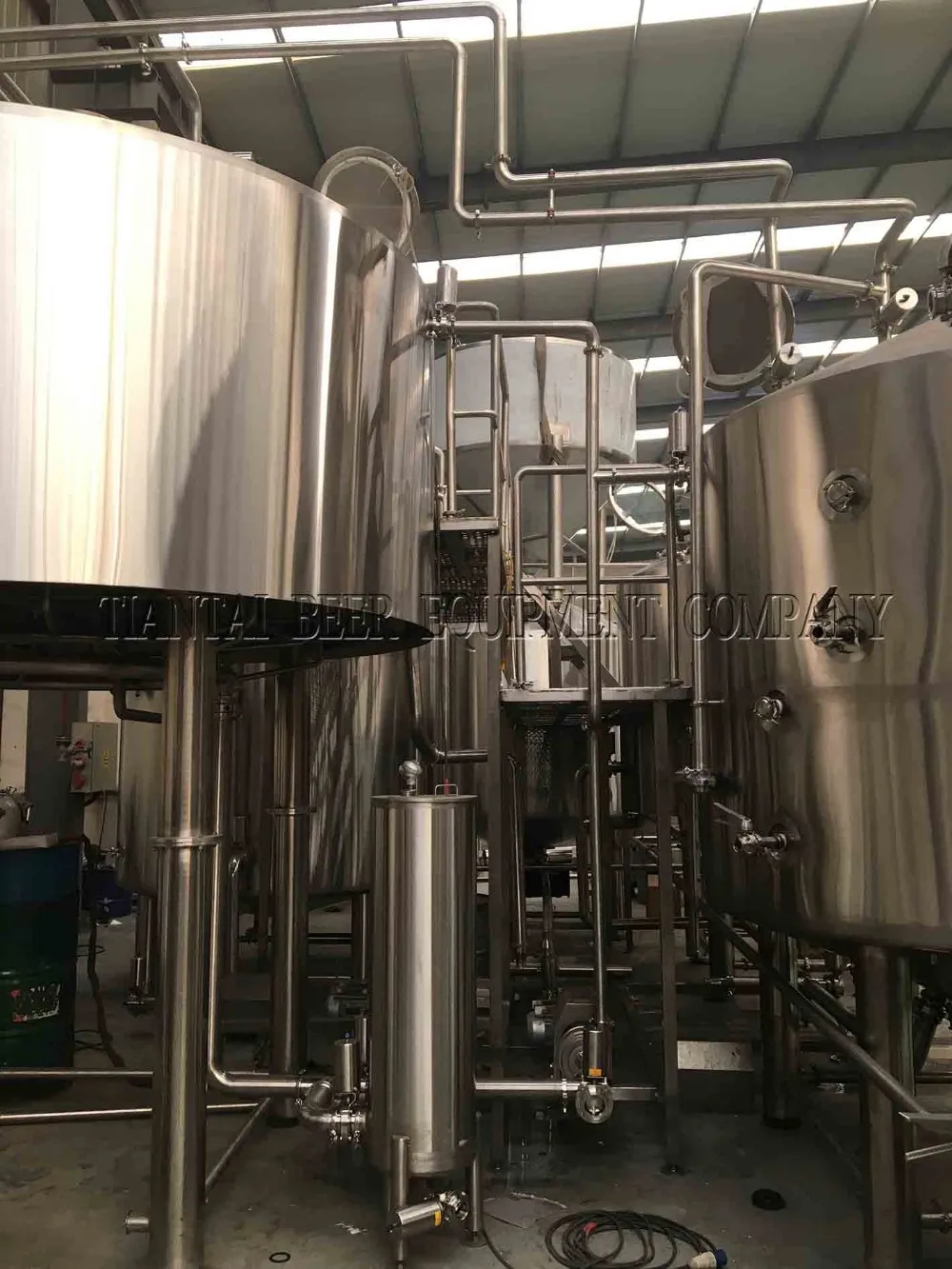

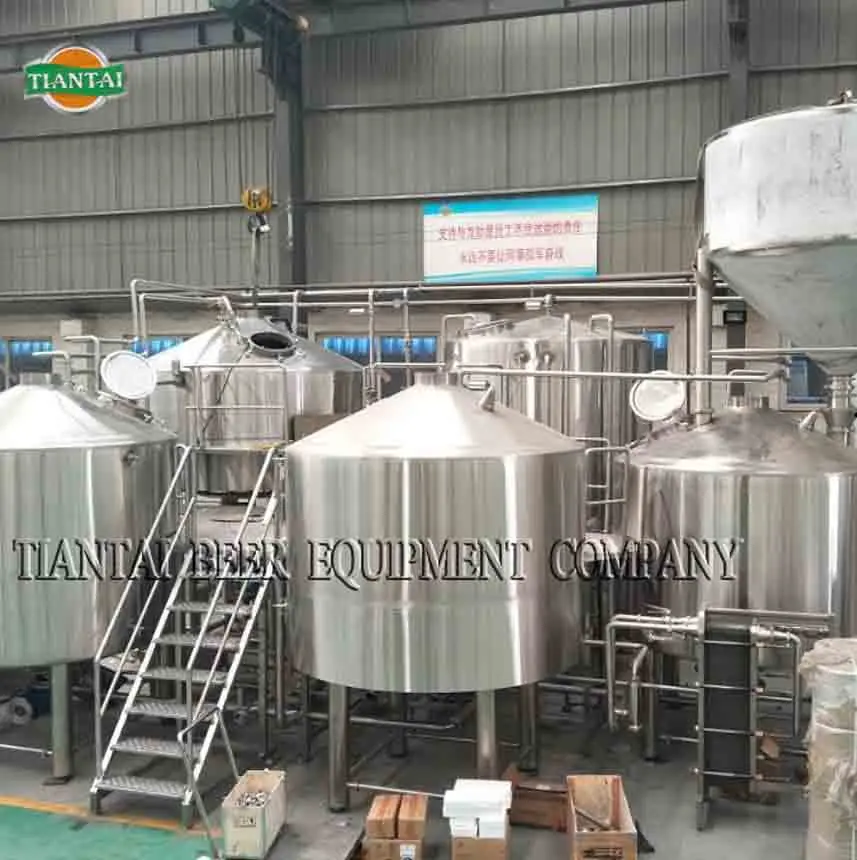

Part 2: 30bbL four vessel micro brewery brewhouse

Mash tun+lauter tun+kettle tun+whirlpool tun+hot liquor tank

For 30bbL brewery facility, following is part of our standard configuration:

1. Bottom agitator for mash tun

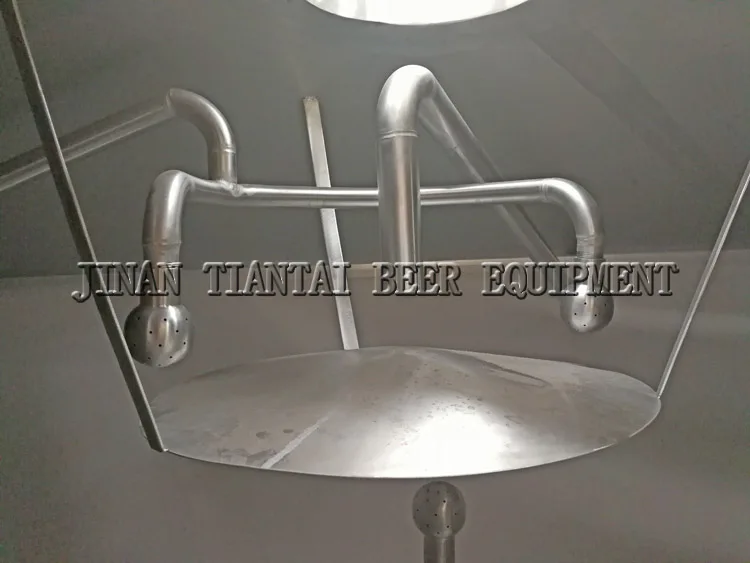

2. Bottom grain outlet and rake for lauter tun

3. Calandria for kettle

4. ......

Double set of heat exchanger

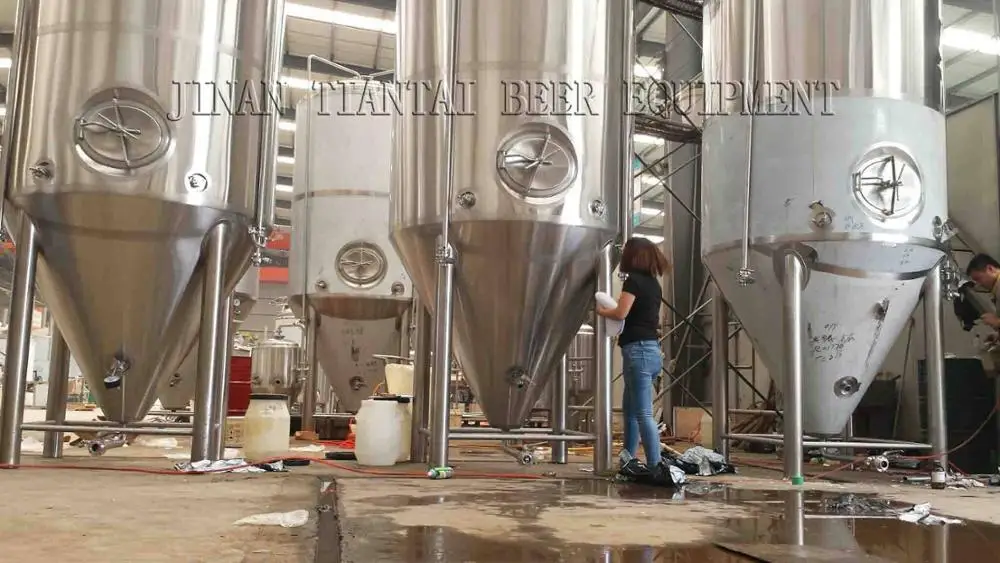

Part 3: 60bbL Fermentation tank included in this 30bbL beer brewery equipment

Appearance: Standard stainless steel conical cylindrical fermentation tanks
Insulation: 80mm high density Polyurethane foam

Glycol Jacket: Dimpled plate on cone and side
Shape: Dished head and 60 degree cone bottom(Best cone for fermenting)


Accessories:
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Dry hopping port with solid end cap
Carbonation port and stone for special request

Bung valve for special request

......

Part 4: Glycol Chilling unit

Configuration
 Cold liquor tank, Glycol water tank, Chiller and Pipeline.
Cold water tank
Supply cold water for wort cooling.
Glycol water tank
Supply glycol water tank for beer cooling
2 sets Chiller
Cool glycol water.
Pipeline
Flow glycol water

Glycol water tank with two sets chillers

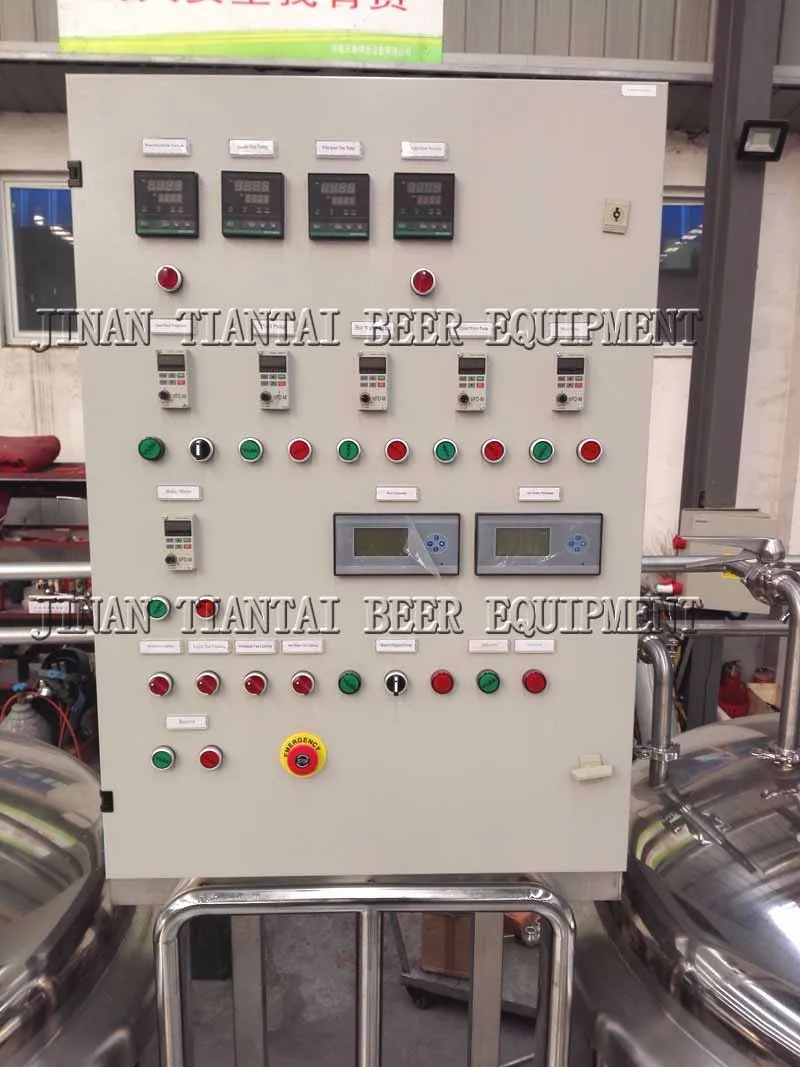

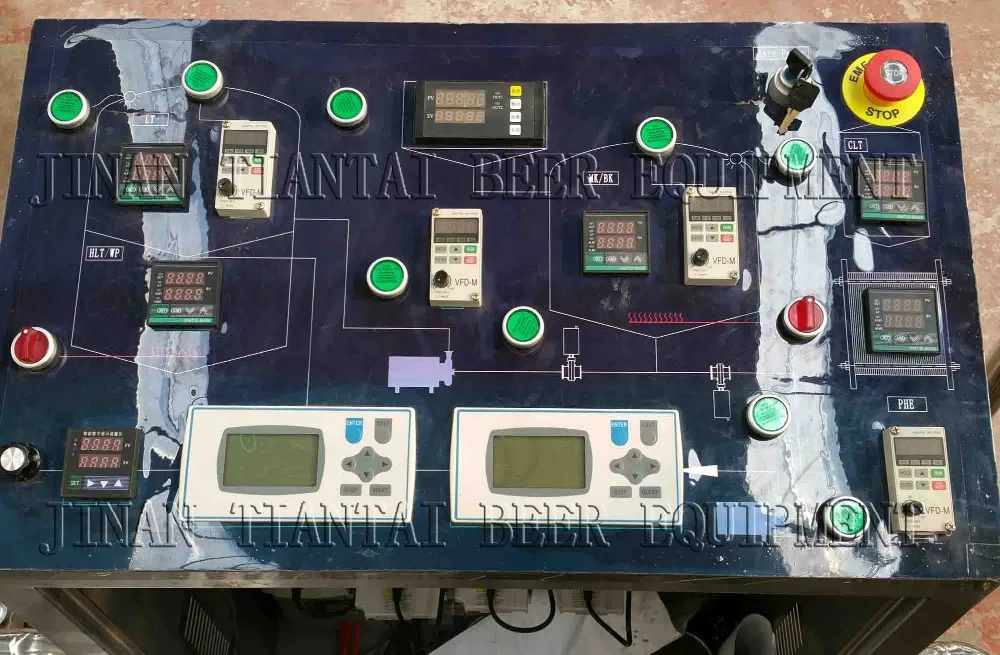

Part 5: Brewery Instrumental Control Cabinet

Control cabinet is necessary in monitoring whole brewing process.
Type
 Floor Type/Wall hanging
Certificates
CE...
PLC control
Optional
Flow chart control
Optional

Part 6: CIP cart unit

CIP cart serves as cleaning machine of brewery tanks. With a cart and an indepent controller, it is movable and convenient in using.

Function
Cleaning tanks
Tanks quantity
2 or 3 tanks
Movable or fixed
Both are achievable, depends on customer's idea
With pumps?
Yes

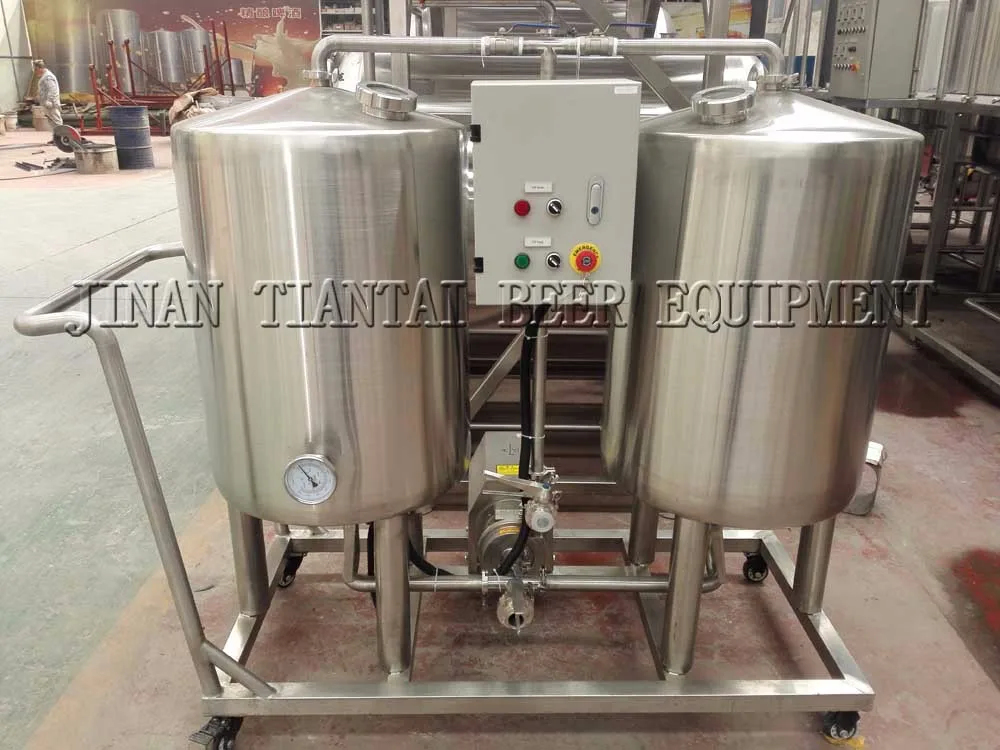

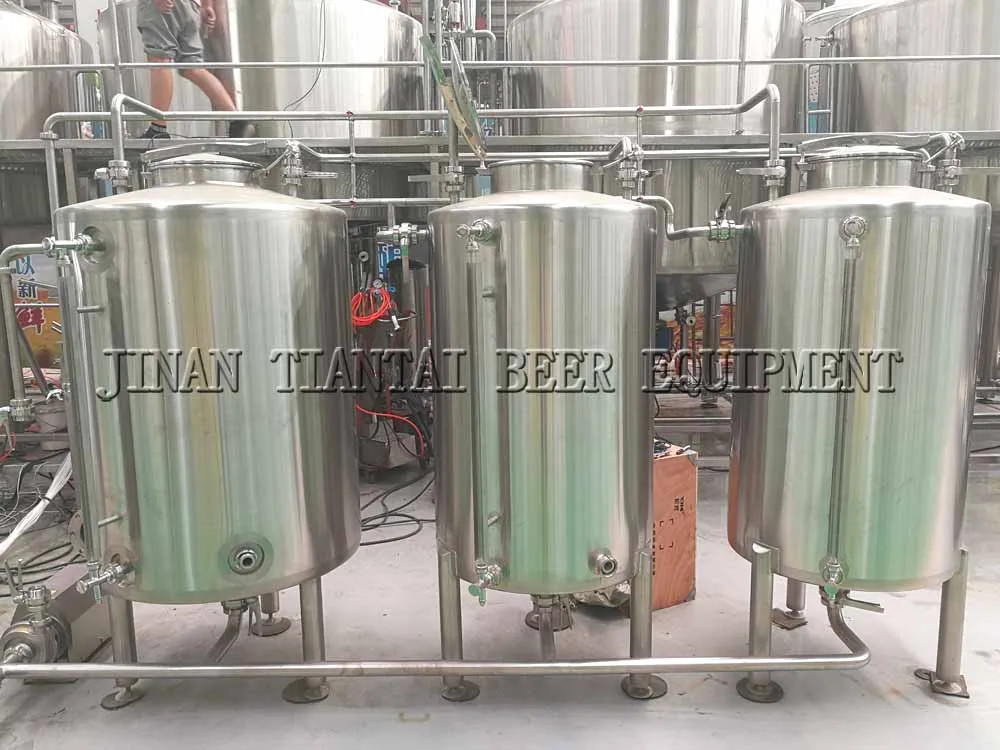

                              Movable CIP cart                                                                     Fixed CIP unit

Above six part is main configuratin in complete brewery system, for other auxiliary equipment, such as keg filler, keg rinser, bottle filler, bottle capper. Welcome to leaving message for further information, i will reply you within 12-24 hours. Thanks.

Certifications

Our turnkey 30bbL 35hl micro brewery beer system for sale passes the CE certificate for low pressure, machine as well as the pressure equipment.

And our equipment also pass the ISO to ensure the quality

Our Company

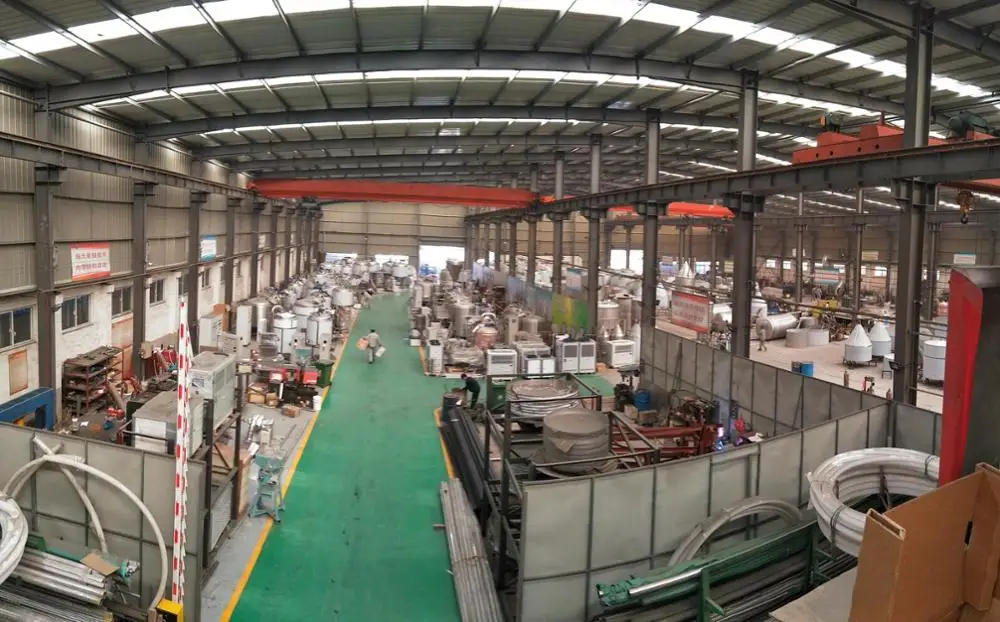

Jinan Tiantai Beer Equipment Co.,Ltd.is located in the coast of Yellow Sea,next to QingDao port, Shandong Province.Having 15 years’ experience of designing,producing and installing, Tiantai company can supply all-round service including layout design, customized equipment design, transportation, installing and training. Every of us expects to satisfy you and ready to provide service to you.

Our Service
Service
Free
Professional consultation service in any time
Project planning and layout design

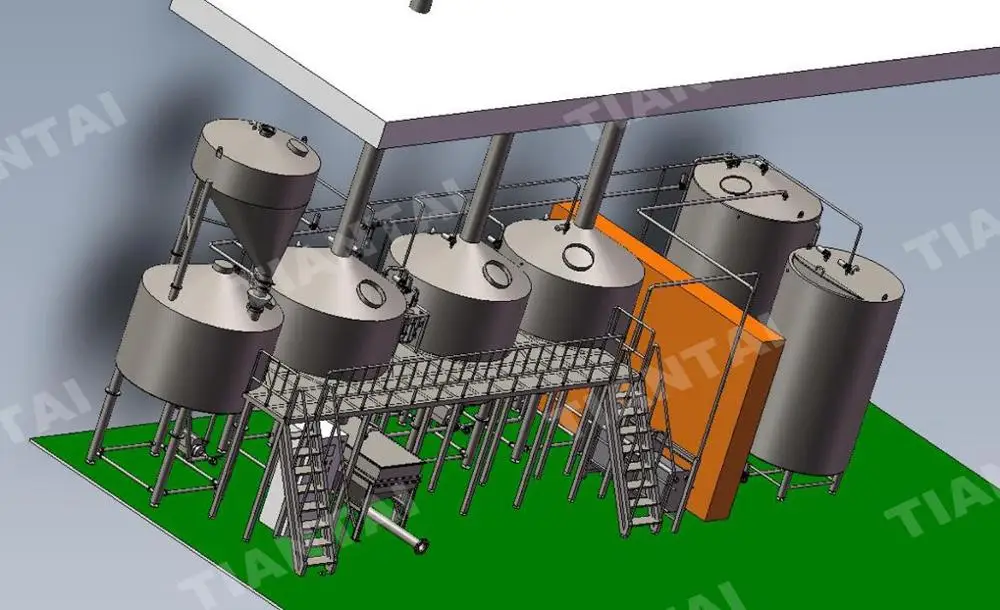

3D drawing for brewhouse
Provide tech information

a.)3 years warranty
b.)Free installation and training
c.)Design and maintenance for free
d.)High quality and best price
e.)inner and outer of the tanks have been mirror polish
f.)the material can be stainless steel with low price or red copper with nice-looking
g.)the capacity can be 50L~30,000L

h.)Engineers available to service machinery overseas

May i know how many liters system are you looking for?
What's the expected beer output? And how many fermenter is requested?
Please kindly leave message in following message board or email me.
The quotation will be provided within 24 hours. Thanks.
