UNI flexible EPDM rubber ball joints

FOB Reference Price:Get Latest Price
$4.99 - $199.00 / Pieces | 1 Piece/Pieces (Min. Order)
Type:
Flange American standard flexible rubber joint
Pipe size:
DN32-DN3000
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Shunying
Material:
Carbon Steel
Technics:
Forged
Connection:
Flange
Shape:
Equal
Head Code:
Round
Standard:
ANSI/JIS/DIN/BS
Size:
DN32-DN3000
Medium:
Sea Water/oil/gas/acid/alkali
Rubber materail:
NBR/CR/EPDM/IIR
Key words:
plumbing neoprene rubber expansion joint for pipe
Application:
Pipe Lines Connect
MOQ:
1 Pc
Product name:
uni ball joints
Name:
flexible rubber joints
OEM:
Provide OEM Services
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner package: carton cases Outer package: wooden cases(usually the size of 1100mm*1100mm*1100mm)
Port
Qingdao Tianjin Shanghai and according to custom's requirement
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 2 To be negotiated
Video Description
Product photo

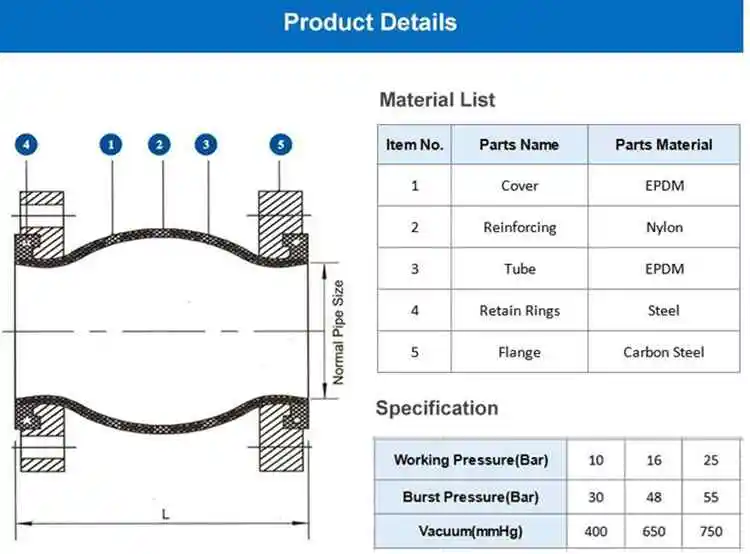

Drawing

Features

Minimal axial dimensions

Limited weight

Low warping forces

High-resistance to work

High-capacity acoustic damping



No.
Part
Meterial
1
Body
NR,CR,IIR,NBR,FKM,EPDM
2
Inner & Outer Rubber
NR,CR,IIR,NBR,FKM,EPDM,PTFE
3
Body Carcass
Nylon cord fabric
4
Reinforcing Ring
Multi-strand coppering steel wire
5
Flange
Cast and forged carbon steel

Technical Parameters:



Item/ Model
JGD-1
JGD-2
JGD-3
Working pressure Mpa(kgf/cm²)
1.0(10)
1.6 (16)
2.5 (25)
Explosive pressure Mpa (kgf/cm²)
2.0 (20)
3.0 (30)
4.5 (45)
Vacuum Kpa (mm/Hg)
53.3 (400)
86.7 (650)
100 (750)
Applicable temperature °C
-15°C~+115°C special up to -30°C~+250°C
Applicable medium
compressed air, water, sea water, hot water, oil, acid, etc
Main Data
Nominal Diameter(DN)
Length L
Axial displacement
Horizontal displacement
Angular deflection
mm
inch
mm
Extension
Compression
mm
(a1+a2)
32
95
6
9
9
15º
40
95
6
10
9
15º
50
2
105
7
10
10
15º
65
115
7
15
11
15º
80
3
135
8
19
12
15º
100
4
150
10
19
13
15º
125
5
165
12
20
13
15º
150
6
180
12
25
14
15º
200
8
210
16
25
22
15º
250
10
230
16
25
22
15º
300
12
245
16
25
22
15º
350
14
255
16
25
22
15º
400
16
255
16
25
22
15º
450
18
255
16
25
22
15º
500
20
255
16
25
22
15º
600
24
260
16
25
22
15º
700
28
260
16
25
22
15º
800
32
260
16
25
22
15º
900
36
260
16
25
22
15º
1000
40
260
18
26
24
15º
1200
48
260
18
26
24
15º
1400
56
350
20
28
26
15º
1600
64
350
25
35
30
10º
1800
72
350
25
35
30
10º
2000
80
420
25
35
30
10º
2200
88
420
25
35
30
10º
2400
96
420
25
35
30
10º
2600
104
450
25
35
30
10º
2800
112
450
25
35
30
10º
3000
120
500
25
35
30
10º
Detailed Images

expansion rubber joint of raw material used in Malaysia and Indoneisia's high quality rubber, natual rubber content reached 47%.

uni ball joints
flexible rubber joints
EPDM rubber joints

 expansion rubber joint are all made of high quality steel, large CNC machine, galvanized surface and standard flange typing.

uni ball joints
flexible rubber joints
EPDM rubber joints



expansion rubber joint complete speacifitions, can be customized DN32-DN3000.
uni ball joints
flexible rubber joints
EPDM rubber joints

 expansion rubber jointcan produce DIN, ANSI, BS, JIS, GOST, AS ect



uni ball joints
flexible rubber joints
EPDM rubber joints
Work Shop
Packing & Delivery
Packing
Inner package: carton cases
Outer package: wooden cases(usually the size of 1100mm*1100mm*1100mm)
Shipping
Using safe and reliable transoprtation package Transport modes such as
EMS/TNT/DHL/UPS/FEDEX

pansion rubber Joint

Project Case
