URay 4G Stream H.265 wifi SDI Video Encoder Transmitter ip encoder live Broadcast

  • 1 Pieces
    $430.00
  • >=2 Pieces
    $425.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
URay
Model Number:
USE265-1WB-4G
Input:
SDI(audio bulid-in)+Stereo Audio(3.5mm jack)
Output:
1000M Ethernet Port(RJ45) or WIFI or 3G /4G LTE
Streaming Protocol:
HTTP, RTSP, RTMP, RTMPS, UDP, RTP, ONVIF, HLS(M3U8), Multicast, etc
Video Encoding:
HEVC /H.265, H.264 /AVC, MJPEG
Audio Encoding:
AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Video Streaming:
Up to 4 Video Streams Output Simultaneously
Bitrate Control:
32kbit /s to 32mbit /s Adjustable
Video Resolution:
Max 1920x1080P /60fps Input and Output
Service:
Provide SDK and API and CGI for Secondary Development
Warranty:
5-year Warranty and Free Lifetime Technical Support

Packaging & Delivery

Selling Units:
Single item
Single package size:
12.5X9X6 cm
Single gross weight:
1.0 kg
Package Type:
Gift box inside, Standard packing outside
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description




Overview

URaytech video encoder(Model No. USE265-1WB-4G) is a HD audio and video encoding device with powerful functionality. It supports SDI(audio build-in) and external stereo audio(3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. It enable you to choose 4G LTE or 3G or WIFI or LAN port to transmit the video stream. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

If you input external audio, you can choose SDI embedded audio or external audio as output audio.

We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.




Typical Connection

1). For Live Broadcast Online Connection

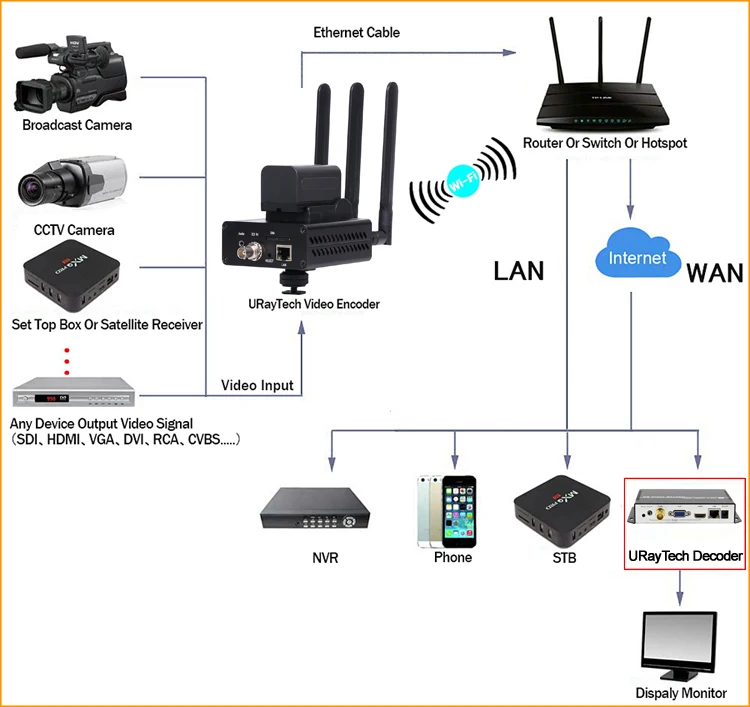

2). For Multi-purpose Connection




3). For IPTV Project Connection




The Feature

 •   Embedded HiLinux system, stable and effective

•   Support wide area network remote management(via port forwarding)

•   Support HEVC /H.265 and MPEG-4 /H.264 AVC and MJPEG video encoding for selection

•   Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding for selection

•   The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)

•   Support HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text, roll text, time on the output video stream

•   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

•   Support different protocol transmission for the 4 output video streams

•   Support choose SDI embedded audio or external audio as output audio

•   Support upgrade device by upgrading new firmware

•   Support configure the encoder via webpage or APP

•   Support 3G(TD-SCDMA) or 4G(FDD LTE/TDD LTE)

•   Support hot shoe mount at camera

•   Support external SONY battery F550, F750, F970 for selection

•   Support 2.4G WIFI and 5G WIFI

•   Support connect to spare WIFI automaticlly when WIFI signal lost connection

•   Provide SDK and API and CGI for secondary development

•   Support brightness, contrast, hue, saturation setting on output displayed video

•   Network interface full-duplex mode with 1000M speed

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)



•   Multi platforms live streaming

This SDI encoder is easy to be operated. Turn your SDI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, up to 4 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.

2 (2).jpg

•   Multi type video stream URL play

Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.

5 (2).jpg

•   Long-lasting battery life

You can use SONY battery F550, F750, F970. Normally the battery enable you to do live stream broadcast for 8+ hour. When the electric quantity is low, you can just connect a USB battery pack to keep it going.

Note: 1.  The working time of the battery is based on the battery model

          2.  The battery is not included because of the shipping reason.You can buy SONY battery F550/ 750 /F970 at your local place.



The Specification



Model No.USE265-1WB-4G
Video
InputSD /HD /3G SDI
Input ResolutionMax 1080P or 1080i resolution, Max 60fps frame rate
Encoding TypeHEVC /H.265 and H.264 /AVC and MJPEG for selection
Encoding LevelsH.265 main profile; H.264 high /main /baseline profile
Video BitrateAdjustable from 32kbit /s to 32mbit /s
Bitrate ControlCBR or VBR or Strong CBR for selection
Output ResolutionIt is adjustable, max 1920x1080P /60fps
Video Pre-processingDe-interlacing, noise reducing and sharpening
Audio
InputSDI embedded audio or external stereo audio(3.5mm jack)
Audio EncodingAAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Sampling Rate44.1KHz, 48KHz
Bitrate ControlAdjustable from 48000~320000
Sampling Accuracy24bit
ONVIFG.711
Network
InterfaceEthernet port Or WIFI(2.4G /5G) Or 3G(TD-SCDMA) or 4G(FDD LTE/TDD LTE)
4G Band

FDD LTE: B1, B2, B3, B4, B5, B7, B8, B9, B20; TDD LTE: B38, B39, B40, B41

Streaming ProtocolHTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc
Control PanelWebpage control panel(language customizable) or APP
Firmware UpgradeFirmware is upgradeable
General

Dimension (W* L* H)

125 x 90 x 60 /mm
Net Weight0.4kg
Hot shoeIncluded
External BatterySupport SONY battery F550 /F750 /F970 for selection
Temperature0 to 45(For working), -20 to 80(For storing)
Input VoltageDC 12V /1A or 9V /1A
Power Consumption8w




Web Control

1.  Status Display


2.  Video Stream Setting


3.  Audio Setting


4.  Advanced Setting


5.  OSD Setting




APP Control
