URay DHL free shipping 16ch H.264/HEVC and H.265 Encoder for cable tv digital headend and iptv headend 1080P output

  • 1 Pieces
    $2,870.00
  • >=2 Pieces
    $2,850.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
URay
Model Number:
UHE265-16-3U
Input:
16xHDMI(audio bulid-in)+16xStereo Audio(3.5mm jack)
Output:
16xEthernet Port(1000M)
Streaming Protocol:
HTTP, RTSP, RTMP, RTMPS, UDP, RTP, ONVIF, HLS(M3U8), Multicast, etc
Video Encoding:
HEVC /H.265, MPEG-4 /H.264 AVC
Audio Encoding:
AAC, MP3, G.711
Video Stream:
2 Video Streams Output Simultaneously for Each Channel
Bitrate Control:
16kbit /s to 12mbit /s Adjustable for Each Channel
Video Resolution:
Max 1920x1080P /60fps Input and Output
Service:
Provide SDK and API and CGI for Secondary Development
Warranty:
5-year Warranty and Free Lifetime Technical Support

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X5 cm
Single gross weight:
1.0 kg
Package Type:
Gift Box.
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 5 To be negotiated


Product Description




Overview

URaytech video encoder(Model No. UHE265-16-3U) is a HD audio and video encoding device with powerful functionality. It supports 16 channels HDMI(audio build-in) and 16 channels external stereo audio(3.5mm) input simultaneously, H.265 /H.264 video encoding and AAC /MP3 /G.711 audio encoding, 2 video streams output simultaneously for each channel. It supports HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

This encoder enable you to choose HDMI embedded audio or external stereo audio as output audio.

We produce multi-channel video encoder which is packed by 1U rack or 3U rack. For 3U rack, up to 16 encoder cards to be installed. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.






Typical Connection

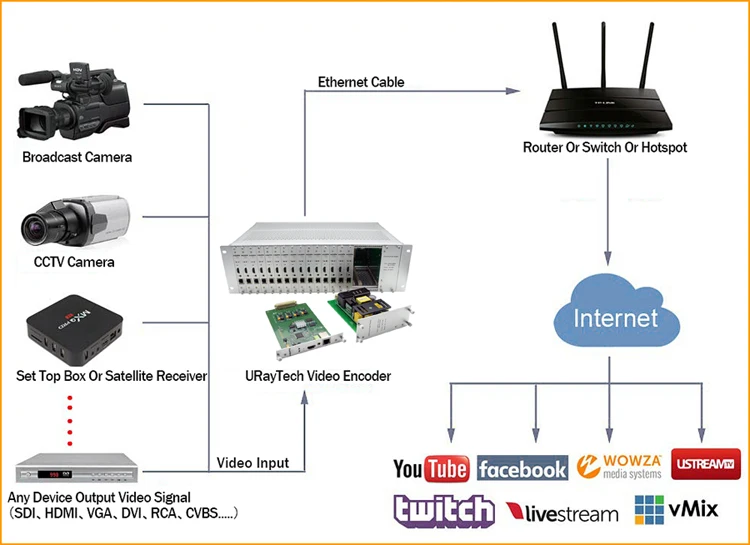

1). For Live Broadcast Online Connection

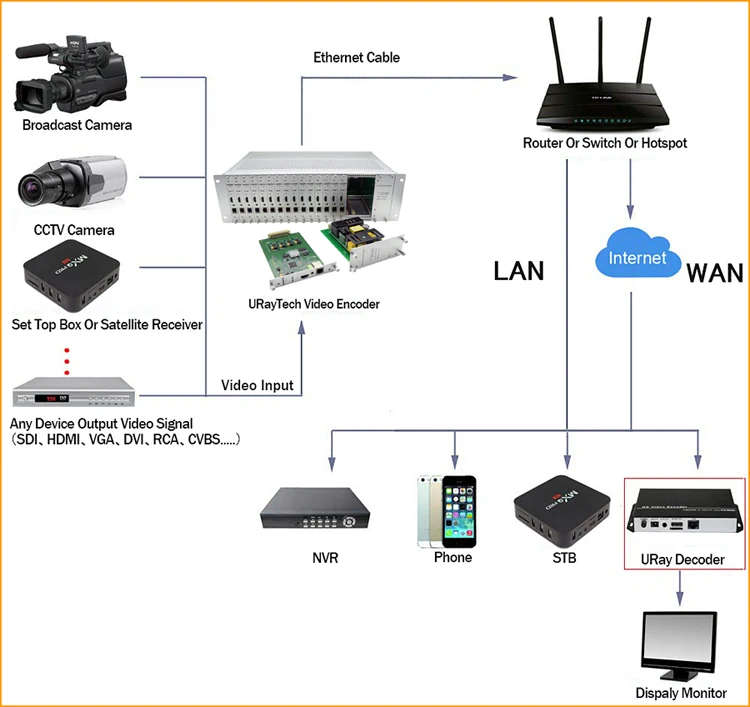

2). For Multi-purpose Connection

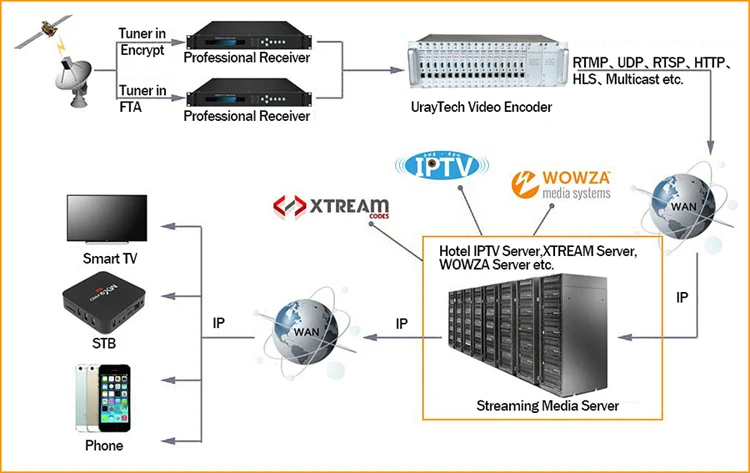

3). For IPTV Project Connection



The Feature



•   Embedded HiLinux system, stable and effective

•   Friendly webpage configuration UI(IP address can be setted)

•   Support HEVC /H.265 or MPEG-4 /H.264 AVC video encoding

•   Support AAC, MP3, G.711 audio encoding

•   The bitrate of output video stream is adjustable from 16kbit/s to 12mbit/s(CBR or VBR bitrate controlling mode) for each channel

•   Support HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text, roll text on the output video stream

•   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

•   Support different protocol transmission for the 2 output video streams for each channel

•   Firmware is upgradeable

•   Support choose HDMI embedded audio or external audio as output audio

•   Provide SDK and API also CGI for secondary development

•   Support brightness, contrast, hue, saturation setting on output displayed video

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   A wide area network remote management(via port forwarding)

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•   Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

----------------------------------------------------

•   Multi platforms live broadcast

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, 2 video streams output simultaneously for each channel. You can push multi video stream to multi-platform at the same time.



The Specification



Model No.UHE265-16L-3U
Video
Input16xHDMI(Support HDCP)
Input Resolution1080P /1080i /720P and below, 50Hz /60Hz and below
Encoding TypeHEVC /H.265 or MPEG-4 /H.264 AVC
Encoding LevelsH.265 main profile; H.264 high /main /baseline profile
Video BitrateAdjustable From 16kbit /s to 12mbit /s for each channel
Bitrate ControlCBR or VBR
Output ResolutionIt is adjustable, max 1920x1080P /60fps
Video Pre-processingDe-interlacing, noise reducing and sharpening
Audio
InputHDMI embedded audio or external stereo audio(3.5mm)
Audio EncodingAAC, MP3, G.711
Sampling Rate44.1KHz, 48KHz
Bitrate ControlAdjustable from 48000~256000
Sampling Accuracy24bit
ONVIFG.711
Network
Interface16 x 1000M Ethernet port(RJ45)
Streaming ProtocolHTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc
Control PanelWebpage UI(language customizable)
Firmware UpdateEnable by uploading files to dashboard and upgrade
General

Dimension (W* L* H)

483 x 200 x 130 /mm
Net Weight6.5kg
Temperature0 to 45(For working), -20 to 80(For storing)
Input VoltageAC 110V~240V
Power Consumption5w /channel

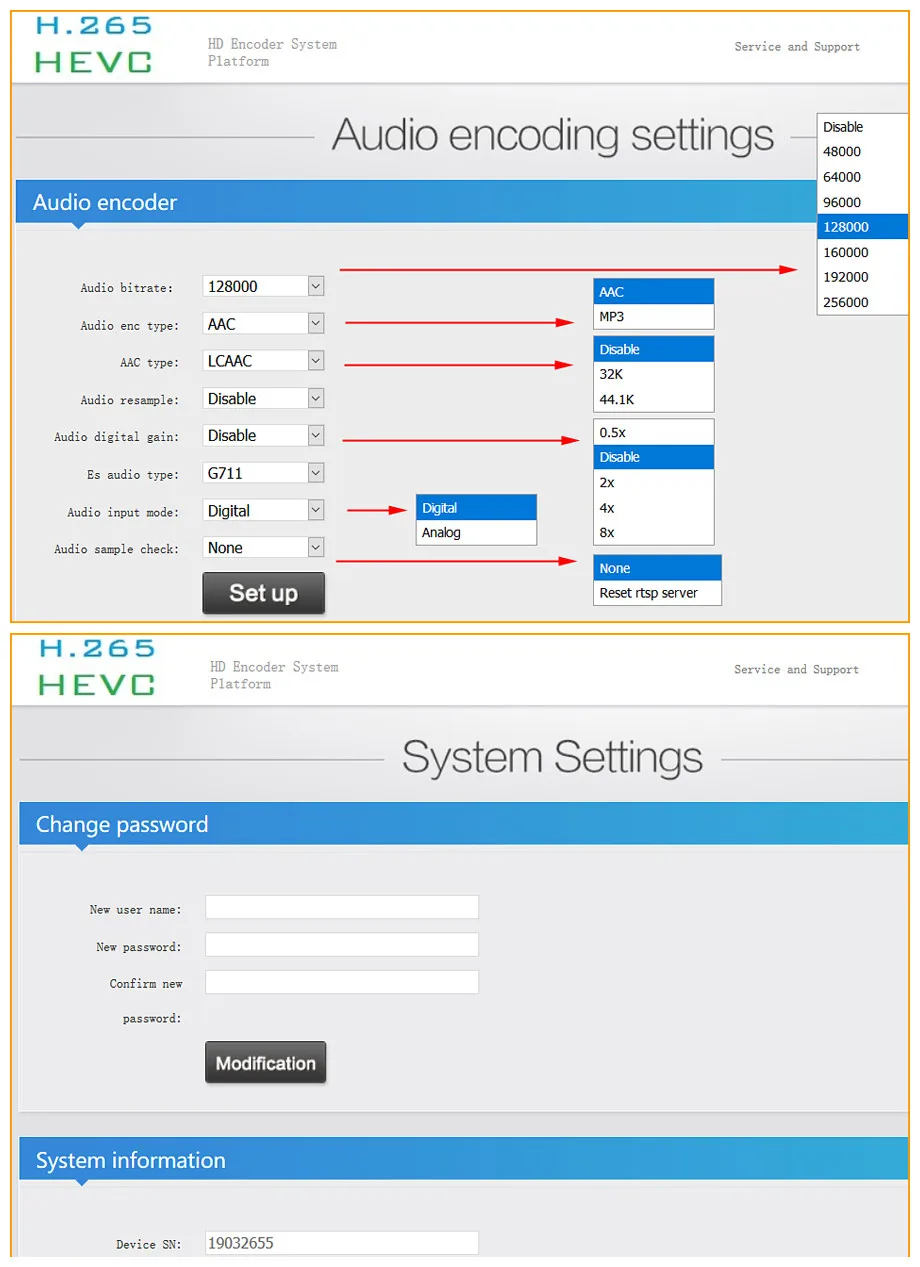

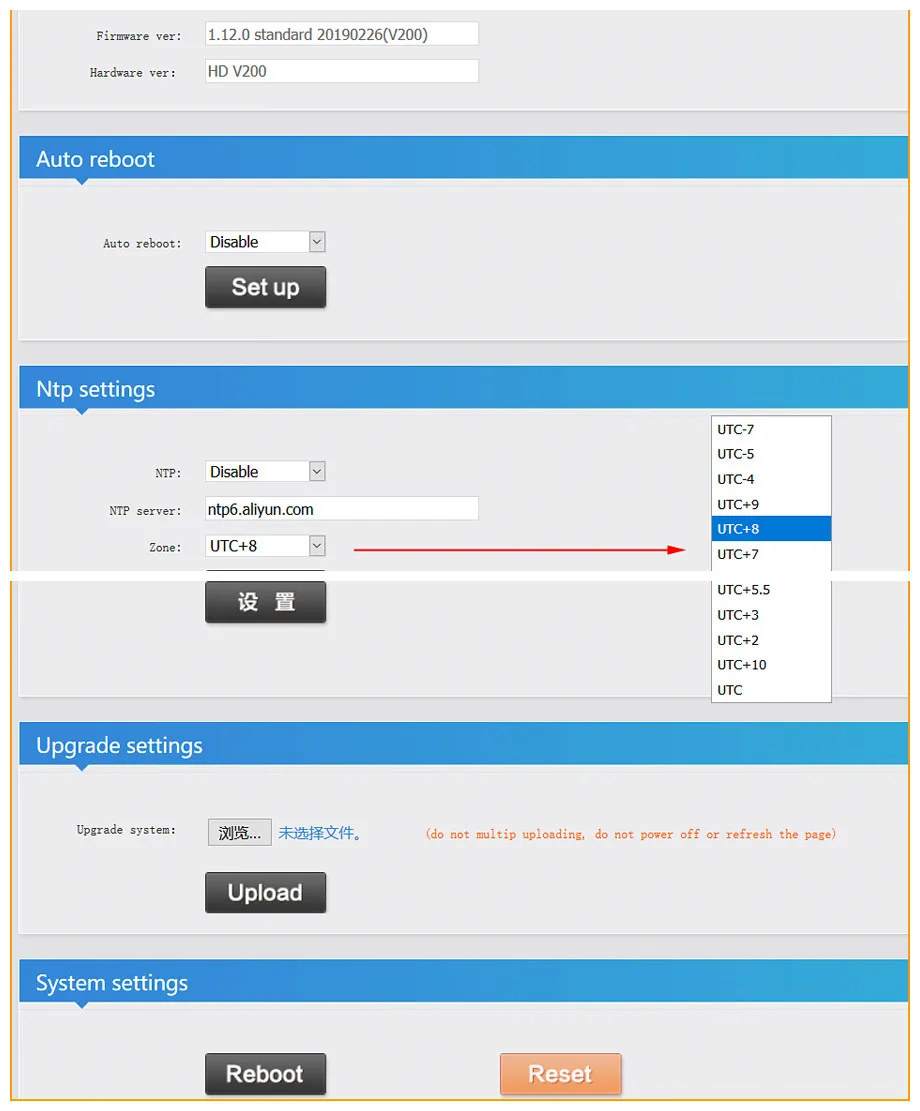

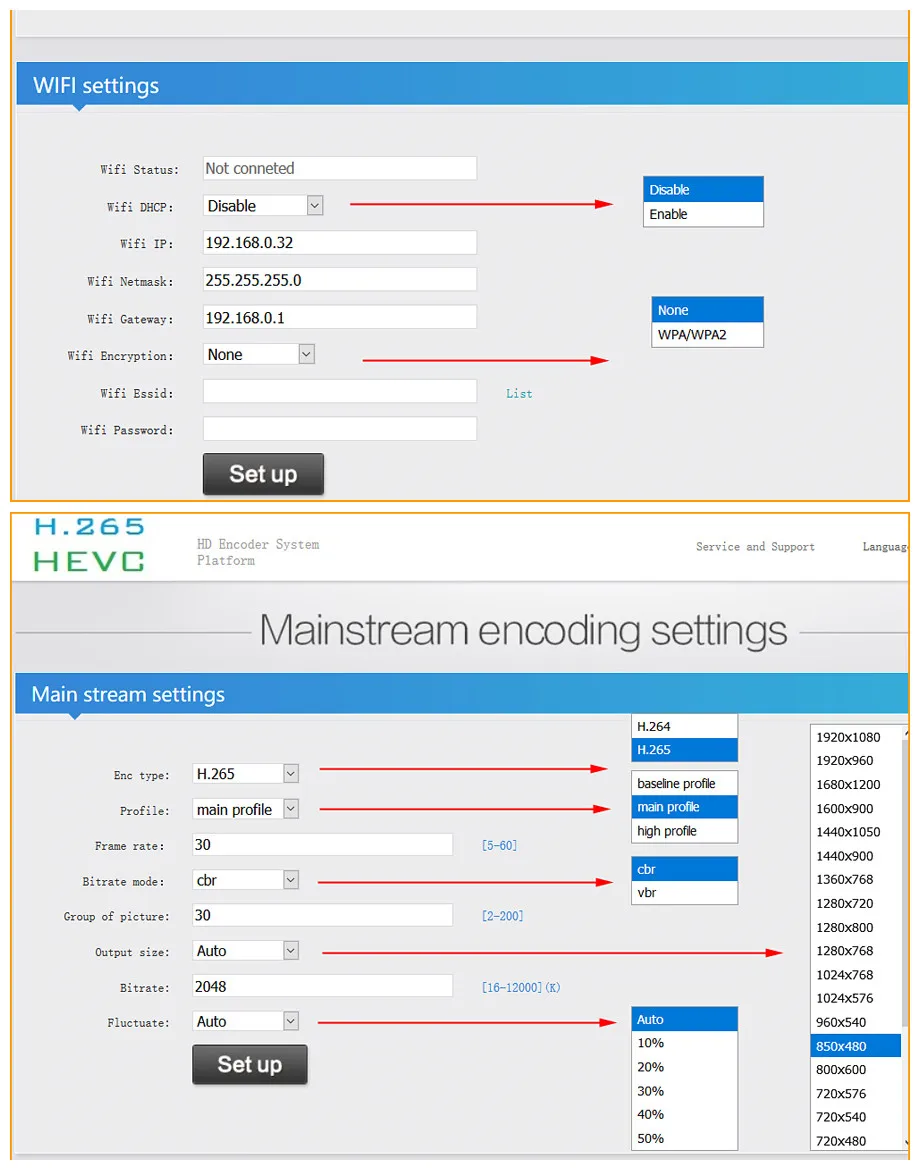

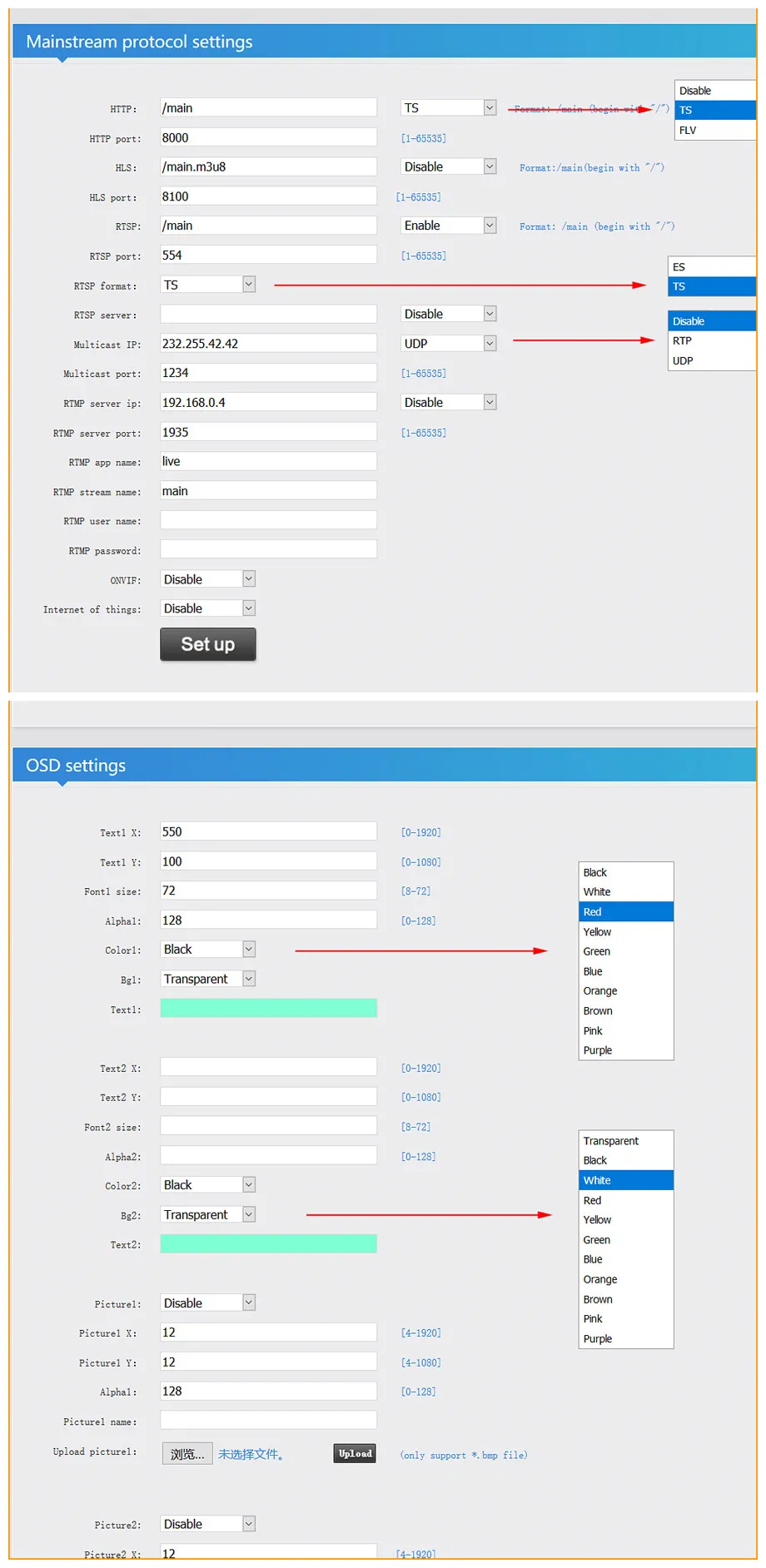

Web Control
