2 Video Streams Output Simultaneously for Each Channel
Max 1920x1080P /60fps Input and Output
16kbit /s to 12mbit /s Adjustable for Each Channel
Provide SDK and API and CGI for Secondary Development
5-year Warranty and Free Lifetime Technical Support
Packaging & Delivery
Single package size:
Single gross weight:
Gift box inside, Standard packing outside.
1 - 1
To be negotiated
URaytech video encoder(Model No. USE265-4L-1U) is a HD audio and video encoding device with powerful functionality. It supports 4 channels SDI(audio build-in) and 4 channels external stereo audio(3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /G.711 audio encoding, 2 video streams output simultaneously for each channel. It supports HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.
If you input external audio, you can choose SDI embedded audio or external audio as output audio.
We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.
All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.

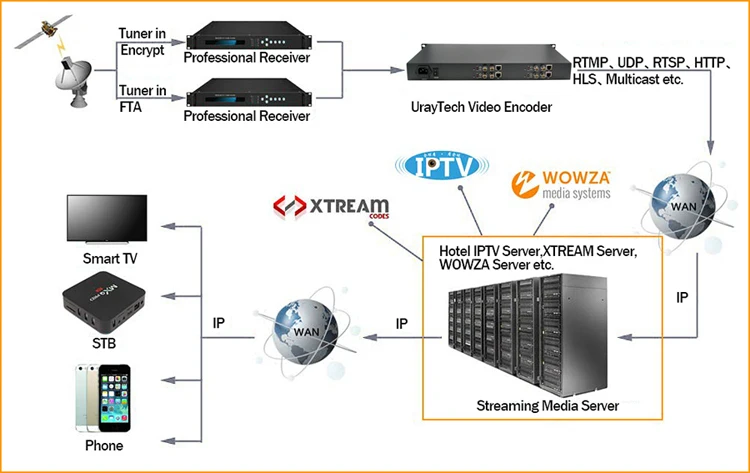

1). For Live Broadcast Online Connection
2). For Multi-purpose Connection
3). For IPTV Project Connection
• Embedded HiLinux system, stable and effective
• Support wide area network remote management(via port forwarding)
• Support HEVC /H.265 and MPEG-4 /H.264 AVC video encoding for selection
• Support AAC, MP3, G.711 audio encoding for selection
• The bitrate of output video stream is adjustable from 16kbit/s to 12mbit/s for each channel
• Support insert image, logo, text on the output video stream

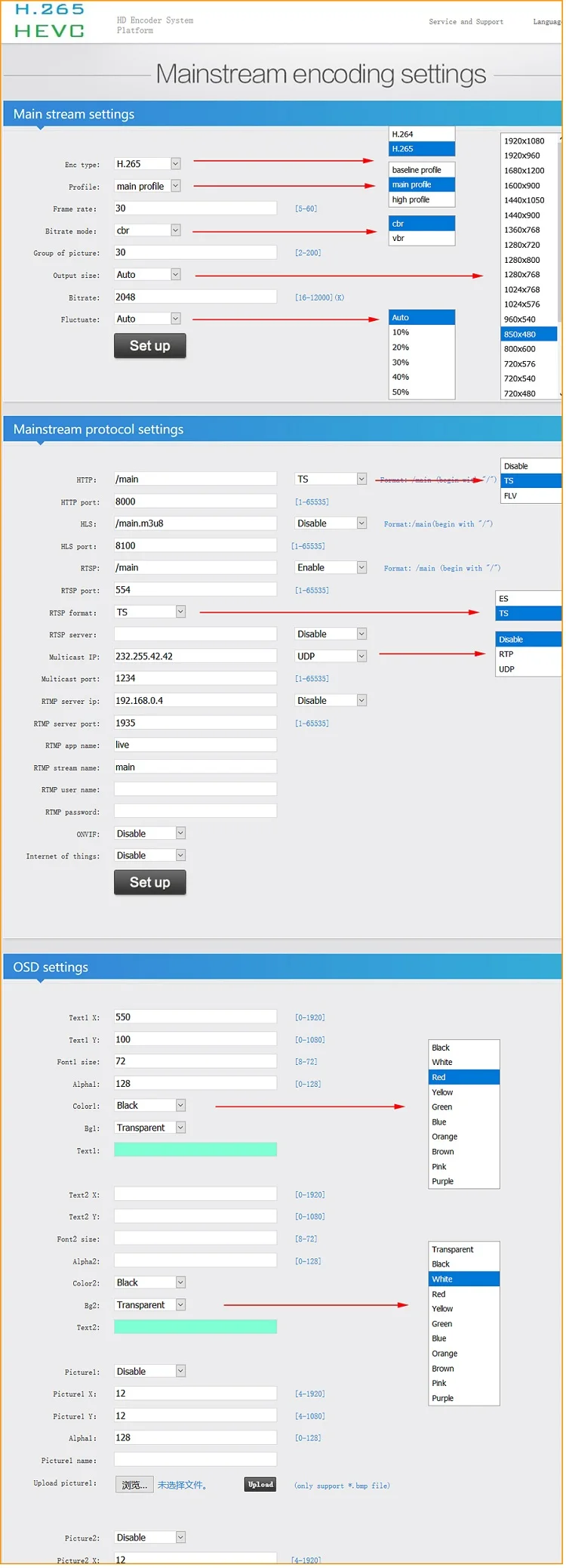

• Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)
• Support different protocol transmission for the 2 output video streams for each channel
• Support choose SDI embedded audio or external audio as output audio
• Support 4 channels SDI local loop out
• Support upgrade device by upgrading new firmware
• Provide SDK and API and CGI for secondary development
• Network interface full-duplex mode with 1000M speed

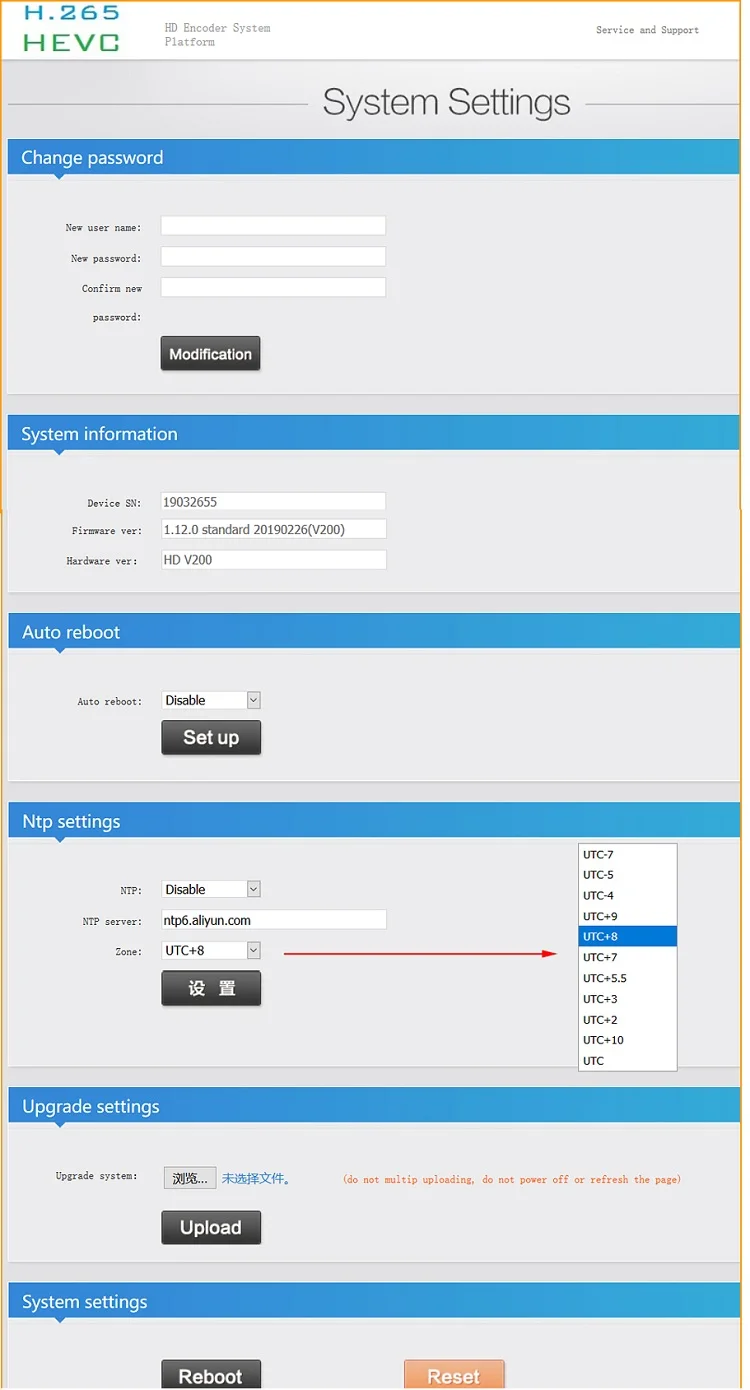

• English webpage operating interface, language is customizable
• A click to restore the default configuration
• Stable and effective, support 7 x 24h working time
• Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack
• Provide many kinds of customization(logo print, language customization, firmware or function customization etc)
• Multi platforms live streaming
This SDI encoder is easy to be operated. Turn your SDI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, 2 video streams output simultaneously for each channel. You can push multi video stream to multi-platform at the same time.
• Multi type video stream URL play
Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.
4 x SD /HD /3G SDI
Max 1080P or 1080i resolution, Max 60fps frame rate
HEVC /H.265, H.264 /AVC
H.265 main profile, H.264 high /main /baseline profile
Adjustable from 16kbit /s to 12mbit /s for each channel
• If you have problem of making payment, please contact us.
• If you are worried about customhouse charge, please contact us.
• If you need to print your logo on the device, please contact us.
• If you require any files regarding to the product(user manual, new firmware etc), please contact us.
• If you require discount for bulk order(>5pcs), please contact us.
• If you have questions before buying, please contact us.
• If you meet the technical problems after buying, please contact us.
• If you want to test this device before buying, please contact us.
Shenzhen URay Technology Co., Ltd is a technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of video encoder and video decoder also video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc. Presently these products are widely used in the industrial and enterprise and school and hospital etc. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.
For more information about our company and product, please visit our official website.
