URay MPEG-4 H.264 /AVC 1U Rack 4 Channels H.264 HDMI To IP Video Audio Streaming IPTV Encoder UHE264-4L

  • 1-2 Pieces
    $700.00
  • >=3 Pieces
    $650.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
URay
Model Number:
UHE264-4L
Input:
4*HDMI(Audio Bulid-in) + 4*Stereo Audio(3.5mm)
Output:
4*Ethernet Port (RJ45)
Streaming Protocol:
TP, RTSP, RTMP, UDP /RTP, FLV, HLS, ONVIF
Video Encoding:
H.264 /AVC
Audio Encoding:
AAC, MP3
Code Rate Control:
From 16Kbps to 12Mbps By CBR /VBR Each Channel
Firmware Update:
Enable by Uploading Files To Dashboard
Video Streaming:
Up To 4 Streamings Output Simultaneously
Application:
IPTV, Live Streaming Broadcast, Streaming
Service:
Provide SDK And API For Secondary Development

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X5 cm
Single gross weight:
1.0 kg
Package Type:
Gift box inside, Standard packing outside
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 5 To be negotiated




Product Description

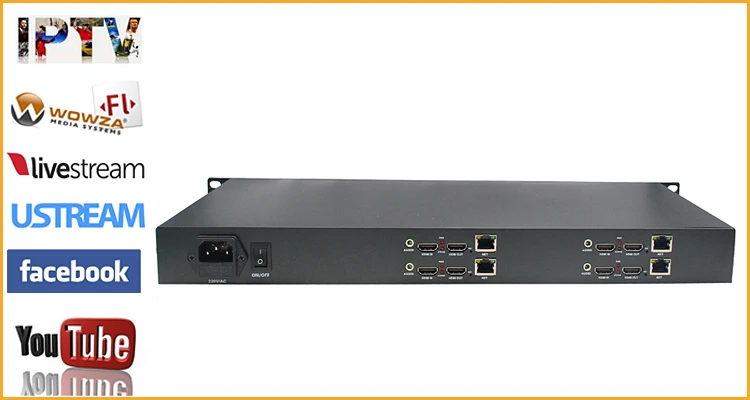

The four channels MPEG-4 /H.264 AVC HDMI video encoder(Model No. UHE264-4L) is our newest professional HD audio and video encoding device with powerful functionality. It is equipped with 4 channels HDMI and 4 channels stereo audio(3.5mm) input supporting H.264 /AVC high profile /main profile /baseline profile video coding format and AAC or MP3 audio coding format and two video streamings output each channel, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, ONVIF, HLS, FLV. Also there is four channels HDMI loop out for local display. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.

This encoder support HDMI embedded audio or external audio(3.5mm) optional from output video streaming each channel.

Not only four channels, we also produce multichannel HDMI video encoder which is packed by 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.

q





Feature

•   Embedded HiLinux System, stable and effective

•   Support H.264 /AVC baseline /main /high profile encoding

•   From 16Kbit/s to 12Mbit/s by CBR /VBR code rate controlling each channel

•   Support HTTP, UDP /RTP, RTSP, RTMP, HLS, FLV, ONVIF streaming protocol

•   Support image, logo, text parameter settings on the output video streaming

•   Support English WEB operating interface and language customizable

•   Support output video streaming resolution setting(Up to 1920 * 1080P /60fps)

•   Support HDMI embedded audio or external audio optional from output video streaming

•   Provide SDK and API for secondary development

•   Support GOP frame rate settings

•   Support output 2 RTMP (main stream & 2nd stream) to different streaming media server each channel

•   Network interface full-duplex mode with 1000M speed

•   Support two video streamings output (Mainstream and secondstream) each channel

•   Support HDCP and HD blue-ray

•   A wide area network remote management (Web control panel)

•   Support different protocol transmission for the main stream & 2nd stream each channel

•   Support MP3 and AAC audio coding format selection

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed






Specification



Video
Input4 * HDMI (Audio Build-in) + 4 * Stereo Audio(3.5mm)
Input ResolutionMax support 1920x1080P@60Hz
Output Stream ResolutionMax support 1920x1080P@60Hz
Code Rate ControlFrom 16Kbps to 12Mbps by CBR /VBR Each Channel
GOP Structure

IBBP

Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio
Encoding AAC, MP3
Sampling Rate Auto
Bit-rate 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K, 384K
Sampling Precision

24 bit

Data Rate

From 64Kb/s to 384Kb/s

Network
Ethernet(RJ45)1000Base-T ethernet interface
Program StreamingRTMP, HTTP, RTSP, UDP /RTP, ONVIF, HLS, FLV
User Interface WEB default IP - 192.168.0.31
Firmware UpdateEnable by Uploading Files To Dashboard
General
Dimension (W* L*H) 483*300*50mm
Gross Weight2.5KG /Pcs
Powe

AC 110V~220V

Consumption 5W /Channel





Control Panel

Here is the screenshot of mainstream encoding settings, for more information about the control panel, please visit our official website!!!

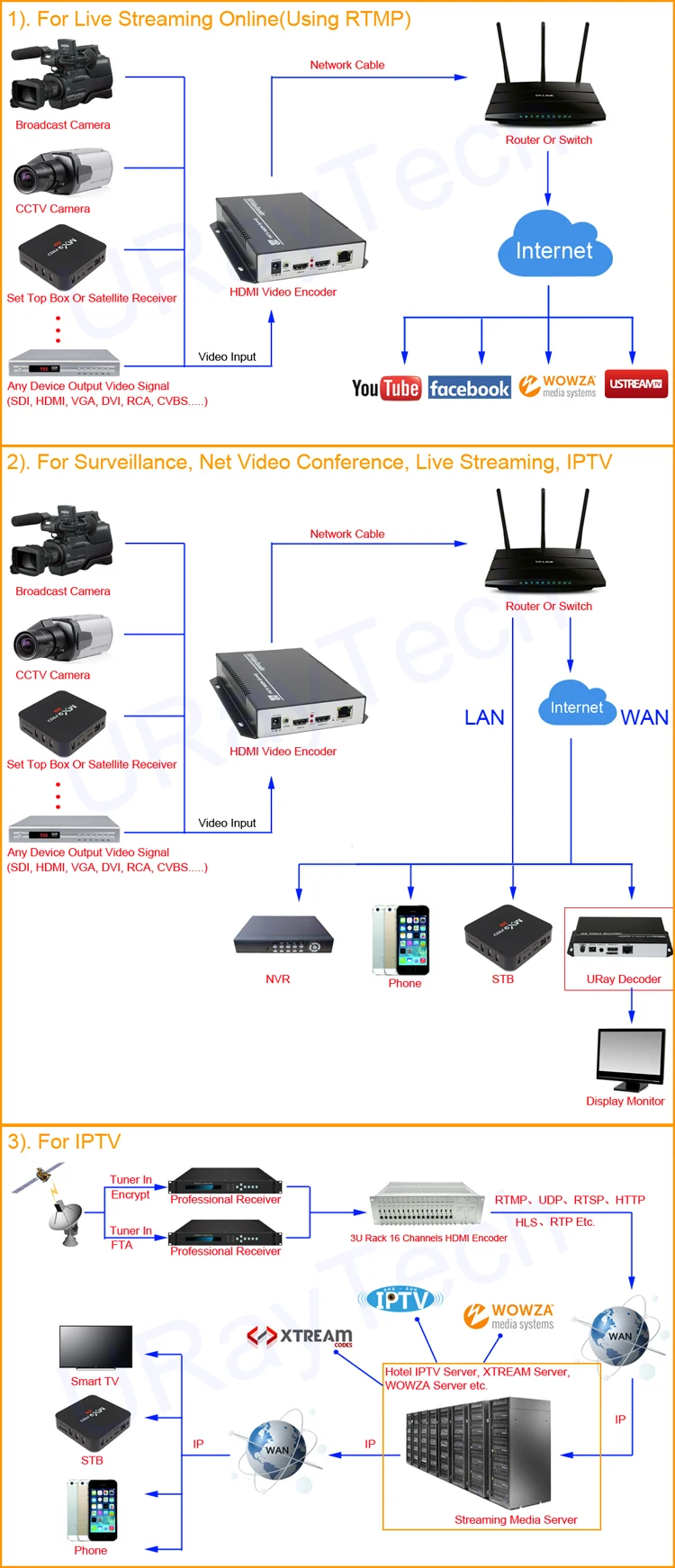

Application

  IPTV

  Streaming Media Server (Wowza, Xtream Codes, Flash Media Server, etc.,)
  Online Live Broadcast(Youtube, Facebook, Ustream, etc.,)
  NVR (Net Video Recorder)
  Teaching / Campus Broadcast
•   Hotel TV System
  Video Conference
  Digital Signage
  Recording System (Replace Video Capture Card)





Contact Us

  If you have problem of making payment, please contact us.

•  If you are worried about customhouse charge, please contact us.

•  If you need to print your logo on the device, please contact us.

•  If you require any files regarding to the product(user manual, new firmware etc), please contact us.

•  If you have questions before buying, please contact us.

•  If you meet the technical problems after buying, please contact us.

•  If you want to test this device before buying, please contact us.
