Attributes
150wPower(W)
220 V, 380 V, 110 V, 440 VVoltage
Guangdong, Chinaplace of origin
50Weight (kg)
1 Yearwarranty
pinsubrand name
video outgoing-inspection:Provided
machinery test report:Not Available
core components:Engine, Motor, Pressure Vessel, Pump, Gear

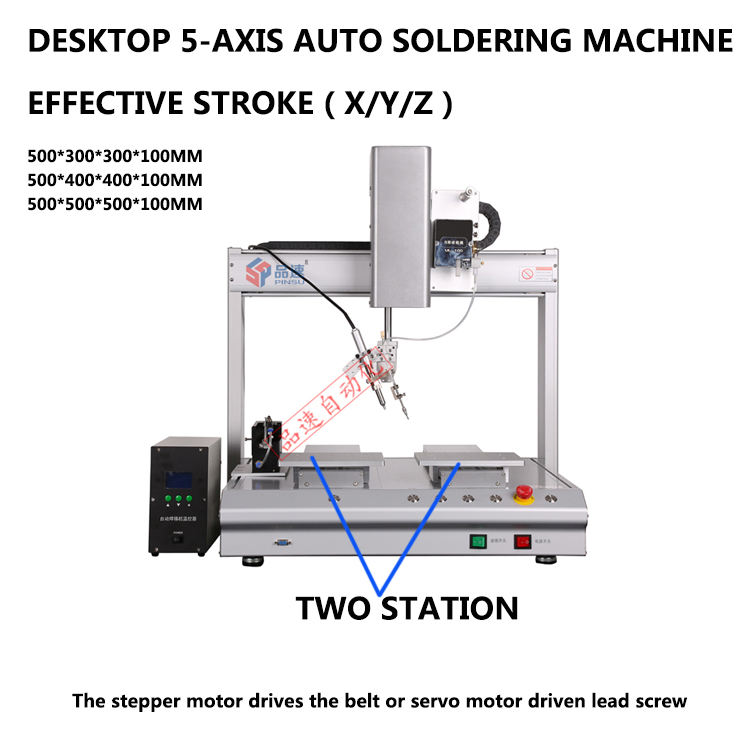

Machine name:Desktop 5-axis auto soldering machine
Effective stroke(X/Y/Z):500*300*300*100mm /500*400*400*100mm/500*500*500*100mm
R axis:360 degree rotation
Operation speed:Belt max300mm/s screw max500mm/s
Repeatability:Belt ±0.05mm,screw ±0.01mm
Information storage space:256MB
Applicable tin wire diameter:0.5/0.6/0.8/1.0/1.2/1.5(mm)
Supported Project Documents:CAD/CORELDRAW
Electronic control system:Intelligent motion control card (with teaching box)
Machine Power:150w
Selling Units:Single item
Single package size:80X60X70 cm
Single gross weight:50.000 kg
