USB IPS 15.6,17.3,18.5,19,21.5,24 inch 1920x1080 touch screen with LVDS interface

FOB Reference Price:Get Latest Price
$275.30 - $355.40 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
HX2151705 V1.0
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
21.5''
Type:
Capacitive
Interface Type:
USB, LVDS
Resolution:
1920x1080
Brand Name:
Grahowlet
Place of Origin:
Zhejiang, China (Mainland)
programe evsluation:
1 to 2 morking days
Drawings:
2 to 3 working days
Customized products:
3 to 4 weeks(after drawings confirmed)
Mass Production delivery:
4 to 6 weeks
Application:
Industrial Application
Capacity:
80K per month
Service:
Provide technical support at any time
Stable supply chain:
at least 3 years guarantee
warranty:
One year
Operating System:
XP/Win7/Win8/Win10/Android/Linux
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month touch screen lcd
Packaging & Delivery
Packaging Details
Standard anti-static packaging or as per customer's requirement.
Port
Shanghai
Product Description

Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch

Full range of standard product in stock (no need customization)

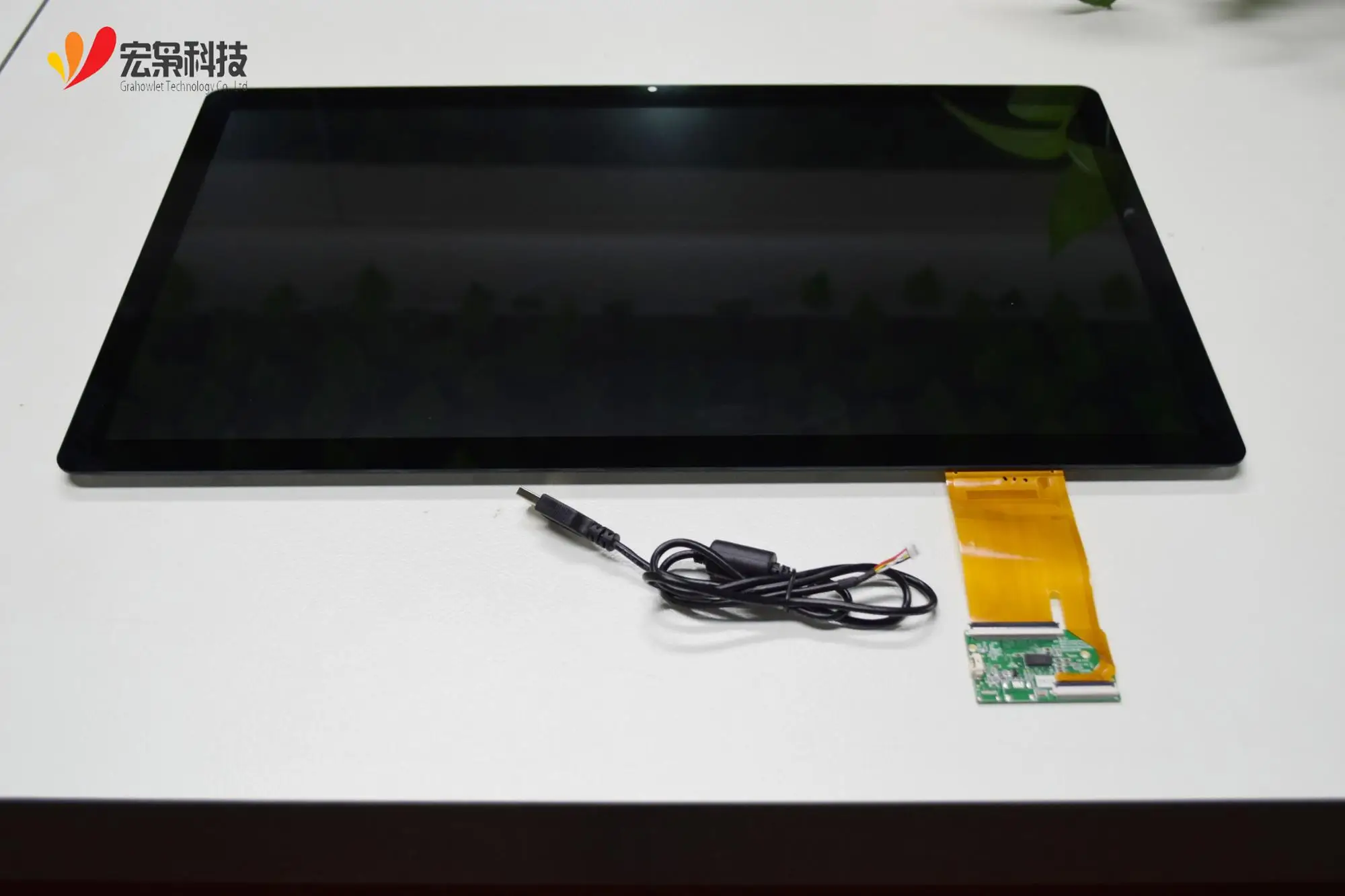

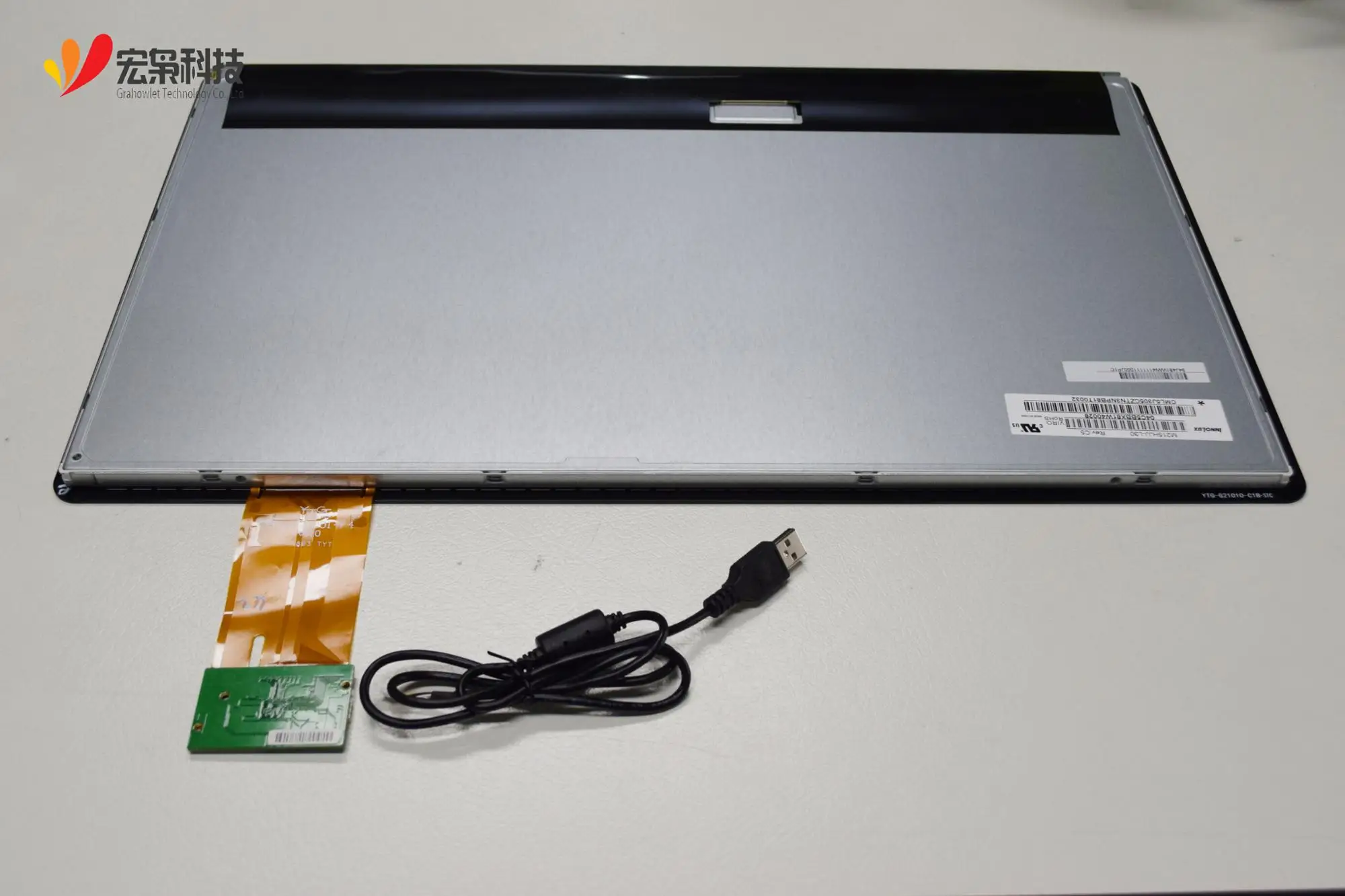

MODULE PRODUCT DETAILS

Model Number:HX2151705
Size:21.5 inch
Operating Temperature:0℃ ~ 50℃
Outline Dimension:510.84(W)x309.85(H)x14.15(D) mm
Viewing Area:477.64(W)x269.11(H) mm
Active Area:476.64(W)x268.11(H) mm
Support Systems:Windows/Android/Linux etc.




PCAP(projected capacitive)

Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:USB
Controller IC:ILITEK
Touch Points:1-10 Points
Power Supply Voltage:5V


TFT LCD DISPLAY

Resolution:1920x1080
Interface Type:LVDS
Luminance:250 cd/m²
Viewing Angle:ALL
Warranty:1 year


Application

Courier handheld terminal

Portable medical machine

Front loading Vehicle control system

Industrial Data Detection Equipment

If you want USB interface, we can supply IIC to USB Bridgeboard Click here

1.Support Touch with glove of all materials and thickness with 6mm

2.Support Touch with water/brine

3.Cover glass Support -8mm thickness--explosion-proof

4.Cover glass surface treatment--AG, AR, AF

Anti Glare (AG) processing could eliminate screen surface mirror problem through converting
direct light to diffuse light on the touch screen.

AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Related products

Model Number:HX1561707
Size:15.6 inch
Resolution:1920x1080
Interface Type:LVDS
Luminance:400 cd/m²
Viewing Angle:80/80/70/70


Model Number:HX1851801
Size:18.5 inch
Resolution:1366x768
Interface Type:LVDS
Luminance:250 cd/m²
Viewing Angle:45/45/25/40


Model Number:HX2401801
Size:24.0 inch
Resolution:1920x1080

Interface Type:LVDS

Luminance:1000 cd/m²
Viewing Angle:ALL


Module NO.
Size
Controller IC
Structure
interface
Operating Temperature
Outline Dimension
HX1331704
13.3"
EETI
G+G
EDP
-0~50
335.00(W)x197.00(H)x2.40(D)mm
HX1501705
15"
ILI2302
G+G
LVDS
-20~70
326.50(W)*253.50(H)*12.00(D)mm
HX1561801
15.6"
ILI2510
G+G
USB/IIC
-40~85
371.00(W)*236.50(H)*2.70(D)mm
HX1701702
17"
ILI2302
G+G
LVDS
-30~85
358.50(W)*296.50(H)*18.00(D)mm
HX1731703
17.3"
ILI2302
G+G
USB/IIC
-20~70
403.00(W)*240.00(H)*3.35(D)mm
HX1901701
19"
ILI2302
G+G
USB/IIC
-20~70
421.60(W)*346.60(H)*3.30(D)mm
HX2361701
23.6"
EETI3188
G+G
USB
-20~70
575.50(W)*358.00(H)*2.40(D)mm
HX3001701
30"
ILI2312
G+G
USB
-20~70
675.30(W)*434.80(H)*3.10(D)mm
HX3201701
32"
ILI2312
G+G
USB
-20~70
781.54(W)*476.14(H)*3.30(D)mm
...........

We can provide USB controller and HDMI/VGA driver board

If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please Click here.
Our Company
Our Service
programe evsluation
1 to 2 morking days
Drawings
2 to 3 working days
Customized products
3 to 4 weeks(after drawings confirmed)
Mass Production delivery
4 to 6 weeks
Software debugging
Capacity
100K per month(10.1 inches as a reference)
Process capability
G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support
Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products
Certifications
Packing & Delivery
FAQ

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
