USB Mi fare UID ISO 14443 Contactless Smart Card Reader Support HID Keyboard Class ACR1281U-C2

  • 1-49 Units
    $38.00
  • 50-99 Units
    $34.00
  • 100-999 Units
    $32.00
  • >=1000 Units
    $30.00
Model Number:
ACR1281U-C2
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 200 Units)
Samples: $38.00 /Unit, 1 Unit (Min. Order): Buy Samples
Contact Supplier
Samples - $38.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCCTG
Product Name:
USB Mi fare UID ISO 14443 Contactless Smart Card Reader ACR1281U-C2
Dimensions (mm):
120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight (g):
140 g
Protocol:
USB HID Keyboard Class
Speed:
USB Full Speed (12 Mbps)
Connector Type:
Standard Type A
Standard:
ISO 14443 A & B Parts 1-4, MI FARE
LED:
2 single-color: Red and Green
Buzzer:
Monotone
Certifications/Compliance:
ISO 14443, USB Full Speed, USB-HID CE, FCC, RoHS 2

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X10X5 cm
Single gross weight:
0.25 kg
Package Type:
Neutral Packing for USB Mi fare UID ISO 14443 Contactless Smart Card Reader Support HID Keyboard Class ACR1281U-C2
Lead Time :
Quantity(Units) 1 - 10 11 - 50 >50
Est. Time(days) 5 10 To be negotiated

USB Mi fare UID ISO 14443 Contactless Smart Card Reader Support HID Keyboard Class ACR1281U-C2



General

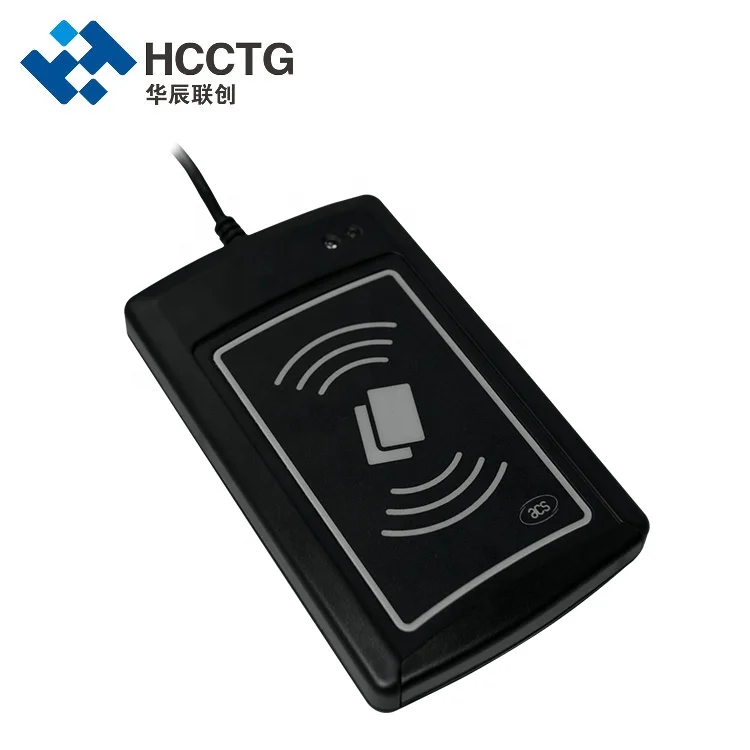

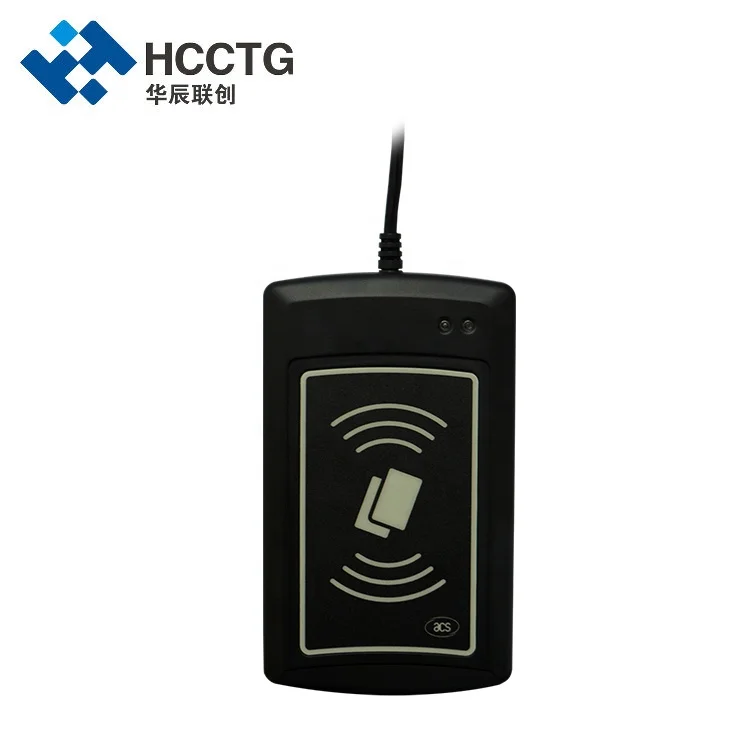

ACR1281U-C2 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.

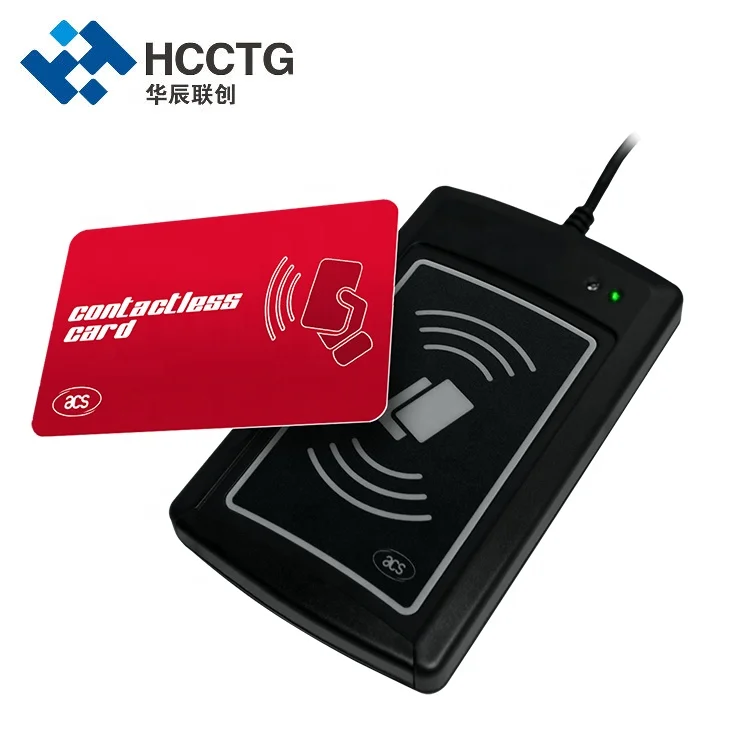

When presented with a contactless card (such as a MIFARE card), the ACR1281U-C2 retrieves the card’s UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. ACR1281U-C2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.

Because ACR1281U-C2 Card UID Reader is compliant with the Human Interface Device (HID) standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.



Feature

Ø USB 2.0 Full Speed Interface

Ø USB HID Keyboard Class

Ø Contactless Card Support:

Read/write speed of up to 848 kbps

Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

Supports ISO 14443 Part 4 Type A and B cards and MIFARE series

Built-in anti-collision feature (only one tag is accessed at any time)

Ø USB Firmware Upgradability



Specification

Weight (g)

140 g

Dimensions (mm)

120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)

USB Interface

Power Source

From USB port

Protocol

USB HID Keyboard Class

Speed

USB Full Speed (12 Mbps)

Connector Type

Standard Type A

Cable Length

2.0 m, Fixed

Contactless Smart Card Interface

Protocol

ISO 14443-4 Compliant Card, T=CL

MIFARE® Classic Card, T=CL

Standard

ISO 14443 A & B Parts 1-4, MIFARE®

Built-in Peripherals

LED

2 single-color: Red and Green

Buzzer

Monotone

Other Features

Firmware Upgrade

Supported

Certifications/Compliance

Certifications/Compliance

ISO 14443, USB Full Speed, USB-HID

CE, FCC, RoHS 2

Device Driver Operating System Support

Device Driver Operating System Support

Windows®, Linux®, MAC OS®, Android™



Application

e-Government

Banking & Payment

e-Healthcare

Access Control

Network Security

e-Purse & Loyalty

Transportation

 ACR1281U-C2 (2).jpgACR1281U-C2 (3).jpgACR1281U-C2 (1).jpg
