OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 macOS 10.12/10.13.2/10.13.3
DirectShow Wave API/DirectSound/WASAPI
QuickTime AV Foundation
VLC/ VirtualDub/ OBS/ XSplit/ vMix/ VidBlaster/ Wirecast/ Microsoft Media Encoder/ Adobe Flash Media Encoder/ Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

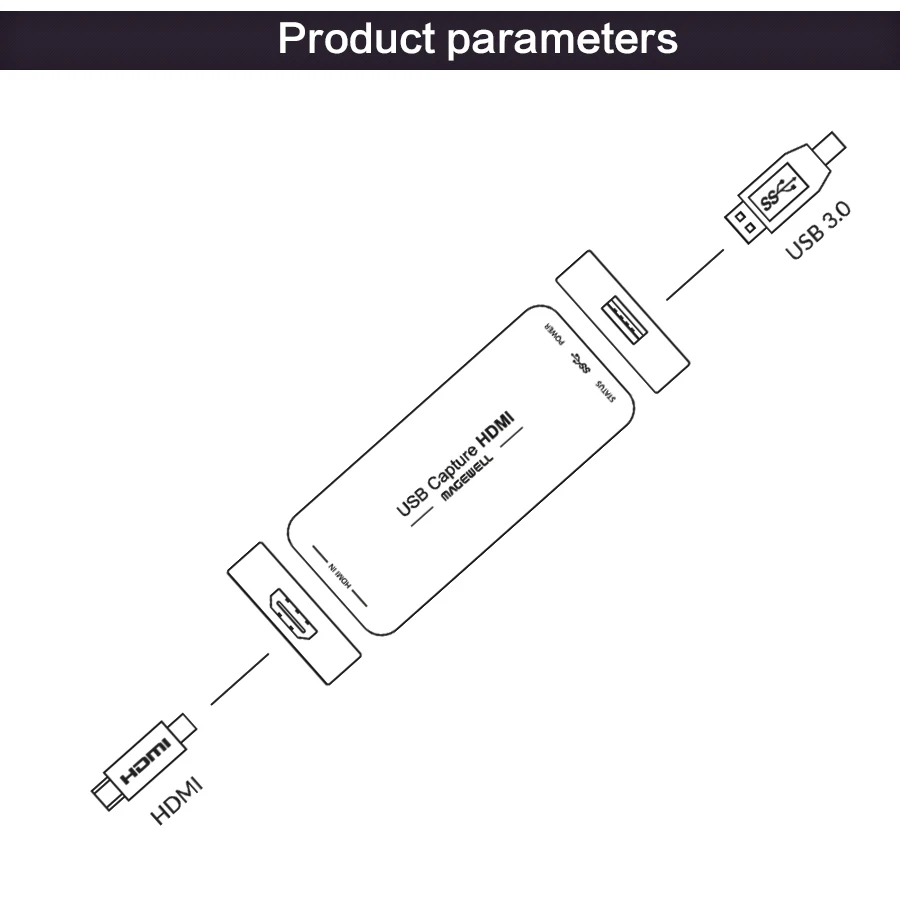

HDMI : DVI-D 1.0 , HDMI 1.4a
Host Interface USB 3.0 : compatible with USB 2.0, compatible with USB 3.1 Gen 1
Input features Support for input video resolutions up to 2048x2160
HDMI Specific Features • 165MHz HDMI receiver • Adaptive HDMI equalizer support for cables lengths up to 30M • Support for customized EDID • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames • Full colorimetry support • Support for 8/10/12-bit color depth • Support for RGB 4:4:4,YCbCr 4:4:4,YCbCr 4:2:2 color sampling • Support for 2 channel IEC60958 audio streams • Support for extraction of audio formation information & channel status data • Support for extraction of video timing information • Support for extraction of 3D format information • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Video Capture format • Support for capture resolutions up to 2048x2160 • Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.)
o 1920x1080 YUY2 (up to 75fps) o 1920x1080 RGB24 (up to 60fps)
• Support for YUY2 & UYVY 4:2:2 8-bit • Support for RGB24 & RGB32 4:4:4 8-bit • The default capture format is YUY2. More capture formats can be set using USB Capture Utility.
Video Processing Features • Video processing pipelines with 160 Mpixels/s processing bandwidth • Video cropping • Video scaling • Video de-interlacing o Weave o Blend top & bottom field o Top field only o Bottom field only • Video aspect ratio conversion o Auto or manual selection of input aspect ratio o Auto or manual selection of capture aspect ratio
o Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) • Video color format conversion o Auto or manual selection of input color format & quantization range o Auto or manual selection of capture color format, quantization range & saturation range o Support for RGB, YCbCr 601, YCbCr 709 color formats o Support for Limited or Full quantization range o Support for Limited, Full & 'Extended gamut' saturation range • Video frame rate conversion • Vertical flip and mirror
Multiple devices on one computer • Support for connecting multiple USB devices to one system • Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK • The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Firmware Upgrade • Multiple devices in one system can be upgraded simultaneously
LED Indicator • Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor • 92.2mm (L) x 40.2mm (W) x 12.3mm (H)
Accessories • USB 3.0 cable
Power Consumption • 5V max current: ~0.5 A • max power consumption: ~2.5 W
Working Environment • Operating temperature: 0 to 50 deg C • Storage temperature: –20 to 70 deg C • Relative Humidity: 5% to 90% non-condensing
Excellent Video Processing • Support up to 1920x1200p60 (CVT-RB) Video Input • Video output support up to 1920x1200p60 in YUY2 • Video output support up to 1920x1200p60 in RGB24 • The process of video and audio is done by the dongle and will not occupy CPU.
Flexible and Friendly Features • Connect multiple dongles to one machine • Enable the up/down conversion of video resolution, frame rate and audio sampling rate • Support brightness, contrast, hue, saturation, and other screen adjustment functions • The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output • The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output • The video processing engine can be updated via firmware without changing the hardware. • Automatically detect and de-interlace signals

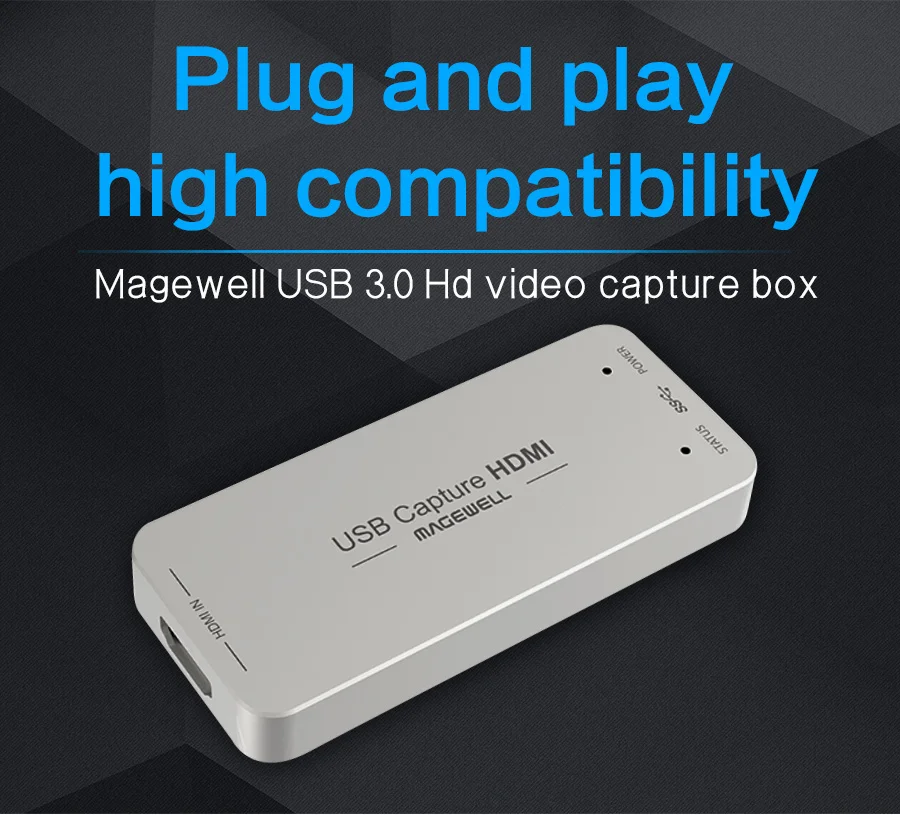

Easy to Use • No need to install drivers in Windows, Linux, and OS X, real plug and play. • Automatically determine the input video format and automatically convert it to the specified output size and frame rate. • Automatically determine the input audio formats and automatically convert it to 48 KHz PCM stereo audio.
Reliable and Stable • 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied. • Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)
