Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Guangcheng
Model Number:
USBCAN-I Pro
Computer interface:
USB1.1, USB2.0, USB3.0
CAN Bus interface:
1 CAN Bus channel with 4-pins terminal
Baud rate:
5Kbps~1Mbps
Receive maximum data flow:
14000 FPS
Operating system:
Windows XP, 7, 8, 10, etc
Support secondary development:
Yes
Electrical isolation protection module:
Integrated
Electric isolation, insulation level:
DC3000V
Working temperature:
-40~ 85℃
OEM:
Support

Packaging & Delivery

Selling Units:
Single item
Single package size:
20.6X15.2X5.2 cm
Single gross weight:
0.3 kg
Package Type:
carton
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(day) 3 To be negotiated
Product Description

Introduction

USBCAN-I Pro adapter is a debug or analysis tool with one CAN Bus channel. With this adapter, PC can quickly connect to CAN Bus network through USB interface, and become a intelligent node of CAN Bus to transmit/receive CAN Bus data.

Features

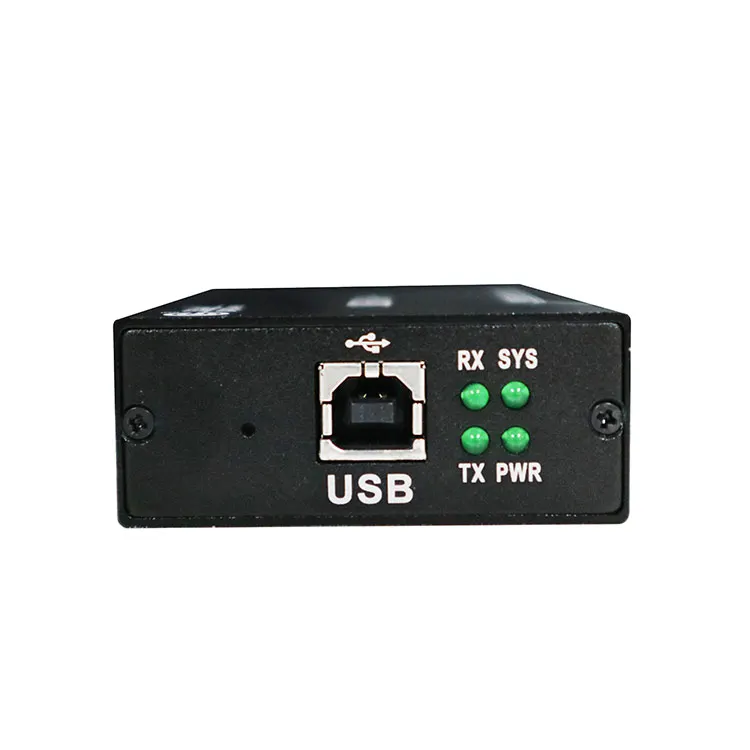

1. Computer interface: USB1.1, USB2.0, USB3.0
2. Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898
3. Support Windows operating system: Windows XP, 7, 8, 10, etc
4. Support secondary development, we can provide routine such as VC, VB, Net, Delphi, Labview, C + + builder and others.

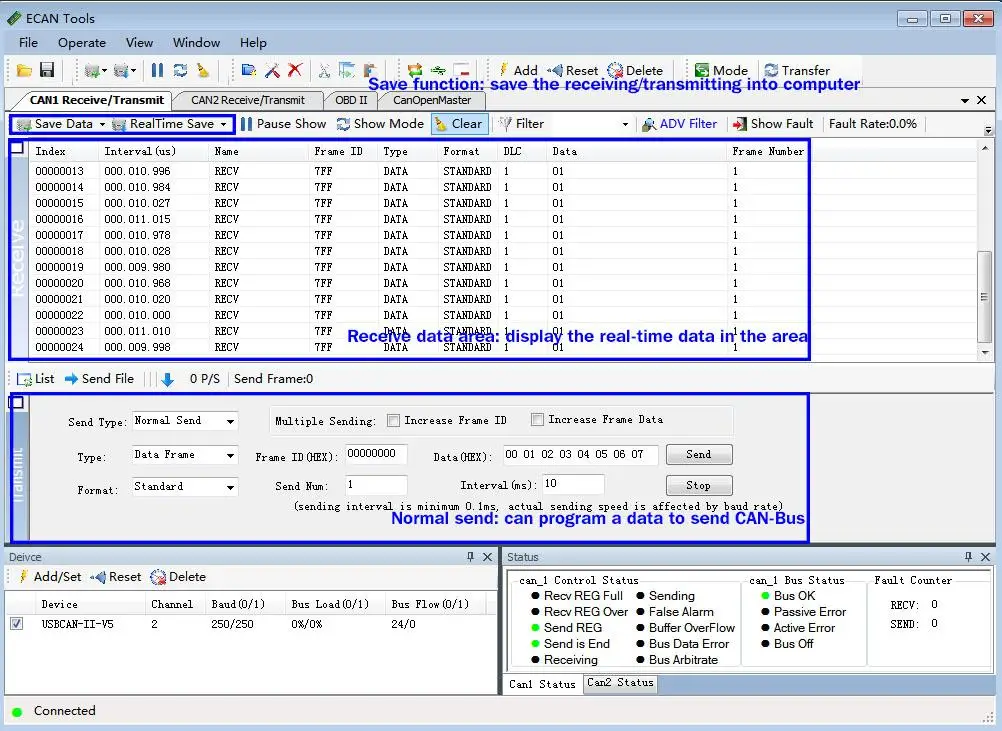

5. Support ECANTools testing software
6. Support customization and OEM


Function

Parameters

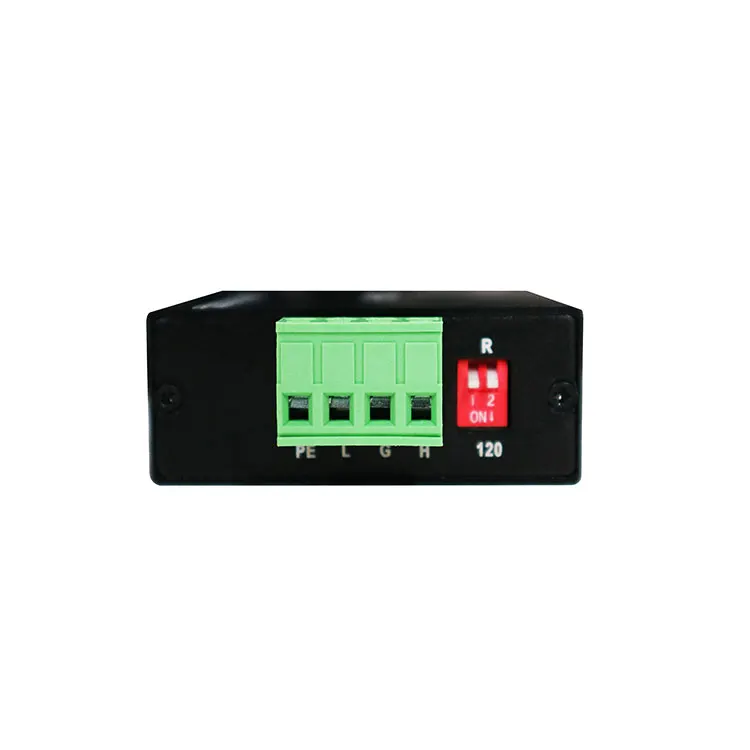

1. Interfaces: one CAN Bus channel with 4-pins terminal
2. Integrate with electrical isolation protection module
3. Set parameters through webpage

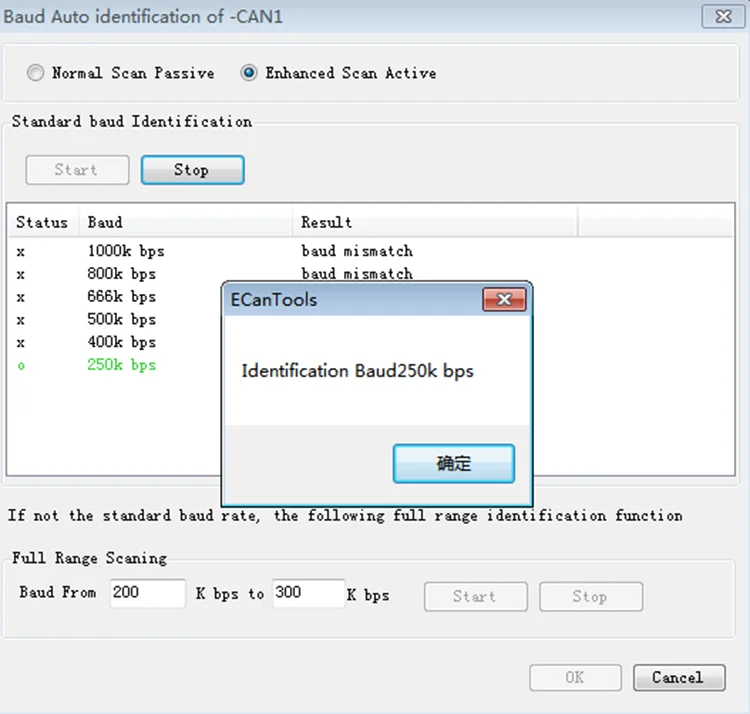

4. Support communication baud rate: 5Kbps~1Mbps
5. Electric isolation, insulation level: DC 3000V
6. Receive maximum data flow: 14000 FPS
7. Working temperature: -40~ 85℃

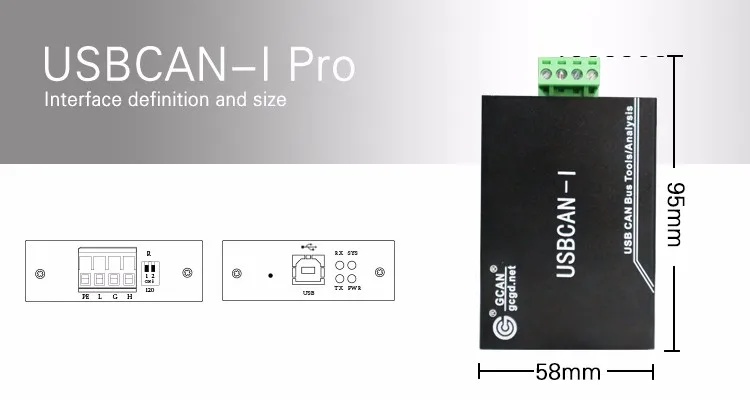

8. Size: 95mm * 58mm * 24mm


Related Products
Certifications
Our Company

It is national certified high-tech enterprise. Our company has more 20 own intellectual-property rights with all of main products developed by ourselves, which is a leading supplier and service provider of industrial interconnection industry in China. We major in development, production, sales of industrial communication equipments and automatic equipments. The products cover CAN Bus analyzer, ECU downloader, industrial gateway, remote IO, PLC core-board, and servo driver, software and hardware of industrial communication and providing for comprehensive solution. Since founded in 2010, our company has been on a mission to “Promote the progress of industrial interconnection technique, offer competitive product and service”. We always create value for our customers. Now, we have served over 10 billion customers, involving traffic, electric power, energy, medical apparatus, ship, military industry, and automatic, multiple industries.

Our Service

1. Service: 1 years guarantee, and professional technical staff help.
2. Supply ability: We usually have 300-500 units in stock for urgent orders.
3. Capacity: 500/month, can meet the demand of most enterprises application.
4. Lifetime: At least 5 years for each device, can still produce just if you need.
5. Cooperation: Welcome the cooperation with distributors all over the world.

Packing & Delivery

Packing
1. Standard package. Carton
2. Customized design

Delivery Time
2~5 days after receipt of your payment
