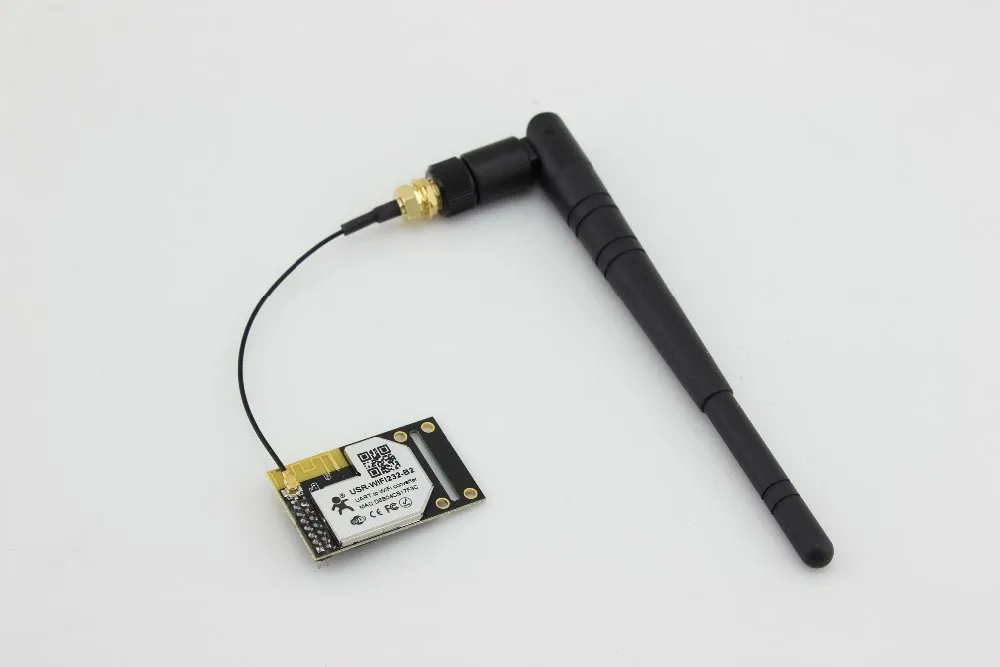

USR-B2 Wifi Modules with External Antenna Pin Type WIFI Module with External Antenna

FOB Reference Price:Get Latest Price
  • 1 - 19 Units
    $8.50
  • >=20 Units
    $8.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
USRIOT
Model Number:
USR-WIFI232-B2
Item:
higher performance WIFI module
Wireless Standard:
802.11 b, g, n
Frequency Range:
2.412GHz-2.484GHz
Antenna:
External: I-PEX connector
Working Voltage:
3.3V (+ -5%)
Working Temp.:
-40°C ~ 85°C
Supply Ability
Supply Ability:
1000 Unit/Units per Quarter
Packaging & Delivery
Packaging Details
Standard Package
Port
QingDao
Lead Time :
Within 2 day
Welcome to Minisite
Product Description

USR-WIFI232-B2 is an embedded 802.11 b g n wifi module. It can connect traditional serial device and MCU controlled device with wifi network to realize control and management.The module has an Ethernet port. It can realize mutual data transmission among wifi, serial and Ethernet.

Feature
Data Interface
UART: 300bps~460800bps

Ethernet: 10Mbps, 100Mpbs

GPIOs
Working Current
AP: 169mA (average), 305mA (peak)

STA: 164mA (average), 197mA (peak)
Working Temp.
-40°C ~ 85°C
Size
25mm x 40mm x8mm
Wireless Network Type
Station, AP mode
Max. Client Number in TCP Server Mode
32
User Configuration
Web server+AT command config
Client Application Software
Clients can customize application software
Point

Support TCP, IP, UDP network protocol
Support UART, GPIO, Ethernet data interface
Support work as STA, AP, AP+STA mode
Support router and bridge mode
Max transmission distance: 280 meters (open horizon, 3dbi  antenna



Character
Frequency Range
2.412GHz-2.484GHz
Wireless Network Type
Station, AP mode
Security Mechanism
WEP, WPA-PSK, WPA2-PSK
Work Mode
Transparent transmission mode, serial command mode
Setting Command
AT+ instruction set
Network Protocol
TCP, UDP, ARP, ICMP, DHCP, DNS, HTTP

Certification
FCC, CE
Application
Company

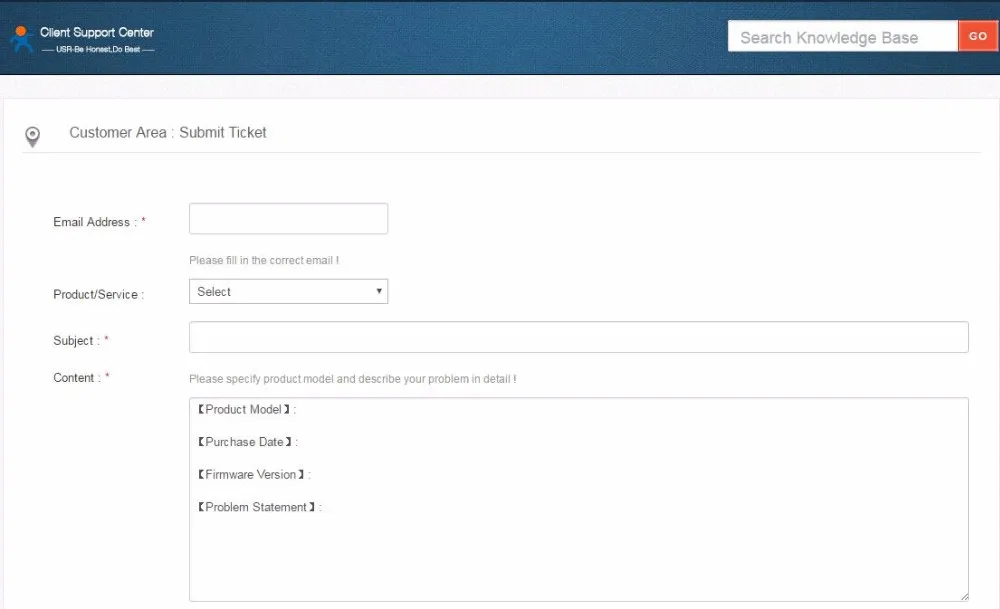

Support Center
