Ultrasonic cutting systems to cut fresh and sticky products

Feedback Ratings
$2,500.00 / Set | 1 Set (Min. Order)
Model Number:
DW-CF20-1500
Machinery Capacity:
100 UNIT
$2,500.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
dowellsonic
Place of Origin:
Zhejiang, China (Mainland)
Voltage:
220v
Power(W):
1500
Dimension(L*W*H):
56*47*90
Weight:
39kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Application fields:
Bakery, Beverage Factory, Cannery, Cooking oil factory, Frozen food Factory, Fruit processing plant, Meat processing plants, Seasoning plant, Snack food factory, Vegetable processing plant
Machinery Function:
ultrasonic cake cutter
Raw material:
Nuts
Output product name:
ultrasonic cake cutter
ultrasonic power:
1500w
ultrasonic frequency:
20khz
cutting blade material:
imported titanium alloy
cutting blade width:
305mm
available optional width:
82mm,100mm,150mm,200mm,305mm,350mm
Application:
ultrasonic cake cutter
Product name:
ultrasonic Frozen cake cutting cutter
cutting spead:
60 times /minute
install type:
handheld or clamp by robot arm
ultrasonic generator type:
digital automatic frequency tracking

Packaging & Delivery

Selling Units:
Single item
Single package size:
56X47X90 cm
Single gross weight:
39.0 kg
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description


Explain of the product:


The ultrasonic generator produce the mechanical energy of vibration more than 20000 times per second to the cutting blade, it cut the food material by local vibration very quickly, the friction on the food surface is very small,the food can apart by the titanium blade very quickly, to achieve the aim of cutting materials requirements. So the ultrasonic cutting does not require very sharp blade, also don't need a lot of pressure, there is no side damage and breakage at all. At the same time, due to the ultrasonic vibration, friction is small, it is not easy to stick on the blade. The material such like the viscous and elastic material, frozen food, such as food, rubber, etc, or inconvenient to add pressure on the cutting object, it will have particularly effect.

Ultrasonic food cutting advantage and features:
1.The cutting incision is smooth, reliable, accurate trimming,
2. It is no deformation, no warped edge,.
3.No deformation after cutting.
4.The working is stable and cutting speed is fast, non-stick knife, etc
5.Easy to operate, no need professional person, save time and labor force
6.Handheld type is available and workers will be not tired after long operate
7.Can be install onto the PLC robotic arm

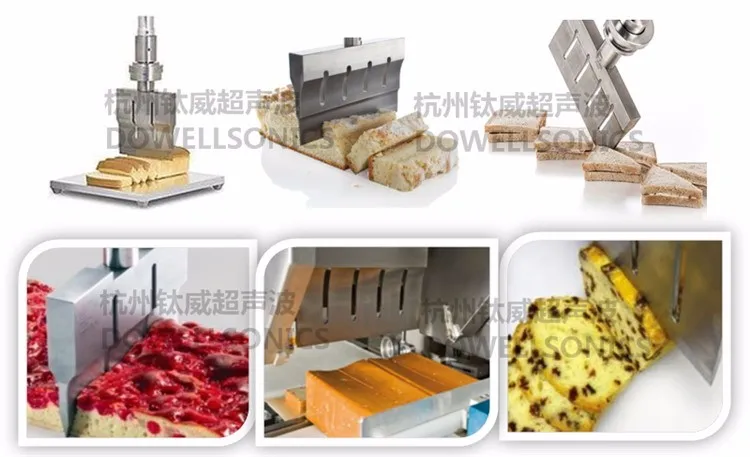

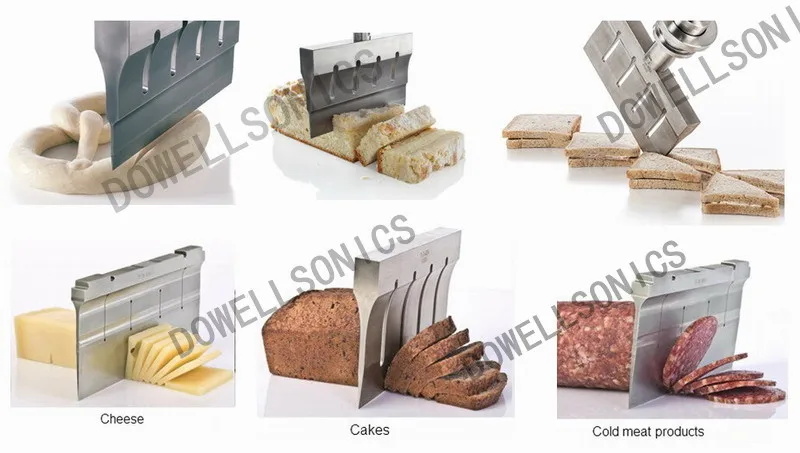

Applicable industry:

1. Food cutting

2. Cake cutting

3. Rubber

4. Cheese bread flour cutting

5. Cookie cut

6. Jelly nougat cutting

7. Candy

8. Pizza cheese butter cutting

9. Frozen meat cake,aquatic plant fiber, nut cutting

10. All kinds of soft material cutting

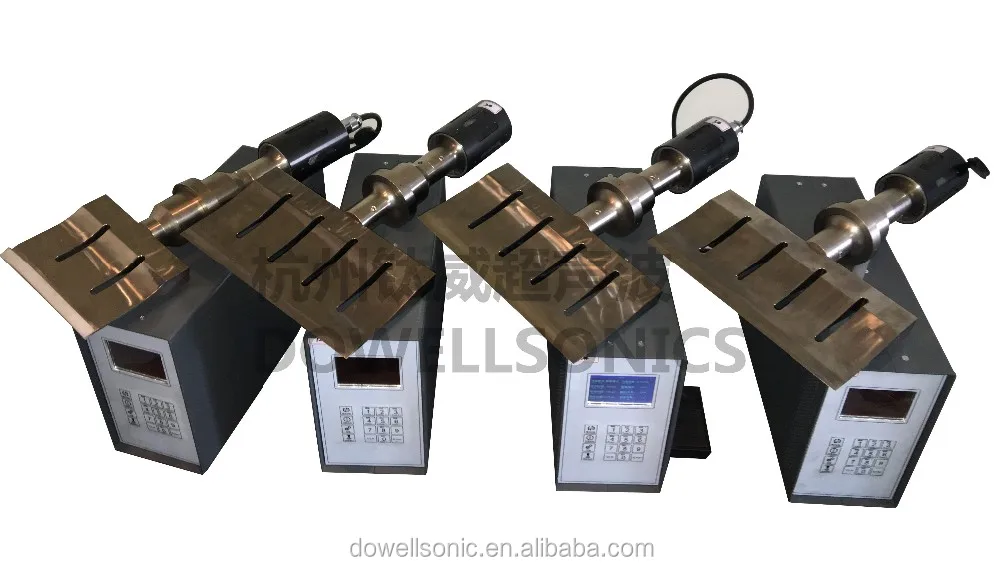

Main configuration:
1*pcs oscillator(transducer,booster,cutting blade),
1*pcs Aluminum alloy for handheld holding,
1*pcs generator (drive power supply)


Detailed Images

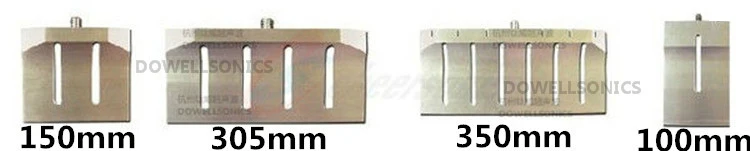

Cutting blade width and height can be OEM ALSO

We have cutting blade width from 82mm-360mm.It is 82mm;95mm;110mm;120mm;150mm;165mm;172mm;190mm;250mm;254mm;300mm;305mm;340mm;350mm;360mm
Height from:123-265mm

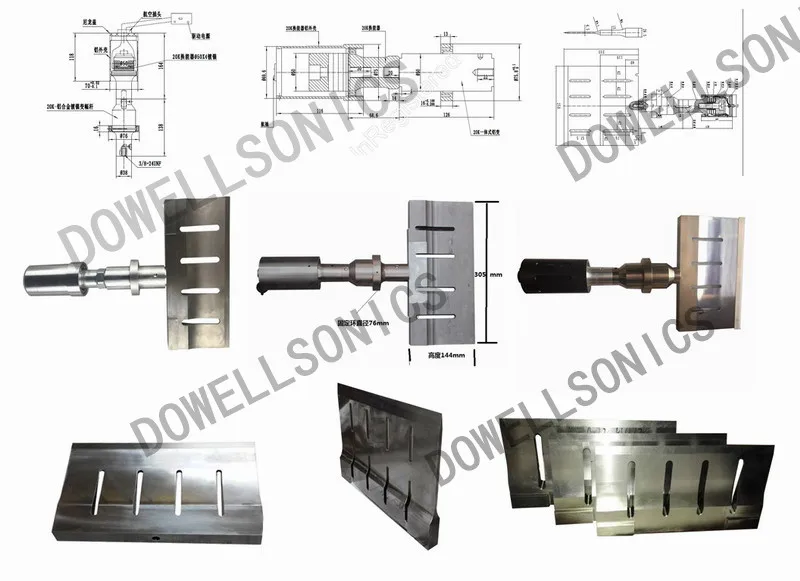

Below is different cutting sonotrode and cutting blade


Our Company

Company introduce

Dowellsonic is the industry profession in the design, development, manufacture, and marketing of ultrasonic equipment and machine,we mainly focus on ultrasonic sonochemistry processing,plastics joining welding machine, precision cutting machine and ultrasonic non standard new application equipment. We are committed to providing solutions to the needs of our customers, and providing the latest in technology, we mainly provide ultrasonic equipment with factory price and willing to meets customers'demand and solve the customers' problems.
We welcome customers from all over the world for inquiring and purchasing.

Factory view:

Warehouse

Certifications
Our Service

We provide customer services:

 Customer & Supplier Alliances
 Technology & New Product Development
 Marketing & Sales
 Manufacturing
 Product Quality
 Technical & Support

Packing & Delivery
FAQ


1. Do you have it in stock?

We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers' different requirements.
2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object,send it to us or send detail pictures.
3.How long do you make the order product?
Common products for 2- 7days,big qty and none standard products for 10-20days
4. Do you have operating manual?
Of course, we will put it with the goods together.
5. How about the quality?
We have export to many other customers from all over the world,the feed back is good,quality is the first of our company
6. Could you do OEM?
Yes, of course.We can produce according customers' requirement,just send us your requirements and design of drawing and sample
7. Could we as your agent?
Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
8.Payment:100%T/T in advance for small order.30%T/T in advance as deposit,70%T/T paid before shipment
9.What is the method of Delivery?
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS),heavy weight more than 50kg,we suggest to use sea freight LCL or by air
10.Warranty:
1 years Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
We can produce according customers'requirements,OEM is available,pls send us inquiry for quotations.
