Underground armoured power cable cu xlpe swa pvc size xlpe 4 core armoured electric copper power cable

FOB Reference Price:Get Latest Price
$0.70 - $110.00 / Meters | 100 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
RUITIAN
Model Number:
YJV
Insulation Material:
XLPE
Type:
Low Voltage
Application:
Construction, Construction
Conductor Material:
Copper
Jacket:
PVC
Product name:
xlpe insulated pvc jacket copper conductor power cable 5 core 120 mm2
Color:
Customized
Conductor:
Copper Core
Sheath:
Flame Retardant PVC
Insulation:
XLPE
Rated voltage:
0.6/1KV
Supply Ability
Supply Ability:
500000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
"
1.Packing Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable
Port
Tianjin
Product Description

Underground armoured power cable cu xlpe swa pvc size xlpe 5 core armoured electric power cable

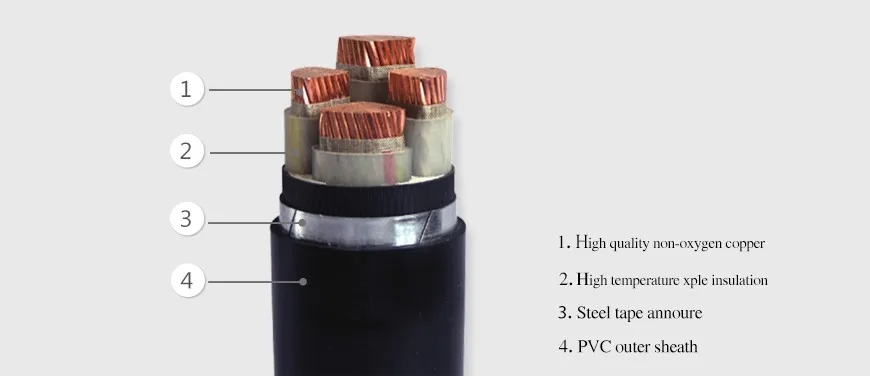

Detailed Images

1. Standard of XLPE Cable:
According to GB12706( Equal to IEC60502). Also can make the production according to your requirement.

2. Characters of XLPE Cable:
a.Max Long-time operating temperature of XLPE insulated cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.
d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables

3. Advantage:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs

4. Specification And Description:

Model
Name
Application site
Section area
Cores
Rate voltag
YJV
XLPE insulated PVC sheathed power cable

Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed .





4 6 10 16 25 35 50






















1 2 3 4 5 3+1 3+2 4+1


















0.6/1KV
YJLV
XLPE insulated PVC sheathed power cable
YJY
XLPE insulated PE sheathed power cable
YJLY
XLPE insulated PE sheathed power cable
YJV22
XLPE insulated steel tape armored PVC sheathed power cable


Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull.








70 95 120 150 185
YJLV22
XLPE insulated steel tape armored PVC sheathed power cable








0.6/1KV
YJV23
XLPE insulated steel tape armored PE sheathed power cable


1 2 3 4 5 3+1 3+2 4+1
YJLV23
XLPE insulated steel tape armored PE sheathed power cable
YJV32
XLPE insulated, steel wire armored PVC sheathed power cable



Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension.








240 300 400
YJLV32
XLPE insulated, steel wire armored PVC sheathed power cable
YJV33
XLPE insulated, steel wire armored PE sheathed power cable
YJLV33
XLPE insulated, steel wire armored PE sheathed power cable
