Uninterrupted power pure sine wave dc ac 220v low frequency inductive load 1000w inverter with charger

FOB Reference Price:Get Latest Price
$110.85 - $140.09 / Piece | 2 Piece/Pieces (Min. Order)
Output Power:
1000W
Input Voltage:
12V/24VDC
Output Voltage:
120V/220VAC
Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 3 7 15 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$150.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
PASS POWER
Model Number:
QDT-1000w
Size:
319*174*148(L*W*H)
Weight:
9.2KG/PC
Output Type:
Single
Type:
DC/AC Inverters
Certificate:
CE/RoHS/SGS/IP30, CE/RoHS/SGS/IP30
Output Frequency:
50Hz/60Hz
Output Current:
4.5A-9A
Item:
1000 watts New Portable Ultra-thin inverter with charger
Start:
Soft-start
Peak power:
3000W
Efficiency:
90%
THD:
<3%
Grid type:
Off-grid tie
Output waveform:
pure sine wave
Warranty:
12 Monthes
Application area:
Home/Office/Caravan/Yacht/etc.
Product Certification certification
CE Certified.
Valid from 2016-03-28 until 2049-12-31
RoHS Certified.
Valid from 2016-03-30 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packing Method: by Standard Carton box.with bubbles outside and foams inside for protection
Packing Size: 1PC in 1 Carton; 430*270*240mm/pc; Packing Weight:10.8kg/pc
Package contain: 1pc 1000w inverter + 2 cables + English user manual + LCD display screen
Port
Shanghai/Ningbo/Shenzhen etc
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 3 7 15 To be negotiated
Overview


Product description: Model: QSP-1000W
· 1000 Watt continuous pure sine power
· 3000 watt peak power
· Built in smart battery charger with 7 selectable battery type settings
· Auto gen start feature.Multi Stage Smart charger with charger current control switch
· Marine and industrial grade


The 1000 watt 12 volt /24 volt low frequency Power inverter charger transforms DC (direct current) power, stored by batteries, into AC (alternating current) electricity that can be used to run your various tools and appliances at home or RV and commercial vehicle. This inverter also has a built in AC-to-DC battery converter charger, which allows users to recharge their battery bank from an AC source such as a fuel-powered generator, shore power or a regular outlet at home. The built in battery charger features a seven type battery selector and 4 stage charging, for safely and effectively charging your battery source. Use this product for renewable solar, off-grid, mobile and emergency backup power applications anywhere that uses  230 volts of alternating current.

Product Description

Features

● A combination of a pure sine wave inverter, automatic battery charger and AC auto-transfer switch
● Low frequency transformer, input and output isolated design
● Pure sine wave output: stable frequency and voltage,small ripple
● 4-step progressive charging stages; charge voltage and current adjustable
● Super low power loss with no-load and save battery energy effectively
● Multiple protection functions, equipped with Ac and Dc input high & low voltage protection, over-current protection, overload
protection, over-temperature protection, output short circuit protection and so on.
● Battery charging activation mode to avoid damage the battery that is deeply depleted when charging
● Two built-in independent chargers for starting battery and Auxiliary battery (customized)
● Bult- in Ac bypass replay ( < 12ms), realize the continuous output of AC power.
● Ultra-wide commercial power input voltage. (165~265VAC)
● Generator automatic energy distribution technology can use generator power effectively and reduce configuration.

●Optional functions:
A. Battery Overheat protection
B. Single-line start function: the inverter can be turned on and off when there is a power signal above 2Volt,.
C.Complete the system's personalized settings by the LCD display control panel (optional) or communications protocol software
easily and quickly.
D.The inverter can charge the battery automaticly when AC power is available without turning on the inverter.
E.Priority inverter mode
F.The inverter can be turned on and used at -40 °C operating temperature.(Customized)

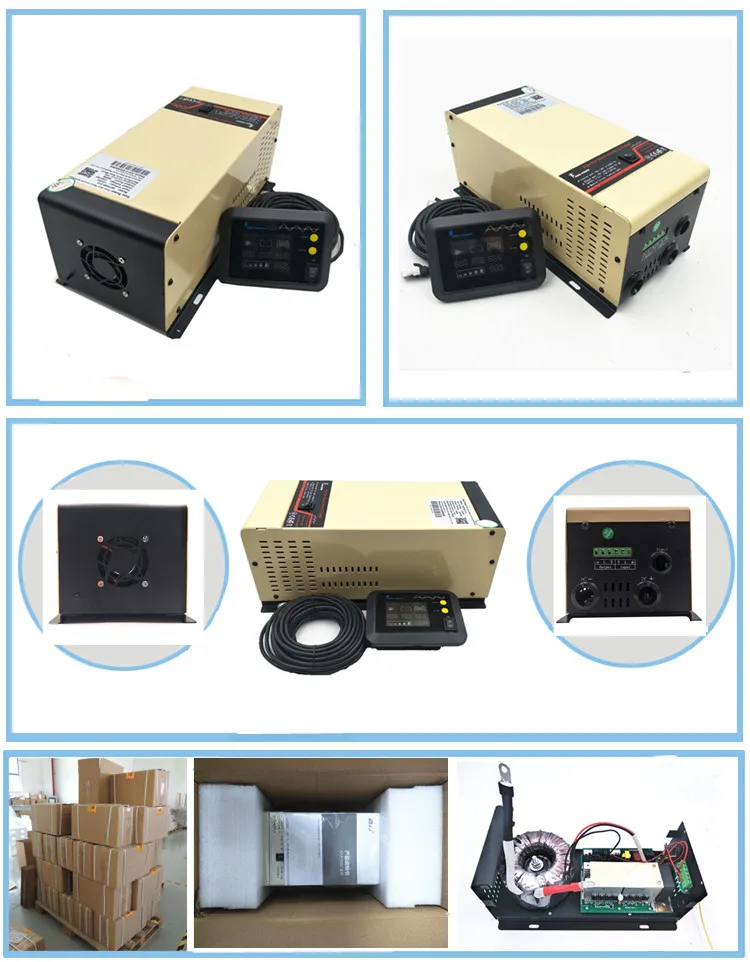

 Detailed pictures

Product Application
Our Service
Packing & Delivery
Packaging
Size
430*270*240mm
Packaging  Weight
10.8kg/pc



Packaging Details
By standard carton box,with bubbles outside and foams inside for protection.





Payment Terms


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
Paypal
West Union
Amount lower than 5000usd
Trade Assurance
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Delivery Time
7~10days after receiving payment for one container
Company profile
-Maili has passed RoHS, CE, ISO, IP30 SGS certificate and confirmed as high and new technology enterprise by the Science and Technology Department of Jiangsu Province in 2018, several products have gained national patent.
