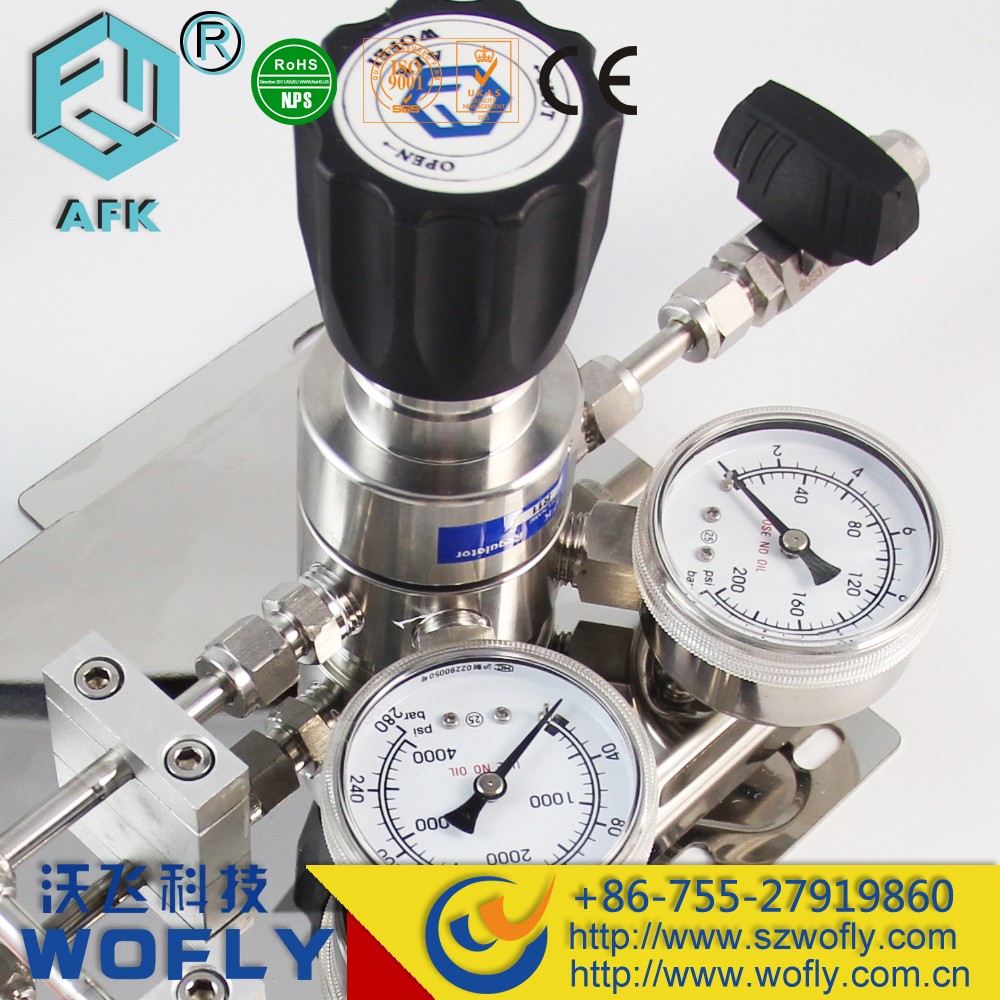

Universal Adjustable Purity Gas Pressure Regulator with two gauge

$235.00 / Set | 1 Set (Min. Order)
Material:
ss316
$235.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
AFK
Model Number:
R13
BODY THREAD:
3/4"NBR
MAXIMUM INPUT PRESSURE:
500, 1500PSI
OUTPUT PRESSURE:
0-15, 0-25, 0-75, 0-125PSI
WORKING TEMPERATURE:
-49℃-74℃
VALVE SEAT:
PCTFE, PTFE, VESPEL
CV:
1.8

Packaging & Delivery

Selling Units:
Single item
Single package size:
21X16X22 cm
Single gross weight:
4.56 kg
Package Type:
EXPORT PACKING
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 5 To be negotiated





               universal adjustable fuel,air pressure regulator with gauge







universal adjustable fuel pressure regulator Technical Parameter:



Maximum Inlet Pressure                       500,1500psig
Outlet Pressure Ranges  0~15, 0~25, 0~75,0~125PSIG
Safety test pressure1.5 times maximum inlet pressure

Operating Temperature

-40°F to +165°F / -40°c to 74°c

Leakage Rate AgainstAtmosphere

2*10-8atm cc/sec he
Cv value1.8



universal adjustable fuel pressure regulator Material:



Body       316L, Brass
Bonnet316L. Brass
Diafragm316L
Strainer316L(10 μm)
SeatPCTFE,PTEE
Spring316L
Plunger valve core316L



universal adjustable fuel pressure regulator Design Feature:



 Single-stage pressure reducer

Maternal and diaphragm use hard seal form

Body NPT:inlet and outlet interface 3/4''NPT(F)

pressure gauge:relief  valve interface 1/4'' NPT(F)

The internal structure easy to purge

Can set filters

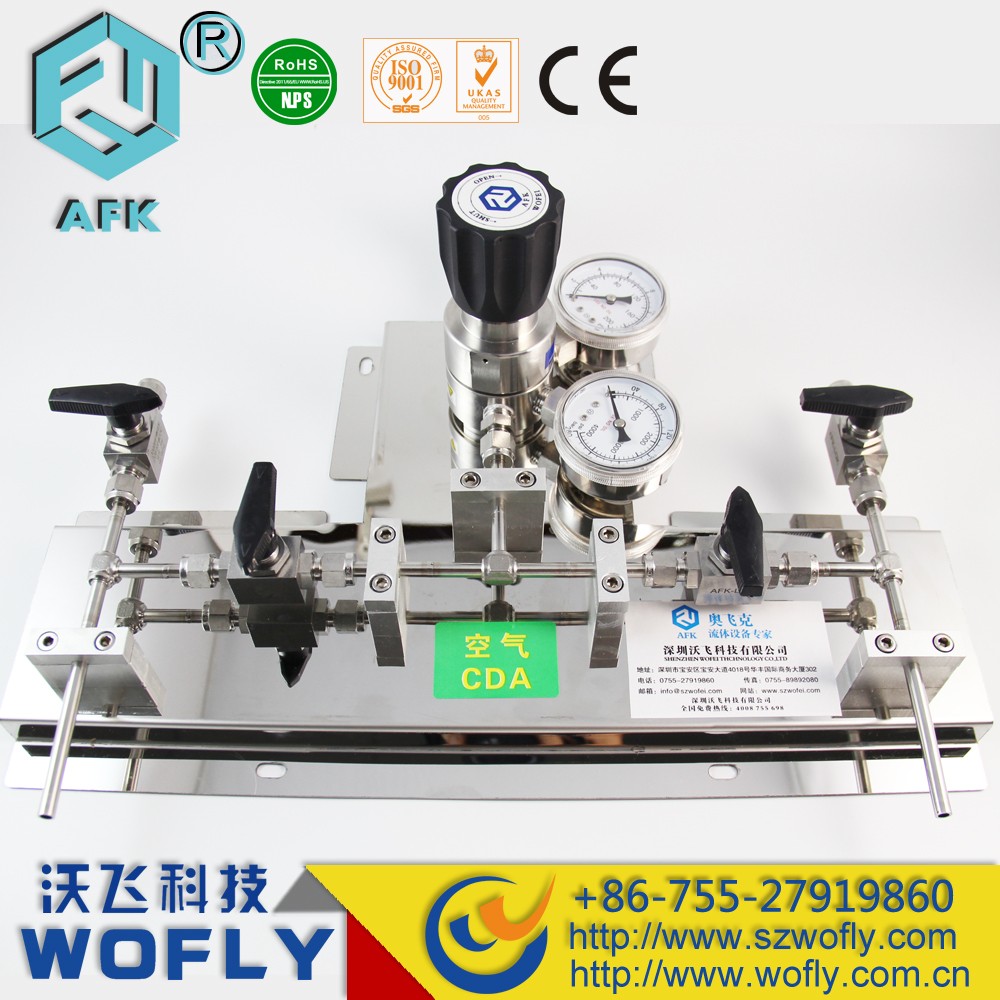

Can use a panel or wall mounting



  Typical Applications:



Labotary

Gas Chromatography

Gas laser

Gas bus-bar

petro-chemical industry

Test equipment

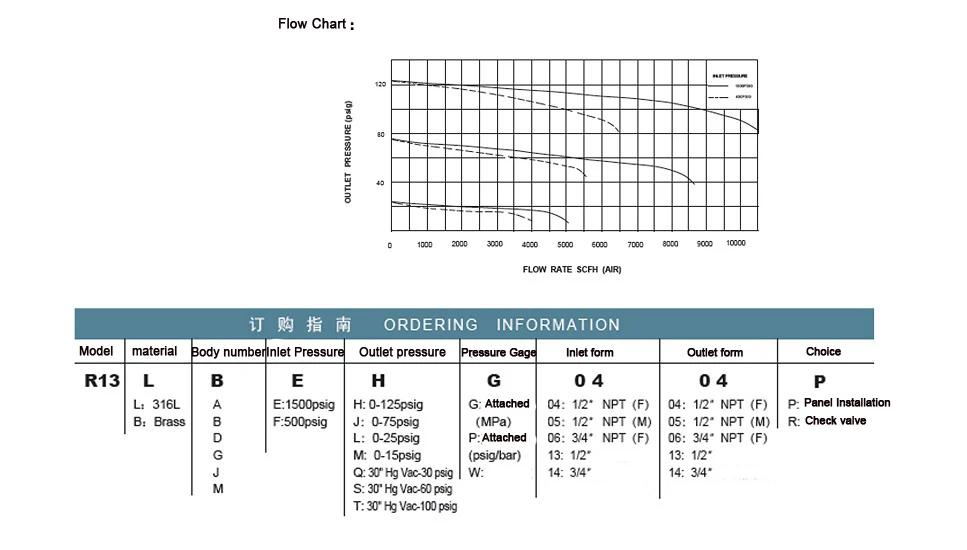

 Flow Diagram:
