V311 OBD2 EOBD Universal Diagnostic Scanner Code Reader Engine Analyzer Support 9 Protocol with Color LCD Color Display

  • 1-49 Sets
    $23.52
  • 50-99 Sets
    $22.72
  • 100-499 Sets
    $21.92
  • >=500 Sets
    $21.12
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Boyna
Model Number:
A0133
Power:
W
Voltage:
8-36V
Certification:
CE ROHS FCC
Type:
Code Reader
Applicable Models:
Universal
Warranty:
12 Months
Product Name:
V311 Universal Diagnostic Scanner
Size:
14*8.5*3CM
Weight:
0.31kg
Package:
Color Box
Shipping:
DHL UPS EMS TNT Aramex
Connection:
OBD2 16PIN
Language:

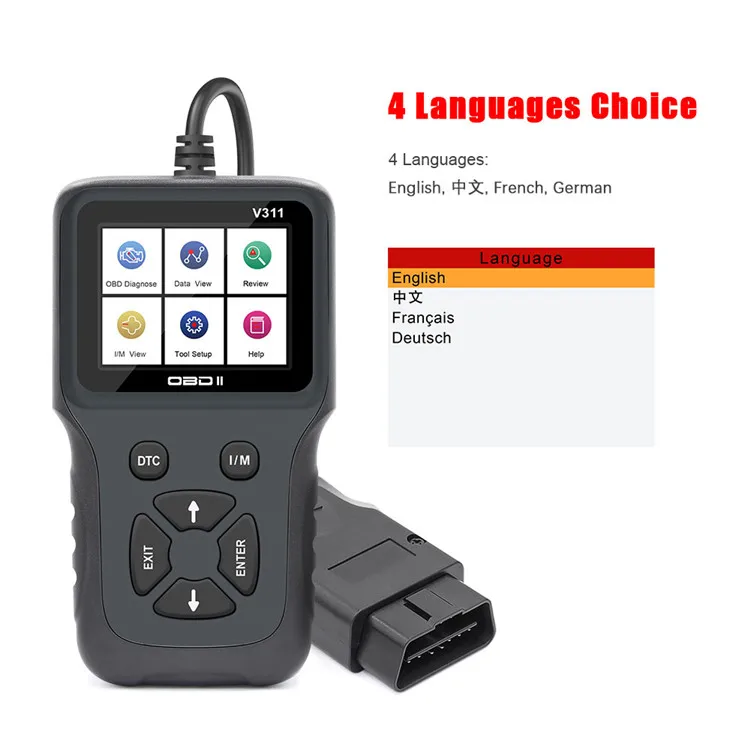

English Franch German Chinese
Special Features:
With PIC18F25K80
Support Protocol:
9 protocol
MOQ:
1 Set

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X14X5 cm
Single gross weight:
31.0 kg
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 200 201 - 1000 1001 - 10000 >10000
Est. Time(days) 5 8 15 To be negotiated



Product Description



V311 OBD2 EOBD Universal Diagnostic Sacnner Code Reader Engine Analizer Support 9 Protocol  with Color LCD Color Display




Product description

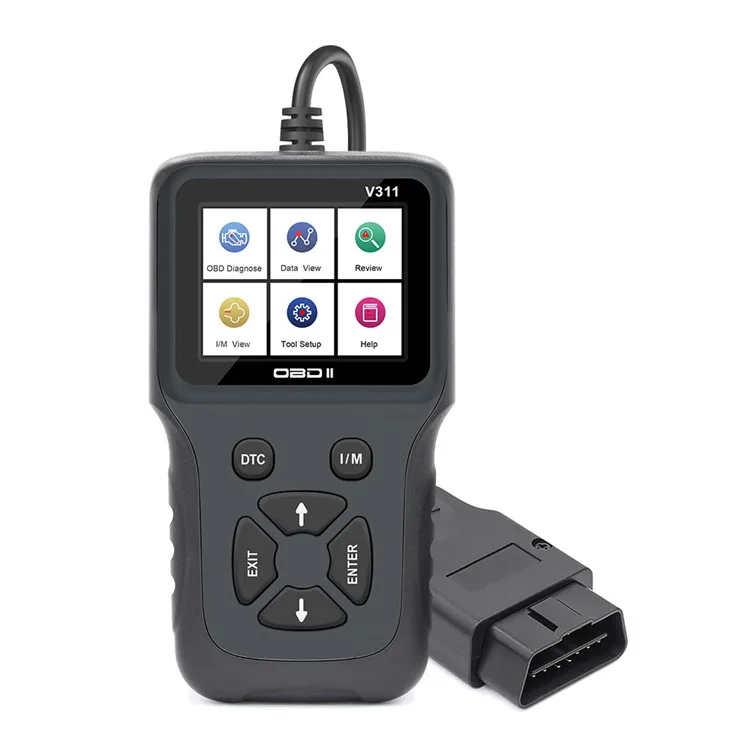

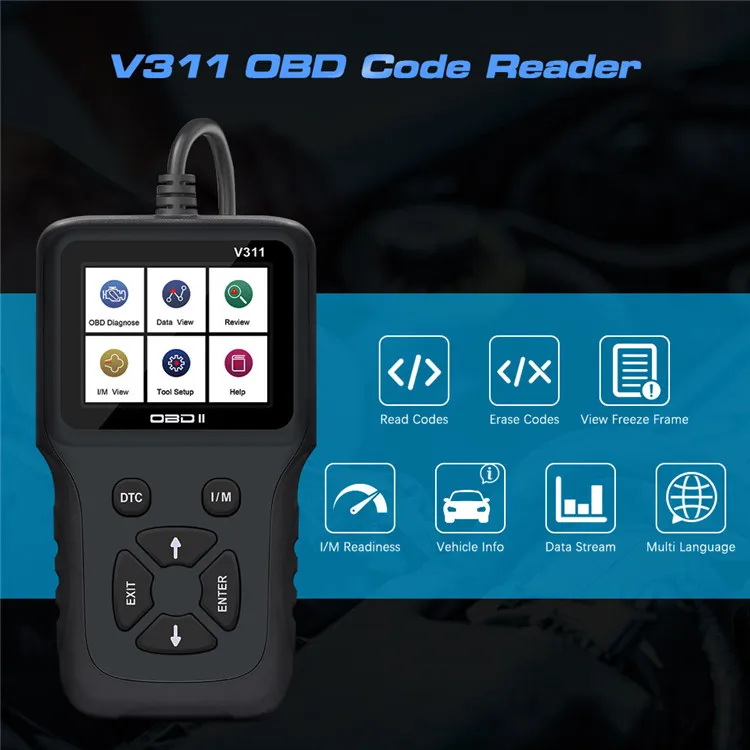

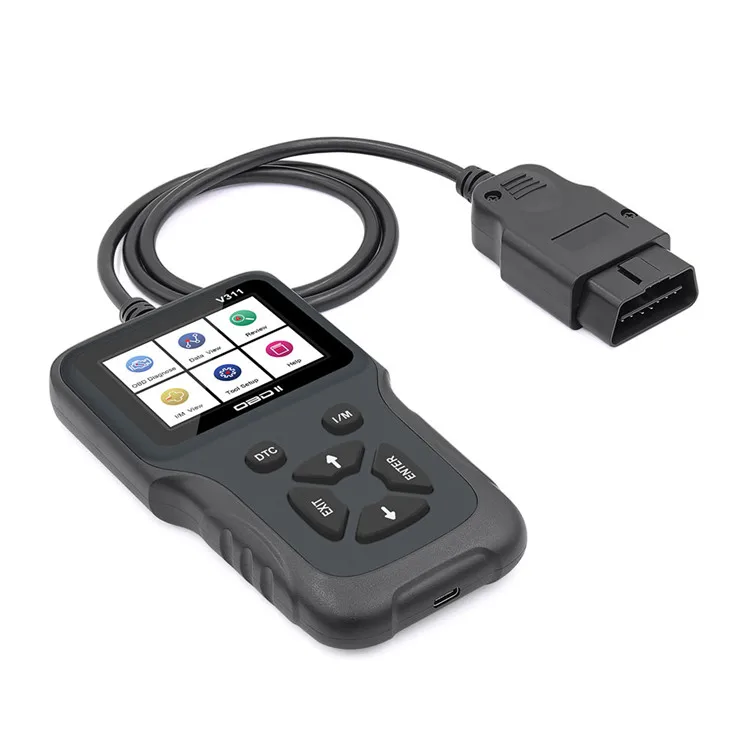

The V311 is a car reading card product with the following features:

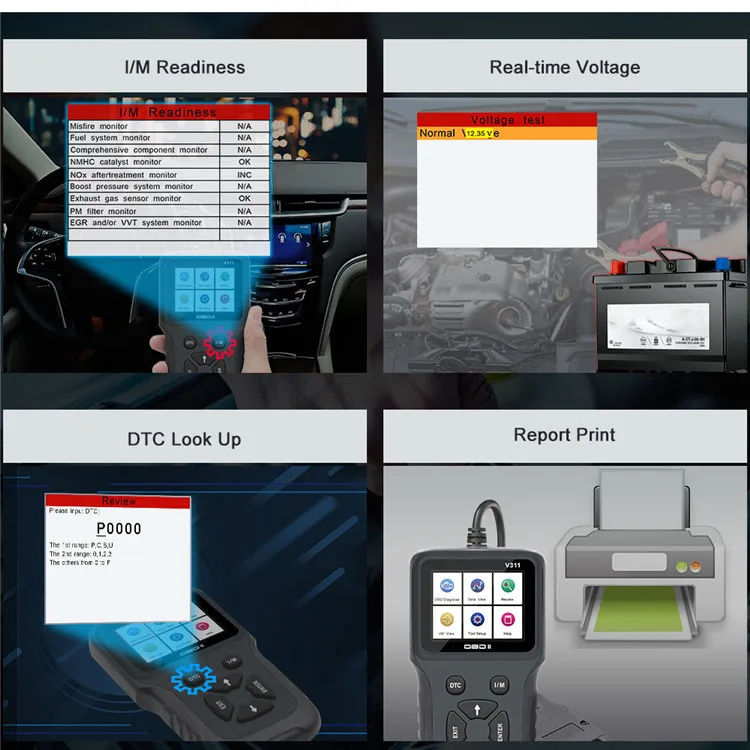

1. Support OBD II / EOBD nine standard protocols;

2. Support OBD functions such as vehicle fault diagnosis and real-time data flow;

3. With data waveform display, data storage and playback functions;

4. Data with emission detection

5. Color LCD display, high resolution;

6. Good reliability, wide supply voltage range of 8~36V, with stronger overcurrent and overvoltage protection;


Supported agreement

SAE J1850 PWM (41.6 Kbaud )

SAE J1850 VPW (10.4 Kbaud )

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )

ISO 14230-4 KWP (fast init, 10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID, 500 Kbaud)

ISO 15765-4 CAN (11bit ID, 2500 Kbaud)

ISO 15765-4 CAN (29bit ID, 250 Kbaud)

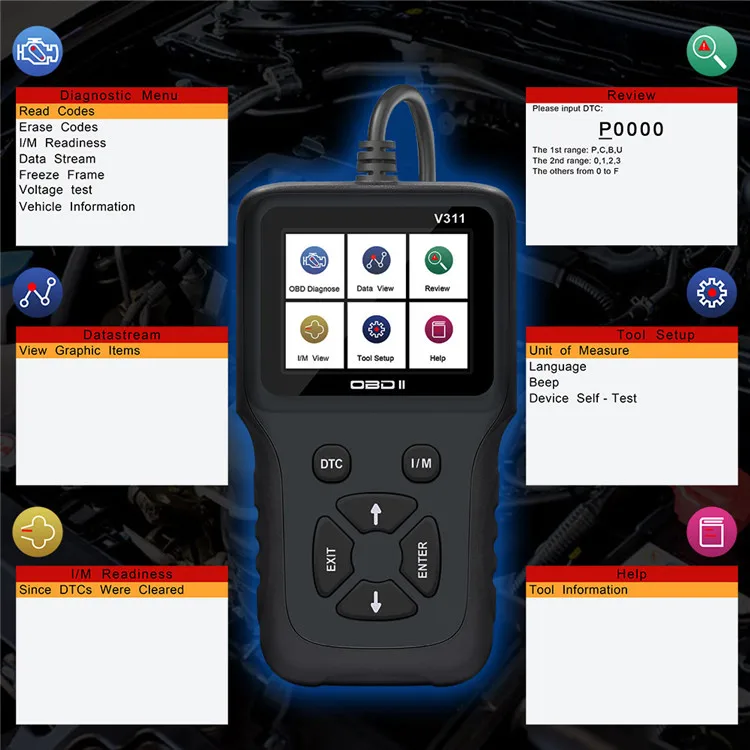

Supported vehicle data

Read error diagnostic code

Clear the fault code (clear the error code and turn off MIL)

Engine revolutions per minute (RPM)

Calculated load value

Coolant temperature

Fuel system status

Speed

Short-term fuel situation

Long-term fuel situation

Intake manifold pressure

Fuel injection advance time

Intake air temperature

Air flow rate

Throttle absolute position

Oxygen detection voltage associated with short-term fuel state

Fuel system status

Fuel pressure

Fuel consumption monitoring, etc.

Remarks: The number of data items supported by the model year is also different, subject to actual support.


Technical Parameters

Main control chip: STM32F103VET6

Working voltage: DC 8 ~ 36V

Working current: 58 mA

Operating environment: -20 ~ 65 °C

Storage temperature: -30 ~ 80 °C

Dimensions: 156*88*24mm

Product weight: 198g



Packing & Shipping

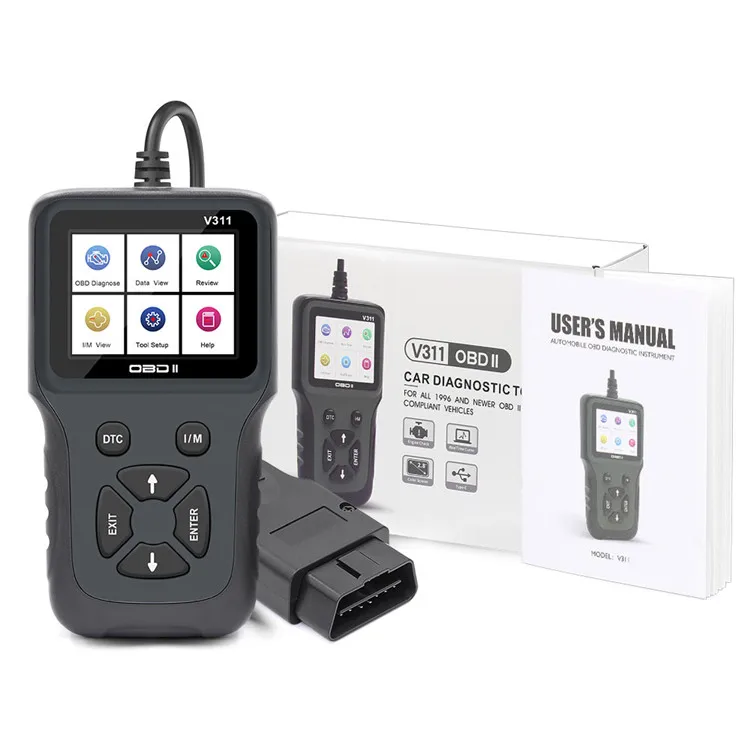

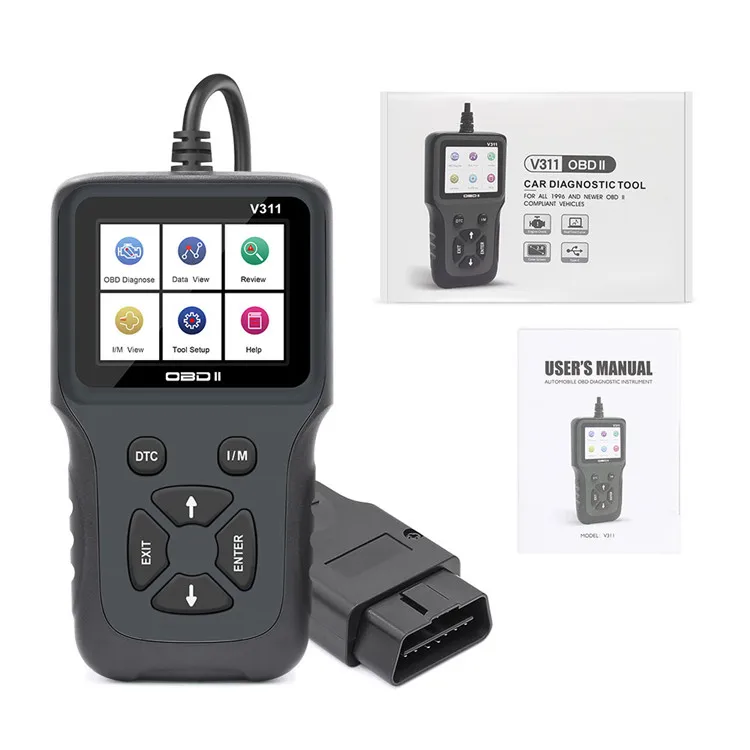

Packing List





1*V311 Main Unit

1*User Manual









Related Products


Company Information

Certification

Shipping&Payment

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?
A: Sample needs 3-5 days.



Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.



Q8: How to deal with the faulty?
A: Our products are produced with strict quality control system (if the problem occurs, the product can be replaced free of charge)
