VCB Model V Cone Mixer/Blender/Mixing Machine

FOB Reference Price:Get Latest Price
$2,000.00 - $20,000.00 / Set | 1 Set/Sets VCB Model V Cone Mixer/Blender/Mixing Machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Model Number:
VCB
Mixer Type:
Planetary Mixer
Max. Loading Capacity:
60%
Condition:
New
Product Type:
spice, tea powder
Application:
Powder
Additional Capabilities:
Milling
Place of Origin:
Jiangsu, China
Brand Name:
RELA
Voltage:
220/380/415V, 3p, 50/60HZ
Dimension(L*W*H):
depends on model
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
0.55-11KW
Product name:
VCB Model V Cone Mixer/Blender/Mixing Machine
Material:
SS304
Capacity:
10-500 kg/batch
Volume:
50-2000L
Function:
Stirring
Usage:
spice, tea powder
Name:
Mixer Machine
Application scope:
Food Pharmacy
Supply Ability
Supply Ability:
10 Set/Sets per Month VCB Model V Cone Mixer/Blender/Mixing Machine
Packaging & Delivery
Packaging Details
VCB Model V Cone Mixer/Blender/Mixing Machine is packed by Plastic film & Plywood case
Port
Shanghai Port
Lead Time :
30 working days after the payment
Product Description

Product Application

VCB Model V Cone Mixer/Blender/Mixing Machine are used for the drying blending of free flowing solid (powder, granule, etc.) in Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.


Working Principle

The materials being blended are loaded from top ports. The loading factor is 40%-60%. The materials being blended in these units can vary in bulk density and in percentage of the total mixture. V shell gets rotation under the driven of motor-reducer. Materials being blended are constantly being split and intermixed as the shell rotates. Normal cycle times are typically in the range of 15 minutes, however can be less depending on the difficulty of blending.

Main Features

1) Suitable for bulk densities up to 0.6x103kg/m3

2) MOC SS304; supporting frame by Carbon Steel
3) Mirror polished for both interior and exterior
4) Hinged charging port
5) Manually-operated butterfly discharge valve
6) Fully integrated motors and controls

Working Video:
1. https://youtu.be/XMWnRCc4EQo
Technical Parameter
Model
Gross Volume (L)
Working Volume
(L)
Rotary Speed
 (rpm)
Mixing Motor (KW)
Weight
 (KG)
VCB-50
50
20-30
12
0.55
200
VCB-100
100
40-60
12
1.1
230
VCB-150
150
60-90
12
1.1
250
VCB-180
180
60-100
12
1.1
280
VCB-300
300
120-180
12
1.1
380
VCB-500
500
200-300
12
2.2
550
VCB-1000
1000
400-600
12
4
700
VCB-1500
1500
600-900
12
4
900
VCB-2000
2000
800-1200
12
7.5
1500
VCB-2500
2500
1000-1500
12
7.5
1800
VCB-3000
3000
1200-1800
7.8
7.5
2200
VCB-4000
4000
1600-2400
7.8
11
2800
Detailed Images

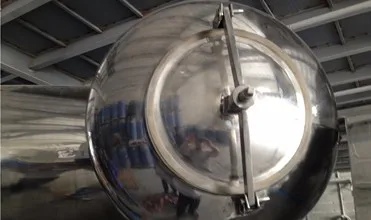

Machine Parts

Name: Feeding Port



Stainless Steel.

The cover is fixed on the port by bolt. It is easy to fold and unfold it.

Hygeian rubber gasket for seal.

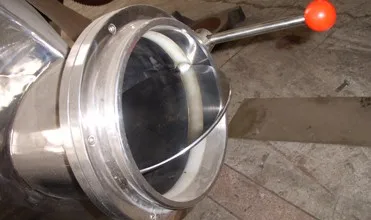

Machine Parts

Name: Discharge Port


Stainless Steel.

Manual butterfly valve, which is changeable.

Hygeian rubber gasket.

.


Machine Parts-OPTION

Name: Intensifying Bar

This is optional part for better mixing result. It can break agglomerate during mixing.

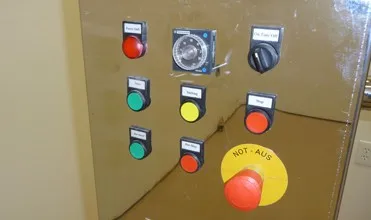

Machine Parts

Name: Control Panel


Famous Local Brand;

Including: On/Off, Jog, Timer, Time Relay, Emergency button, etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Introduce the product to the customer in detail, answer the question raised by customer carefully.

* Make plans for choice according to the needs and special requirements from customer.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Provide technical support

* Provide spare parts with cost price.

* Establish long-term and friendly relationship.


Packing & Delivery
Packaging
Size
Depends on the model
Weight
Depends on the model



Packaging Details
-Pre-pack by Plastic Film
-Plywood Case
If the machine is too big to be packed, we will pack the naked machine into container directly and fasten them.
