Notice :The driver board output display resolution is 800X480,

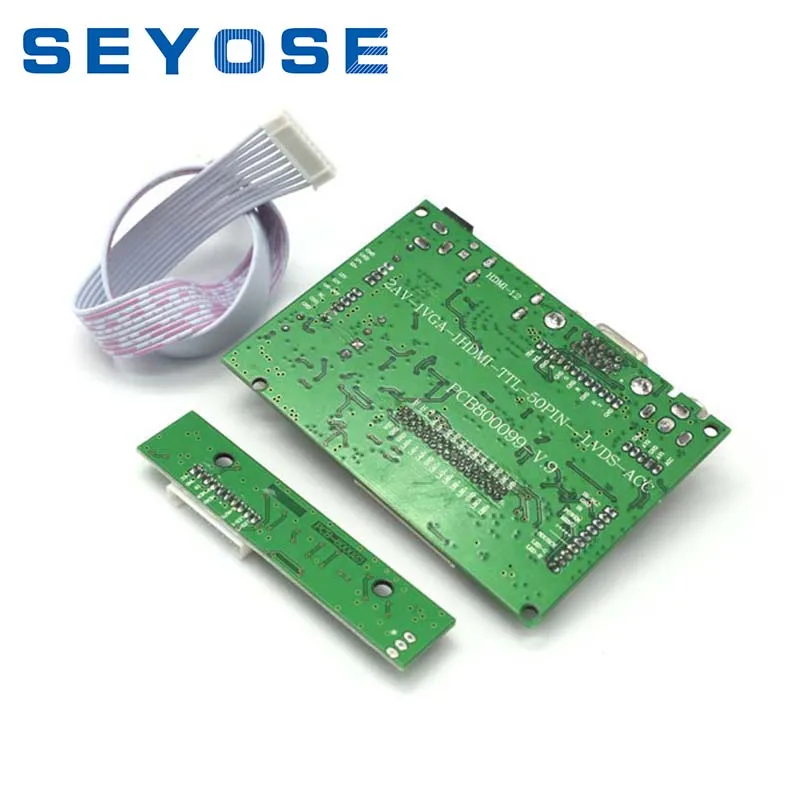

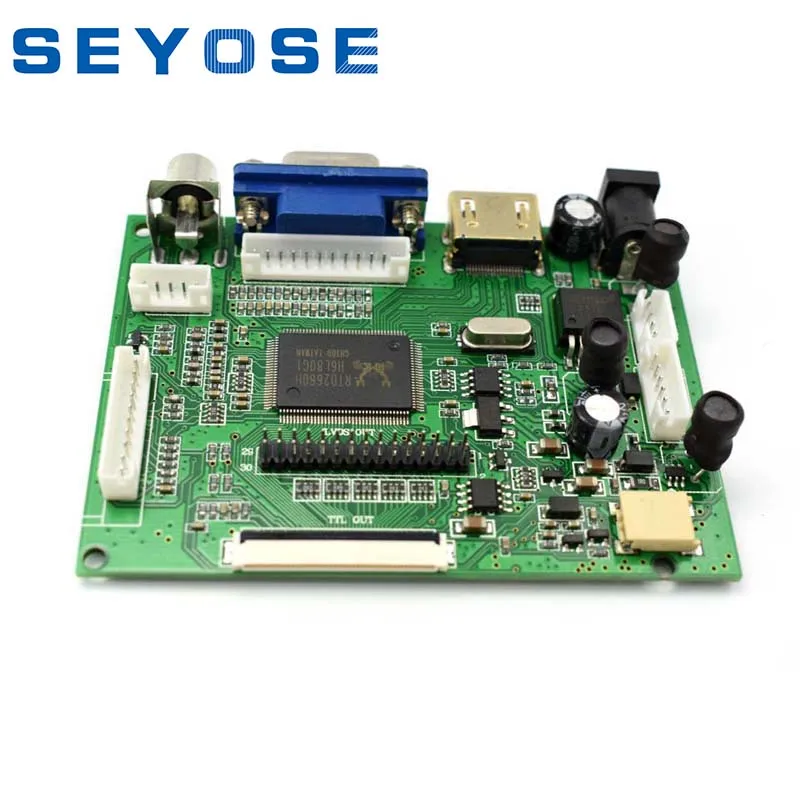

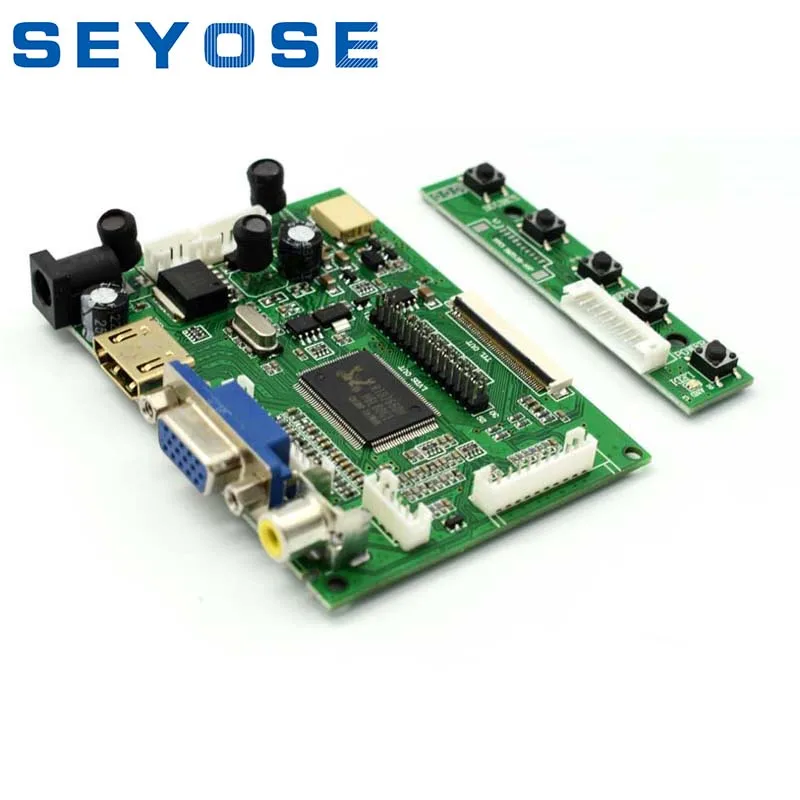

4.3 to 17.3 inch TTL LVDS LCD driver board Universal HD HDMI + VGA + 2AV drive car kit with ACC
HDMI + VGA + 2AV drive kit with car ACC, for raspberry pi, banana pi, pcduino
Product Size: 90.5mm * 65.6mm * 8mm
LVDS 39 PINS
1.1 VGA signal input
2.2 Road AV signal input
3.1 channel HDMI signal input, and the IC supports HDMI1.1 / 1.2 / 1.3
4.1 Road reversing signal input
5. Support wide voltage input, and can work between 5V-24V,
6. Standard backlight 6PIN, interface, can be an external high voltage board
7. Driver board integrated LCD screen LED backlight drive board,
8. Standard LVDS signal output, can support a single 6, single 8, double 6, double 8 standard LVDS signal LCD screen, but only support the screen for the 3.3V LCD screen
9. Standard keypad interface, and support two-color LED indicator
10. Support TTL signal output, universal 50PIN interface TTL LCD screen
11. The driver board output display resolution of 800X480, more than the display resolution, the need to look at the work of the IC, increase the heat sink to reduce the IC's operating temperature)
12. The IC, VGA part can be directly input YPBPR signal, through the program
13. The driver board can increase the remote control function (need to be achieved through software)
14. The drive board can be automatically detected and display the relevant input voltage information
15. The drive board can support automatic detection of signal switch function, - this function is a custom function
16. The driver board can be added BNC interface --- need to customize
17. Support reversing control, and display AV2, the reverse voltage support within 50V voltage input
18. The drive plate positioning hole for the four
