VMC600L good efficiency linear guideway cnc milling machine

$19,990.00 - $28,400.00 / Set | 1 Set (Min. Order)
Model Number:
VMC600L with GSK218M
$19,990.00
- +
available
VMC600L with Siemens 808d advance
$22,600.00
- +
available
VMC600L with Siemens 802d
$28,400.00
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Advertising Company
Condition:
New
Type:
Vertical
Place of Origin:
Anhui, China
Brand Name:
WMT
Voltage:
380V/50hz/3 phase
Dimension(L*W*H):
2260x1750x2200mm
Weight (T):
3.1
Power (kW):
7.5
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Engineers available to service machinery overseas
CNC Control System:
GSK
Key Selling Points:
High-accuracy
Table Travel (X) (mm):
600
Table Travel (Y) (mm):
400
Table Travel (Z) (mm):
450
Table Size (mm):
800X400
Positioning Accuracy (mm):
0.005
Repeatability (X/Y/Z) (mm):
0.002
Logo printing:
OEM service
Spindle speed:
8000rpm-1000rpm
Spindle taper:
BT40
machining center:
VMC
high speed:
Taiwan Brand
CNC milling machine price:
low price and factory sale
Weight:
5000kgs

Packaging & Delivery

Selling Units:
Single item
Single package size:
230X190X220 cm
Single gross weight:
3800.0 kg
Package Type:
Plywood wooden box
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 2 3 - 5 >5
Est. Time(days) 15 35 60 To be negotiated
Video Description
Product Description

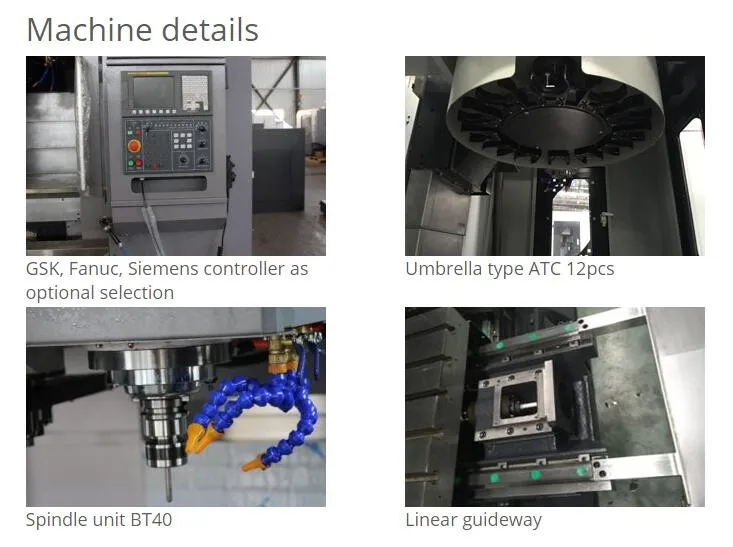

Futurers of CNC milling machine VMC600L

All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched,preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy.Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.


Specification
VMC600L
Worktable size(LxW)
800x400mm
T-slot (NxWx D)
3x14x100mm
X/Y/Z axis travel
600/400/450mm
Distance from spindle center to column
450mm
Distance from spindle nose to worktable surface
100-550mm
Spindle taper
BT40
Spindle power
5.5kw
Max.spindle speed
10000rpm
Max.feed speed
10m/min
Rapid feed speed(X/Y/Z)
30/30/25m/min
X/Y/Z axis ball screw
3210
Tool magazine capacity
12T/16T(optional)
Max.length of tool
300mm
Tool change time(T-T)
2.5s
Positioning accuracy(X/Y/Z)
±.0.005mm
Re-positioning accuracy(X/Y/Z)
±.0.002mm
LxWxH
1900x1700x2240mm
Max.loading of worktable
300kgs
Products Show
Our Company
Packing & Delivery

Packing Details  : Standard plywood box packaging.

Delivery Details :35-45days after order confirmed.

Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
