VMC850L 4th axis cnc milling machine for mould machining

$28,500.00 / Set | 1 Set (Min. Order)
Model Number:
VMC850L with GSK218M controller
$28,500.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Condition:
New
Type:
Vertical
Place of Origin:
Anhui, China
Brand Name:
WMT
Voltage:
380V
Dimension(L*W*H):
2260x1750x2200mm
Weight (T):
5.2
Power (kW):
7.5
Certification:
CE ISO
Warranty:
13 months
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
CNC Control System:
GSK, FANUC,Mitsubishi
Key Selling Points:
High-accuracy
Table Travel (X) (mm):
850
Table Travel (Y) (mm):
500
Table Travel (Z) (mm):
600
Table Size (mm):
1000X500
Positioning Accuracy (mm):
0.01
Repeatability (X/Y/Z) (mm):
0.005
Logo printing:
OEM service
Max. Spindle speed:
8000rpm or 10000rpm
Spindle taper:
BT40
Spindle unit:
Taiwan Brand
Table size:
500x1000mm
Leadsrew:
ball screw
machine type:
cnc milling machine
Weight:
5600kgs
Power(W):
7.5kw/11kw

Packaging & Delivery

Selling Units:
Single item
Single package size:
200X180X232 cm
Single gross weight:
5200.0 kg
Package Type:
standard export package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

WMT BRAND Vertical machining center VMC850L
Description:


With advanced international standard of designing,modern structure, high quality components and spare parts introduced to this machine tool, no matter precise elements machining or mould processing,WMT BRAND Vertical machining center VMC850L will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.

Features:
- Spindle unit BT40 by KENTURN Brand with 8000rpm or 1000rpm as your requirement.
- Precious Ball Screw by PMI or HIWIN Brand
- Disk type ATC 24pcs by OSHIMA Brand
- FANUC 0i MF(5) as standard CNC controller system, and Mitsubishi System or Siemens system as optional selection.
- Optimized Structure of Heavy Rail Linear Guide
- Suitable for machining parts of automobile, mold industry and so on.

Technology Data

High precision CNC milling machine, vertical machining center VMC850L

Specification
VMC850L
Worktable
Worktable size(LxW)
1000x500mm
T-slot (NxWx D)
5x18x100mm
Travel
X/Y/Z axis travel
850/500/600mm
Machine range
Distance from spindle center to column
572mm
Distance from spindle nose to worktable surface
120-720mm
Spindle
Spindle taper
BT40
Spindle power
7.5/11kw
Max.spindle speed
8000rpm
Feed(direct drive)
Max.feed speed
12m/min
Rapid feed speed(X/Y/Z)
32/32/30m/min
Ball screw(diameter+lead)
X/Y/Z axis ball screw
4016
Tool magazine
Tool magazine capacity
24T
Max.length of tool
300mm
Tool change time(T-T)
2.5s
Positioning accuracy
(National standard)
Positioning accuracy(X/Y/Z)
±0.010mm
Re-positioning accuracy(X/Y/Z)
±0.005mm
Machine dimension
LxWxH
2540x2320x2780mm
Machine weight
Max.loading of worktable
500kgs
Machine weight
5200kgs

Standard Equipment:

1) with complete machine cover
2) Disc type ATC: 24 pcs tools
3) Taiwan KENTURN brand BT40 Spindle, spindle speed=80-8000rpm
4) Taiwan PMI X/Y/Z linear guideway, ballscrew
5) Taiwan PMI ballsacew

Optional Equipment:

1) GSK218M controlelr

2) Siemens 828D controller

3) Fanuc Oi MF(5) β controller

4) Spindle oil cooler

5) Auto chip conveyor

6) Tool measruring device

Machine pics

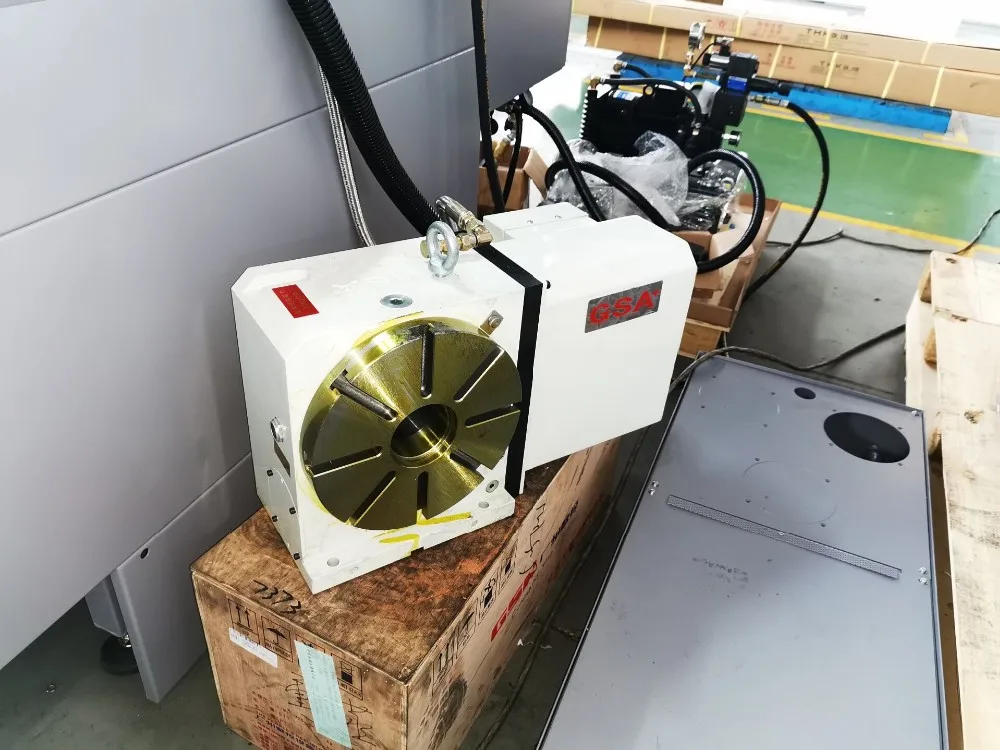

4th axis
Taiwan GSA CNC rotary table with tailstock

Model CNC-250R, CNC-320R
Also have hydraulic tailsock for optional.

Good casting iron

Treated with natural ageing treatment for 2 years at least.

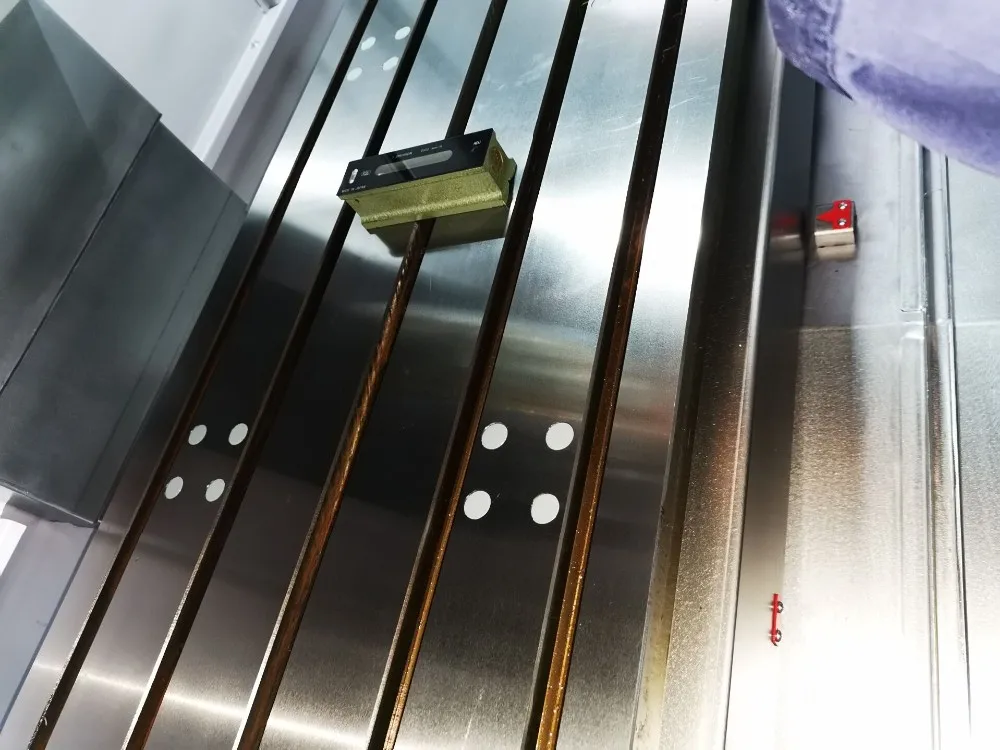

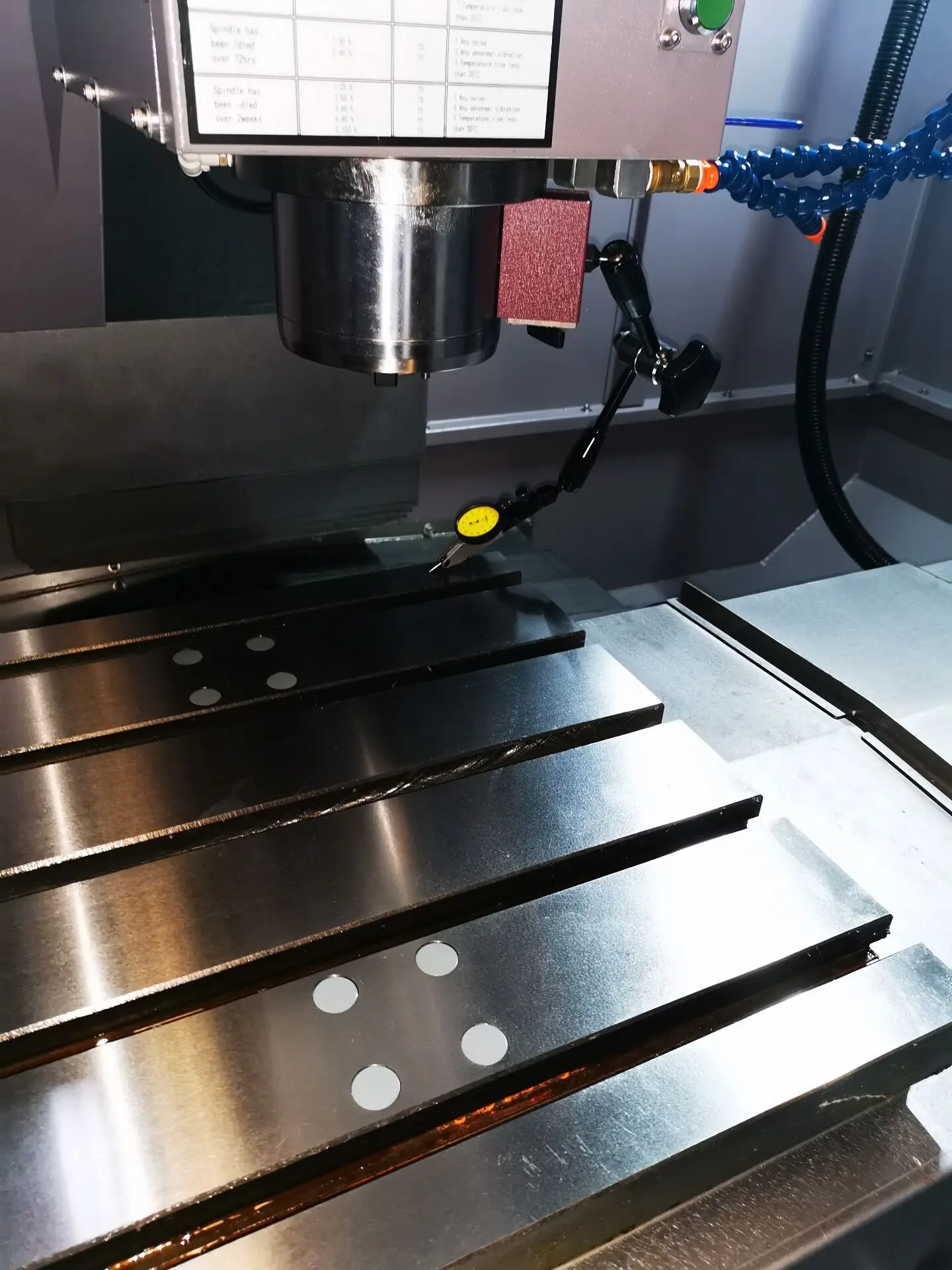

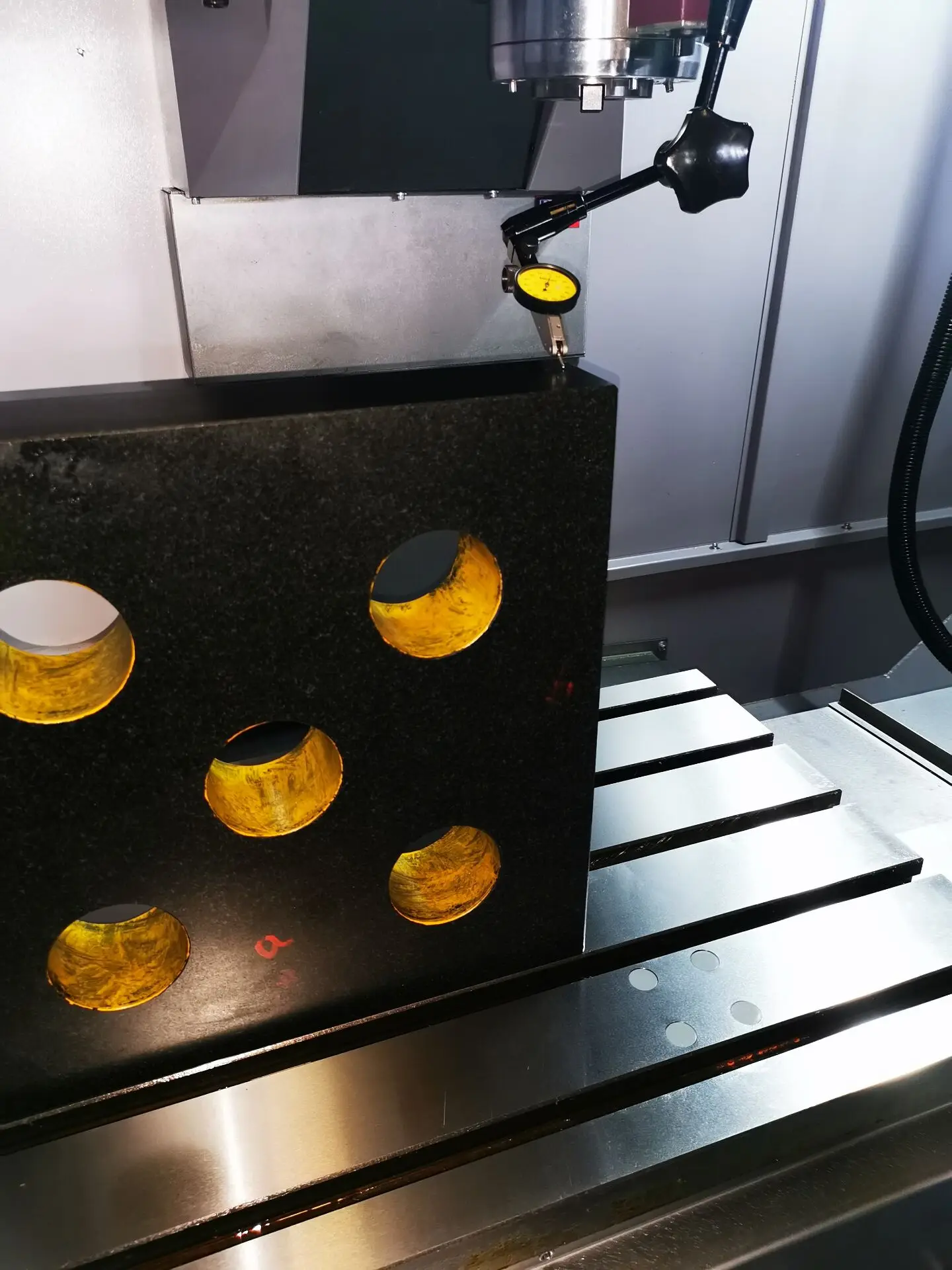

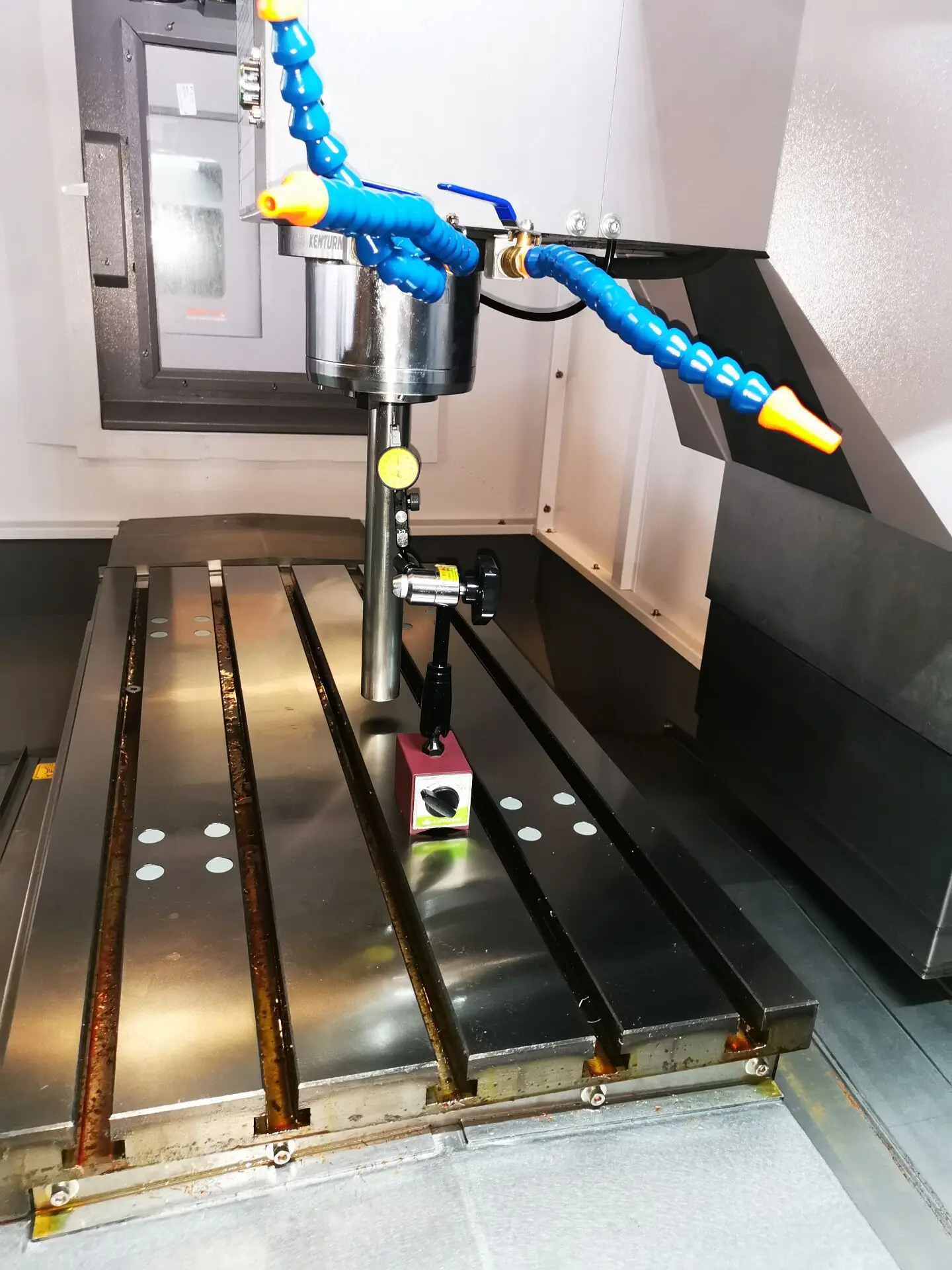

Strict Test
1) Before Delivery, our QC dept. do the strict accuracy test for each machine.
2) Positing accuracy is 0.01mm, Re-positioning accuracy is 0.005mm.
