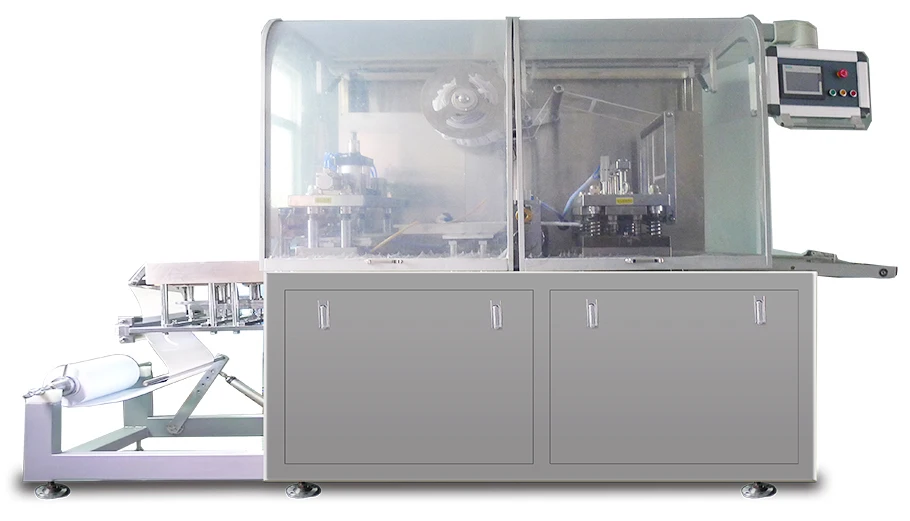

Vacuum forming machine with lowest price small manual thermoforming pvc sheet

  • 1 - 1 Sets
    $25,800.00
  • 2 - 2 Sets
    $24,800.00
  • 3 - 3 Sets
    $23,800.00
  • >=4 Sets
    $22,000.00
Model Number:
HX-420-6f81-822d
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Plastic Thermoforming Machine
Applicable Industries:
Food & Beverage Factory, Food & Beverage Shops
Condition:
New
Product Type:
Other, Fast Food Box,Blister,Trays
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Huaxiang
Voltage:
380V/50HZ
Power(W):
13.5KW
Dimension(L*W*H):
L2000*W830*H1800(mm)
Weight:
1000KGS
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Name:
vacuum thermoforming making machine
Forming Length:
420
Forming Width:
200
Pull Piece Precision:
1mm
Plastic Type:
PP,PVC,PET,PS,ABS
Application:
Beverage,Food,Commodity,Medical,Chemical,Electric,Machinery&Hardware
Type:
Foaming Machine
Stock Thickness:
0.1-2.0(mm)
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case packaging
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description


HX-420 machines feature simple tool technology for forming.punching and stacking of thermoformed articles.with this technology sultable for the production of small batch size.high automation level and rapid change of format parts

SPECIFICATIONS FOR HX-420


Main performance parameters
Forming width
mm
420
Forming length
mm
200
Forming height
mm
50
Forming Speed
seconds
4-15

Material
Reel Width
mm
420
Material thickness
mm
0.1-1.0
Forming width
Air requirements
Mpa
0.4-0.7
Power consumptiom
Kw/h
5
3 Phase Power Requirements
V
380/220


1) Material feed,forming,punching,stacking,waste material recycling in one time

2) Low power(5kw),low cost,

3) User Friendly controls with Independent Power Source

4)Multiple Zone Top & Bottom Panel Heater Oven Banks

5) Running in a high automatization and intellectualization,no pollution

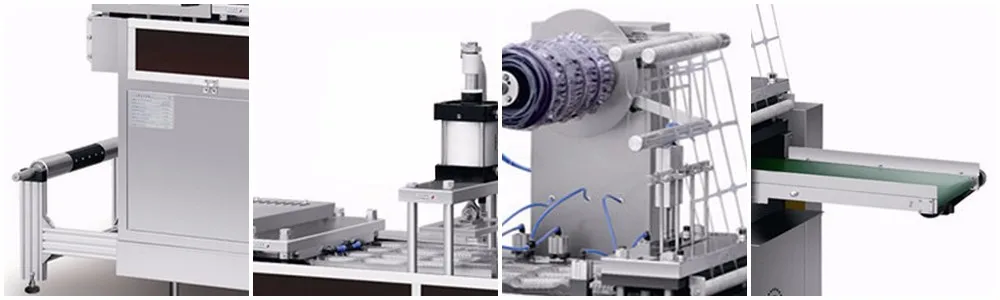

1.Material feed                             2. Hearting---forming               3. Punching---Rool up                4.Stacking



Forming Mould

mould size:420*200
Material:aluminum mould

Cutting Mould

mould size:420*200
Material:aluminum mould

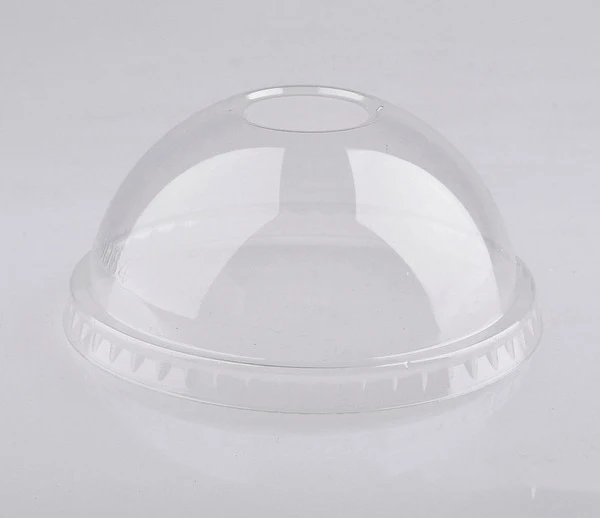

Cup Lids
Material
PP
Thickness
0.5 mm
Size
Dia.50mm ,  height:35mm
Production capcity
9 cups per a mould
6 second per a time

one hour:9000 pcs
One day:9000*8=72000 pcs
Fruit Tray
Material
PP
Thickness
0.7 mm
Size
190*90*45mm
Production capcity
2 tray per a mould
6 second per a time

one hour:1200 pcs
One day:1200*8=9600 pcs

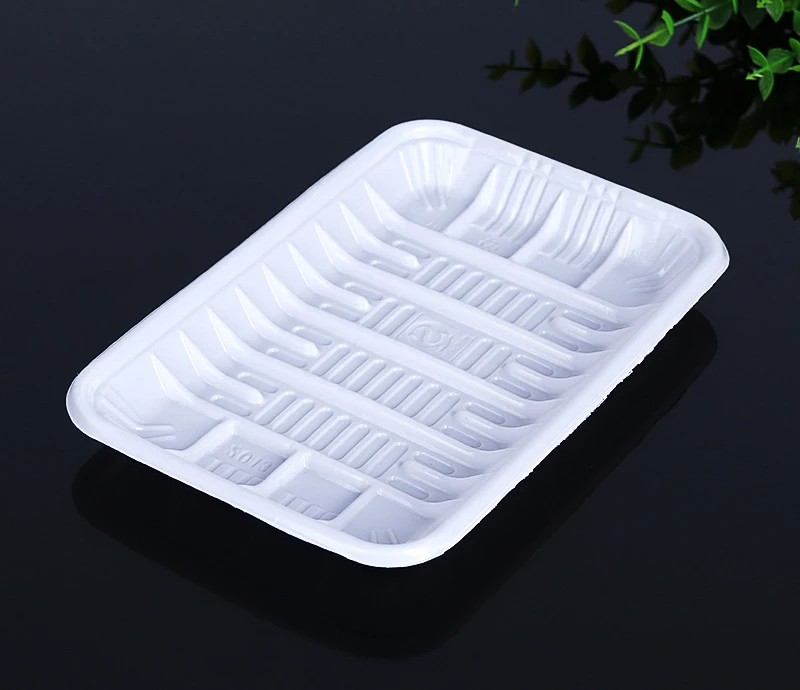

Food Plate
Material
PS
Thickness
0.7
Size
180*85*35mm
Production capcity
2 tray per a mould
6 second per a time

one hour:1200 pcs
One day:1200*8=9600 pcs

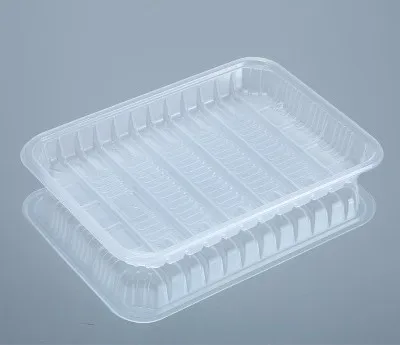

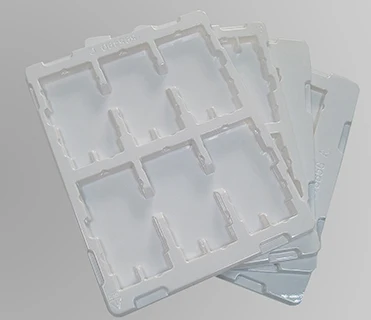

Plastic Tray
Material
PET
Thickness
0.6 mm
Size
380*200*40mm
Production capcity

1 tray per a mould
3 second per a time

one hour:1200 pcs
One day:1200*8=9600 pcs


Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Shenzhen HuaXiang Factory Co. , Ltd

is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.

Contact us.

In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length Width and thickness?



More company info click our website: https://hxauto.en.alibaba.com/
