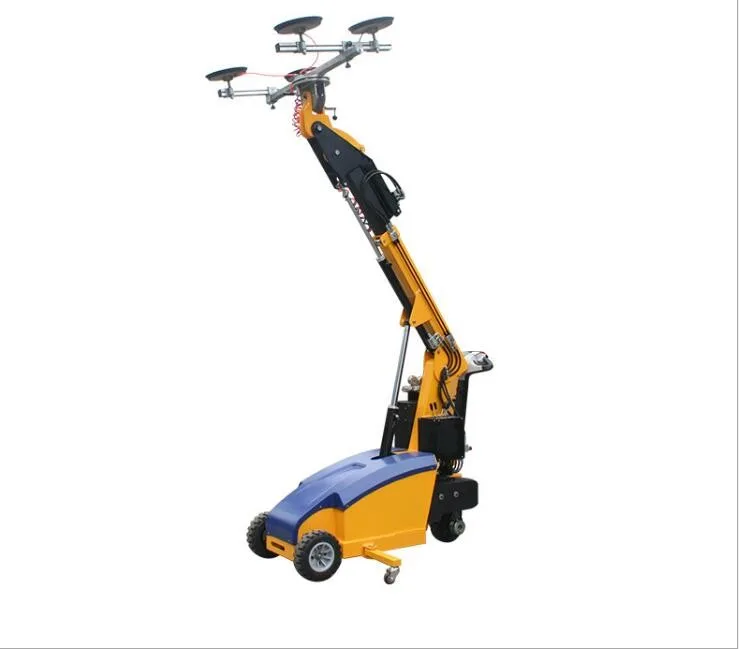

Vacuum lifter 4 vacuum cups glass lifting equipment

FOB Reference Price:Get Latest Price
$8,000.00 - $28,000.00 / Set | 1 Set/Sets (Min. Order)

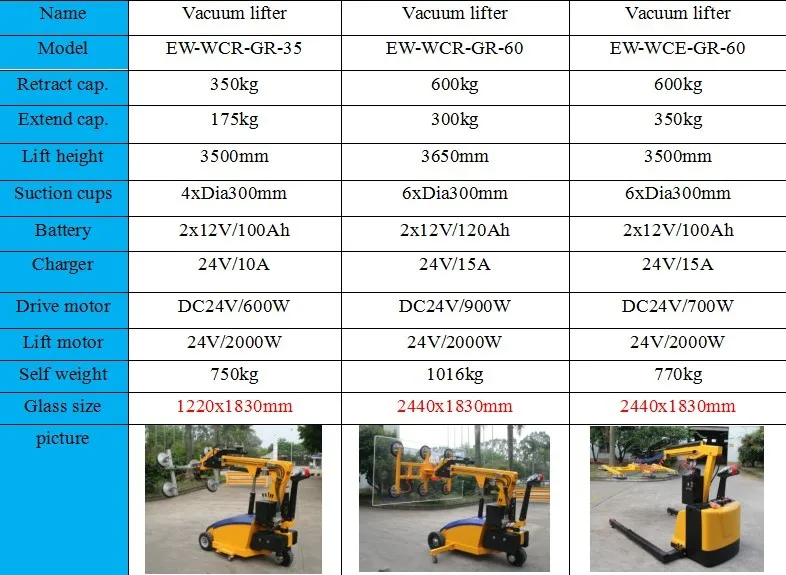

Model Number:
EW-WCR-GR-35
Power:
DC24V/600W
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Australia
Showroom Location:
Indonesia
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Eternalwin
Dimension(L*W*H):
1220x1830mm
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Retract cap.:
350kg
Extend cap.:
175kg
Lift height:
3500mm
Suction cups:
4xDia300mm
Battery:
2x12V/100Ah
Charger:
24V/10A
Drive motor:
DC24V/600W
Lift motor:
24V/2000W
Application:
lifting glass, steel plate, marble
Supply Ability
Supply Ability:
1000 Set/Sets per Year Vacuum lifter 4 vacuum cups glass lifting equipment
Packaging & Delivery
Packaging Details
international standard export package for Vacuum lifter 4 vacuum cups glass lifting equipment
Port
Qingdao, Shanghai,Guangzhou etc

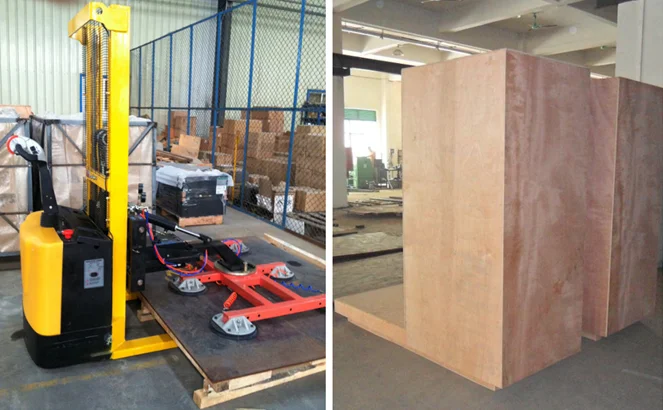

Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 To be negotiated
Product Description

Product Application

It is suitable for lifting of glass, steel plate, marble and flat plate.
It has four suckers, six suckers, eight suckers, and so on.

Main Features

The glass sucker is made up of two control systems (i.e., the suckers are arranged in two rows), The finished product type of sucker (the arrangement of the type of a sucker) controls the car's elevation and the turning of glass, marble and other planar goods. When operating, it can absorb and lift the flipped plate by controlling the sucker.
It has the functions of walking before and after electric power, electric hydraulic lifting, suction and suction guarantee system, electric flip and so on.

1.Sucker suction guarantee system, if there is a set of suction leakage, another set of suckers can also absorb the cargo, ensure that the normal operation of the car can suck up, lift the flip of the plate.

2.Small product appearance;Easy access to elevators.Clever design;The multifunction key is focused on the control handle.

3.Mobile convenience;Electric walking, electronic stepless speed regulation, smooth walking, high power drive motor, ensure the safety of the carrying glass.

4.It is convenient to charge and equipped with intelligent charger, which can be used to supply the electric quantity at any time.

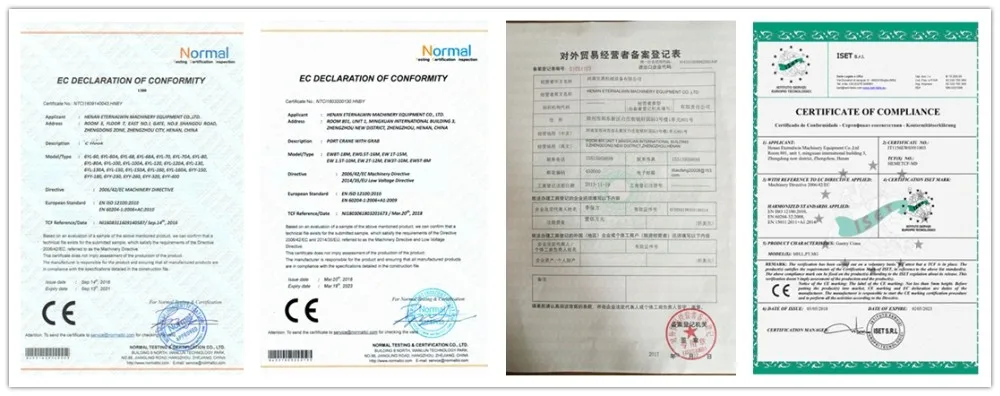

Certifications
Detailed Images

Machine Parts

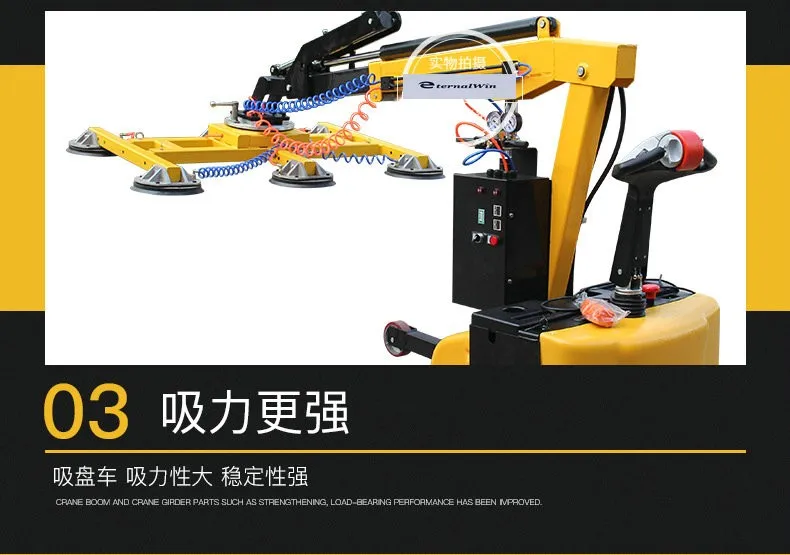

Name: suckers

Brand: Eternalwin

Original: China

It has four suckers, six suckers, eight suckers, and so on.

Main Features

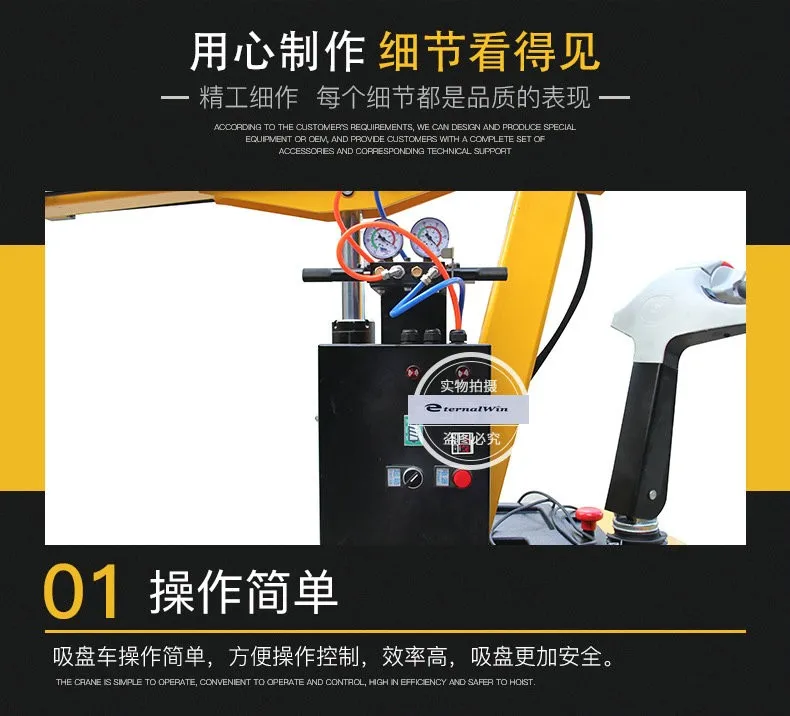

Name: Sucker suction guarantee system
Brand: Eternalwin
Original: China
if there is a set of suction leakage, another set of suckers can also absorb the cargo, ensure that the normal operation of the car can suck up, lift the flip of the plate.

Machine Parts


Main Features


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

Products Name with link

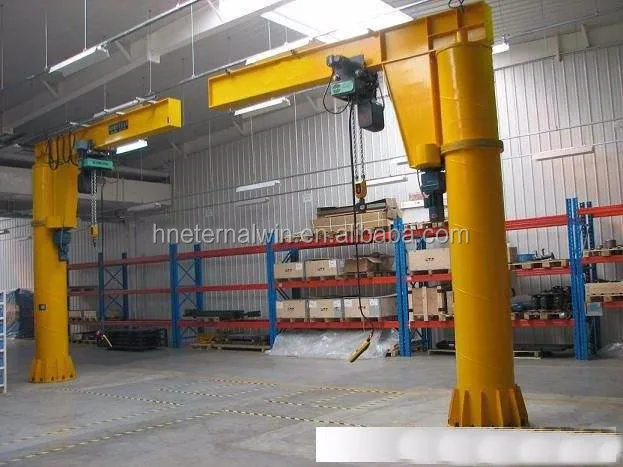

jib crane

91.8% Response Rate

Products Name with link

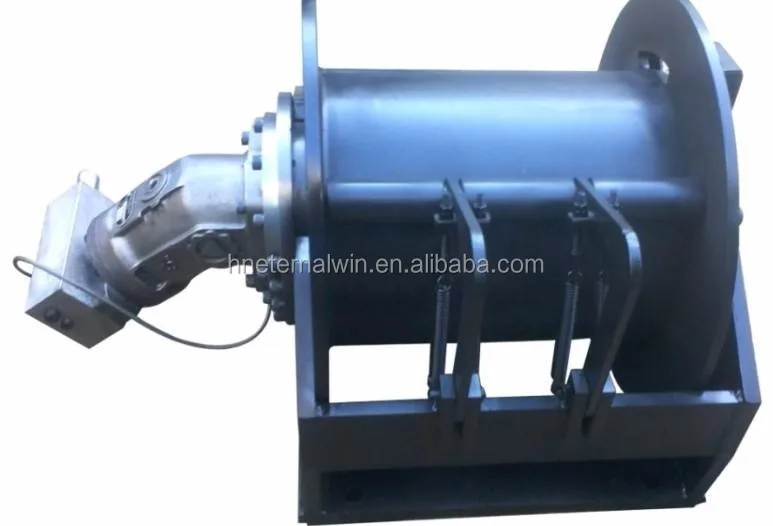

hydraulic winch

91.8% Response Rate

Products Name with link

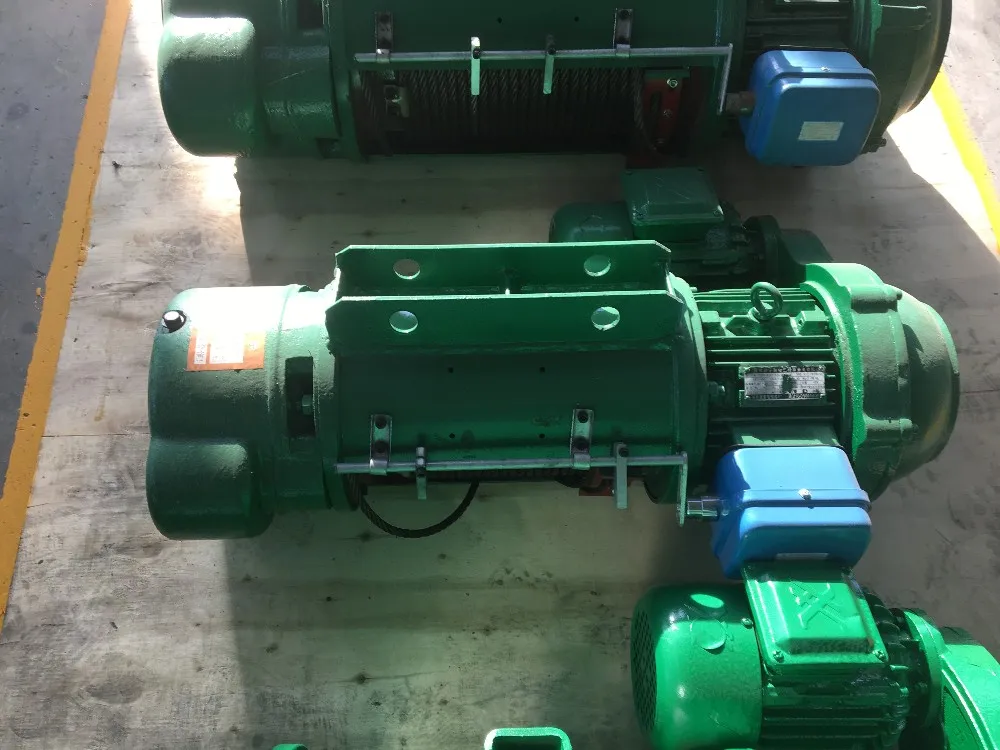

CD wire rope electric hoist
