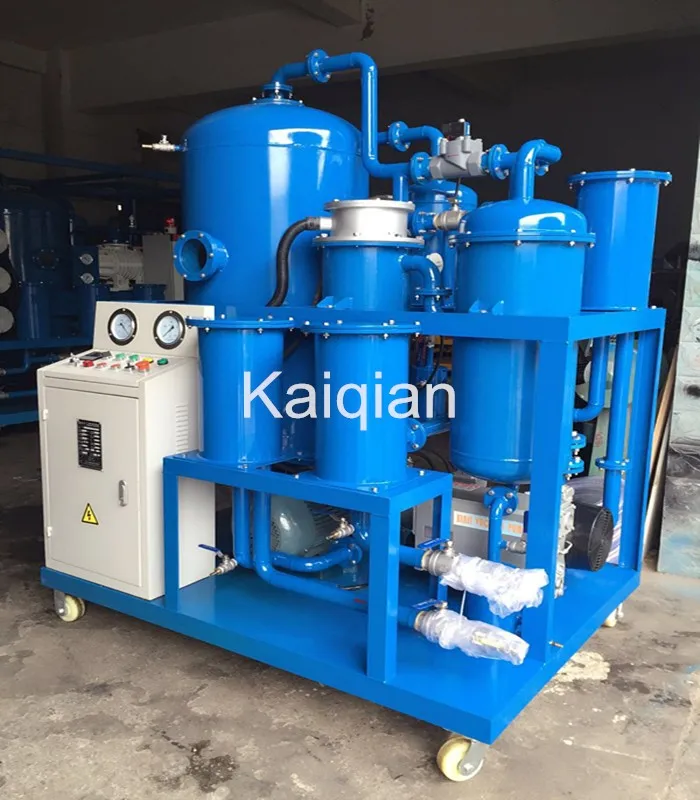

Vacuum turbine oil filtering machine

FOB Reference Price:Get Latest Price
$5,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Working Pressure:
< 0.5Mpa
Model Number:
TY-Q
Usage:
Other
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Flow:
1200~18000 liters per hour
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
Kaiqian
Voltage:
as customer's requirements
Power(W):
26~84 KW
Dimension(L*W*H):
according to flow rate
Weight:
385~1200 kg
Certification:
ISO9001
Warranty:
2 Years
After-sales Service Provided:
Field maintenance and repair service
Function:
Remove water, gas, particles etc. from oil
Material:
carbon steel or stainless steel
Color:
as customer's requirements
Structure:
Vacuum Filter
Suitable Oil:
turbine oil
Heating power:
60 KW
Working temperature:
< 20~80C
Working vacuum:
-0.08~-0.096 Mpa
Working pressure:
< 0.5Mpa
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai, Chongqing, Shenzhen etc.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Product Description

Product Application

1. Usage
The machine suitable for turbine oil, hydraulic oil, online or offline working can purifier Undegraded oil, TY-Q series vacuum turbine oil oil filtering machine , The machine was equipped with precision filtration, vacuum drying, coalescence separation and three - dimensional spiral atomization technology, after the treatment, the gas, moisture,acid, foaming in the emulsified oil will become clear and meet the using standard. They are widely used in electric power, chemical industry, paper-making, petroleum and other industries. Can effectively ensure the safe operation of steam turbine lubrication system.

2. Working principle
The machine used vacuum separation and precision mechanical purifier principle, adopt molecular adsorption, vacuum drying, mechanical filtration and many other technologies, the lubricant vacuum purifier machine is a complete machine without any attached mechanical equipment. Used different saturated temperature curve vacuum drying principle between water and oil, can high-efficient separation waster and oil , and deep precise filtration theory.

3. Working Procedures
the oil goes through the first filtration and enters into the heating device, after heating, it goes into the second filtration and enters into the spiral spray atomization system. The insulating oil fall into the reaction tower when it becomes coarse particle and enters into the vacuum separation chamber, then the water begins evaporating, the oil mist becomes into the evaporation structure with the three-dimensional, multi-level evaporating in the tank. It can purify the oil in a short time. the oil without impurities, moisture, gas and acid will go through a precision filter to complete a clean oil working cycle. the steam and hot air separated from vacuum chamber will go into the condensator, most of the moisture will become the water and storaged in the tank and drain out of the machine, the hot air will be cooled and exhaust from vacuum pump.

Main Features

1. improve the cleanliness of lubricating system on Dilute Oil Station and oil tank, impurity and dewatering degassing and impurities removal.

2. It can remove not only 100% free water and 99.9% dissolve water, but also 100% free gas and 98% dissolve gas, and the ends oil will meeting the national using standard.

Advantage:
1. Application of the advanced technology at home and abroad on similar equipment, so our devices are in the leading position on oil purifier and equipment performance. with the characteristic of high vacuum in working, fast speed in oil purifier and the high precision, etc.

2. It units the precisive filter and high dehydration, applied the advanced vacuum coalescence separation technology, which with the high dehydration, high ability in purifying low viscosity light turbine oil, hydraulic oil, antiwear hydraulic oil and gearbox oil. After the treating, the cleanness of medium will be promoted at level 6 ≥ DAS1638, the physical and chemical of the oil will keep the same, with higher lubricant effect, lower consumption, lower fee in working, better system setting, stronger continuous working ability and more suitable in online working.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
According to flow rate
Weight
According to flow rate



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
According to flow rate
Weight
According to flow rate



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
