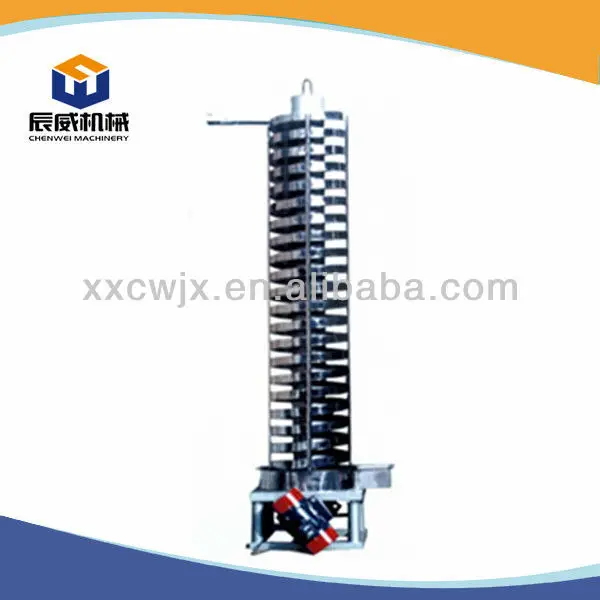

Vertical grain transport green beans mill bucket elevator

FOB Reference Price:Get Latest Price
$3,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Bucket Conveyor Vertical Conveyor
Model Number:
CWC-
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Garment Shops, Machinery Repair Shops, Home Use, Retail, Food Shop
Condition:
New
Material:
Stainless Steel, Stainless Steel 304/316L or carbon steel
Material Feature:
Heat Resistant
Structure:
Conveyor System
Place of Origin:
Henan, China
Brand Name:
CWJX
Voltage:
220v-480v
Power(W):
1-3kw
Dimension(L*W*H):
As per order
Certification:
SGS, BV,CE,ISO
Warranty:
12 month, 12 month
After-sales Service Provided:
Video technical support
Product name:
Stainless steel Soiral elevator
Power:
0.8kw-13kw
Frequency:
960rpm
Lifting hight:
8m
Color:
As you per
Model:
CWC-
Delivery Detail:
15 days after receiving the deposit for 1-5 sets
Port:
Qingdao, Yianjin, Shanghai
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden box package
Port
Qingdao, Tianjin, Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Product Description

The vertical vibration hoist is a new type of vertical vibration conveying equipment. This machine can transport all granular, blocky and powdery solid materials (less viscous). Widely used in the lifting of bulk, powder and short-fiber solid materials in mining, metallurgy, machinery, building materials, chemical, rubber, pharmaceutical, electric power, food, food and other industries, SC-type vibrating conveyors while lifting materials upwards Drying and cooling of the material can also be done. Separate trough type and closed type structure, and according to different process requirements, design the screening hoist for material particle grading and the hoist for designing flammable and explosive materials.

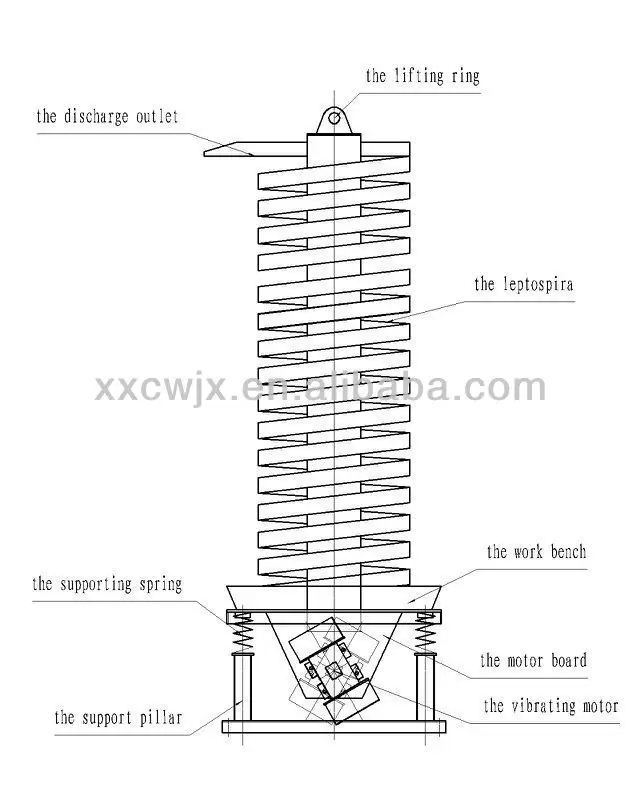

Structure diagram

working principle

The vibration motor of the SC series vertical vibration hoist is installed in the lower part of the conveyor tower. The two vibration motors are symmetrically cross-mounted. The conveyor tower consists of a pipe body and a spiral conveying groove welded around the pipe body. The conveyor tower is mounted on the vibration damping device. The damping device is composed of a base and a vibration isolating spring. When the vertical conveyor is working, according to the self-synchronization principle of the double vibration motor, the vibration force is generated by the vibration motor, forcing the entire conveying tower body to perform spatial composite vibration of horizontal circular motion and vertical vertical motion, and the material in the spiral groove is received by the conveying trough. The function is to make a circular motion of uniform throwing and move upward along the conveying trough body, thereby completing the upward (or downward) conveying operation of the material.

Technical Parameter


Model
Diameter of spiral chute (mm)
Lifting height
(m)
Speed (r/min)
Double amplitude (mm)
Power
(kw)
CWC300
300
≤4.0
960
6-8
2*0.4
CWC500
500
≤6.0
960
6-8
2*0.75
CWC600
600
≤8.0
960
6-8
2*1.5
CWC800
800
≤8.0
960
6-8
2*2.2
CWC900
900
≤8.0
960
6-8
2*3.0
CWC1200
1200
≤8.0
960
6-8
2*4.5
CWC1500
1500
≤8.0
960
6-8
2*5.5
CWC1800
1800
≤8.0
960
6-8
2*6.5

Main feature

1. When the vertical hoist is working, the return of the shelf does not occupy the working beat, the conveying efficiency is high, and it is not affected by the conveying speed.

2. Only parts can be delivered, and the material has a minimum size limit.

3. The bearing range is large, up to 2000Kg.

4. It is used together with the inlet and outlet conveying equipment to fully automate the conveying process and avoid the instability caused by manual operation.

5. Compact structure and small footprint.

6. Safe and reliable, easy to maintain, low operating costs, and effectively reduce transportation costs.

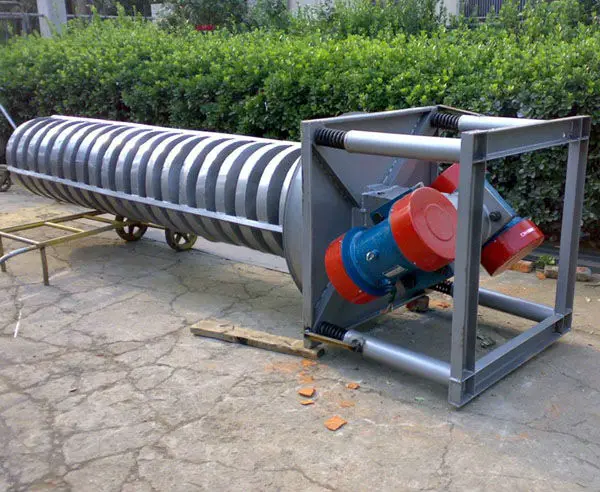

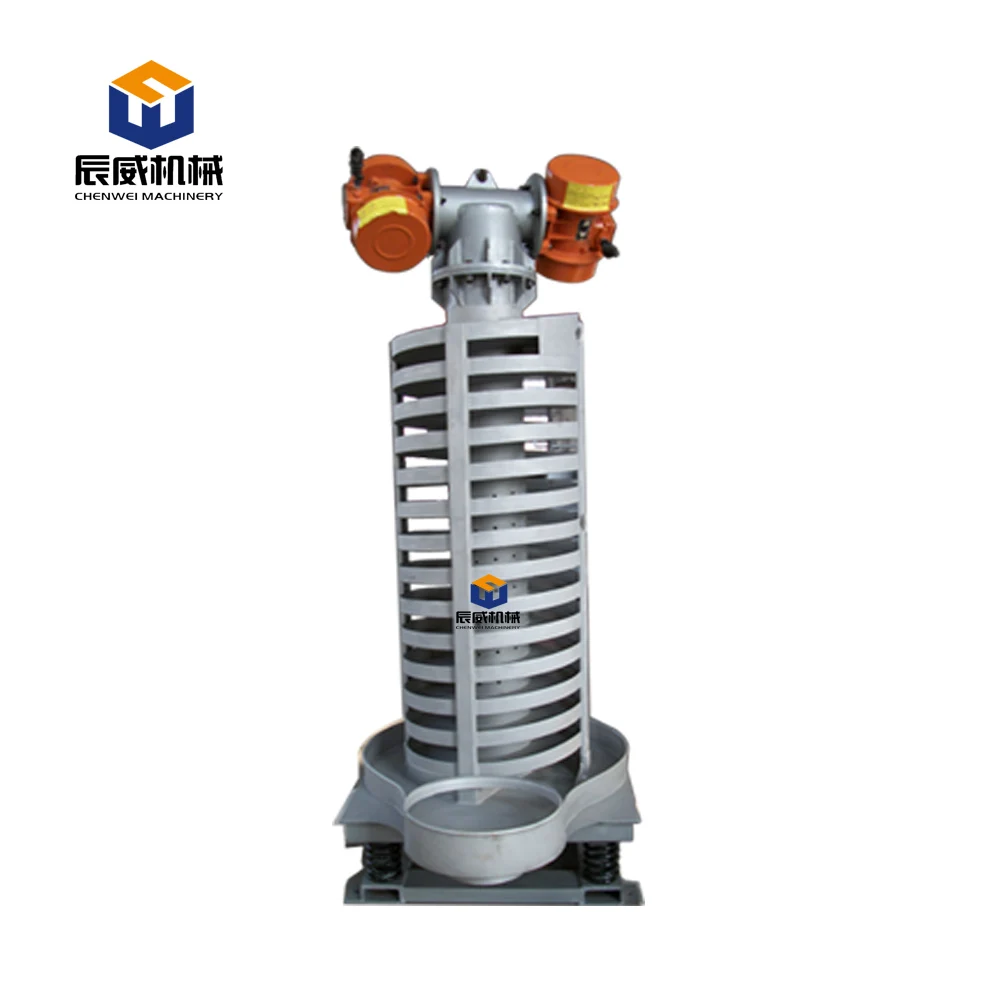

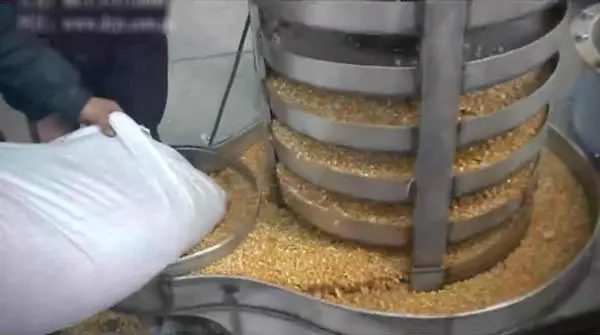

Detailed Images

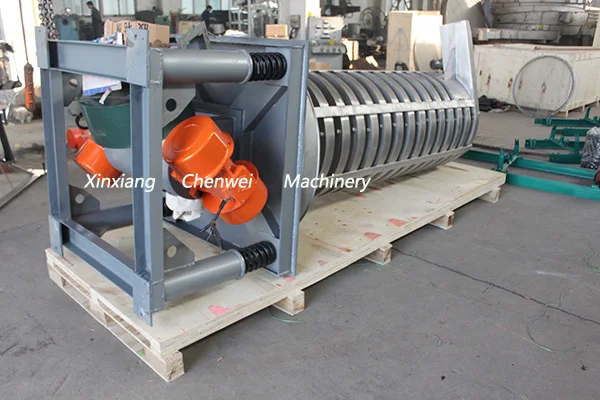

Packing & Delivery

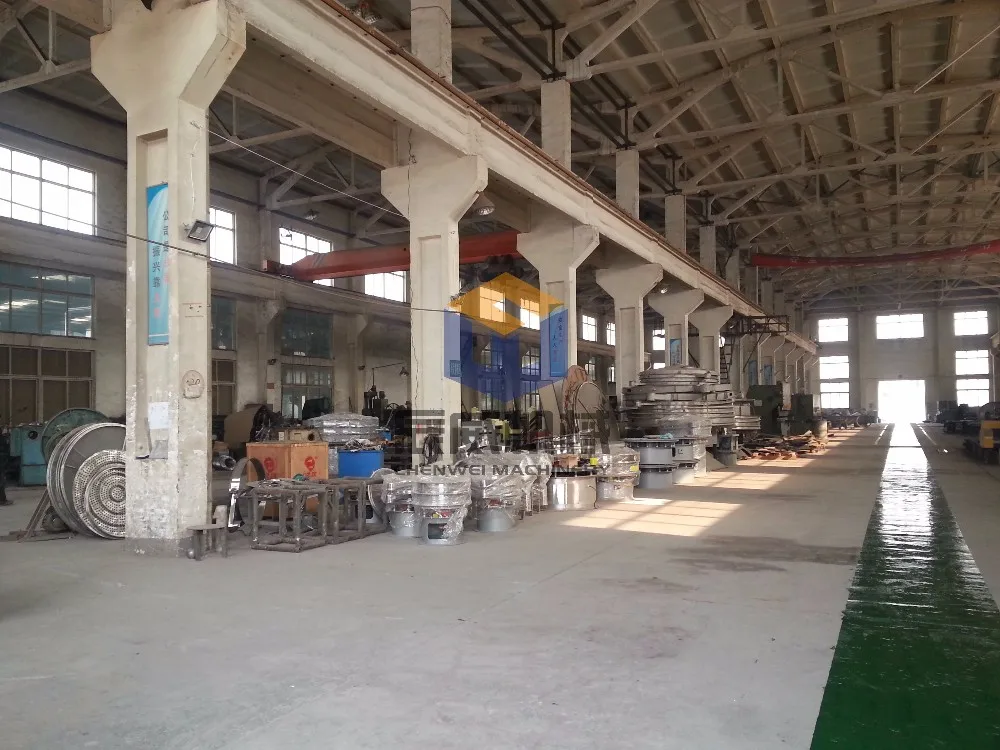

Our Company
Our Service

1. You can check our products on Alibaba.com before you sell. If you have any questions, please feel free to contact us.

2. We provide detailed video teaching installation during sales.

3. We have a one-year warranty after the sale.
