Vidrio de la vista del nivel del agua de la caldera refinado endurecido de borosilicato de nivel 3.3

  • 1-19 Pieces
    $6.00
  • 20-99 Pieces
    $5.98
  • 100-499 Pieces
    $5.78
  • >=500 Pieces
    $5.69
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Samples - $2.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Aohong
Model Number:
Plain
width:
30/34mm
thickness:
17mm
transparent:
plain
material:
borosilicate

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X5X6 cm
Single gross weight:
0.5 kg
Package Type:
Poly bubble film and white paper box, then in carton, or according to customer`s requirements.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 5000 >5000
Est. Time(days) 15 To be negotiated
Product Description

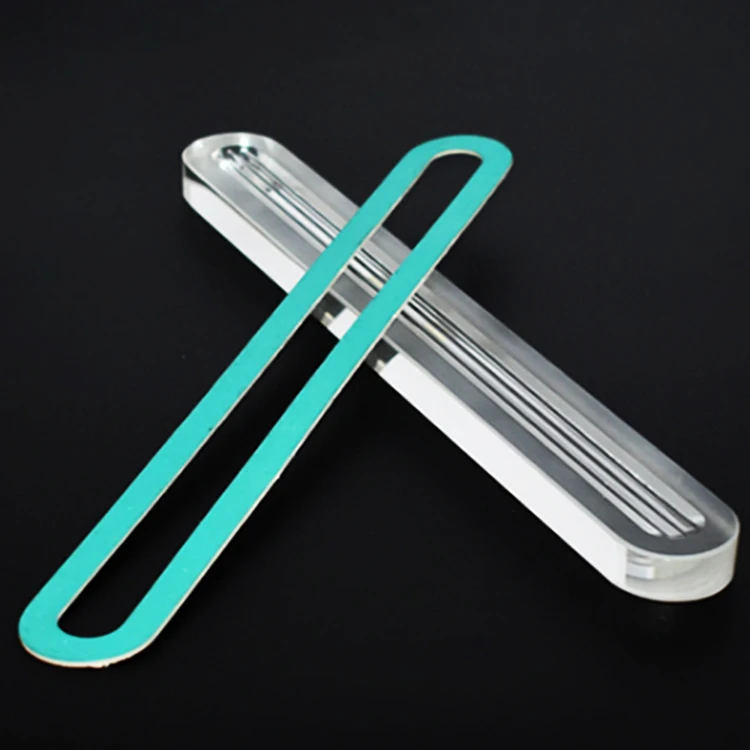

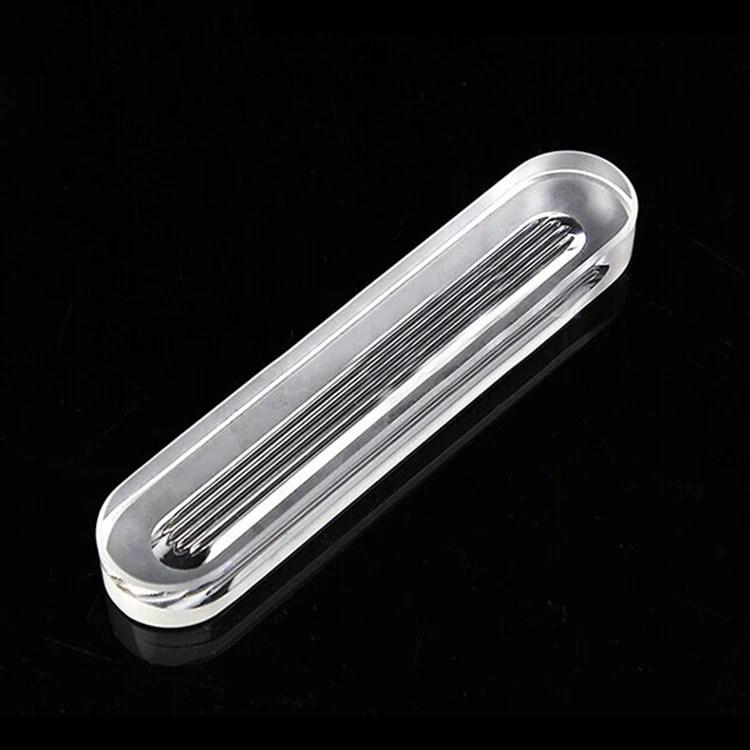

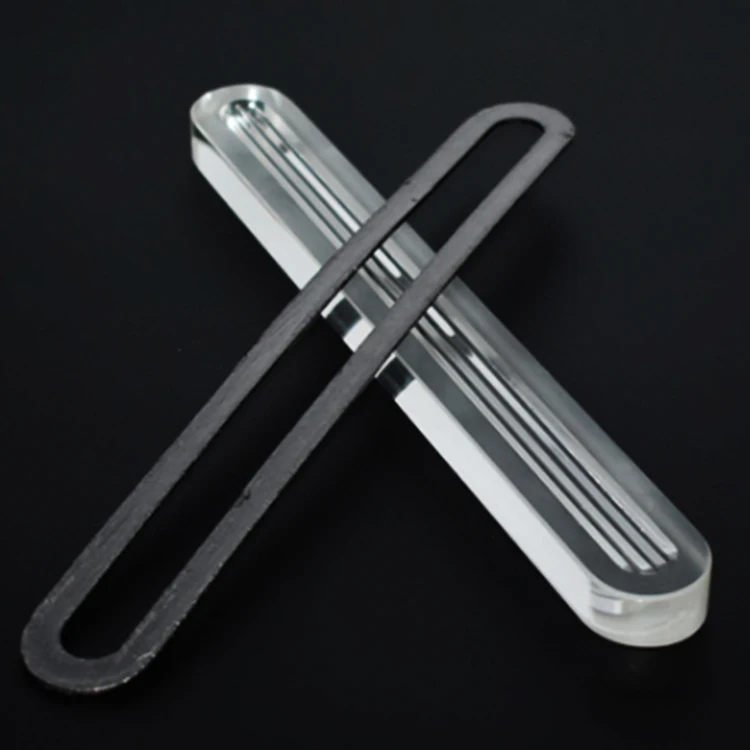

Vidrio de la vista del nivel del agua de la caldera Vidrio refinado endurecido de borosilicato de nivel 3.3

Reflex glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 4MPa and temperature up to 430 °C.

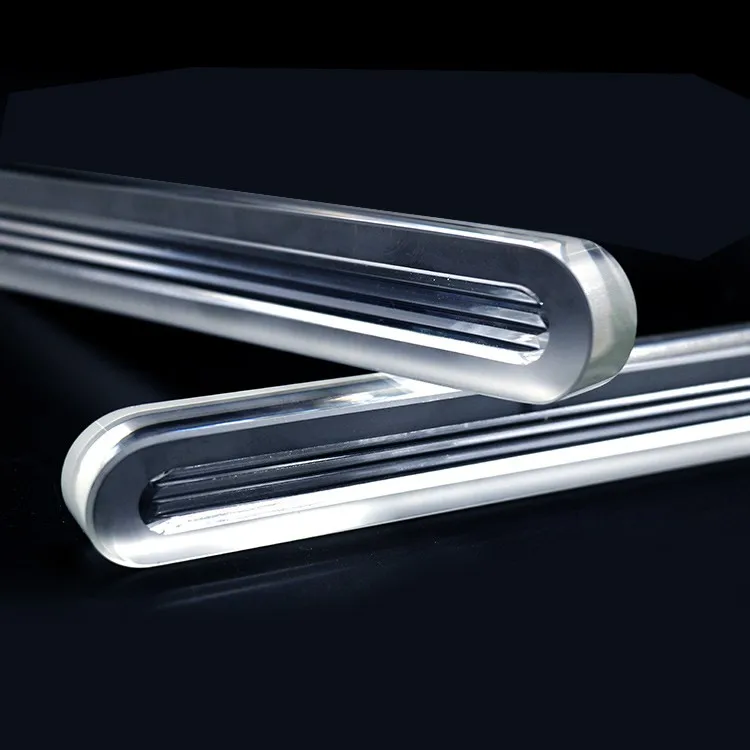

The side facing the medium chamber is provided with molded grooves set at 90°angles. The moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness.This makes it extremely resistant to the attack of boiler water.

It is used on level gauge of boiler for water position. It is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.
SIZE
Type A
Weight
L
B
S
g/pc
0
--
--
--
--
I
115
30
17
118
II
140
30
17
146
III
165
30
17
176
IV
190
30
17
200
V
220
30
17
237
VI
250
30
17
265
VII
280
30
17
303
VIII
320
30
17
334
IX
340
30
17
359
X
370
30
17
391
SIZE
Type B
Weight
L
B
S
g/pc
0
95
34
17
110
I
115
34
17
132
II
140
34
17
165
III
165
34
17
195
IV
190
34
17
228
V
220
34
17
264
VI
250
34
17
301
VII
280
34
17
338
VIII
320
34
17
387
IX
340
34
17
410
X
370
34
17
461
Detailed Images
Packing & Delivery

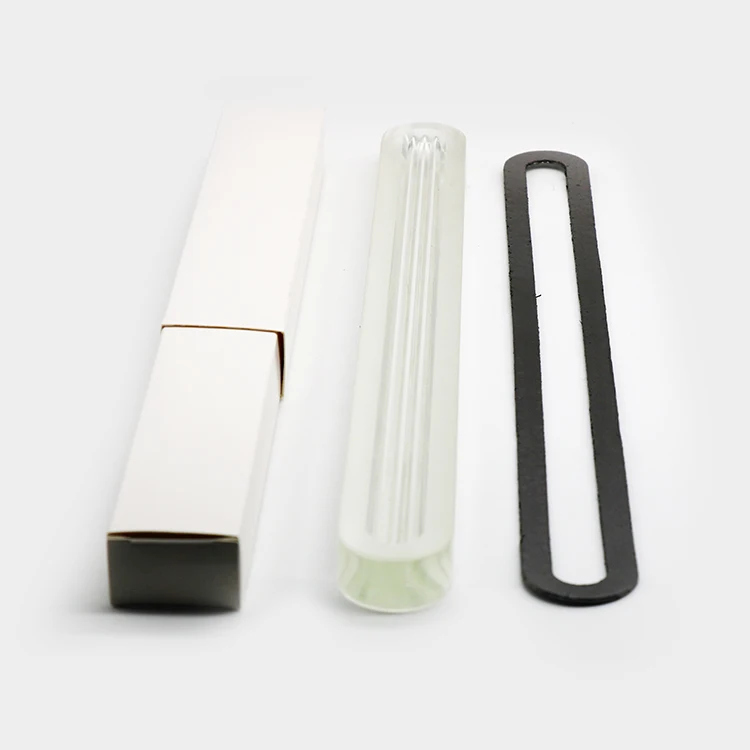

White paper box for each piece, 50 pieces in one carton, or as customer`s requirements

Our Company

Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.
Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.

Our factory is Hebei FuYuan Sealing Materials Co.,Ltd.
All of our products sell well in both domestic and international markets.
