Vortex Type Air Bubble Vegetable Fruit Washing Cleaning Machine

$16,800.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Video technical support
Place of Origin:
Guangdong, China
Brand Name:
Fengxiang
Model Number:
XWA-1300
Dimension(L*W*H):
4020x1710x1650mm
Power(W):
4.4kw
Weight:
730kg
Type:
washing machine
Condition:
New
Certification:
CE
Voltage:
220V/380V
Year:
2019
Applicable Industries:
Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops, fruit and vegetable factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
capacity:
1-3t/h
total volume:
1300L
filter tank volume:
760L
Product Certification certification
CE Certified.
Valid from 2015-11-20 until 2029-03-07

Packaging & Delivery

Selling Units:
Single item
Single package size:
250X155X180 cm
Single gross weight:
400.0 kg
Package Type:
standard export packing
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Vegetable and Fruit Washing Machine

This machine is used the natural mechanics principle of water flowing and scouring to ensure that the vegetables will not be damaged during the entire washing process, thus achieving the goal of industrialized standardized process of net vegetable processing.

It is used for the cleaning of materials to remove impurities and drains, and completely removes light or small heavy debris such as sediment, dust, pebbles, etc., and effectively kills and removes pesticide residues in the food material.



Product Description

 MACHINE SPECIFICATIONS:

DimensionVoltagePowerCapacityTotal VolumeTank Volume
4020*1710*1650mm220V/380V4.4kw1-3t/h1300L760L





ADVANTAGE:

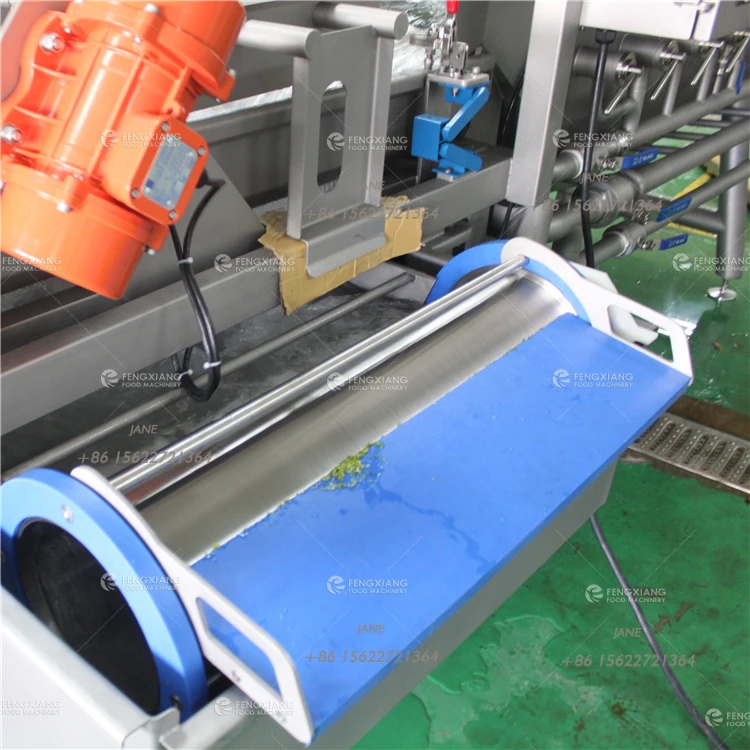

1. Automatic filter drum below: easy assembly and disassembly, easy clean, automatically filter and remove the  impurities.

(The three-time filtration precision filter can finely filter hair, insects and vegetable crumbs, making the circulating water cleaner.)




2. Impurity removal drum upper: 304 stainless steel drum motor, which can be used up and down.

(The initial coarse filtration separates, discharges and filters the surface floats.)




3. Sheet metal is made of 3mm full 304 stainless steel, some parts are up to 8mm. The brushed surface is easy to clean without leaving stains.




4. The machine has a valve that regulates the direction of the vortex, which can adjust the direction of vortex outside the cabinet without any tools, to adjust the cleaning time of the material. Each pipe has an independent valve to control the intensity of the vortex, which is suitable for all kinds of cut and chopped vegetables.




5. This machine is equipped with an easy-to-disassemble vibrating screen and a customizable mesh, which makes it easy to disassemble and to clean the water tank and screen. Vibration supporting system and motor adopt imported technology, which can effectively maintain both high frequency and low amplitude transportation, and protect the integrity of vegetables.




6. The special design of tank enables vegetables to be washed by 360 degree cyclic turnover. The bottom of the tank is equipped with a sedimentation tank, which can deposit part of the sand and gravel, effectively strengthen the intensity of the vortex, and better wash vegetables.






WORKING PRINCIPLE:

1. This machine makes use of the natural mechanics principle of water flow tossing and scouring, protecting vegetables from damaging in the whole washing process, so as to achieve the goal of industrialized and standardized process of washing vegetables.



2. It is used for washing, thoroughly removing light or small impurities(such as sediment, dust and pebbles) and dewatering. If ozone is added, it can effectively sterilize and remove pesticide residues within vegetables.

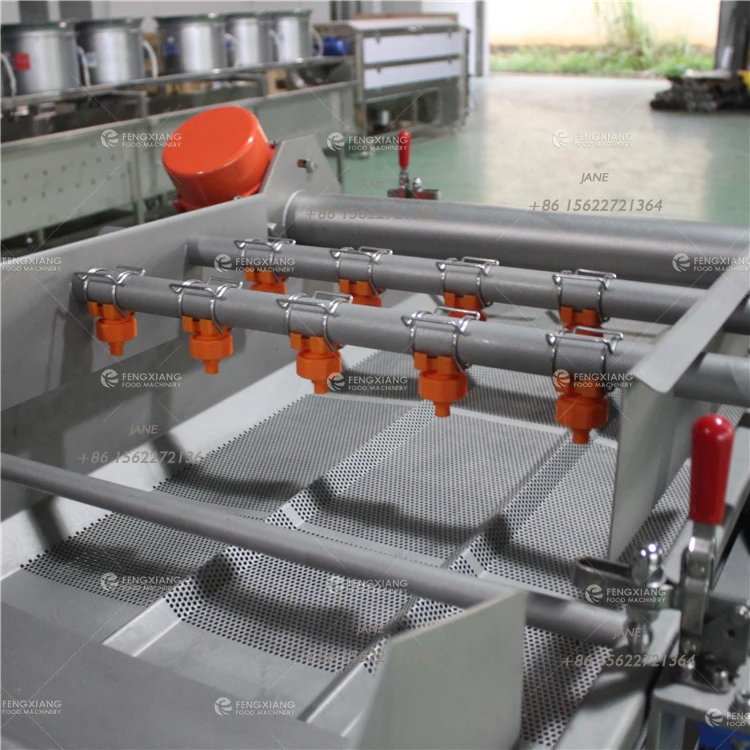

3. The inlet and both sides of the tank are equipped with nozzles, which are supplied by a high-pressure water pump. After spraying water through the nozzle, the water in the tank generates a cyclotron state; and the materials rotate forward through the water flow and be washed.



4. Materials are transported into the vibration leaching device, and water flows into the bottom tank through the orifice of the vibrating screen, thereby completing the circulation of the entire waterway.
